1. Introduction
Thank you for choosing the GGM Gastro ATK126 Premium Stainless Steel Work Table. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new work table. Please read these instructions carefully before use and retain them for future reference.
This work table is designed for professional use in commercial kitchens and food preparation areas, offering a durable and hygienic surface with additional storage.
2. Safety Instructions
- Always ensure the work table is placed on a stable, level surface to prevent tipping.
- Do not exceed the maximum load capacity. If using optional castors, the maximum load capacity is 250 kg.
- Exercise caution during assembly to avoid injury from sharp edges or heavy components. It is recommended to assemble with two people.
- Keep children and unauthorized personnel away from the work area during assembly and operation.
- Regularly inspect the table for any signs of damage or instability. Do not use if damaged.
- This product complies with European hygiene and safety directives and bears the CE mark. The material is food-grade compliant.
3. Product Overview
The GGM Gastro ATK126 is a premium stainless steel work table featuring a robust design suitable for demanding environments. It includes a base shelf and an intermediate shelf, both of which can be adjusted independently to suit your storage needs.

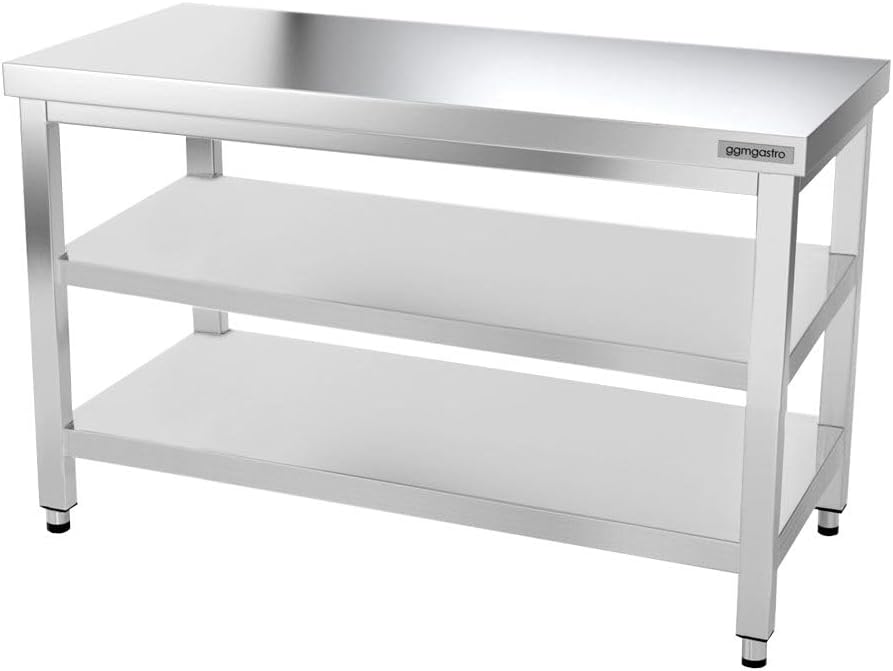

Figure 3.1: Front view of the GGM Gastro ATK126 work table, showcasing its stainless steel construction and two adjustable shelves.
Figure 3.2: Isometric view illustrating the overall dimensions of the work table: 1200 mm width, 600 mm depth, and 870 mm height.
Key Features:
- Premium stainless steel AISI 304 body.
- Reinforced work surface with MDF Omega.
- Double-walled stainless steel worktop.
- Square table legs (40 x 40 mm profile).
- Sound-insulated foot plates.
- Height-adjustable feet.
- Independent adjustment for base and intermediate shelves.
- Rounded corners for safety.
4. Assembly and Setup
The GGM Gastro ATK126 work table features a screwed construction for easy assembly. It is recommended to have two people for assembly.
4.1 Unpacking the Components
Carefully unpack all components and check against the packing list. Ensure all parts are present and undamaged. The package includes 1x base plate and 1x intermediate shelf.
4.2 Assembling the Frame
- Attach the square table legs to the main worktop using the provided screws. Ensure all connections are secure but do not fully tighten yet.
- Slide the base shelf into position. The shelves are designed to be independently adjustable.
- Slide the intermediate shelf into position.
- Once both shelves are in their desired positions, fully tighten all screws on the frame and shelves.
4.3 Adjusting the Feet
Figure 4.1: Detail of the height-adjustable feet, allowing for precise leveling of the work table.
The table features height-adjustable feet. Turn the foot plates clockwise or counter-clockwise to achieve the desired height and ensure the table is perfectly level. The adjustment range is approximately 30mm to 100mm.
Figure 4.2: Visual representation of the adjustable feet, showing minimum (30mm), optimal (70mm), and maximum (100mm) extension, affecting the overall table height from 830mm to 900mm.
4.4 Optional Accessories
The work table is designed to accommodate additional accessories such as drawers, drawer tables, and waste bins. These can be mounted as required (accessories sold separately).
5. Operation
The GGM Gastro ATK126 work table is designed for general food preparation and utility tasks in a commercial kitchen environment. Its robust stainless steel surface is ideal for various culinary activities.
- Utilize the main worktop for food preparation, plating, or holding equipment.
- The base and intermediate shelves provide convenient storage for ingredients, utensils, or small appliances. Adjust their height as needed to optimize space.
- Ensure that heavy items are distributed evenly across the worktop and shelves to maintain stability and prevent overloading.
6. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and hygienic operation of your stainless steel work table.
6.1 Daily Cleaning
- Wipe down all stainless steel surfaces with a soft cloth dampened with warm water and a mild, food-safe detergent.
- Rinse thoroughly with clean water to remove any detergent residue.
- Dry all surfaces completely with a clean, dry cloth to prevent water spots and maintain shine.
6.2 Periodic Maintenance
- Inspect all screws and connections periodically to ensure they remain tight. Tighten if necessary.
- Check the adjustable feet for wear or damage and ensure they are providing stable support.
- For stubborn stains or to restore shine, use a specialized stainless steel cleaner, following the product manufacturer's instructions.
Do Not Use: Abrasive cleaners, steel wool, or harsh chemicals (e.g., bleach, strong acids) as these can damage the stainless steel surface.
7. Troubleshooting
This section addresses common issues you might encounter with your work table.
7.1 Table is Unstable/Wobbly
- Cause: Uneven floor or feet not properly adjusted.
- Solution: Adjust the height of the individual feet until the table is stable and level. Ensure all feet are making firm contact with the floor.
- Cause: Loose screws.
- Solution: Check and tighten all assembly screws, especially those connecting the legs to the worktop and shelves.
7.2 Scratches on Stainless Steel Surface
- Cause: Abrasive cleaning materials or sharp objects.
- Solution: Minor scratches can sometimes be minimized with specialized stainless steel scratch repair kits. Always use soft cloths and non-abrasive tools for cleaning.
8. Specifications
Detailed specifications for the GGM Gastro ATK126 Premium Stainless Steel Work Table.
| Feature | Detail |
|---|---|
| Model | ATK126 |
| Dimensions (W x D x H) | 1200 mm x 600 mm x 870 mm (adjustable height) |
| Material | High-quality AISI 304 Stainless Steel |
| Worktop Reinforcement | MDF Omega |
| Leg Profile | Square, 40 x 40 mm |
| Shelves | 1x Base Shelf, 1x Intermediate Shelf (independently adjustable) |
| Adjustable Feet Height | Approx. 30 mm to 100 mm |
| Maximum Load Capacity (without castors) | Not specified, distribute weight evenly. |
| Maximum Load Capacity (with optional castors) | 250 kg |
| Compliance | CE Mark, European hygiene and safety directives, food-grade materials |

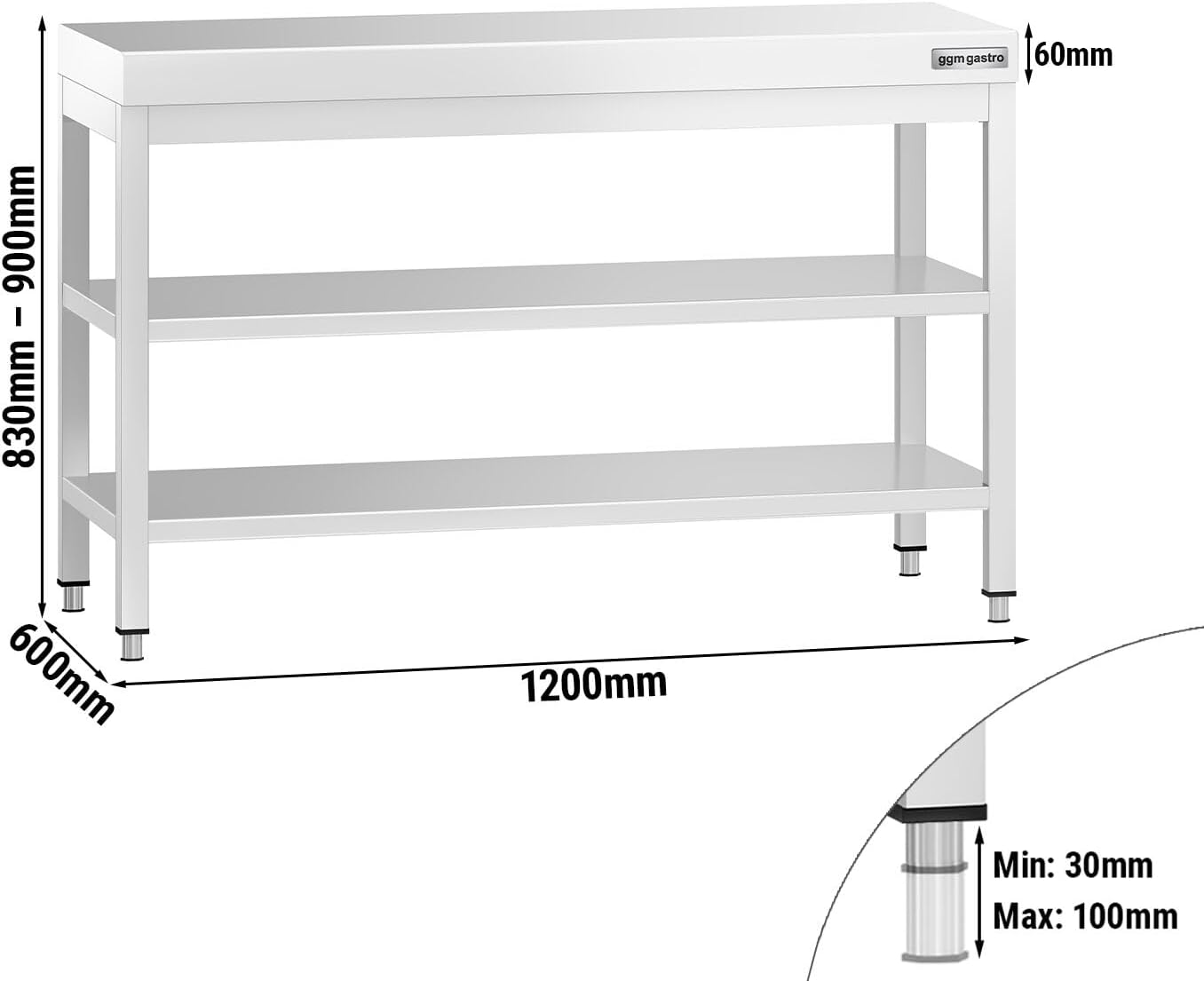

Figure 8.1: Overall dimensions of the GGM Gastro ATK126 work table, including width (1200mm), depth (600mm), and adjustable height (830-900mm).

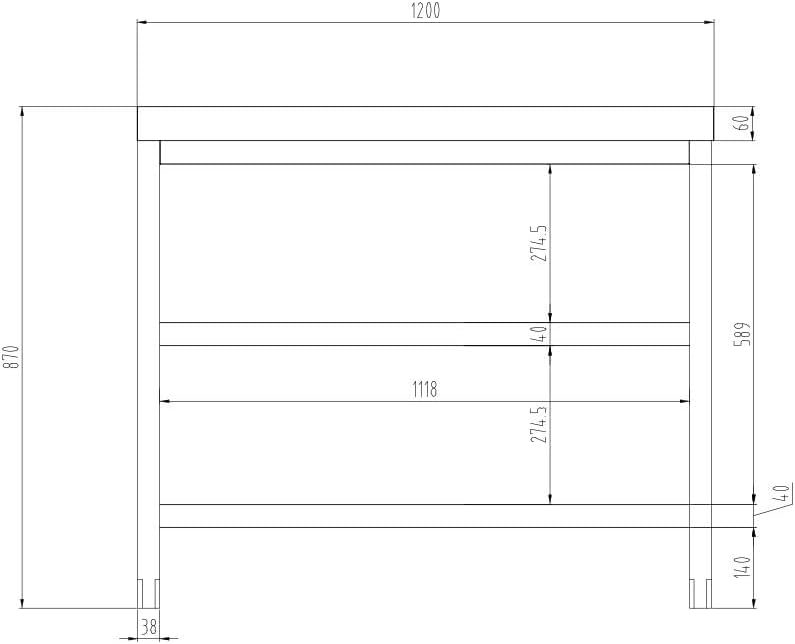

Figure 8.2: Side view technical drawing showing internal and external dimensions, including shelf spacing and leg profile.

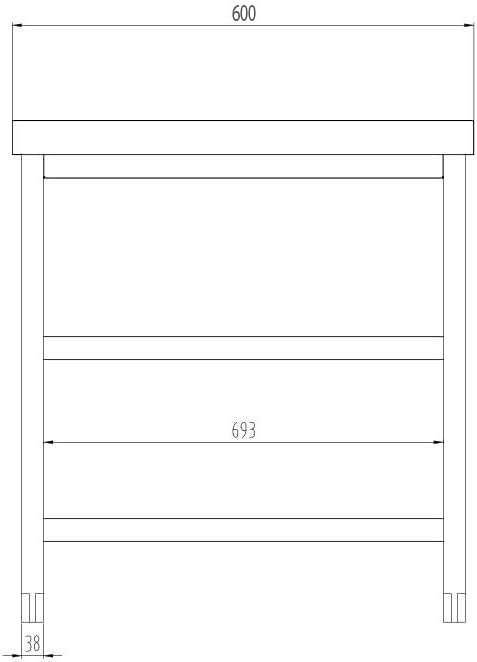

Figure 8.3: Front view technical drawing providing additional measurements for the work table structure.
9. Warranty Information
GGM Gastro products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official GGM Gastro website. Keep your proof of purchase for any warranty claims.
10. Customer Support
If you have any questions regarding the assembly, operation, or maintenance of your GGM Gastro ATK126 work table, please contact GGM Gastro customer support. Contact details can typically be found on the official GGM Gastro website or on your purchase invoice.
For spare parts availability, please note that information may be unavailable directly through Amazon. Refer to GGM Gastro's official channels for assistance.
