DOORTIAN Cordless Automatic Hair Curler User Manual

1. Introduction and Overview

Thank you for choosing the DOORTIAN Cordless Automatic Hair Curler. This innovative device is designed to provide effortless and beautiful curls with its automatic curling function, adjustable temperature and timer settings, and portable design. Please read this manual thoroughly before use to ensure safe and optimal performance.

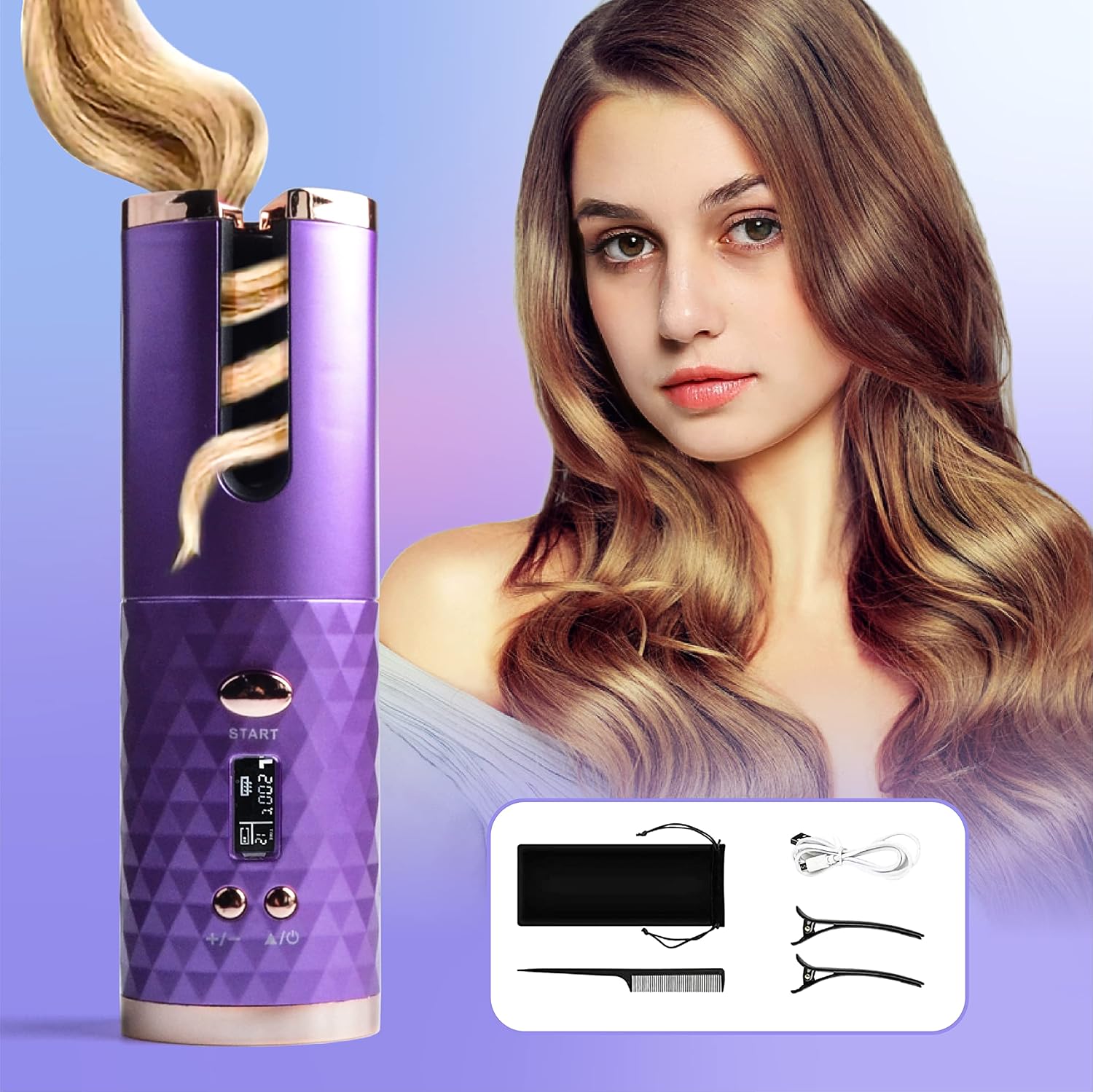

Image: The DOORTIAN Cordless Automatic Hair Curler in purple, showcasing its sleek design, included accessories, and the beautiful results it can achieve.

Image: The Cordless Automatic Hair Curler available in three distinct colors: Green, Purple, and Grey.

2. Safety Information

WARNING: To reduce the risk of burns, electrocution, fire, or injury to persons:

• Always use a 5V adapter for charging the hair curling iron. Using an incorrect adapter may result in slow charging or failure to charge.
• Do not use while bathing or in the shower.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• Do not reach for an appliance that has fallen into water. Unplug immediately.
• Close supervision is necessary when this appliance is used by, on, or near children or individuals with certain disabilities.
• Use this appliance only for its intended use as described in this manual.
• Keep the cord away from heated surfaces.
• Never use while sleeping.
• Never drop or insert any object into any opening.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Always comb your hair before use to keep it smooth and prevent tangling.
• The double insulated casing prevents burning your hands and face, making it safer to use.

Image: Visual representation of the anti-scalding design, USB charging capability, and the six available temperature settings.

3. Product Features

• Automatic Curling: One-touch automatic curling with 60-second fast heating.
• Smart Sensor System: Built-in chip stops the curler if hair is curled too much or incorrectly, preventing tangling and pulling.
• Adjustable Temperature: 6 temperature settings (300-390°F / 150-200°C) suitable for various hair types:
  • 300-320°F (150-160°C) for fragile hair
  • 340-360°F (170-180°C) for soft/healthy hair
  • 370-390°F (190-200°C) for coarse hair
• Adjustable Timer: 6 timer settings (8-18 seconds) for customized curl intensity.
• Direction Adjustment: Allows switching rotation direction (left/right) for symmetrical styling.
• Auto Shut-Off: Automatically switches off if not used within ten minutes for safety.
• Kink Protection: Designed to prevent kinks in hair during curling.
• LED Display: Clearly shows temperature, direction, timer, and remaining battery capacity.
• Portable & Rechargeable: Built-in 5000mAh battery, rechargeable via USB (car USB, laptop, mobile power). Provides up to 60 minutes of run time on a full charge (varies with settings).
• Stylish & Lightweight: Compact design for easy portability and travel.

Image: An internal view highlighting the intelligent induction motor that pauses operation to prevent tangling, and the automatic 10-minute shut-off for safety.

4. Package Contents

Upon opening your DOORTIAN Cordless Automatic Hair Curler package, you should find the following items:

• 1 x Cordless Automatic Hair Curler
• 1 x USB Charging Cable
• 1 x Hair Comb
• 2 x Hair Clips
• 1 x Storage Bag

Image: All components included in the package, featuring the curler, charging cable, comb, and hair clips.

5. Setup

Charging the Device

Before first use, fully charge your Cordless Automatic Hair Curler. A full charge typically takes a few hours. The LED display will indicate the charging status.

• Connect the provided USB charging cable to the charging port on the curler.
• Plug the other end of the USB cable into a 5V adapter (not included), a car USB port, a laptop, or a mobile power bank.
• The battery icon on the LED display will show the charging progress. Once fully charged, the icon will indicate a full battery.

Note: Only use a 5V adapter for charging. Using adapters with different voltage may damage the device or result in inefficient charging.

Image: The hair curler connected to a USB charging cable, demonstrating its portable charging capability.

6. Operating Instructions

Power On/Off

• Press and hold the Power button to turn the device ON or OFF.
• The LED display will light up when the device is on.

Setting Temperature and Timer

• Press the 'Menu' button to cycle through temperature (°C/°F), curl direction (L/R), and timer (seconds) settings.
• Use the '+' and '-' buttons to adjust the values for each setting.
• Select the appropriate temperature based on your hair type:
  • Fragile Hair: 300-320°F (150-160°C)
  • Soft/Healthy Hair: 340-360°F (170-180°C)
  • Coarse Hair: 370-390°F (190-200°C)
• Choose a timer setting from 8 to 18 seconds for desired curl tightness.

Image: A comprehensive guide to temperature and timer settings, illustrating the recommended heat levels for soft/fine, normal, and coarse/thick hair, along with the resulting curl types for different timer durations.

Curling Your Hair

• Ensure your hair is clean, dry, and thoroughly combed to prevent tangles.
• Take a small section of hair (about 1 inch wide) and insert it into the curling chamber. Ensure the hair is straight and not tangled.
• Press and hold the 'START' button. The hair will be automatically drawn into the curling chamber.
• Keep the button pressed until you hear a series of beeps, indicating the curling process is complete.
• Release the button and gently pull the curler away from your hair to reveal a perfect curl.
• Repeat for all sections of hair.

Image: An illustration demonstrating the multi-directional curl action, allowing users to select left (L) or right (R) rotation for curls that frame the face or create a uniform look.

Image: Examples of different hairstyles and curl types that can be easily achieved using the automatic curler, promoting versatile styling.

7. Maintenance

Cleaning

• Ensure the device is turned off and completely cooled down before cleaning.
• Wipe the exterior of the curler with a soft, damp cloth.
• Use a small brush (like a soft toothbrush) to gently clean any hair or debris from the curling chamber.
• Do not use harsh chemicals, abrasive cleaners, or immerse the device in water.

Storage

• Store the curler in a cool, dry place, away from direct sunlight and moisture.
• Use the provided storage bag to protect the device from dust and scratches.
• Keep out of reach of children.

8. Troubleshooting

If you encounter any issues with your DOORTIAN Cordless Automatic Hair Curler, please refer to the table below for common problems and solutions.

9. Specifications

Image: A summary of key product information including dimensions, battery capacity, voltage, temperature range, and available color variants.

10. Warranty and Support

DOORTIAN products are manufactured to the highest quality standards. For any warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official DOORTIAN website. Keep your purchase receipt as proof of purchase for warranty purposes.
