Introduction
This manual provides essential instructions for the safe operation, maintenance, and troubleshooting of your A-iPower SUA2700i Portable Inverter Generator. The SUA2700i is designed to provide reliable power with 2,700 starting watts and 2,200 running watts, featuring clean inverter technology suitable for sensitive electronics. Its 98cc OHV engine operates quietly at 54 decibels and offers an extended run time of 10.5 hours at 25% load with a 1.0-gallon fuel tank. The unit is equipped with a telescoping handle and wheels for easy transport.
Figure 1: Front-side view of the A-iPower SUA2700i Portable Inverter Generator.
Safety Information
Read and understand all safety warnings and instructions before operating this generator. Failure to follow these instructions may result in serious injury or death.
- Carbon Monoxide Hazard: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Operate the generator outdoors only, far away from windows, doors, and vents.
- Electrical Shock Hazard: Do not operate the generator in wet conditions. Ensure all electrical connections are dry and secure.
- Fire Hazard: Gasoline is highly flammable. Refuel in a well-ventilated area with the engine off and cooled. Do not smoke near the generator.
- Hot Surfaces: The generator's engine and muffler become hot during operation and remain hot for a period after shutdown. Avoid contact.
- Children and Pets: Keep children and pets away from the generator during operation.
Components Overview
Familiarize yourself with the main components of your SUA2700i generator.

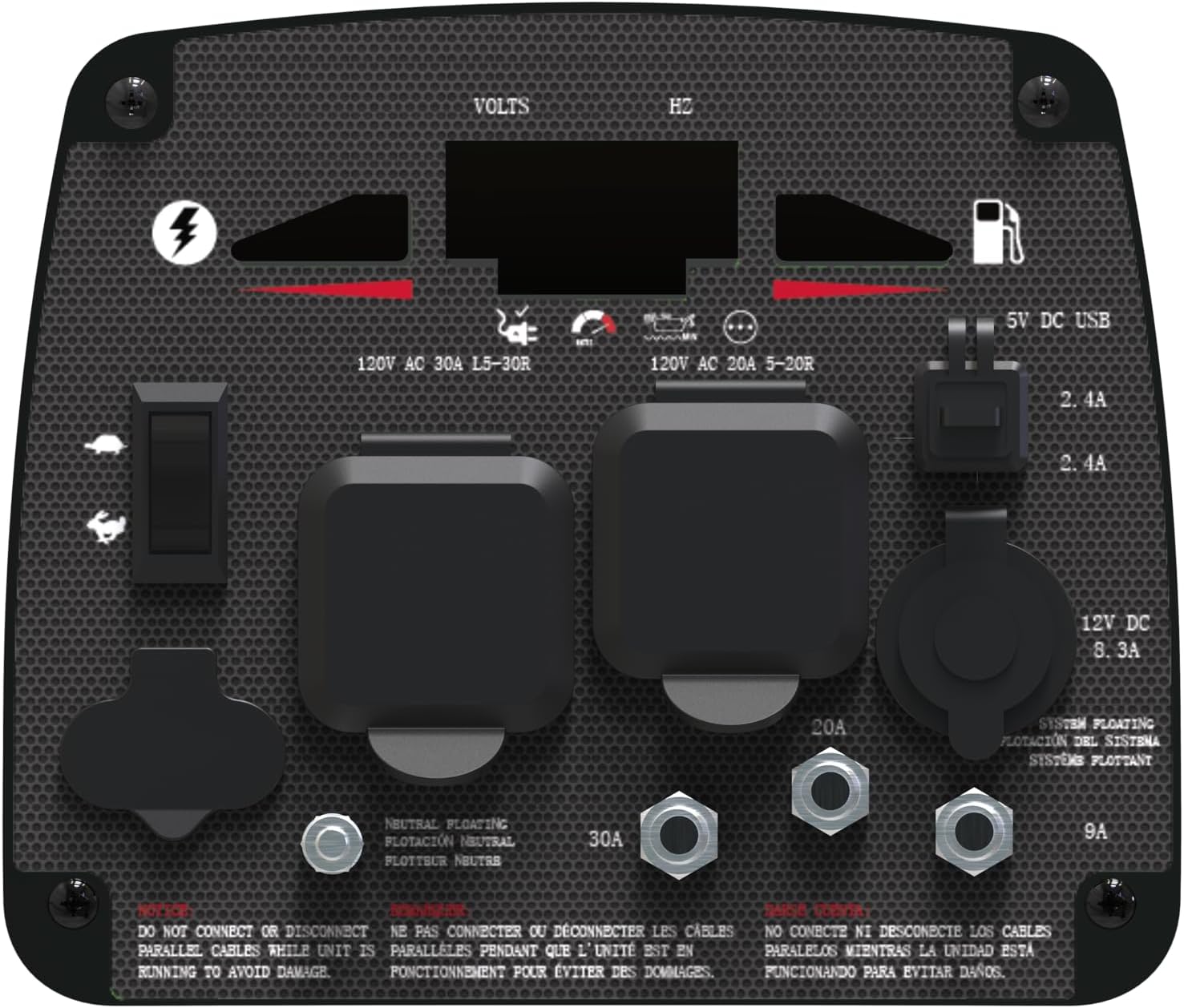

Figure 2: Detailed view of the control panel, showing various outlets and indicators.
Control Panel Features:
- Data Center Display: Provides information such as voltage and frequency.
- 1x L5-30R 30A 120V Outlet: For RV and higher power applications.
- 1x 5-20R 20A 120V Outlet: Standard household outlet.
- 1x 8.3A 12VDC Outlet: For charging 12V batteries.
- 2x USB 5V 2.4A Outlets: For charging sensitive electronic devices.
- Engine Switch: Controls engine operation.
- Economy Mode Switch: Reduces engine speed for improved fuel economy and quieter operation when power demand is low.
Included Components:
The following items are typically included with your generator:
- Engine Oil
- Oil Funnel
- Tool Kit
- 30A RV Adaptor
- 12VDC Battery Charging Cable
- Parallel Cables (for connecting two SUA2700i units)
- User Manual (this document)
- Quick Start Guide
Setup
Before first use, perform the following setup steps:
- Unpacking and Inspection:
Remove the generator from its packaging. Inspect for any shipping damage. Report any damage to your dealer immediately.
- Add Engine Oil:
The generator is shipped without engine oil. Place the generator on a level surface. Remove the oil fill cap/dipstick. Using the provided funnel, slowly add the recommended engine oil (SAE 10W-30 is typically recommended for general use) until it reaches the upper mark on the dipstick. Do not overfill. Refer to the oil capacity in the specifications section.
- Add Fuel:
Ensure the generator is off and cooled. Use fresh, unleaded gasoline with an octane rating of 87 or higher. Fill the fuel tank slowly to avoid spills, leaving a small air gap at the top. Do not overfill. Securely replace the fuel cap.
- Positioning the Generator:
Place the generator on a firm, level surface outdoors, at least 20 feet (6 meters) away from any buildings or other equipment. Ensure adequate ventilation and clear exhaust path.

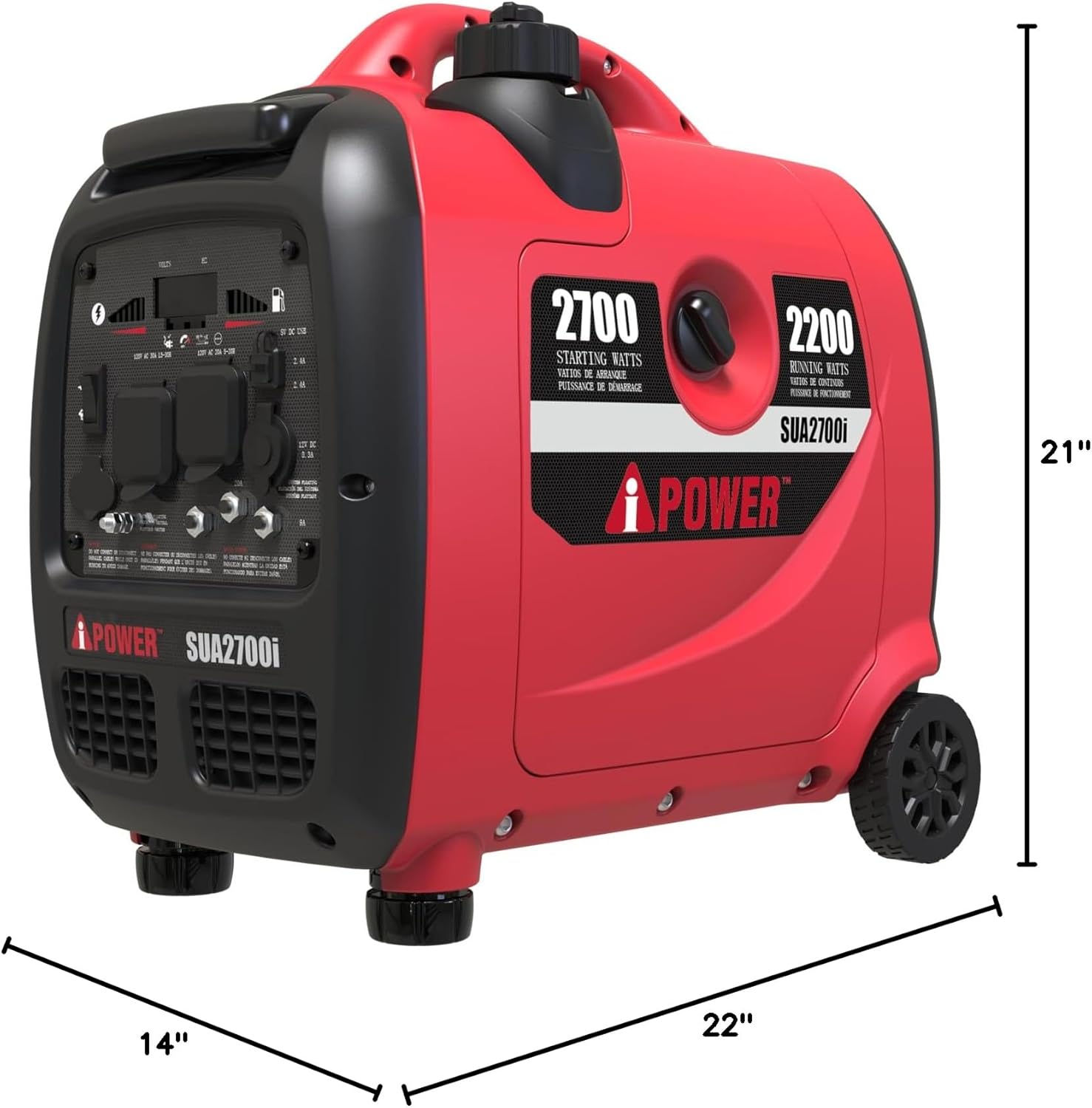

Figure 3: Generator dimensions for proper placement and storage.
Operating Instructions
Starting the Engine:
- Ensure the generator is on a level surface and all electrical loads are disconnected.
- Turn the fuel valve to the "ON" position.
- Move the engine switch to the "START" position.
- If the engine is cold, move the choke lever to the "CHOKE" position.
- Pull the recoil starter handle firmly and smoothly until the engine starts.
- Once the engine starts, slowly move the choke lever to the "RUN" position.
- Allow the engine to warm up for a few minutes before connecting electrical loads.
Connecting Electrical Devices:
- Ensure the generator is running stably.
- Plug your electrical devices into the appropriate outlets on the control panel.
- Do not exceed the generator's rated running wattage (2200W) or starting wattage (2700W).
- For sensitive electronics, ensure the Economy Mode is engaged for stable power output.
Stopping the Engine:
- Disconnect all electrical loads from the generator.
- Allow the engine to run for a few minutes without load to cool down.
- Turn the engine switch to the "OFF" position.
- Turn the fuel valve to the "OFF" position.
Parallel Operation:
The SUA2700i is parallel equipped and comes with parallel cables, allowing you to connect two identical SUA2700i units for increased power output. Refer to the dedicated parallel kit instructions for detailed setup and operation procedures. NOTICE: Do not connect or disconnect parallel cables while the unit is running to avoid damage.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your generator. Always turn off the engine and allow it to cool before performing any maintenance.
Maintenance Schedule:
| Item | First 20 Hours / Monthly | Every 50 Hours / 3 Months | Every 100 Hours / 6 Months | Every 300 Hours / Annually |
|---|---|---|---|---|
| Check Engine Oil Level | Check | Check | Check | Check |
| Change Engine Oil | Replace | Replace | Replace | |
| Clean Air Filter | Clean | Clean | Clean | |
| Inspect Spark Plug | Inspect | Replace | ||
| Inspect Fuel Filter | Inspect/Replace |
Storage:
For long-term storage (over 30 days), prepare your generator as follows:
- Drain the fuel tank and carburetor. Run the engine until it stops from lack of fuel.
- Change the engine oil.
- Remove the spark plug and pour a tablespoon of engine oil into the cylinder. Slowly pull the recoil starter a few times to distribute the oil, then reinstall the spark plug.
- Clean the exterior of the generator.
- Store in a clean, dry, well-ventilated area.
Troubleshooting
This section provides solutions to common operational issues. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel Low oil level Engine switch OFF Choke not set correctly Spark plug issue | Add fresh fuel Add engine oil Turn engine switch to START Adjust choke Inspect/clean/replace spark plug |
| No power output | Circuit breaker tripped Overload Economy mode engaged with high load | Reset circuit breaker Reduce connected load Disengage economy mode for higher loads |
| Engine runs rough | Stale fuel Dirty air filter Spark plug issue | Drain and refill with fresh fuel Clean/replace air filter Inspect/clean/replace spark plug |
Specifications
| Feature | Detail |
|---|---|
| Model Name | SUA2700i |
| Starting Wattage | 2700 Watts |
| Running Wattage | 2200 Watts |
| Engine Displacement | 98cc |
| Engine Type | 4-Stroke OHV |
| Fuel Type | Gasoline |
| Fuel Tank Volume | 1 Gallon |
| Run Time (25% Load) | 10.5 Hours |
| Noise Level | 54 dB |
| Voltage | 120 Volts |
| Total Power Outlets | 5 (1x L5-30R, 1x 5-20R, 1x 12VDC, 2x USB) |
| Product Dimensions (L x W x H) | 22" x 14" x 21" |
| Item Weight | 59.4 pounds |
| Special Features | Automatic Idle Control, Automatic Shut Down, Digital Display, Flat-Free Tire, Lightweight, Parallel Equipped |
Warranty and Support
Manufacturer's Warranty:
The A-iPower SUA2700i Portable Inverter Generator comes with a 2 Year Limited Manufacturer's Warranty. This warranty covers defects in materials and workmanship under normal use. Please refer to the warranty card included with your product for full terms and conditions, including limitations and exclusions.
Customer Support:
For technical assistance, warranty claims, or to order replacement parts, please contact A-iPower customer support. Contact information can typically be found on the A-iPower official website or on the warranty card.
You can also visit the A-iPower Store on Amazon for additional product information and support resources.
