QCY HT05 MeloBuds & HT07 ArcBuds User Manual

Introduction

Welcome to the user manual for your new QCY HT05 MeloBuds and HT07 ArcBuds. This guide provides detailed instructions to help you get the most out of your wireless earbuds, covering everything from initial setup to advanced features and troubleshooting. Please read this manual carefully before using the product.

What's in the Box

• QCY HT05 MeloBuds Earbuds (Left and Right)
• QCY HT07 ArcBuds Earbuds (Left and Right)
• Charging Case for HT05 MeloBuds
• Charging Case for HT07 ArcBuds
• USB-C Charging Cable
• User Manual (this document)
• Protective Case
• Multiple sizes of ear tips for optimal fit

Product Overview

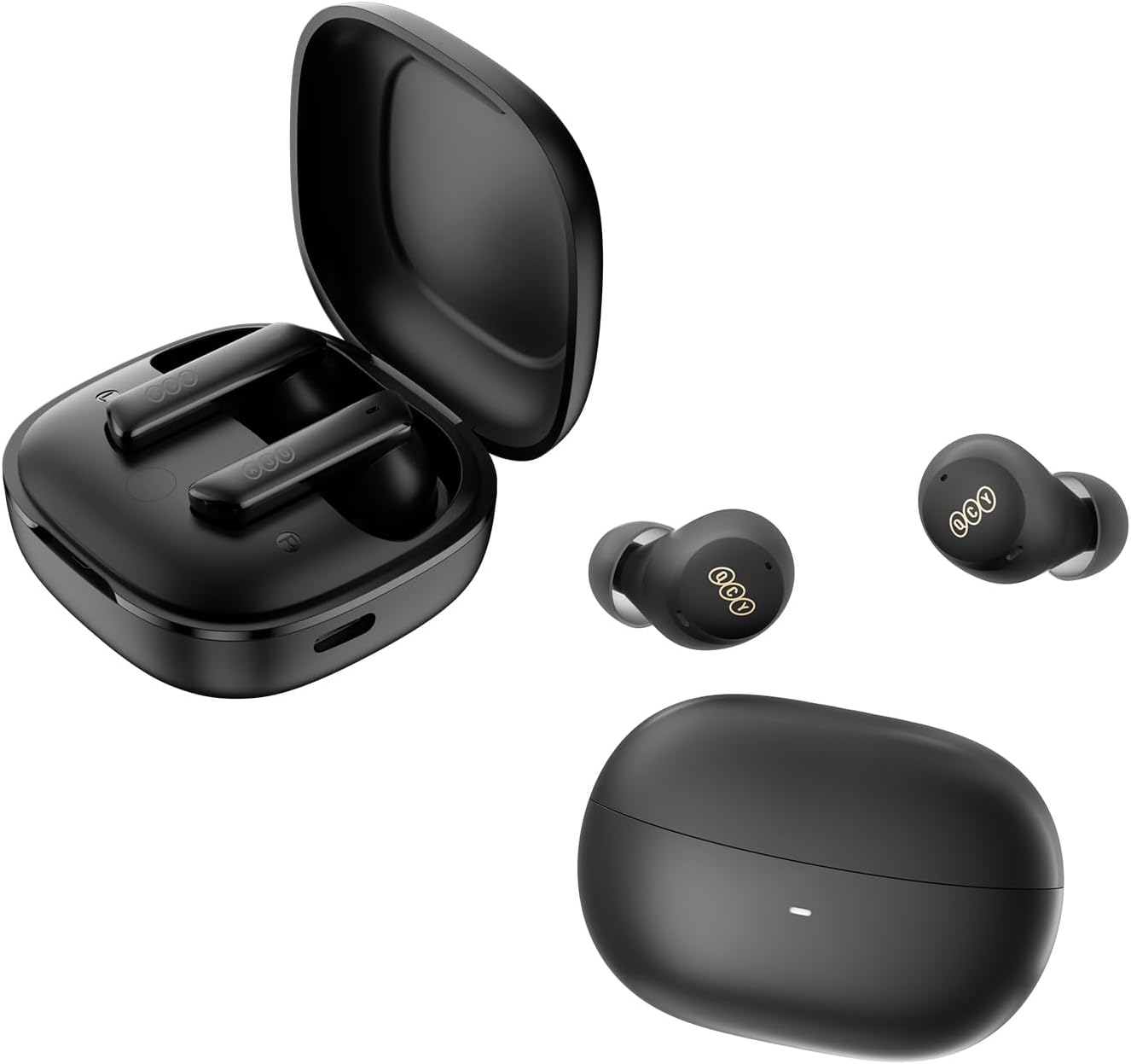

Figure 1: The QCY HT05 MeloBuds and HT07 ArcBuds, showcasing both sets of earbuds and their respective charging cases. The HT05 MeloBuds are in a square-shaped case, while the HT07 ArcBuds are in an oval-shaped case. Both earbuds and cases are black.

Key Features

• Multi-Mode Noise Cancelling: Offers Transport, Outdoor, and Indoor modes for optimized noise reduction in various environments.
• Immersive Sound: Equipped with 10mm LCP graphene dynamic drivers and DAIKOKU CCAW coil for powerful bass and clear audio.
• AI-Enhanced Call Performance: Features 6 microphones with an AI algorithm for precise voice pickup and background noise cancellation during calls.
• Innovative Wind Noise Reduction: Proprietary algorithm automatically activates to minimize wind interference during outdoor activities.
• Extended Battery Life: Up to 7.5 hours on a single charge, extending to 30 hours with the charging case. Supports wireless and USB-C quick charging.
• Touch Control: Intuitive touch controls for managing music, calls, and other functions.
• QCY App Support: Personalize sound settings, control modes, and customize touch functions via the QCY application.

Setup

1. Charging the Earbuds and Case

Before first use, fully charge both the earbuds and their respective charging cases.

1. Place the earbuds into their charging cases, ensuring they are correctly seated.
2. Connect the USB-C charging cable to the charging port on the case and the other end to a power source (e.g., USB wall adapter, computer USB port).
3. The indicator light on the case will show charging status. A full charge typically takes approximately 1.5-2 hours for the case.
4. The earbuds themselves can gain up to 2 hours of playtime with just 10 minutes of charging in the case.
5. Both cases support wireless charging for added convenience.

2. Pairing with Your Device

The earbuds will automatically enter pairing mode when taken out of the charging case for the first time.

1. Ensure the earbuds are charged.
2. Open the charging case lid (or remove earbuds from case). The earbuds will automatically power on and enter pairing mode.
3. On your smartphone or Bluetooth-enabled device, go to the Bluetooth settings.
4. Search for new devices. You should see "QCY HT05" or "QCY HT07" (or similar names) in the list of available devices.
5. Select the appropriate earbud model to connect. Once connected, a voice prompt will confirm the successful pairing.
6. If pairing fails, place the earbuds back into the case, close the lid, wait a few seconds, and then repeat the process.

Operating Instructions

Touch Controls

Figure 2: Illustration of the touch-sensitive area on the earbud stem, indicating where to tap for control.

Both the HT05 and HT07 earbuds feature intuitive touch controls. The specific functions can often be customized via the QCY App. Below are common default controls:

Note: Specific touch control functions may vary slightly between HT05 and HT07 models or be customizable through the QCY App. Refer to the app for the most up-to-date control scheme.

Noise Cancellation Modes

Figure 3: Visual representation of the three distinct noise cancellation modes: Transport, Outdoor, and Indoor, designed for optimized performance in different environments.

The QCY HT05 and HT07 earbuds offer a multi-mode active noise cancellation (ANC) system to adapt to your surroundings.

• Transport Mode: Ideal for reducing low-frequency noises like those found on airplanes, trains, or buses.
• Outdoor Mode: Designed to minimize ambient noise while still allowing you to be aware of your surroundings, suitable for walking or cycling.
• Indoor Mode: Best for reducing common indoor noises such as office chatter or air conditioning hum.

To switch between these modes, use the designated touch control (typically a long press on one of the earbuds, as indicated in the touch control table or customizable via the QCY App).

Sound Quality and Driver Technology

Figure 4: An exploded view illustrating the 10mm LCP Graphene Dynamic Driver and the DAIKOKU CCAW coil, key components for superior sound reproduction.

Both the HT05 and HT07 earbuds are engineered to deliver immersive sound with rich detail and powerful, punchy bass. This is achieved through the integration of a 10mm LCP (Liquid Crystal Polymer) graphene dynamic driver, complemented by a DAIKOKU CCAW (Copper-Clad Aluminum Wire) coil. This combination ensures a wide frequency response and high-fidelity audio reproduction.

AI-Enhanced Call Performance & Wind Noise Reduction

Figure 5: Diagram highlighting the placement of six microphones (Feedforward, Feedback, and Talking Microphones) on the earbud for AI-enhanced call clarity.

For crystal-clear calls, the earbuds are equipped with 6 microphones and an advanced AI algorithm. This system precisely picks up your voice while effectively blocking out background noise, making them ideal for calls, video chats, and live streams.

Figure 6: A cyclist wearing the earbuds, illustrating the effectiveness of the anti-wind noise feature, which provides resistance against strong wind up to 75km/h.

Additionally, a proprietary wind noise reduction algorithm automatically activates when wind speed reaches a certain threshold, ensuring uninterrupted audio and call quality during outdoor activities like cycling or running.

Battery Life and Charging

Figure 7: A visual representation highlighting the impressive total battery life of 30 hours when combining the earbuds' charge with the charging case.

Enjoy extended listening with up to 7.5 hours of music playback on a single charge. When used with the charging case, the total battery life extends to an impressive 30 hours. The earbuds and cases support both wireless charging and USB-C quick charging. A quick 10-minute charge can provide up to 2 hours of playtime.

QCY App for Personalized Sound

Figure 8: Screenshots of the QCY mobile application, demonstrating features like equalizer presets, audio intensity slider, noise reduction mode selection, and customizable touch controls for a personalized listening experience.

Download the official QCY App to unlock the full potential of your earbuds. The app allows you to:

• Customize equalizer settings and choose from various presets.
• Adjust audio intensity.
• Select and fine-tune noise reduction modes.
• Personalize touch control functions.
• Access firmware updates and other settings.

The QCY App is available for download on both iOS and Android app stores.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your QCY earbuds.

• Cleaning: Regularly clean the earbuds, especially the ear tips and charging contacts, with a soft, dry, lint-free cloth. Do not use harsh chemicals or abrasive materials.
• Ear Tips: Remove ear tips periodically and clean them with mild soap and water. Ensure they are completely dry before reattaching.
• Charging Case: Keep the charging case clean and free of dust. Use a cotton swab to gently clean the charging pins inside the case if necessary.
• Storage: When not in use, store the earbuds in their charging case to protect them and keep them charged. Avoid exposing them to extreme temperatures, humidity, or direct sunlight.
• Water Resistance: Note that these earbuds are Not Water Resistant. Avoid exposure to water, sweat, or rain to prevent damage.

Troubleshooting

If you encounter issues with your earbuds, try the following troubleshooting steps:

• Earbuds not pairing/connecting:
  • Ensure both earbuds are charged.
  • Place earbuds back into the case, close the lid, wait 5 seconds, then open the lid again.
  • Turn off and on Bluetooth on your device.
  • Forget/delete the earbuds from your device's Bluetooth list and try pairing again.
  • Try pairing with a different device to rule out device-specific issues.
• Only one earbud working:
  • Ensure both earbuds are charged.
  • Place both earbuds back into the charging case, close the lid, and then open it again.
  • Check if the earbuds are properly seated in the charging case and their charging contacts are clean.
  • Perform a factory reset (refer to QCY App or online resources for specific reset instructions for your model).
• Low volume or poor sound quality:
  • Adjust the volume on both your device and the earbuds.
  • Ensure ear tips are clean and properly sealed in your ear canal. Try different sized ear tips for a better fit.
  • Check if there's any debris blocking the earbud speaker mesh.
  • Disable any equalizer settings on your device or in the QCY App to see if it improves sound.
• Charging issues:
  • Ensure the charging cable is securely connected to both the case and the power source.
  • Try a different USB-C cable and power adapter.
  • Clean the charging contacts on both the earbuds and inside the case.
  • If using wireless charging, ensure the case is properly aligned on the charging pad.

If the issue persists after trying these steps, please contact QCY customer support.

Specifications

Warranty and Support

QCY products typically come with a limited warranty. Please refer to the warranty card included with your product or visit the official QCY website for detailed warranty terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact QCY customer service through their official website or the contact information provided in your product packaging.

QCY Official Website: www.qcy.com (Please note: This is a placeholder URL. Refer to your product packaging for the exact official support website.)
