Xanlite PRS1400D Compact Black Solar LED Wall Floodlight User Manual

Introduction

The Xanlite PRS1400D Compact Black Solar LED Wall Floodlight is an efficient and eco-friendly outdoor lighting solution. Designed for ease of use and durability, this floodlight features a motion sensor, providing 1600 lumens of 5000K cool white light. Its IP54 rating ensures resistance to weather conditions, making it ideal for illuminating balconies, gardens, and patios.

Safety Information

Please read all instructions carefully before installation and use. Retain this manual for future reference.

• Do not attempt to disassemble or modify the product. This may void the warranty and pose safety risks.
• Keep the product away from open flames or extreme heat sources.
• Ensure the mounting surface is stable and can support the weight of the floodlight.
• Dispose of the product and its components responsibly according to local regulations.
• This product is designed for outdoor use and is IP54 rated for water resistance. However, avoid submerging it in water.

Package Contents

Verify that all components are present before installation:

• 1x Xanlite PRS1400D Solar LED Wall Floodlight
• Mounting hardware (screws, wall plugs)
• User Manual (this document)

Setup

1. Choosing a Location

Select an outdoor location that receives direct sunlight for at least 6-8 hours daily. This ensures optimal charging of the solar panel and maximum light output at night. Avoid areas under eaves, trees, or other obstructions that might block sunlight or cast shadows on the solar panel.

2. Mounting the Floodlight

1. Mark the desired mounting points on the wall using the floodlight's base as a template.
2. Drill holes at the marked positions. Insert wall plugs if necessary.
3. Align the floodlight with the drilled holes and secure it firmly using the provided screws.
4. Adjust the angle of the solar panel to face the sun for optimal charging.
5. Adjust the angle of the floodlight head to direct the light to your desired area.

The Xanlite PRS1400D solar floodlight is shown mounted on a wooden slatted fence, demonstrating its compact design and integration into an outdoor environment. The solar panel is visible on top, angled to capture sunlight.

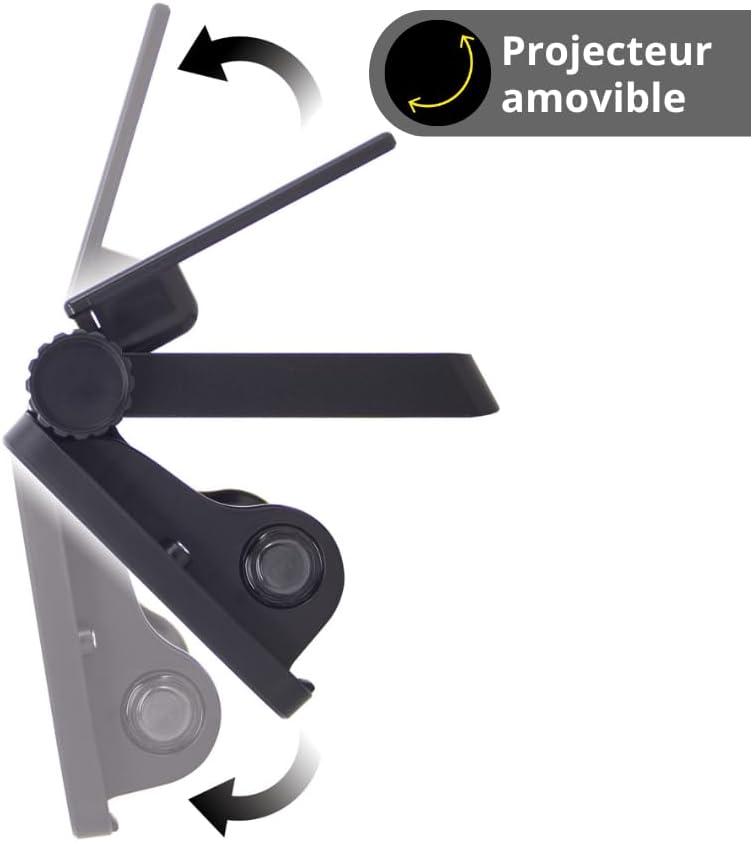

This image illustrates the adjustable head of the floodlight, allowing users to direct the light beam as needed. Arrows indicate the range of motion for the projector.

3. Initial Charge

Before first use, allow the floodlight to charge in direct sunlight for at least 1-2 full days. This ensures the internal battery is fully charged and ready for optimal performance.

Operating Instructions

The Xanlite PRS1400D floodlight operates automatically based on ambient light and motion detection.

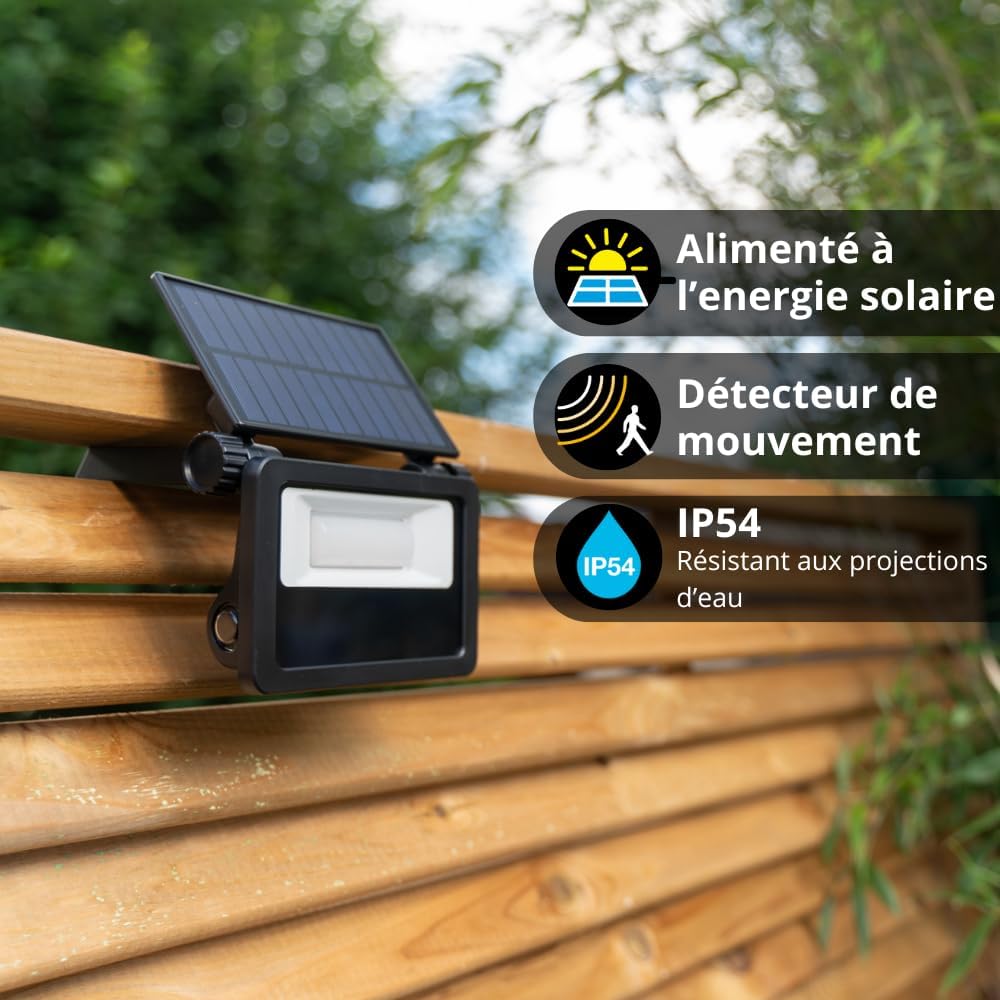

The floodlight is displayed with graphical icons emphasizing its key features: solar power for energy efficiency, a motion detector for automatic illumination, and an IP54 rating for resistance against water splashes, making it suitable for outdoor use.

Power Button and Mode Selection

The floodlight features a tactile button, typically located on the side of the unit. Press this button to cycle through available operating modes or to adjust light intensity if multiple settings are available. Refer to the product packaging or specific labels on your unit for detailed mode descriptions.

Motion Sensor Functionality

In its primary operating mode, the floodlight will automatically turn on at night when motion is detected within its sensor range. The light will remain on for a set duration (typically 15-30 seconds) after motion ceases, then dim or turn off to conserve battery power. Ensure the motion sensor is not obstructed for optimal performance.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your solar floodlight.

• Cleaning the Solar Panel: Periodically wipe the solar panel with a soft, damp cloth to remove dust, dirt, and debris. A clean panel ensures efficient charging.
• Cleaning the LED Surface: Gently clean the LED light surface with a soft cloth to maintain maximum light output.
• Battery Care: The integrated battery is designed for long-term use. For best results, ensure the floodlight receives adequate sunlight daily. Avoid prolonged storage in a discharged state.

Troubleshooting

If you encounter issues with your Xanlite PRS1400D floodlight, try the following solutions:

• Light does not turn on at night:
  • Ensure the solar panel is clean and receiving direct sunlight for sufficient charging.
  • Verify the floodlight is switched ON (if applicable, via the tactile button).
  • Check if the ambient light sensor is obstructed, preventing the light from activating in darkness.
  • Allow for a full 1-2 days of charging before initial use or after prolonged storage.
• Light stays on during the day:
  • The ambient light sensor might be obstructed or faulty. Ensure it is exposed to daylight.
• Motion sensor not detecting:
  • Ensure the sensor lens is clean and unobstructed.
  • Verify the floodlight is mounted at an appropriate height and angle for motion detection.
• Reduced light duration/brightness:
  • Insufficient solar charging due to cloudy weather, dirty panel, or poor placement.
  • The battery may be reaching the end of its lifespan (typically several years).

If these steps do not resolve the issue, please contact Xanlite customer support for further assistance.

Specifications

Warranty and Support

The Xanlite PRS1400D Solar LED Wall Floodlight comes with an extended warranty. For warranty claims, technical support, or any questions not covered in this manual, please contact Xanlite customer service. Keep your purchase receipt as proof of purchase.

For more information, visit the official Xanlite website or contact your retailer.
