ZKTOOL Engine Camshaft Alignment Locking Timing Tool Kit User Manual

1. Introduction

This user manual provides comprehensive instructions for the ZKTOOL Engine Camshaft Alignment Locking Timing Tool Kit. This specialized tool set is designed to accurately lock the camshaft, facilitate the removal or installation of the timing chain and timing belt, and ensure precise camshaft alignment during engine maintenance and repair procedures.

1.1. Compatibility

The ZKTOOL Engine Camshaft Alignment Locking Timing Tool Kit is compatible with Mercedes Benz M654, M656, and OM654 W213 1.6L and 2.0L diesel engines. This includes various Mercedes-Benz models:

• Mercedes-Benz A-Class (from 2019)
• Mercedes-Benz B-Class (from 2019)
• Mercedes-Benz C-Class (from 2018)
• Mercedes-Benz CLA (from 2019)
• Mercedes-Benz CLS (from 2018)
• Mercedes-Benz E-Class (from 2016)
• Mercedes-Benz GLB (from 2019)
• Mercedes-Benz GLC Coupe (from 2019)
• Mercedes-Benz GLE (from 2019)
• Mercedes-Benz V-Class (from 2019)
• Mercedes-Benz Vito (from 2019)

2. Kit Components

The ZKTOOL Engine Camshaft Alignment Locking Timing Tool Kit includes the following high-quality, hardened carbon steel tools, designed for durability and precision:

Image: All components of the ZKTOOL Engine Camshaft Alignment Locking Timing Tool Kit.

• Crankshaft Turning Tool: Used for rotating the crankshaft to align timing marks. Equivalent to OEM W654 589 00 40 00.
• Crankshaft Alignment Block and Pin: Essential for checking and maintaining front pulley timing alignment. Equivalent to OEM W654 589 00 21 00.
• Valve Timing Adjustment Tool: For precise adjustment of valve timing.
• Inlet and Exhaust Camshaft Holding Tool: Designed to hold the camshafts in place during timing procedures. Equivalent to OEM W654 589 01 40 00.
• Other necessary pins and adapters for comprehensive engine timing.

3. Setup and Preparation

Before beginning any work on the engine, ensure proper safety precautions are followed. Always refer to the vehicle manufacturer's service manual for specific procedures and torque specifications.

1. Ensure the vehicle is on a stable, level surface and properly supported.
2. Disconnect the vehicle's battery to prevent accidental starting.
3. Allow the engine to cool down completely before working on it.
4. Gather all necessary supplementary tools, such as wrenches, sockets, and torque wrenches.
5. Familiarize yourself with the specific engine components and their locations.

4. Operating Instructions

The following sections detail the use of each specific tool within the kit for various engine timing procedures. Always ensure the engine is at Top Dead Center (TDC) on the compression stroke for cylinder 1 before performing timing adjustments.

4.1. Using the Crankshaft Turning Tool

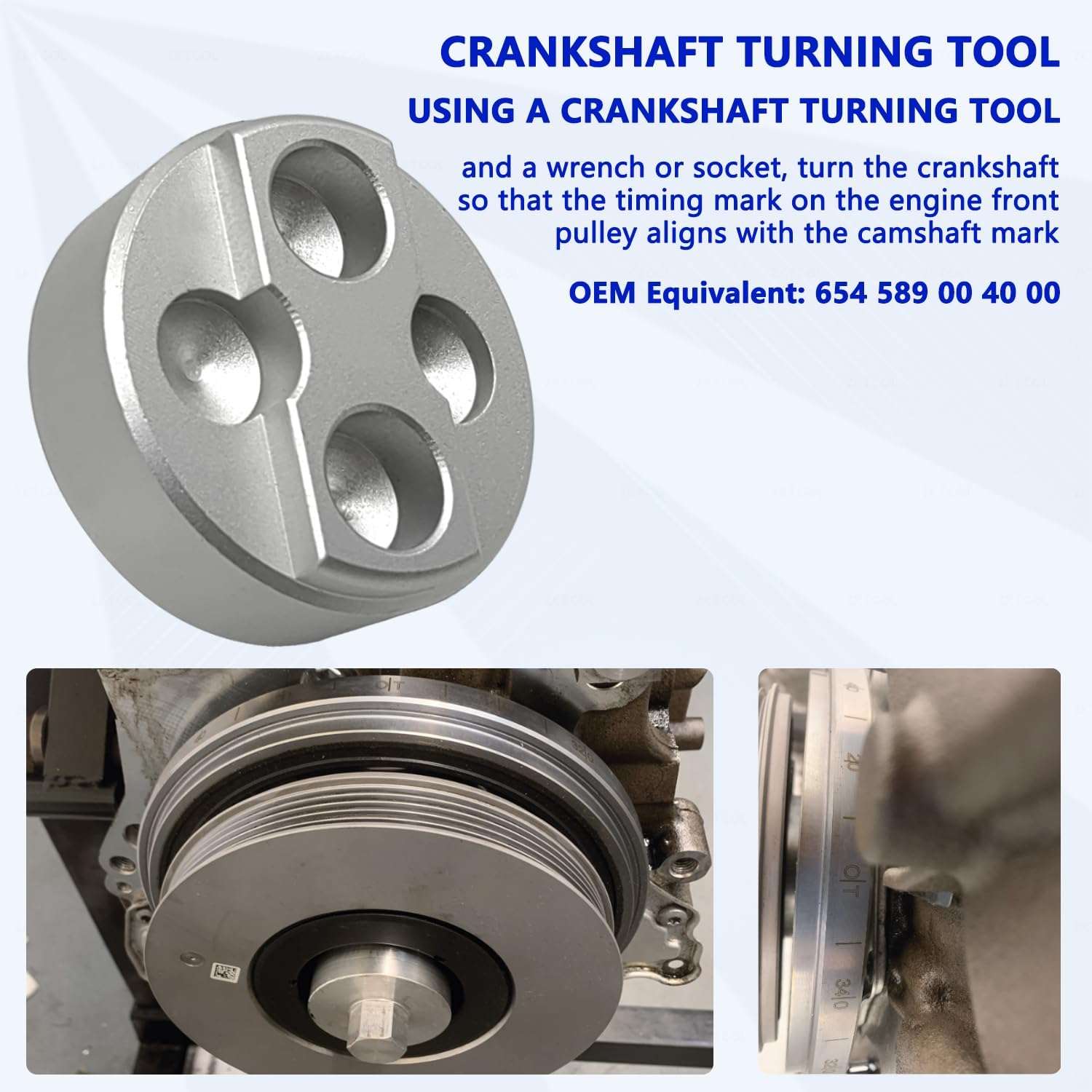

Image: The Crankshaft Turning Tool.

This tool is used to precisely rotate the crankshaft. It is crucial for aligning the engine's timing marks.

1. Locate the crankshaft pulley and its corresponding timing marks on the engine.
2. Attach the Crankshaft Turning Tool to the crankshaft.
3. Using an appropriate wrench or socket, carefully turn the crankshaft until the timing mark on the engine's front pulley aligns with the camshaft mark. This ensures the engine is at the correct timing position.

Image: Application of the Crankshaft Turning Tool, showing crankshaft pulley and timing marks.

4.2. Using the Crankshaft Alignment Block and Pin

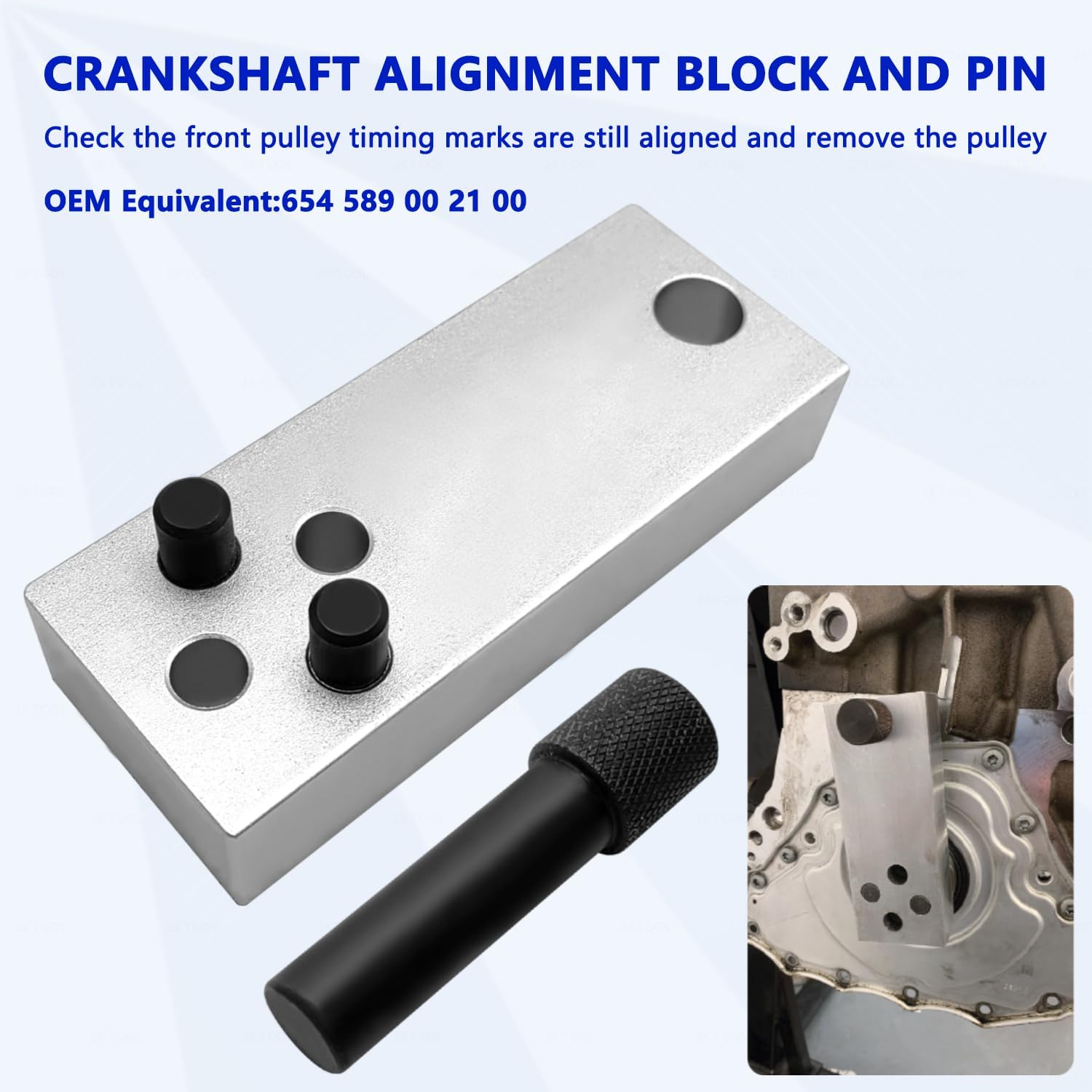

Image: The Crankshaft Alignment Block and Pin.

This tool is used to verify and maintain the alignment of the front pulley timing marks, particularly before removing the pulley.

1. After aligning the crankshaft using the turning tool, insert the Crankshaft Alignment Block and Pin into the designated location on the engine block.
2. Ensure that the front pulley timing marks remain perfectly aligned with the camshaft mark.
3. Once alignment is confirmed, the pulley can be safely removed if required for further service.

Image: Application of the Crankshaft Alignment Block and Pin.

4.3. Using the Valve Timing Adjustment Tool

Image: The Valve Timing Adjustment Tool.

This tool is designed for making precise adjustments to the valve timing, ensuring optimal engine performance.

1. Identify the valve timing adjustment points on the engine, as specified in the vehicle's service manual.
2. Carefully position the Valve Timing Adjustment Tool onto the designated components.
3. Make small, controlled adjustments to achieve the correct valve timing specifications. Always double-check alignment after adjustment.

Image: Illustrative application of the Valve Timing Adjustment Tool.

4.4. Using the Inlet and Exhaust Camshaft Holding Tool

Image: The Inlet and Exhaust Camshaft Holding Tool.

This tool is essential for locking the camshafts in their correct position, preventing rotation during timing chain or belt service.

1. Ensure the camshafts are aligned to their specified timing marks.
2. Position the Inlet and Exhaust Camshaft Holding Tool onto the camshafts, securing them firmly.
3. This tool will hold the camshafts in place, allowing for safe removal or installation of the timing chain/belt without losing timing.

Image: Application of the Inlet and Exhaust Camshaft Holding Tool on engine camshafts.

5. Maintenance and Storage

Proper maintenance and storage will extend the lifespan of your ZKTOOL timing kit.

• After each use, clean all tools thoroughly to remove any oil, grease, or debris. Use a clean cloth and a mild degreaser if necessary.
• Ensure all tools are completely dry before storing to prevent corrosion.
• Store the tools in their original protective case in a dry, cool environment, away from direct sunlight and moisture.
• Regularly inspect tools for any signs of wear, damage, or corrosion. Replace any damaged components immediately.

6. Troubleshooting

If you encounter issues while using the ZKTOOL timing kit, consider the following common points:

• Tool does not fit: Double-check the compatibility list to ensure the kit is suitable for your specific engine model (M654, M656, OM654). Verify that you are using the correct tool for the intended application.
• Difficulty aligning timing marks: Ensure the engine is at the correct position (e.g., TDC for cylinder 1). Refer to the vehicle's service manual for precise timing mark locations and procedures.
• Tools slipping: Ensure all tools are clean and free of oil or grease. Apply firm, even pressure when using the tools. Do not force tools into place.
• Tool damage: If a tool appears bent, cracked, or otherwise damaged, discontinue use immediately. Using damaged tools can lead to further damage to the engine or personal injury.

For persistent issues, consult a professional mechanic or contact ZKTOOL customer support.

7. Specifications

Image: Approximate dimensions of the ZKTOOL timing tool kit case.

8. Warranty and Support

ZKTOOL is committed to providing professional and comprehensive automotive repair tools and services. All tools undergo rigorous testing and adhere to factory quality control standards.

If you have any questions, concerns, or require assistance with your ZKTOOL Engine Camshaft Alignment Locking Timing Tool Kit, please do not hesitate to contact us via email. We are dedicated to providing the best possible solution and support.

Please refer to your purchase documentation for specific warranty terms and contact information.
