Astro-Energy TM-L800Mi Micro Inverter User Manual

1. Introduction

The Astro-Energy TM-L800Mi Micro Inverter is a powerful single-phase solution designed for residential photovoltaic systems, particularly suitable for balcony and rooftop installations. It efficiently converts DC power from solar panels into AC power for your home grid. Featuring independent MPPTs for optimized energy production and robust IP67 certification for durability, this micro inverter offers reliable performance and easy monitoring via the Solarman cloud platform and app.

2. Safety Information

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Installation should only be performed by qualified personnel.
• Do not attempt to repair or disassemble the micro inverter. Contact qualified service personnel.
• Ensure all electrical connections are secure and comply with local electrical codes.
• Disconnect all power sources before performing any maintenance or installation work.
• The micro inverter is designed for outdoor use and is IP67 rated, but avoid submerging it in water.
• Keep children away from the installation area.

3. Product Features

The Astro-Energy TM-L800Mi Micro Inverter offers advanced features for optimal solar energy conversion:

• High Efficiency: Converts DC power from 2 to 4 solar panels (400 to 670 Wp each) with a nominal output of 800 W/VA and a CEC efficiency of 96.5%.
• Independent MPPTs: Features two independent Maximum Power Point Trackers (MPPTs), one per module, ensuring intelligent optimization of production even with partial shading or different module alignments.
• Single-Phase Output: Ideal for residential roof and balcony installations with a 230V single-phase output.
• Compact Design: Reduces installation costs and simplifies setup.
• Enhanced Safety: Isolated transformer with rapid shutdown function increases electrical safety.
• Integrated Wi-Fi: 2.4 GHz Wi-Fi connectivity for seamless connection to your home network without additional investment.
• Real-time Monitoring: Monitor system performance and detect anomalies via the Solarman cloud platform and mobile application.
• Durable Construction: IP67 certified, providing resistance to harsh weather conditions.

Image: The Astro-Energy TM-L800Mi Micro Inverter highlighting its 800W power, 96.5% efficiency, Wi-Fi connectivity, and plug-and-play functionality.

4. Package Contents

Verify that all items are present and undamaged upon opening the package:

• Astro-Energy TM-L800Mi Micro Inverter
• AC Cable (5 meters)
• User Manual (this document)
• Mounting Accessories (if included)

Image: The Astro-Energy TM-L800Mi Micro Inverter, showing its compact design and various connection points.

Image: The included 5-meter AC cable, essential for connecting the micro inverter to the grid.

5. Setup and Installation

Installation of the Astro-Energy TM-L800Mi Micro Inverter should be carried out by a qualified electrician or solar professional. Ensure all local electrical codes and regulations are followed.

5.1. Mounting the Inverter

1. Choose a suitable location for mounting the micro inverter, typically on the solar panel frame or a nearby structure. Ensure adequate ventilation and protection from direct sunlight if possible, though the IP67 rating allows for outdoor exposure.
2. Use appropriate mounting hardware to securely attach the inverter.

5.2. DC Connection (Solar Panels)

1. Connect the DC cables from your solar panels to the corresponding input ports on the micro inverter. Ensure correct polarity (positive to positive, negative to negative).
2. The TM-L800Mi supports 2 to 4 solar panels, with each MPPT handling one or two panels depending on configuration.

5.3. AC Connection (Grid)

1. Connect the supplied 5-meter AC cable to the AC output port of the micro inverter.
2. Connect the other end of the AC cable to your home's electrical grid, typically via a dedicated circuit or a balcony socket, as per local regulations.
3. Ensure the AC connection is properly grounded.

Image: An illustrative diagram of a typical balcony solar system setup, showing solar panels connected to micro inverters and then to the household electrical system.

6. Operating Instructions

Once installed and connected, the Astro-Energy TM-L800Mi Micro Inverter will automatically begin converting solar energy into AC power when sufficient sunlight is available.

6.1. Monitoring with Solarman App

1. Download the Solarman App: Search for "Solarman" in your smartphone's app store (iOS or Android) and download the official application.
2. Create an Account: Follow the in-app instructions to create a new user account on the Solarman cloud platform.
3. Connect to Inverter Wi-Fi: The micro inverter has built-in 2.4 GHz Wi-Fi. Follow the app's instructions to connect your inverter to your home Wi-Fi network. This typically involves scanning a QR code on the inverter or entering its serial number.
4. Monitor Performance: Once connected, you can monitor your system's real-time energy production, historical data, and detect any anomalies directly from the Solarman app.

For detailed instructions on using the Solarman app, refer to the app's help section or the Solarman online platform.

7. Maintenance

The Astro-Energy TM-L800Mi Micro Inverter is designed for minimal maintenance due to its robust construction and IP67 rating. However, regular checks can ensure optimal performance and longevity.

• Visual Inspection: Periodically inspect the inverter and all cables for any signs of damage, wear, or corrosion. Ensure all connections are secure.
• Cleaning: If the inverter surface becomes dirty, gently wipe it with a damp cloth. Do not use abrasive cleaners or high-pressure water jets. Ensure the inverter is powered off before cleaning.
• Performance Monitoring: Regularly check the Solarman app for any alerts or significant drops in energy production, which could indicate an issue.
• Ventilation: Ensure that the area around the inverter is clear of obstructions to allow for proper heat dissipation, even though it uses natural convection cooling.

For any complex issues or repairs, contact qualified service personnel. Do not attempt to open the inverter casing.

8. Troubleshooting

If you encounter issues with your Astro-Energy TM-L800Mi Micro Inverter, refer to the following common troubleshooting steps:

If the issue persists after attempting these steps, please contact Astro-Energy customer support or your installer for further assistance.

9. Technical Specifications

Below are the detailed technical specifications for the Astro-Energy TM-L800Mi Micro Inverter:

Image: The official datasheet for the TM-L800Mi, providing comprehensive technical specifications.

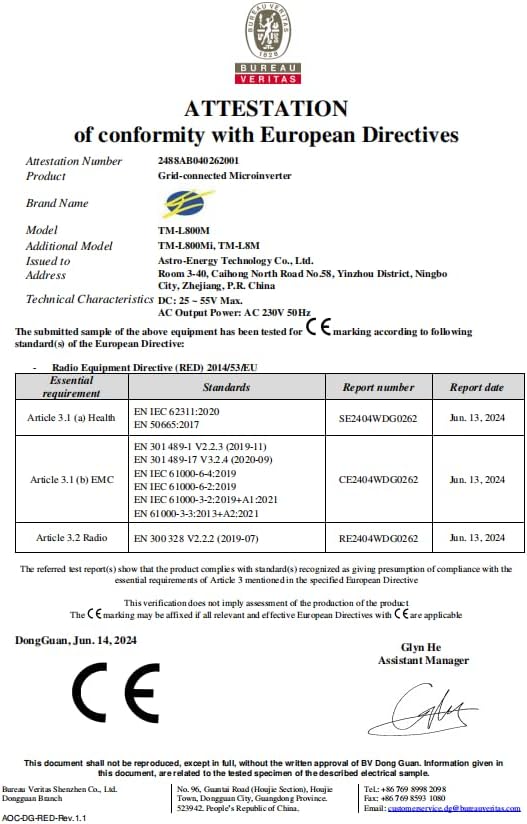

Image: Certification document from Bureau Veritas, confirming the micro inverter's conformity with European Directives.

Image: German Unit Certificate from Bureau Veritas, providing further certification details for the photovoltaic inverter.

10. Warranty and Support

Astro-Energy provides a standard warranty for the TM-L800Mi Micro Inverter. Please refer to the warranty card included with your product or visit the official Astro-Energy website for detailed warranty terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact Astro-Energy customer service:

• Manufacturer: Astro-Energy
• Website: www.astro-e.com
• Contact Information: Refer to the product packaging or official website for the most current contact details.

When contacting support, please have your product model number (TM-L800Mi) and serial number ready.
