ELYKEN 2-Tier Narrow Console Sofa Table with LED Strip Light and Charge Station Instruction Manual

1. Introduction

Thank you for choosing the ELYKEN 2-Tier Narrow Console Sofa Table. This product is designed to provide a functional and aesthetically pleasing addition to your living space, offering convenient storage, integrated power solutions, and customizable LED lighting. This manual contains important information regarding the safe assembly, operation, and maintenance of your new table. Please read it thoroughly before beginning assembly and retain it for future reference.

2. Safety Information

WARNING: This product requires assembly. Always follow the provided assembly instructions to ensure safe and secure installation. Do not exceed the maximum weight recommendation of 110 pounds to maintain stability and prevent accidents.

• Keep all packaging materials away from children.
• Ensure all screws and fasteners are tightened securely before use. Periodically check and re-tighten as necessary.
• Do not stand or sit on the table.
• Place the table on a flat, stable surface.
• Do not expose the electrical components (outlets, USB ports, LED strip) to water or excessive moisture.
• Use the included anti-tip device to secure the table to a wall, especially if placed in an area with children or pets, or if the table is not supported by a sofa.

3. Package Contents

Please verify that all components are present before assembly. If any parts are missing or damaged, please contact customer support.

• Tabletop Panels (2)
• Lower Shelf Panels (2)
• Metal Frame Legs (various pieces)
• Power Outlet Unit with 6.5' Extension Cord (2)
• LED Light Strip (2)
• Remote Control for LED Light Strip (2)
• Assembly Hardware (Screws, Allen Wrench)
• Anti-tip Device (2)
• Instruction Manual

4. Product Overview and Features

The ELYKEN 2-Tier Narrow Console Sofa Table is designed to maximize space and functionality behind your sofa or in narrow hallways. Key features include:

• Space-Saving Design: Narrow profile (5.9"D x 78.8"W x 39.4"H) fits behind sofas or in tight spaces.
• Integrated Power Station: Each table unit includes 2 standard 120VAC outlets and 2 USB ports, with a 6.5-foot extension cord for convenient device charging.
• Customizable LED Lighting: Adjustable LED light strip with 15 dimmable color options and 4 dynamic modes, controlled via remote.
• Two-Tier Storage: Provides ample space for displaying decorative items, books, or other essentials.
• Sturdy Construction: Blends engineered wood panels with a durable metal frame.

Image 4.1: The ELYKEN 2-Tier Narrow Console Sofa Table positioned behind a sofa, showcasing its blue LED lighting and two-tier design.

5. Assembly Instructions (Setup)

Assembly is designed to be quick and straightforward. No additional tools are required beyond what is provided.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all parts are present against the package contents list.
2. Assemble Metal Frames: Connect the various metal frame pieces according to the diagrams in the included tools guide. Ensure all connections are firm.
3. Attach Lower Shelves: Secure the lower shelf panels to the assembled metal frames using the provided screws.
4. Install Power Outlet Units: Place the power outlet units into the designated slots on the lower shelf panels and secure them.
5. Attach Tabletop Panels: Secure the tabletop panels to the top of the metal frames using the provided screws.
6. Install LED Light Strips: Adhere the LED light strips to the underside of the top shelf panels. Connect the USB plug of the LED strip to one of the USB ports on the power outlet unit.
7. Secure with Anti-tip Device: For enhanced stability, attach the anti-tip device to the rear of the table and secure it to a wall stud using appropriate hardware (not always included, may require separate purchase depending on wall type).
8. Final Check: Ensure all screws are tightened and the table is stable before placing any items on it.

Image 5.1: Dimensional diagram of the ELYKEN 2-Tier Narrow Console Sofa Table, illustrating its height, width, and depth.

6. Operating Instructions

6.1. Using the Integrated Charge Station

Each table unit is equipped with a power outlet unit featuring 2 standard 120VAC outlets and 2 USB ports. The unit has a 6.5-foot extension cord.

1. Plug the table's power cord into a standard wall outlet.
2. Connect your devices (phones, tablets, lamps, etc.) to the 120VAC outlets or USB ports as needed.
3. Ensure devices are compatible with the provided voltage and current.

Image 6.1: A close-up view of the integrated power outlet unit, showing a phone charging via USB and a power adapter plugged into an AC outlet.

6.2. Controlling the LED Light Strip

The LED light strip offers customizable illumination with a remote control.

1. Ensure the LED light strip's USB connector is plugged into one of the table's USB ports.
2. Point the remote control towards the LED receiver (typically located near the USB connection point).
3. Use the remote to:
   • Turn the lights ON/OFF.
   • Select from 15 dimmable color options.
   • Choose from 4 dynamic modes (e.g., Flash, Strobe, Fade, Smooth).
   • Adjust brightness levels.

Image 6.2: The remote control for the LED light strip, displaying buttons for color selection, brightness adjustment, and dynamic lighting modes.

Image 6.3: The console table illuminated with green LED lighting, enhancing the room's ambiance.

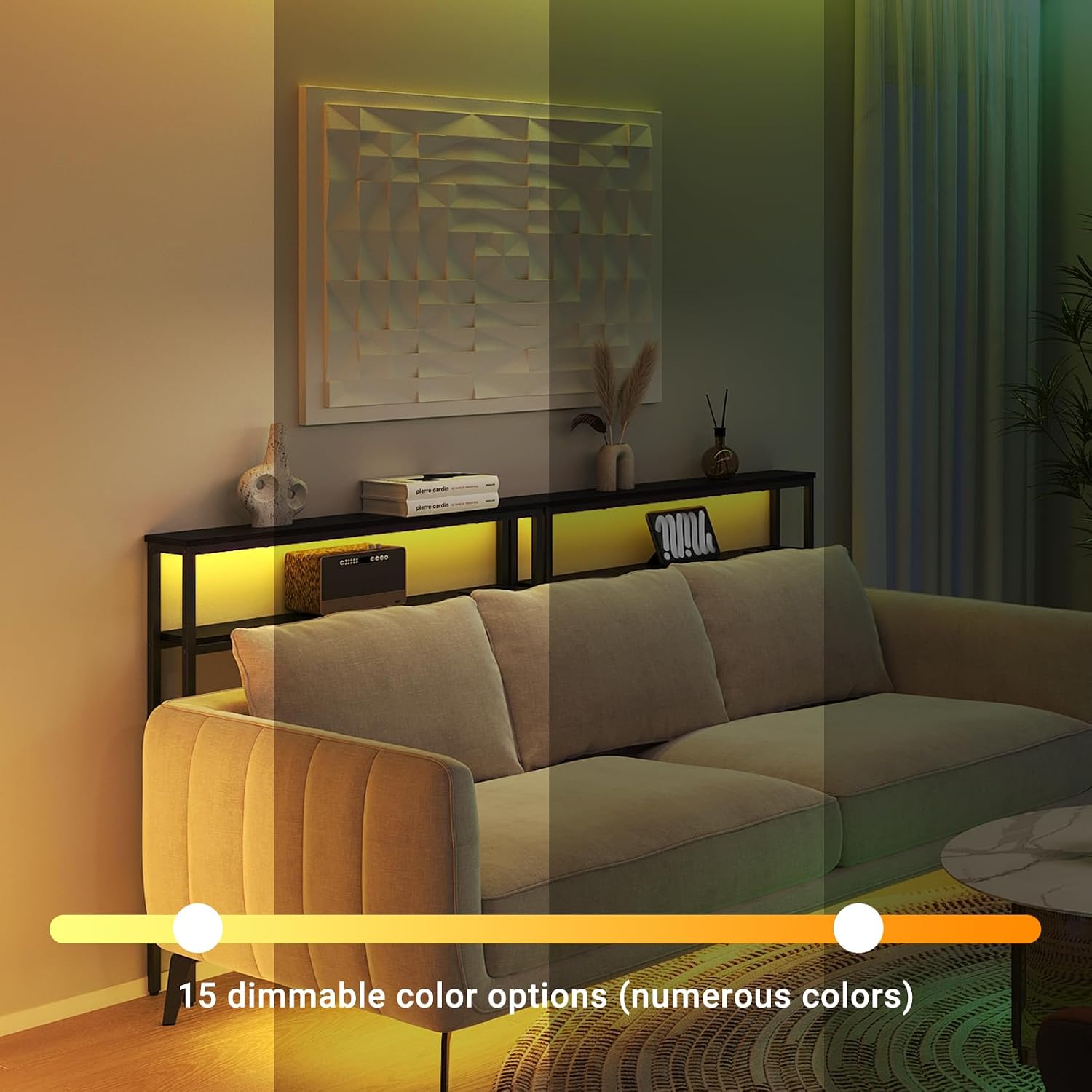

Image 6.4: The console table illuminated with warm yellow LED lighting, creating a cozy atmosphere.

7. Maintenance

Proper care will ensure the longevity and appearance of your ELYKEN console table.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Dusting: Regularly dust the table with a dry, soft cloth.
• Spills: Clean up spills immediately to prevent staining or damage to the wood panels.
• Fasteners: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.
• Electrical Components: Keep the power outlets and USB ports clean and free of debris. Do not attempt to disassemble or repair the electrical unit yourself.

8. Troubleshooting

If you encounter issues with your ELYKEN console table, refer to the following common solutions:

• Table is Unstable/Wobbly:
  • Ensure all assembly screws are fully tightened.
  • Verify the table is on a flat, even surface.
  • Utilize the anti-tip device to secure the table to a wall.
• Power Outlets/USB Ports Not Working:
  • Check if the table's main power cord is securely plugged into a functional wall outlet.
  • Test the wall outlet with another device to confirm it has power.
  • Ensure the device you are trying to charge is properly connected and functional.
• LED Light Strip Not Turning On/Responding to Remote:
  • Confirm the LED strip's USB connector is firmly plugged into a working USB port on the table.
  • Check the remote control's battery and replace if necessary.
  • Ensure there are no obstructions between the remote and the LED receiver.
  • Try unplugging and re-plugging the LED strip's USB connector.

If problems persist after attempting these solutions, please contact ELYKEN customer support.

9. Specifications

10. Warranty and Support

ELYKEN products are manufactured with quality and customer satisfaction in mind. For specific warranty details, please refer to the documentation included with your purchase or contact ELYKEN customer support directly.

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact our customer support team:

• Website: Visit the ELYKEN Store on Amazon
• Email: Refer to your product packaging for direct contact information.

Please have your product model (2-Tier Narrow Console Sofa Table) and ASIN (B0CR33DNXJ) ready when contacting support.
