MASKO MK-909 Gasoline Tiller User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your MASKO MK-909 Gasoline Tiller. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

The MASKO MK-909 gasoline tiller is designed for loosening soil, preparing seedbeds, weeding, and incorporating organic matter like fertilizers and peat into the soil. Its powerful 4-stroke engine and robust construction make it suitable for various garden sizes and soil conditions.

2. Safety Instructions

Always prioritize safety when operating power equipment. Failure to follow these instructions can result in serious injury or property damage.

• Read the Manual: Familiarize yourself with all controls and safety features before starting the tiller.
• Personal Protective Equipment (PPE): Always wear appropriate safety gear, including sturdy footwear, long pants, eye protection, hearing protection, and gloves.
• Work Area: Ensure the work area is clear of debris, stones, and other objects that could be thrown by the blades. Keep bystanders, children, and pets at a safe distance (at least 15 meters).
• Fuel Handling: Handle gasoline with extreme care. It is highly flammable. Refuel outdoors in a well-ventilated area with the engine off and cool. Do not smoke while refueling.
• Engine Operation: Never operate the engine indoors or in poorly ventilated areas due to carbon monoxide fumes.
• Blade Safety: The tiller blades are sharp and rotate at high speed. Never touch the blades while the engine is running. Ensure the engine is off and the blades have stopped completely before performing any adjustments or maintenance.
• Protective Cover: The tiller is equipped with a high-quality cover to protect against flying debris and stones. Ensure it is properly installed before operation.
• Stability: The solid steel frame ensures stability. Operate the tiller on stable ground and maintain a firm grip on the handles.

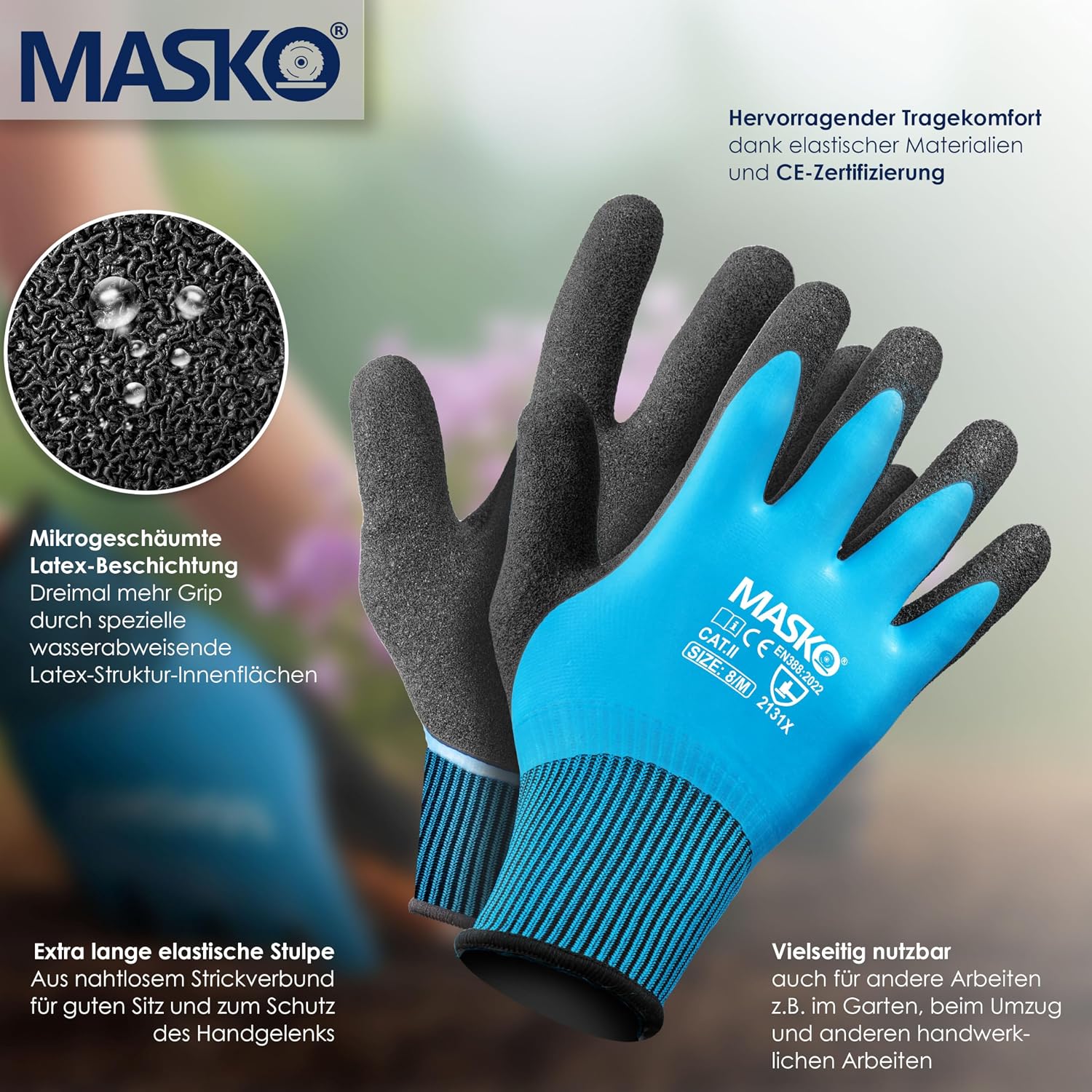

Figure 2.1: MASKO work gloves. Always wear appropriate hand protection during operation and maintenance.

3. Components Overview

The MASKO MK-909 tiller consists of several key components designed for efficient soil cultivation.

Figure 3.1: Overview of the MASKO MK-909 Gasoline Tiller. Key components include the engine, handles, blades, and transport wheel.

• Engine: Powerful 4-stroke gasoline engine.
• Handles: Ergonomic push handles with integrated control elements.
• Tiller Blades: 16 durable, hardened blades for effective soil turning.
• Protective Cover: Shields the operator from flying debris.
• Transport Wheel: Facilitates easy movement of the tiller and can be folded up during operation.
• Throttle Control: Manages engine speed.
• Starter: Pull-cord starter for engine ignition.

4. Assembly & Setup

Follow these steps for the initial assembly and preparation of your tiller.

1. Unpacking: Carefully remove all components from the packaging. Inspect for any shipping damage.
2. Handlebar Assembly: Attach the handlebars to the main unit using the provided hardware. Ensure all bolts are securely tightened.
3. Blade Installation: Securely attach the tiller blades to the axle. Refer to the diagrams for correct orientation.
4. Transport Wheel: Install the transport wheel. Ensure it can be easily raised and lowered.
5. Fueling: Fill the fuel tank with unleaded gasoline. Refer to the engine manual for specific fuel requirements.
6. Oil Filling: Add engine oil to the crankcase. Check the oil level using the dipstick and ensure it is within the recommended range. Do not overfill.
7. Pre-Operation Check: Before each use, check fuel and oil levels, ensure all fasteners are tight, and verify that the protective cover is correctly in place.

5. Operating Instructions

Proper operation ensures effective soil cultivation and prolongs the life of your tiller.

5.1 Starting the Engine

Figure 5.1: Engine controls including the pull-cord starter and throttle settings.

1. Fuel Valve: Open the fuel valve (if applicable).
2. Choke: Move the choke lever to the 'COLD START' position for a cold engine. For a warm engine, the choke may not be necessary.
3. Throttle: Set the throttle lever to the 'FAST' position.
4. Starting: Grasp the starter handle firmly and pull the rope slowly until resistance is felt, then pull quickly and smoothly. Repeat until the engine starts.
5. Warm-up: Once the engine starts, gradually move the choke lever to the 'RUN' position as the engine warms up.

5.2 Tilling Operation

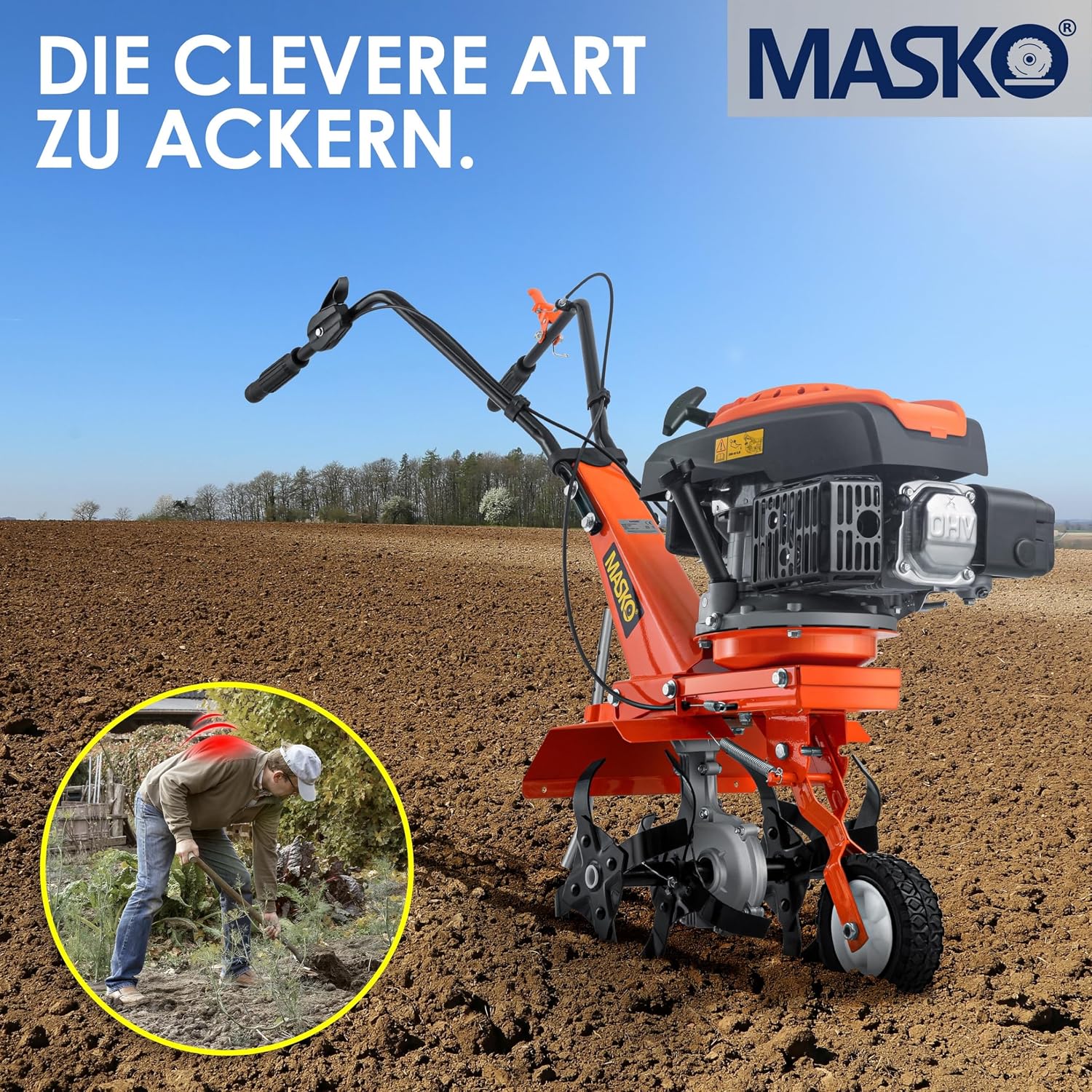

Figure 5.2: The tiller in operation, efficiently preparing soil.

Figure 5.3: The tiller aids in various stages of garden preparation, from loosening soil to preparing for sowing.

• Engage Drive: If your model has self-propulsion, engage the drive lever.
• Adjust Depth: The working depth can be adjusted up to 30 cm. For initial tilling of hard soil, start with a shallower depth and make multiple passes.
• Maintain Control: Hold the handlebars firmly. Allow the tiller to move forward at a comfortable pace. Do not force the machine.
• Overlap Passes: Overlap each tilling pass slightly to ensure complete coverage of the area.
• Transport: Use the transport wheel to move the tiller between work areas. Fold it up during tilling.

5.3 Stopping the Engine

1. Throttle: Move the throttle lever to the 'SLOW' or 'IDLE' position.
2. Engine Stop: Move the engine switch to the 'OFF' position.
3. Cool Down: Allow the engine to cool down before storing or performing any maintenance.

6. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your tiller.

• Engine Oil: Check the engine oil level before each use. Change the oil according to the schedule in the engine manual (typically after the first 5 hours, then every 25-50 hours).
• Air Filter: Clean or replace the air filter regularly, especially when operating in dusty conditions.
• Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled.
• Blades: Inspect blades for wear or damage before each use. Clean soil and debris from the blades after each use. Sharpen or replace dull blades as needed.
• General Cleaning: Keep the tiller clean. Remove dirt, grass, and debris from the engine and chassis.
• Storage: When storing for extended periods, drain the fuel tank or use a fuel stabilizer. Store in a dry, protected area.

7. Troubleshooting

This section addresses common issues you might encounter with your tiller.

If you encounter problems not listed here or if solutions do not resolve the issue, please contact customer support.

8. Specifications

Technical data for the MASKO MK-909 Gasoline Tiller.

Figure 8.1: Dimensions of the MASKO MK-909 Gasoline Tiller.

9. Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.

Always use genuine MASKO replacement parts to ensure compatibility and maintain product performance and safety.
