Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Gatenear Automatic Sliding Gate Opener, Model GOCA. This high-speed gate opener is designed for gates weighing up to 1400 pounds and offers efficient, reliable performance for various gate types.
Please read this manual thoroughly before installation and operation to ensure proper function and safety. Keep this manual for future reference.
Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Ensure all installation steps are performed by qualified personnel or under the supervision of an experienced individual.
- Always disconnect power to the gate opener before performing any maintenance or service.
- Keep hands, feet, and clothing clear of the gate and moving parts during operation.
- Do not allow children to play near the gate or operate the remote controls.
- Install the photo eye beam sensors correctly to detect obstacles and prevent the gate from closing on people or vehicles.
- Regularly inspect the gate and opener for signs of wear, damage, or misalignment.
- Ensure the gate is properly balanced and moves freely before installing the opener.
Setup and Installation
The Gatenear Automatic Sliding Gate Opener kit includes all necessary accessories for a straightforward installation. This opener is compatible with various gate materials such as steel, wood, vinyl, and different styles including tube, panel, or chain-link gates.
Components Overview
The kit typically includes:
- Gatenear Gate Opener Unit
- 2 Remote Controls
- Photo Eye Beam Sensors
- Drive Chains
- Mounting Hardware (brackets, bolts, etc.)
- Detailed Instruction Manual
Key Features for Installation
The opener features an energy-efficient 280W electric AC motor designed for high-speed operation. It is built to withstand temperatures from -40°F to 158°F and is dust-resistant and water-resistant, ensuring reliable performance in diverse weather conditions.
Installation Diagram
Refer to the detailed instruction manual included in your package for step-by-step installation guidance. Ensure the mounting base is level and secure, and the drive chain is properly aligned and tensioned for smooth gate operation.

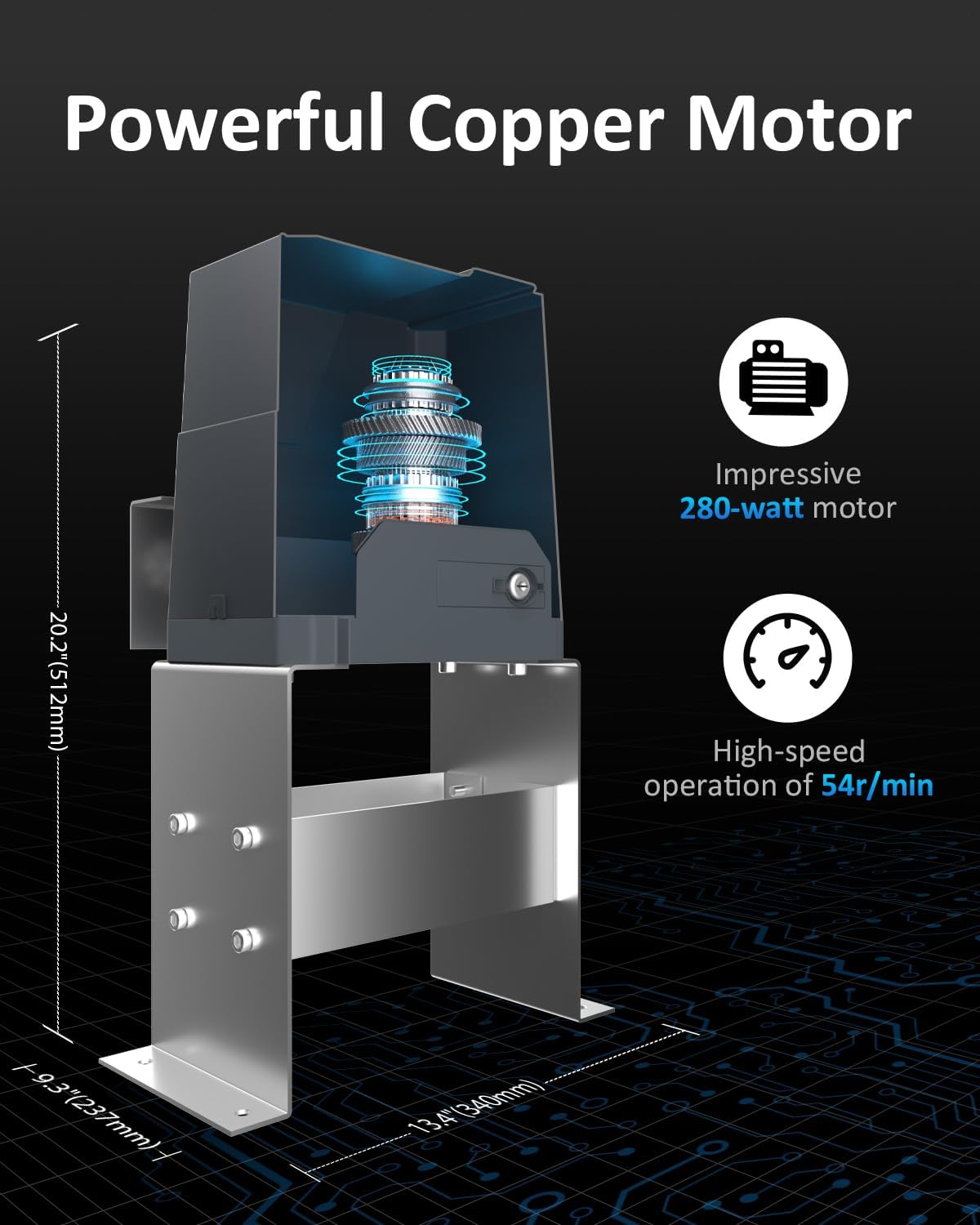

Motor Details
The opener is equipped with a robust 280-watt copper motor, providing reliable power for gates up to 1400 pounds. Its design ensures high-speed operation at 54 revolutions per minute, contributing to the overall efficiency of the gate system.

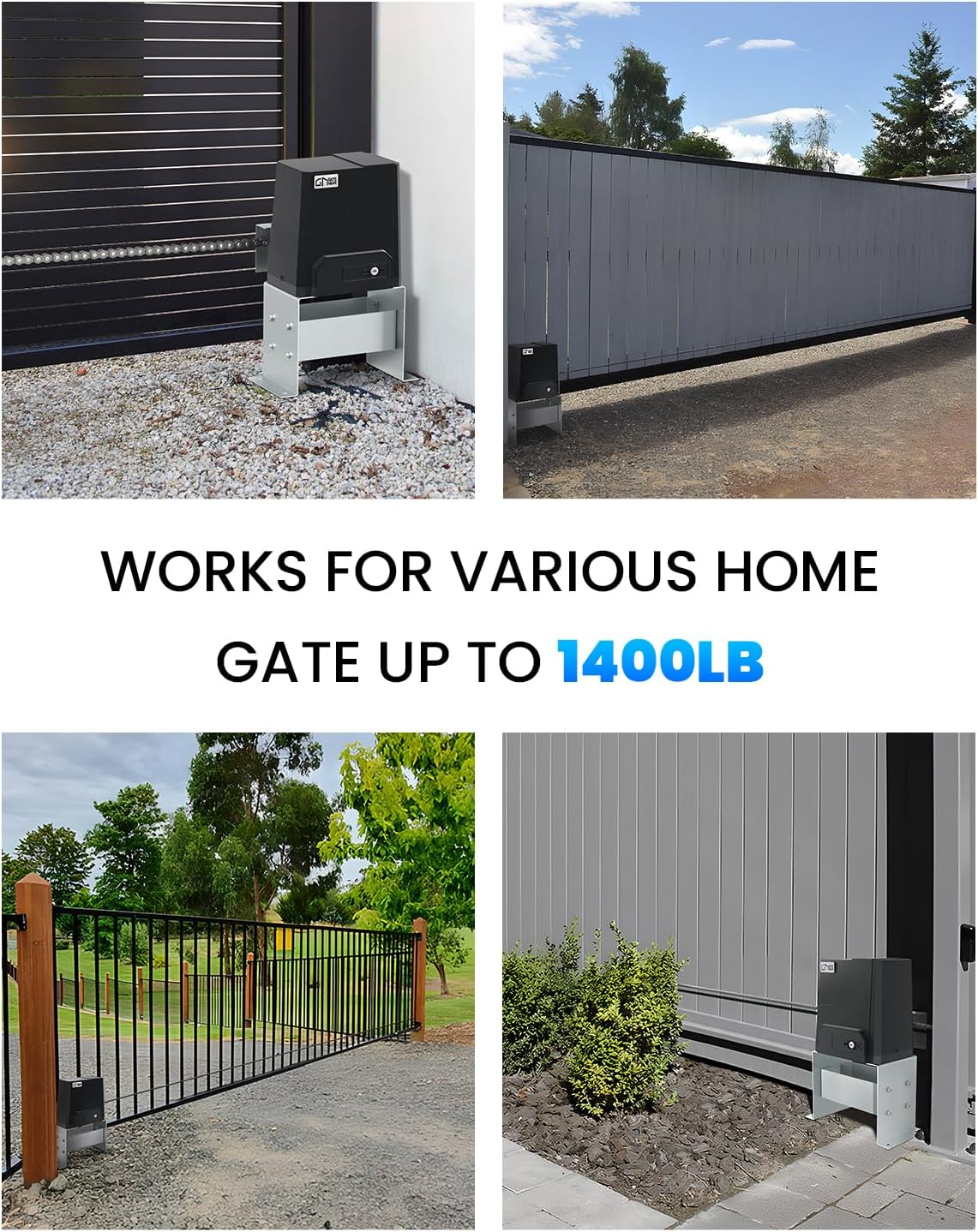

Gate Compatibility
This gate opener is suitable for a wide range of sliding gates, making it a versatile solution for residential, commercial, courtyard, farm, and ranch settings.
Operating Instructions
The Gatenear gate opener offers convenient and secure operation with its included remote controls and versatile opening modes.
Remote Control Operation
Your gate opener comes with two remote controls, allowing you to operate the gate from up to 100 feet away. The system can support up to 25 remotes, accommodating multiple users.
- Open: Press the 'Open' button to open the gate.
- Close: Press the 'Close' button to close the gate.
- Stop: Press the 'Stop' button to halt the gate's movement immediately.

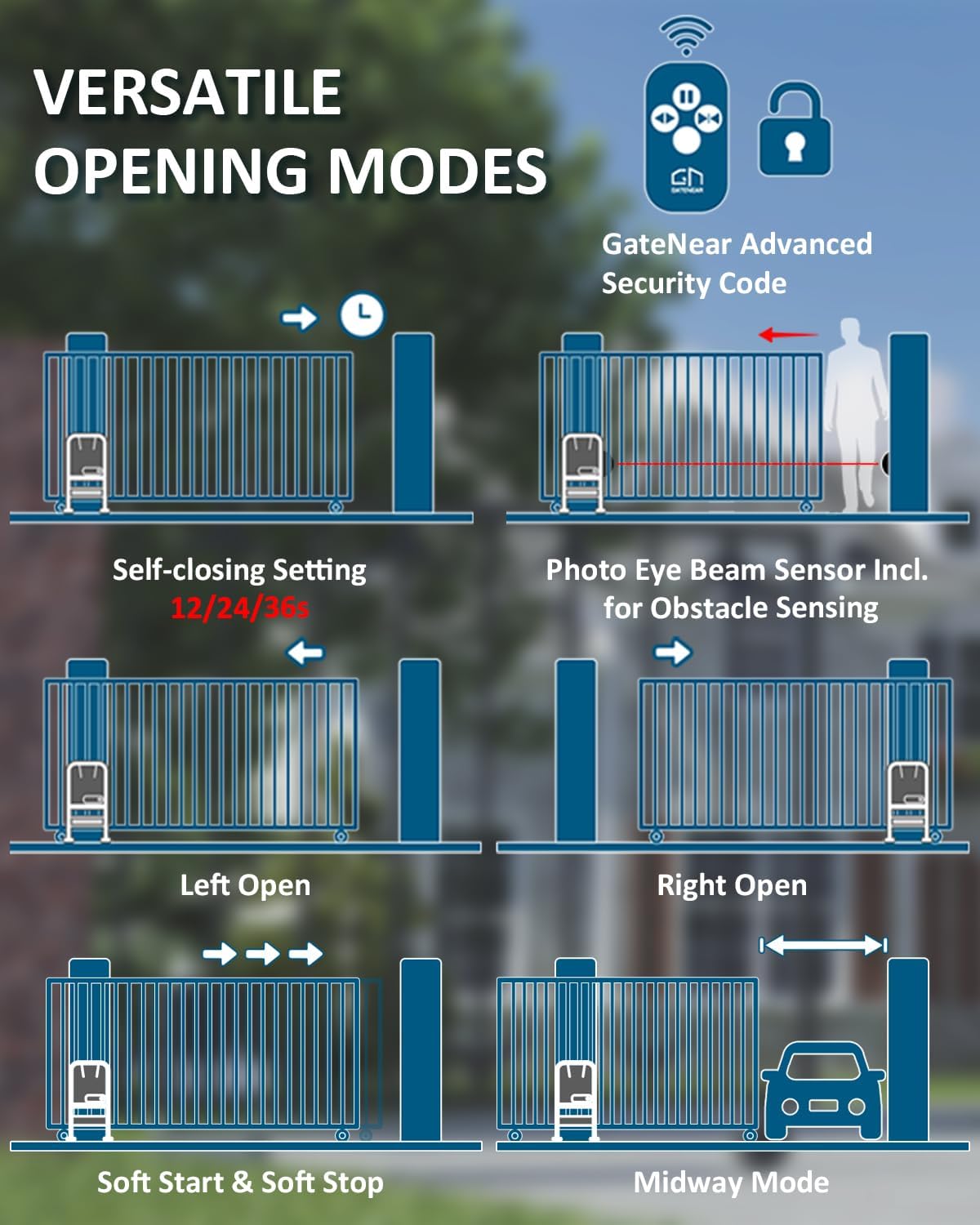

Versatile Opening Modes
The system offers several configurable operating modes:
- Self-closing Setting: Configure the gate to automatically close after a set time (e.g., 12, 24, or 36 seconds).
- Photo Eye Beam Sensor: Integrated sensors detect obstacles in the gate's path, preventing closure and enhancing safety.
- Left/Right Open: Adjust the gate's opening direction as needed.
- Soft Start & Soft Stop: Ensures smooth gate movement, reducing wear and tear on the motor and gate components.
- Midway Mode: Allows the gate to open partially for pedestrian access.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Gatenear Automatic Sliding Gate Opener. This opener has been tested for over 10,000 cycles, demonstrating its durability.
- Monthly Inspection: Check the gate's movement for any obstructions, binding, or unusual noises. Ensure the drive chain is clean, lubricated, and properly tensioned.
- Sensor Check: Periodically test the photo eye beam sensors to confirm they are functioning correctly and detecting obstacles. Keep the sensor lenses clean.
- Hardware Check: Inspect all mounting bolts and fasteners for tightness. Tighten any loose hardware.
- Cleanliness: Keep the gate opener unit free from dust, debris, and insects. The unit is dust-resistant and water-resistant, but regular cleaning helps maintain its condition.
- Power Disconnection: Always disconnect power to the unit before performing any hands-on maintenance.
Troubleshooting
If you encounter issues with your Gatenear Automatic Sliding Gate Opener, refer to the following common troubleshooting steps. For more complex problems, contact customer support.
- Gate Not Responding to Remote:
- Check remote battery.
- Ensure the remote is within the operating range (up to 100 feet).
- Verify the gate opener has power.
- Gate Stops or Reverses Unexpectedly:
- Check for obstructions in the gate's path, especially near the photo eye sensors. Clean sensor lenses if dirty.
- Ensure photo eye sensors are properly aligned.
- Inspect the gate for any mechanical binding or excessive friction.
- Gate Operates Slowly or with Difficulty:
- Check the gate for proper balance and smooth manual movement.
- Inspect the drive chain for proper tension and lubrication.
- Ensure the motor area is clear of debris.
- No Power to Opener:
- Check the main power supply and circuit breaker.
- Inspect all wiring connections for secure contact.
Specifications
| Feature | Detail |
|---|---|
| Manufacturer | Gatenear |
| Model Number | GOCA |
| Item Weight | 51 pounds |
| Product Dimensions | 20 x 9 x 11 inches |
| Gate Capacity | Up to 1400lb |
| Speed | 4.3 ft/s (80 ft/min) |
| Motor Power | 280W AC Motor |
| Operating Temperature | -40°F to 158°F |
| Remote Control Range | Up to 100 feet |
| Max Remotes Supported | 25 |
| Included Components | Gate Opener, 2 Remote Controls, Detailed Instruction Manual, Parts |
| Color | Black |
| Batteries Required | No |
Warranty and Support
Gatenear is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, the product is designed for durability and has undergone rigorous testing for over 10,000 cycles.
For any inquiries, technical assistance, or support needs, Gatenear offers 24/7 consultation services. Please refer to the contact information provided with your product packaging or visit the official Gatenear website for support options.
