MASKO 400kg Lawn Mower Lift Jack Instruction Manual

1. Introduction

Thank you for choosing the MASKO 400kg Lawn Mower Lift Jack. This robust and versatile lifting device is designed to assist with the maintenance, cleaning, and repair of ride-on mowers, small tractors, quads, and various types of lawnmowers. Its stable construction and adjustable tilt angle make it an essential tool for any garden enthusiast or professional. Please read this manual carefully before use to ensure safe and efficient operation.

Image 1.1: The MASKO Lawn Mower Lift Jack, green, supporting a ride-on mower for maintenance.

2. Safety Instructions

Always prioritize safety when operating the lift jack. Failure to follow these instructions may result in injury or damage to equipment.

• Read the Manual: Read and understand all instructions before operating the lift jack.
• Weight Capacity: Do not exceed the maximum load capacity of 400 kg.
• Stable Surface: Always use the lift jack on a firm, level, and stable surface.
• Secure the Load: Ensure the equipment (lawnmower, tractor, quad) is properly positioned and secured on the lift's wheel receivers before lifting.
• Safety Pin: Always engage the safety pin after reaching the desired height and before working under the lifted equipment.
• Clear Area: Keep hands, feet, and other body parts clear of moving parts during lifting and lowering.
• Personal Protective Equipment (PPE): Wear appropriate safety gear, such as gloves and safety shoes.
• Children and Pets: Keep children and pets away from the work area.
• Inspection: Before each use, inspect the lift jack for any signs of damage, wear, or loose components. Do not use if damaged.
• Lower Slowly: Lower the equipment slowly and carefully.

3. Package Contents

Verify that all components are present and undamaged upon unpacking:

• 1 x MASKO Lawn Mower Lift Jack (Green)
• 1 x Operating Manual
• 1 x Safety Pin (often attached to the crank mechanism)
• Note: Some packages may include a cleaning brush accessory.

Image 3.1: Detail of the crank and safety pin mechanism.

4. Setup

The MASKO Lawn Mower Lift Jack comes largely pre-assembled and is designed for quick setup.

1. Unfold the Lift: Carefully unfold the lift jack from its compact storage position. Ensure all joints are securely locked into place.
2. Position the Lift: Place the lift jack on a flat, stable, and non-slip surface where you intend to perform maintenance.
3. Prepare the Equipment: Position your lawnmower, tractor, or quad so that its rear wheels align with the lift's wheel receivers. Ensure the equipment is turned off, the engine is cool, and the parking brake (if applicable) is engaged.
4. Drive On/Push On: Slowly drive or push the equipment onto the lift, ensuring the rear wheels are fully seated within the wheel receivers. The maximum drive-on width is approximately 106 cm.

Image 4.1: Ride-on mower correctly positioned on the lift jack.

5. Operating Instructions

Follow these steps to safely lift and lower your equipment:

1. Lifting:
   • Once the equipment is securely on the wheel receivers, begin turning the hand crank clockwise.
   • The ball-bearing spindle ensures smooth and effortless lifting, even for heavy loads up to 400 kg.
   • Continue cranking until the desired working height and tilt angle (up to 45°) are achieved.
2. Securing:
   • After reaching the desired height, always insert the safety pin into the designated hole on the crank mechanism. This prevents accidental lowering.
   • For added stability, especially when working underneath, consider placing additional support blocks under the lifted equipment's frame.
3. Working:
   • You can now safely perform maintenance, cleaning, or repairs on the underside of your equipment.
4. Lowering:
   • Before lowering, ensure all tools and personnel are clear of the equipment.
   • Remove any additional support blocks.
   • Remove the safety pin.
   • Turn the hand crank counter-clockwise slowly and steadily to lower the equipment back to the ground.
   • Once fully lowered, carefully drive or push the equipment off the lift jack.

Image 5.1: Cleaning the underside of a lawnmower using the lift jack.

6. Maintenance

Regular maintenance will extend the lifespan of your MASKO Lawn Mower Lift Jack.

• Cleaning: After each use, clean the lift jack to remove dirt, grass, and debris. Use a damp cloth and mild detergent if necessary.
• Lubrication: Periodically lubricate the screw spindle and moving parts with a suitable grease or oil to ensure smooth operation.
• Inspection: Regularly check all bolts, nuts, and connections for tightness. Inspect the steel frame for any signs of bending, cracks, or corrosion.
• Storage: When not in use, fold the lift jack for compact storage. Store it in a dry place to prevent rust.

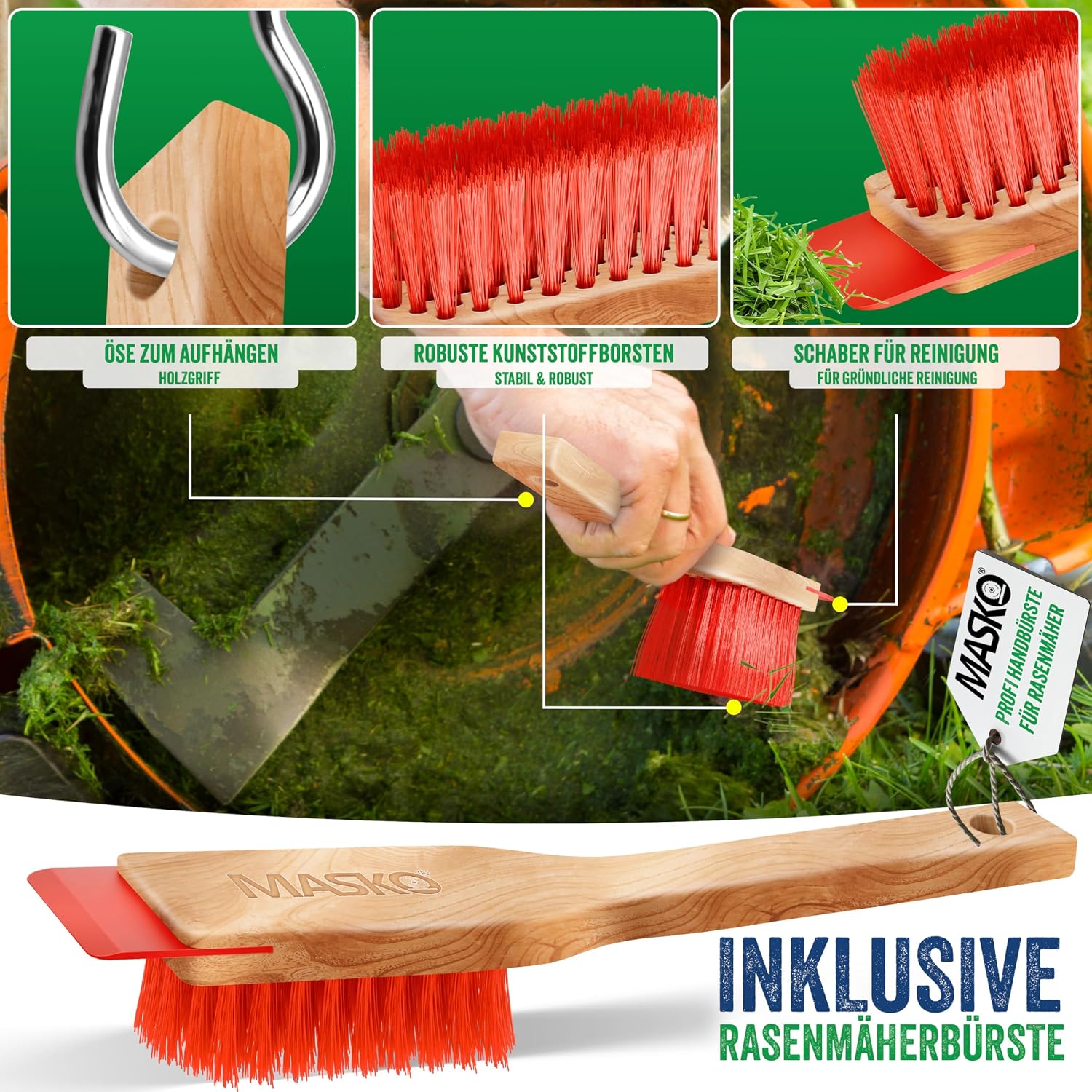

Image 6.1: Example of a cleaning brush for maintenance.

7. Troubleshooting

8. Specifications

Image 8.1: Dimensions and key specifications of the lift jack.

9. Warranty and Support

MASKO products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or contact your retailer. If you encounter any issues or require technical assistance, please contact MASKO customer support or your authorized dealer.

Manufacturer: MASKO

Model Number: B0CQ8MK615
