RENPHO Massage Gun Head with Heat and Cool - Instruction Manual

Introduction

This manual provides detailed instructions for the safe and effective use of your RENPHO Massage Gun Head with Heat and Cool. This attachment is designed to enhance your massage experience by providing targeted hot and cold therapy. Please read this manual thoroughly before use and retain it for future reference.

Image: The RENPHO Massage Gun Head, showcasing its heat and cool elements, with a small diagram of it attached to a massage gun.

Safety Information

To reduce the risk of electric shock, fire, personal injury, or damage to property, please observe the following safety precautions:

• This device is intended for external use only. Do not use on open wounds, swollen areas, or areas with skin conditions.
• Consult a physician before use if you have any medical conditions, are pregnant, or have a pacemaker.
• Do not immerse the device in water or other liquids.
• Keep out of reach of children.
• Do not use the device for more than 10 minutes continuously in one area to prevent overheating. The device has an automatic shut-off feature after 10 minutes.
• Ensure the device is fully charged before first use.
• Use only the provided USB-C cable for charging.
• Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.

Product Specifications

Image: Diagram showing the dimensions of the RENPHO Massage Gun Head.

Setup and Charging

1. Charging the Device

Before first use, fully charge the massage gun head. Connect the provided USB-C cable to the charging port on the device and the other end to a 5V 2A adapter (not included). The charging indicator light will show the charging status.

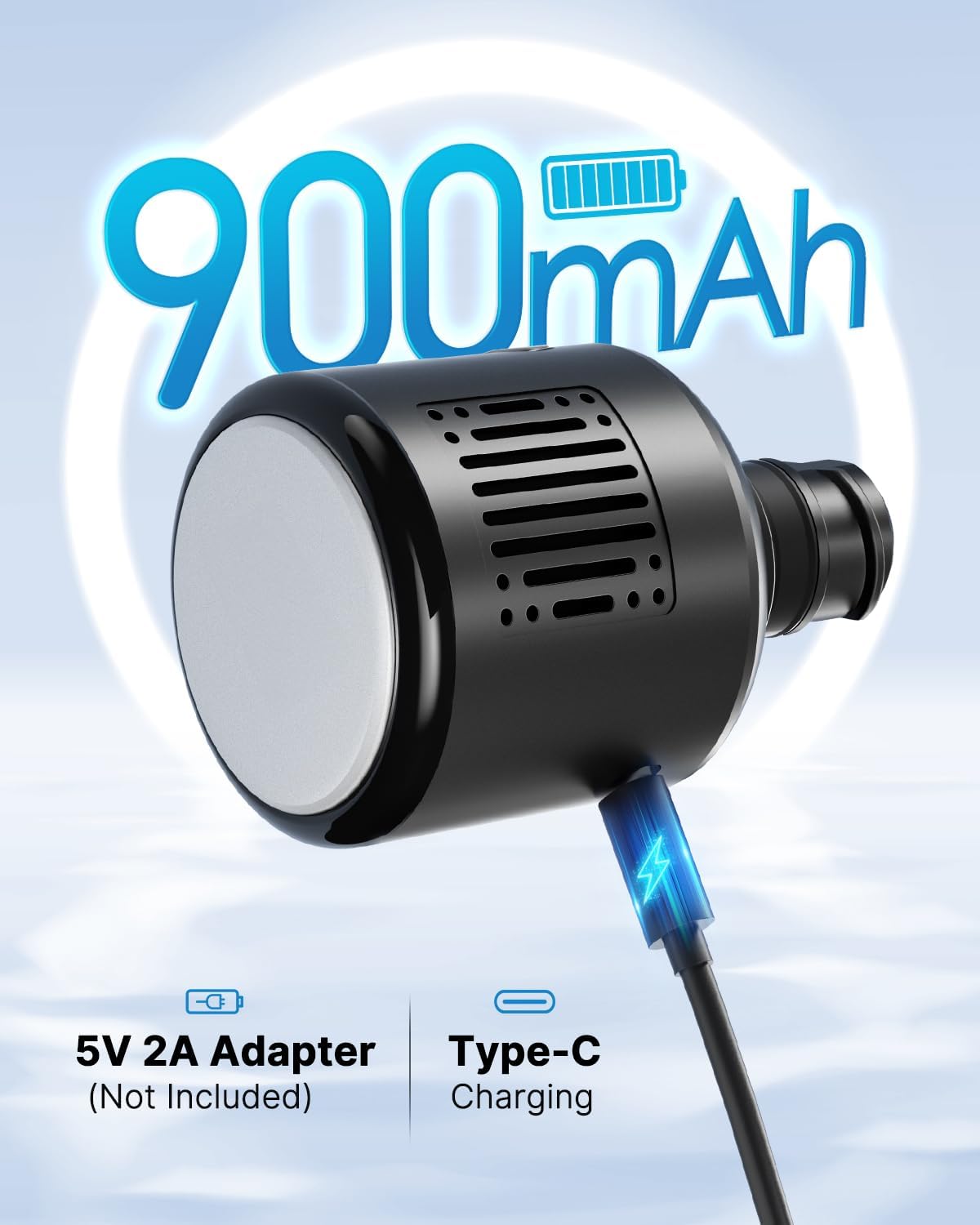

Image: The RENPHO Massage Gun Head connected to a USB-C charging cable.

2. Attaching to a Massage Gun

The RENPHO Massage Gun Head is designed for specific RENPHO massage gun models: RP-GM171-N1 and R-WMG08. Ensure your massage gun has an attachment port with an inner diameter of 0.76 inches (19.3mm).

1. Turn off your massage gun before attaching or detaching the head.
2. Align the base of the Heat and Cool head with the attachment port of your massage gun.
3. Gently push and twist the head until it is securely in place. Do not force it.
4. To remove, gently pull and twist the head in the opposite direction.

Image: A diagram illustrating how to attach the RENPHO Massage Gun Head to a compatible massage gun.

Operating Instructions

Using Heat Therapy

Heat therapy can help warm up muscles before exercise, relieve fatigue, and alleviate pain. The device offers two heat levels:

• Level 1: Approximately 100°F (38°C)
• Level 2: Approximately 117°F (47°C)

1. Press and hold the heat button (red flame icon) for 3 seconds to activate heat therapy. The indicator light will illuminate.
2. Press the heat button again to switch between Level 1 and Level 2.
3. Apply the heated surface to the desired muscle area.
4. To turn off heat therapy, press and hold the heat button for 3 seconds.

Image: The RENPHO Massage Gun Head demonstrating heat therapy, with temperature levels and use cases.

Using Cool Therapy

Cool therapy is beneficial for post-workout recovery, reducing tension, decreasing swelling, and providing stress relief. The device offers two cool levels:

• Level 1: Approximately 59°F (15°C)
• Level 2: Approximately 53°F (12°C)

1. Press and hold the cool button (blue snowflake icon) for 3 seconds to activate cool therapy. The indicator light will illuminate.
2. Press the cool button again to switch between Level 1 and Level 2.
3. Apply the cooled surface to the desired muscle area.
4. To turn off cool therapy, press and hold the cool button for 3 seconds.

Image: The RENPHO Massage Gun Head demonstrating cool therapy, with temperature levels and use cases.

Automatic Shut-Off

For safety and to conserve battery life, the massage head will automatically shut off after 10 minutes of continuous use. If you wish to continue therapy, simply reactivate the desired heat or cool function.

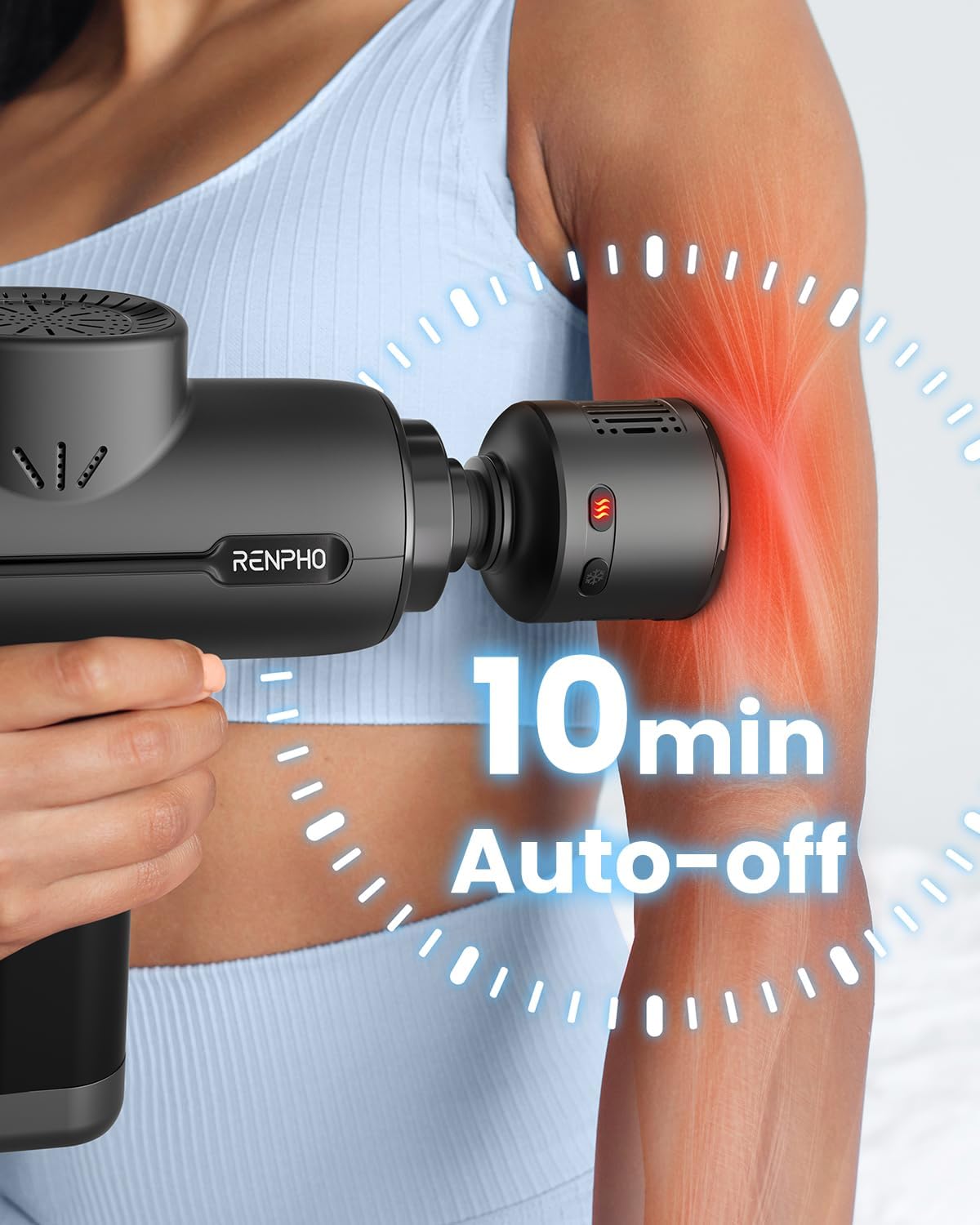

Image: A visual representation of the 10-minute auto-off feature during use with a massage gun.

Maintenance

• Cleaning: Wipe the device with a soft, damp cloth after each use. Do not use abrasive cleaners or immerse in water.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, charge the device regularly, even if not in frequent use. Avoid fully discharging the battery for extended periods.

Troubleshooting

Warranty and Support

RENPHO products come with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your original massage gun or visit the official RENPHO website.

For technical support, troubleshooting assistance, or any inquiries regarding your RENPHO Massage Gun Head, please contact RENPHO Customer Service:

• Website: www.renpho.com
• Email: Refer to your product packaging or website for current contact information.
