1. Introduction
Thank you for choosing the Olvy Watch Winder. This device is designed to keep your automatic watches wound and ready to wear, preserving their movement and accuracy. Featuring a silent Mabuchi motor and elegant design, this watch winder provides optimal care for your timepieces.
Image 1.1: Olvy Watch Winder with four watches, illuminated by blue LED light.
Key Features:
- Premium Construction: Crafted from high-quality MDF with an organic acrylic glass window, protecting your watches from dust and moisture. The leather design adds a sophisticated aesthetic.
- Blue LED Lighting: Enhances the display of your watches. This lighting can be turned off according to your preference.
- Silent Mabuchi Motor: Ensures quiet operation, making it suitable for placement in bedrooms or offices without disturbance.
- Watch Movement Preservation: Keeps automatic watch movements constantly active, ensuring proper oil distribution and maintaining time accuracy.
- Dual Rotation Directions: Supports both clockwise and counter-clockwise rotation.
- Multiple Rotation Functions: Offers five distinct rotation programs to suit various watch requirements.
- Capacity: Winds up to 4 watches simultaneously and provides additional storage for 6 watches or other accessories.
2. Setup
2.1 Unpacking and Placement
- Carefully remove the watch winder from its packaging.
- Place the winder on a stable, flat surface away from direct sunlight, extreme temperatures, and high humidity.
2.2 Inserting Watches
- Open the lid of the watch winder.
- Gently compress the flexible watch cushion and place your automatic watch securely around it.
- Insert the cushion with the watch into one of the four winding slots. Ensure the watch is seated properly and does not obstruct the rotation.
- Additional watches or accessories can be stored in the front compartments.

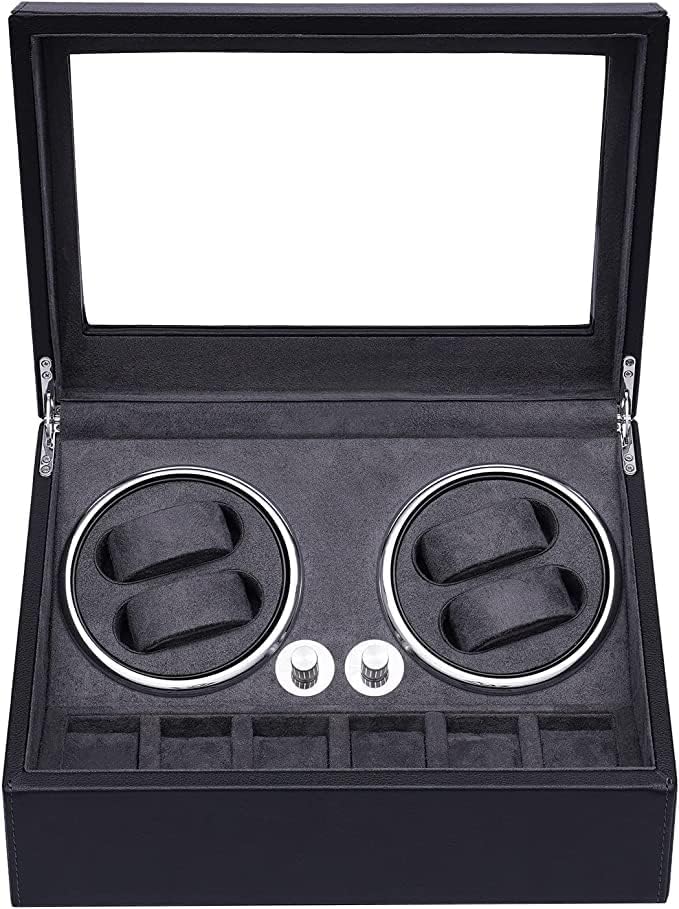

Image 2.1: Interior view of the Olvy Watch Winder, showing winding slots and storage.
2.3 Power Connection
- Locate the power input port on the back of the watch winder.
- Connect the provided power adapter to the winder and then plug it into a standard electrical outlet.
Image 2.2: Power switches and input port.
3. Operating Instructions
The Olvy Watch Winder features independent controls for each pair of winding modules, allowing for flexible operation.
3.1 Powering On/Off
- Use the main power switch located on the back of the unit to turn the winder on or off.
3.2 Selecting Rotation Modes
Each pair of winding modules (left and right) has its own control knob on the front panel. These knobs allow you to select from five different rotation programs.
Image 3.1: Control knobs for rotation settings.
Rotate the knob to cycle through the available programs. The specific rotation patterns for each program are typically detailed in a separate diagram or quick start guide included with your product. Common modes include:
- Clockwise rotation only.
- Counter-clockwise rotation only.
- Alternating clockwise and counter-clockwise rotation.
- Intermittent rotation with rest periods.
Consult the specific program details to choose the best setting for your watch's movement.
3.3 LED Lighting Control
The blue LED lighting can be turned on or off independently. Refer to the specific switch or button for LED control, usually located near the main power switch or on the front panel.
4. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Olvy Watch Winder.
4.1 Cleaning
- Disconnect the power adapter before cleaning.
- Wipe the exterior surfaces with a soft, dry, lint-free cloth.
- For stubborn marks, lightly dampen the cloth with water and a mild, non-abrasive cleaner. Avoid harsh chemicals or solvents.
- Clean the acrylic window with a soft cloth specifically designed for delicate surfaces to prevent scratches.
- Do not allow any liquids to enter the interior of the winder.
4.2 Storage
- When not in use for extended periods, disconnect the power and store the winder in a cool, dry place.
5. Troubleshooting
If you encounter issues with your Olvy Watch Winder, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Winder does not rotate. | 1. Power adapter not connected or faulty. 2. Main power switch is off. 3. Rotation program not selected or set to 'OFF'. 4. Internal malfunction. | 1. Ensure the power adapter is securely connected to both the winder and the electrical outlet. Try a different outlet. 2. Turn on the main power switch on the back of the unit. 3. Rotate the control knob to select a valid rotation program. 4. If issues persist, contact customer support. |
| One winding module is not rotating. | 1. Control knob for that module is off or faulty. 2. Internal malfunction specific to that module. | 1. Ensure the control knob for the affected module is set to an active rotation program. 2. If other modules work, and this one does not, contact customer support. |
| Winder stops and does not restart automatically. | 1. Intermittent program with rest periods. 2. Power interruption. 3. Internal malfunction. | 1. Check if the selected program includes rest periods. Wait for the next cycle to begin. 2. Verify stable power supply. Try turning the unit off and on again. 3. If the problem recurs, contact customer support. |
| Noticeable noise during operation. | 1. Watch not seated correctly. 2. Winder placed on an uneven surface. 3. Normal operational sound (slight hum). 4. Internal component issue. | 1. Ensure watches are securely placed and do not touch the winder's interior or lid. 2. Place the winder on a completely flat and stable surface. 3. The Mabuchi motor is designed to be extremely silent, but a very faint hum might be audible in a quiet environment. If the noise is excessive or unusual, contact customer support. |
6. Specifications
| Feature | Detail |
|---|---|
| Model Name | Watchwinder Miami |
| Brand | Olvy |
| Dimensions (L x W x H) | 40 x 30 x 26 cm (approx.) |
| Weight | 3.6 kg (approx.) |
| Winding Capacity | 4 automatic watches |
| Additional Storage | 6 watches/accessories |
| Motor Type | Mabuchi (extremely silent) |
| Rotation Modes | 5 programs (clockwise, counter-clockwise, alternating, intermittent) |
| Material | MDF, Leather, Acrylic glass |
| Special Features | Blue LED lighting (switchable) |
| Power Source | AC Power Adapter (included) |
7. Warranty and Support
7.1 Warranty Information
Irrespective of your legal right of withdrawal, you have a 30-day return right for many products. For exceptions and conditions, please consult the retailer's return policy or your purchase documentation.
7.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact Olvy customer support through the retailer where you purchased the product or visit the official Olvy store:
