Canon EF 28-80mm f/3.5-5.6 II Lens Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your Canon EF 28-80mm f/3.5-5.6 II lens. Please read this manual thoroughly before using the lens to ensure proper operation and to achieve optimal photographic results. Keep this manual in a safe place for future reference.

2. Product Overview

The Canon EF 28-80mm f/3.5-5.6 II is a versatile standard zoom lens designed for Canon EF mount cameras. It offers a flexible focal length range suitable for various photographic situations, from wide-angle landscapes to portraits. This lens features manual focus operation and a variable maximum aperture.

Figure 2.1: Front view of the Canon EF 28-80mm f/3.5-5.6 II lens.

Key features include:

• Focal Length: 28-80mm zoom range.
• Aperture: Variable maximum aperture of f/3.5-5.6.
• Mount: Compatible with Canon EF mount cameras.
• Focus: Manual Focus.
• Design: Zoom lens construction.

3. Setup

3.1 Attaching the Lens

1. Remove the rear lens cap and the camera body cap.
2. Align the red index mark on the lens with the red index mark on the camera body.
3. Insert the lens into the camera mount and turn it clockwise until it clicks into place.
4. Ensure the lens is securely locked.

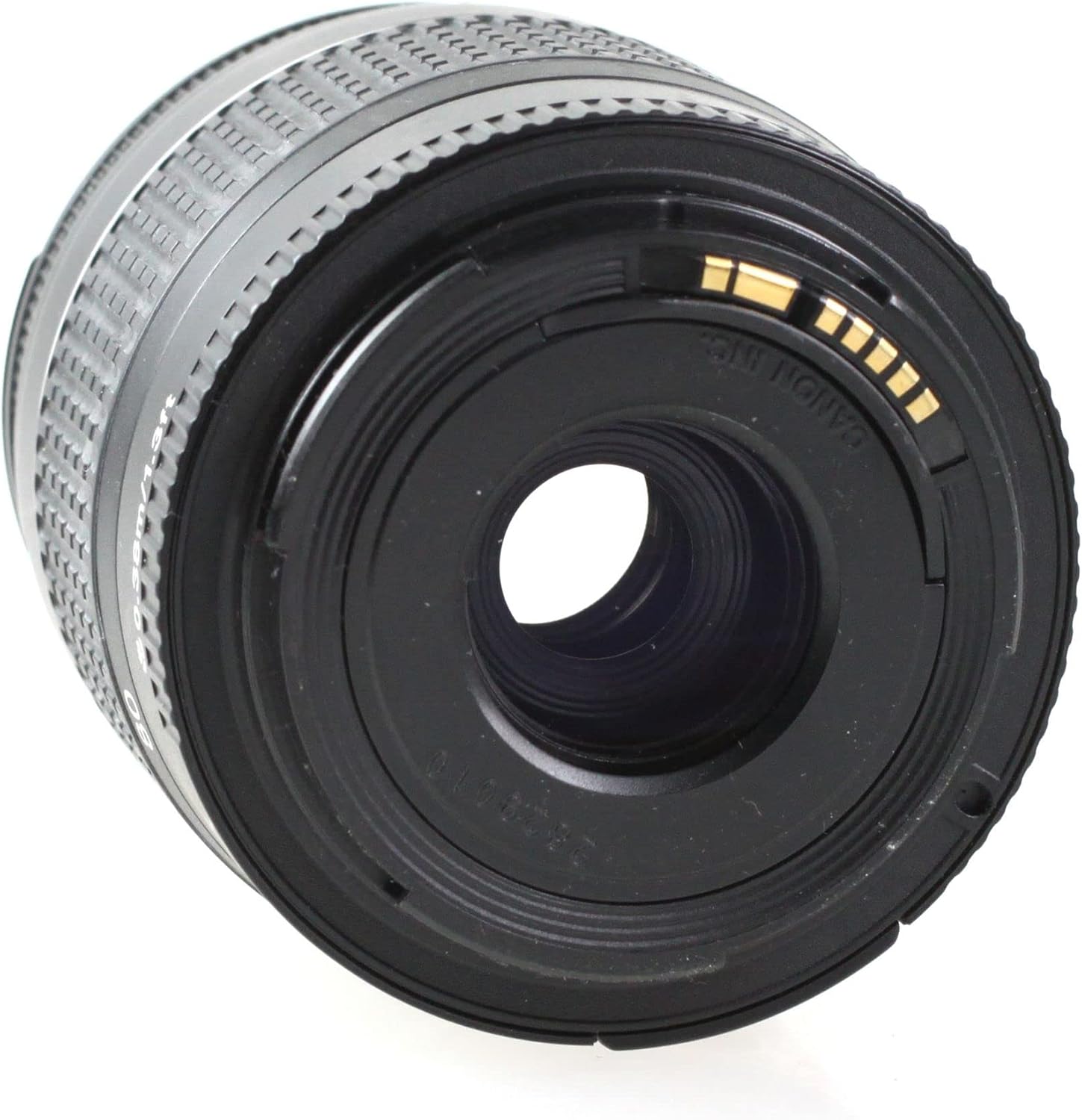

Figure 3.1: Rear view of the lens, showing the EF mount.

3.2 Detaching the Lens

1. Turn off the camera.
2. While pressing the lens release button on the camera body, turn the lens counter-clockwise until it stops.
3. Remove the lens from the camera.
4. Attach the rear lens cap to the lens and the body cap to the camera.

4. Operating the Lens

4.1 Zooming

To change the focal length, rotate the zoom ring on the lens. The focal length markings (28, 35, 50, 70, 80mm) indicate the current focal length. Rotate the ring clockwise to zoom in (increase focal length) and counter-clockwise to zoom out (decrease focal length).

Figure 4.1: Zoom ring on the lens.

4.2 Focusing (Manual Focus)

This lens features manual focus. To focus, rotate the focus ring until the subject appears sharp in the viewfinder or on the camera's LCD screen. For precise focusing, use the camera's focus assist features if available.

4.3 Aperture Control

The aperture of this lens is controlled electronically via the camera body. Refer to your camera's instruction manual for details on how to adjust the aperture settings (f-number).

5. Maintenance and Handling

• Cleaning: Use a lens blower to remove dust from the lens surface. For smudges, use a soft, clean lens cloth and a specialized lens cleaning solution. Never use organic solvents or harsh chemicals.
• Storage: When not in use, attach the front and rear lens caps. Store the lens in a cool, dry, and well-ventilated place, away from direct sunlight and high humidity.
• Handling: Avoid dropping or subjecting the lens to strong impacts. Do not leave the lens in direct sunlight for extended periods, as this can damage internal components.
• Water Resistance: This lens is not water resistant. Avoid exposure to rain, splashes, or high humidity.

6. Troubleshooting

If you encounter issues with your lens, please refer to the following common solutions:

• Lens not attaching to camera: Ensure the red index marks on both the lens and camera body are aligned, and rotate until it clicks. Check for any obstructions on the mount.
• Difficulty focusing: Ensure you are rotating the focus ring correctly. Check your camera's manual for manual focus assist features.
• Image quality issues: Ensure the lens elements are clean. Check camera settings (e.g., ISO, shutter speed, aperture).

For camera-specific issues or persistent problems, consult your camera's instruction manual or contact Canon customer support.

7. Specifications

8. Warranty and Support

This Canon EF 28-80mm f/3.5-5.6 II lens comes with a 90-day limited warranty. Please retain your proof of purchase for warranty claims.

For technical support, service, or further inquiries, please contact Canon customer support or visit the official Canon website. You may also refer to the Amazon Renewed store for specific return or replacement policies related to renewed products.
