1. General Information
1.1 Product Overview
The AlveyTech 24 Volt TRE2423V controller is an electronic speed motor control module designed specifically for the Pulse ATV Quad Ride-On. This component is crucial for regulating the speed and overall function of the ATV. It features a wiring harness with 7 connectors, including a 2-wire throttle connector.
Image 1.1: The AlveyTech 24 Volt TRE2423V controller with its various wire connectors.
1.2 Package Contents
- 1 x AlveyTech 24 Volt TRE2423V Speed Motor Control Module
2. Compatibility
This 24 Volt TRE2423V controller is compatible with the Pulse ATV Quad Ride-On. It is essential to verify the model number on your existing controller to ensure correct compatibility before installation. The model number is typically printed on a label on the controller unit.
Important Note: This controller is NOT interchangeable with the following models: TRE1201, TRE1215, TRE2415A, TRE2421, TRE2424, or any other controller versions not explicitly listed as compatible. It will also NOT work on the Pulse Super-C, Pulse Sonic, Pulse Sonic XL, Pulse Chopster, or Pulse RF-200.
Image 2.1: The TRE2423V controller is designed for the Pulse ATV Quad Ride-On.
3. Safety Information
- Always disconnect the battery power before attempting any installation, maintenance, or repair work on the ATV.
- Ensure all connections are secure and properly insulated to prevent short circuits.
- Do not attempt to modify the controller or its wiring. Unauthorized modifications can lead to malfunction, damage, or injury.
- Keep the controller dry and protected from moisture and extreme temperatures.
- If you are unsure about any step of the installation process, consult a qualified technician.
4. Setup and Installation
Replacing the controller requires careful attention to wiring connections. Follow these general steps for installation:
- Disconnect Power: Before beginning, ensure the ATV's battery is disconnected to prevent electrical shock or damage.
- Locate Existing Controller: Identify the current controller unit on your Pulse ATV Quad Ride-On. Note how the existing wires are connected.
- Disconnect Old Controller: Carefully disconnect all wiring harnesses from the old controller. Take photos if necessary to remember the configuration.
- Install New Controller: Mount the new AlveyTech TRE2423V controller in the same location as the old one.
- Connect Wiring: Connect the wiring harnesses from the ATV to the new controller. The TRE2423V controller comes with 7 connectors, including a 2-wire throttle connector. Ensure each connector is securely attached to its corresponding port. Refer to the labels on the controller and the ATV's wiring for correct matching.
Image 4.1: Detail of the controller's wire connectors, showing different types for various functions.
Video 4.1: This video demonstrates the general connection process for a speed controller and throttle grip, which can be helpful for understanding wiring principles during installation.
Video 4.2: This video illustrates the replacement process for a 24V controller, offering visual guidance for similar installations.
5. Operating Instructions
After successful installation, reconnect the battery. Due to the low wattage power of the motor on the Pulse ATV Quad Ride-On, a kick start is needed before twisting the throttle to properly engage the motor. This is a normal operational characteristic and not an indication of a faulty controller or throttle.
6. Maintenance
The AlveyTech TRE2423V controller is designed for durability and efficient performance. Regular maintenance is generally not required for the controller itself. However, to ensure its longevity and optimal function:
- Periodically inspect all wiring connections for tightness and signs of wear or corrosion.
- Keep the controller unit clean and free from dust, dirt, and moisture.
- Avoid exposing the controller to excessive heat or direct sunlight for prolonged periods.
7. Troubleshooting
If your Pulse ATV Quad Ride-On experiences issues after controller installation or during operation, common causes include:
- Faulty Batteries: Check the battery charge level and overall health. Weak or dead batteries can prevent the ATV from operating correctly.
- Faulty Throttle: A malfunctioning throttle can lead to inconsistent speed control or no power. Test the throttle for proper function.
- Faulty Controller: If batteries and throttle are confirmed to be working, the controller itself might be faulty. Ensure all connections are secure before concluding the controller is the issue.
Remember that a kick start is required before twisting the throttle to engage the motor. If the ATV does not move without a kick start, this is normal and not a fault.
8. Specifications
| Specification | Value |
|---|---|
| Model Number | TRE2423V |
| Rating Voltage | 24 Volt |
| Max Current | 23A |
| Item Package Dimensions L x W x H | 6.54 x 2.76 x 1.46 inches |
| Package Weight | 0.12 Kilograms |
| Item Dimensions LxWxH | 5 x 8 x 1 inches |
| Item Weight | 0.25 Pounds |

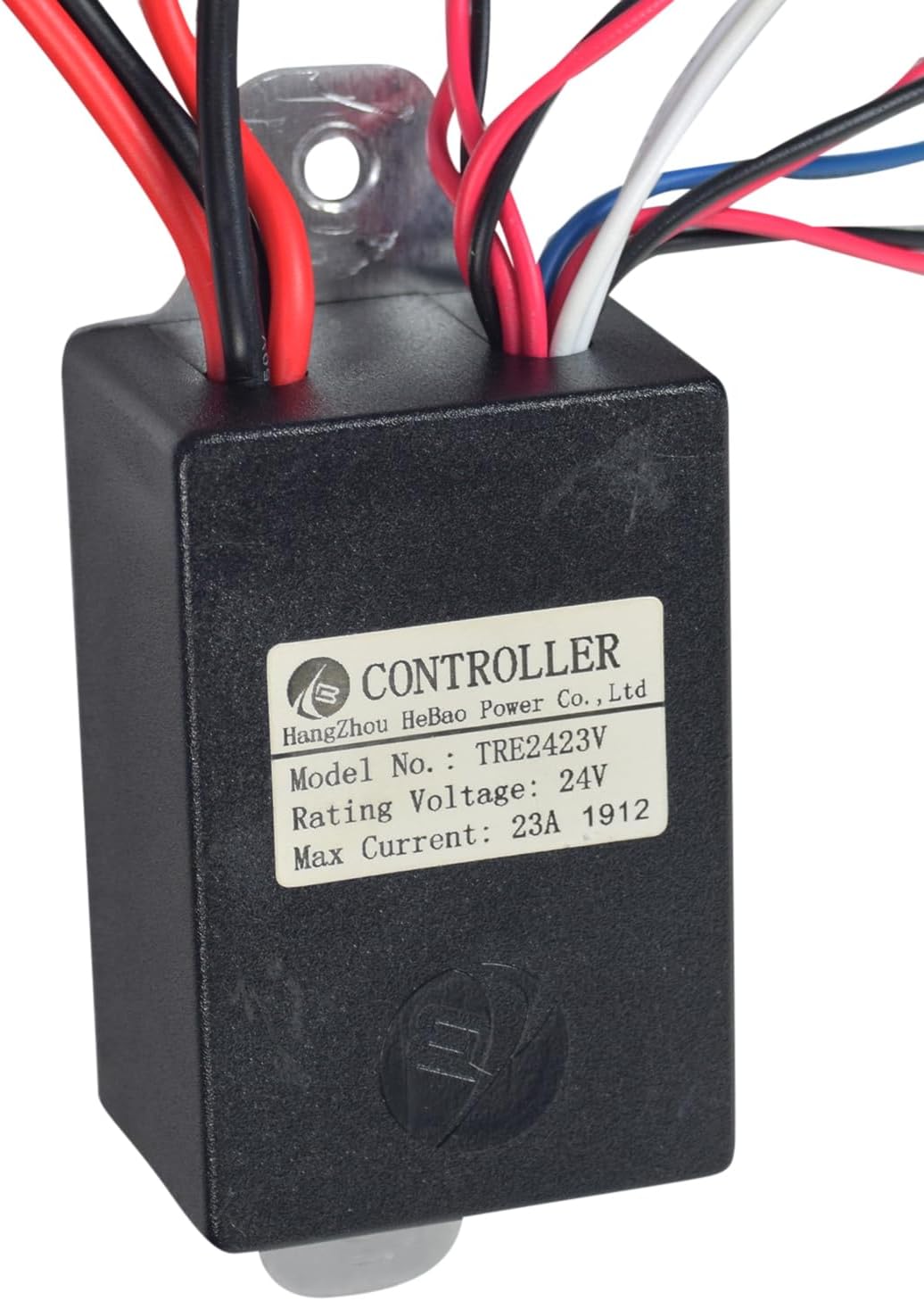

Image 8.1: The product label on the controller, displaying the model number and electrical ratings.
9. Warranty and Support
For warranty information or technical support regarding your AlveyTech 24 Volt TRE2423V Controller, please refer to the documentation provided with your purchase or contact AlveyTech customer service directly through their official website or the retailer where the product was purchased.
