Techwood TAS-506 Stick Vacuum Cleaner User Manual

Introduction

Thank you for choosing the Techwood TAS-506 Stick Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

The Techwood TAS-506 is a versatile multi-cyclonic vacuum cleaner designed for both stick and handheld use, featuring a HEPA filter for improved air quality.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before using the appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material, such as chlorine bleach, ammonia, or drain cleaner.
• Do not use without dust bag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Store your appliance indoors in a cool, dry area.

Package Contents

Please check the package contents to ensure all items are present and in good condition:

• Techwood TAS-506 Main Unit (Handheld Vacuum)
• Aluminum Telescopic Tube (Extension Wand)
• Crevice Nozzle (for inaccessible corners)
• Mini Brush
• Wide Brush (2 positions)
• HEPA Filter (pre-installed)

Image: The Techwood TAS-506 main unit configured as a handheld vacuum, with the crevice nozzle attached. The transparent dustbin and internal HEPA filter are visible.

Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Assembling the Stick Vacuum:
   • Insert the aluminum telescopic tube into the main unit's suction inlet until it clicks securely into place.
   • Attach the wide brush to the other end of the telescopic tube, ensuring it is firmly connected.
3. Assembling the Handheld Vacuum:
   • For handheld use, detach the telescopic tube (if attached).
   • Directly attach the desired accessory (crevice nozzle or mini brush) to the main unit's suction inlet until it clicks.
4. Power Connection: Ensure the vacuum is turned off before plugging the power cord into a suitable electrical outlet (220-240V, 50/60Hz).

Operating Instructions

1. Power On/Off: Locate the power switch on the main unit. Press it once to turn the vacuum cleaner ON. Press it again to turn it OFF.

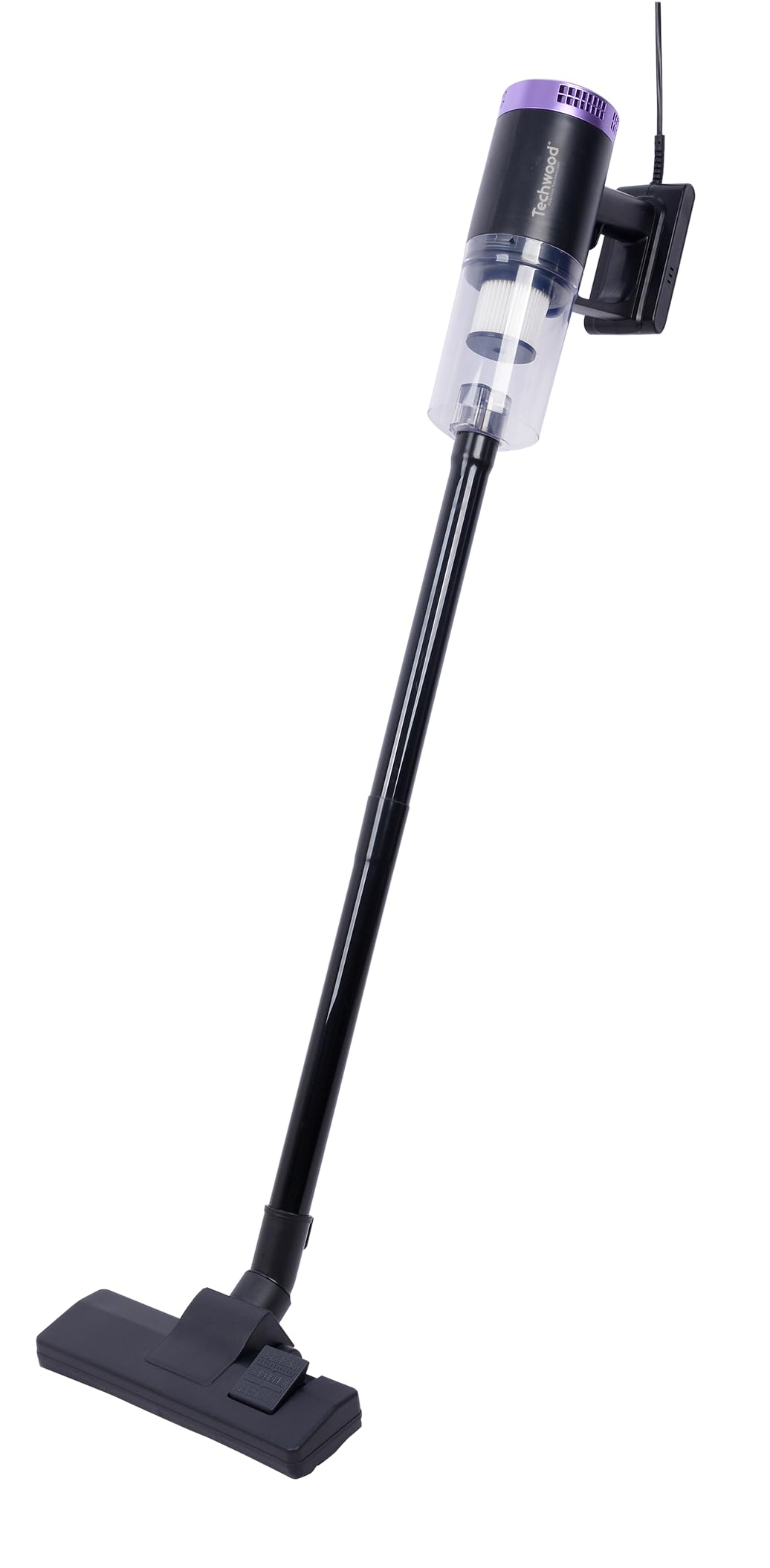

2. Using as a Stick Vacuum: With the telescopic tube and wide brush attached, use the vacuum for cleaning floors and larger surfaces. The wide brush has two positions; adjust as needed for different floor types (e.g., hard floors or carpets).
3. Using as a Handheld Vacuum: Detach the telescopic tube and attach either the crevice nozzle for tight spaces and corners, or the mini brush for upholstery and delicate surfaces.
4. Emptying the Dustbin: When the dustbin is full or suction power decreases, it's time to empty it. Refer to the "Maintenance" section for detailed instructions.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Techwood TAS-506 vacuum cleaner.

Emptying the Dustbin

1. Ensure the vacuum cleaner is unplugged from the power outlet.
2. Locate the dustbin release button/latch on the main unit. Press it to detach the transparent dustbin.
3. Hold the dustbin over a waste bin and open the bottom flap or twist to release the collected debris.
4. Close the dustbin flap/secure the twist mechanism and reattach the dustbin to the main unit until it clicks into place.

Cleaning the HEPA Filter

The HEPA filter should be cleaned regularly (e.g., after every 3-5 uses, depending on usage) and replaced periodically.

1. Unplug the vacuum cleaner and remove the dustbin as described above.
2. Carefully remove the HEPA filter from its housing within the dustbin.
3. Tap the filter gently over a waste bin to dislodge loose dust and debris.
4. If necessary, rinse the filter under cool running water. Ensure the filter is completely dry before reinserting it into the vacuum cleaner. Drying may take up to 24 hours.
5. Once dry, reinsert the HEPA filter into its housing, then reattach the dustbin to the main unit.

Cleaning Accessories

Wipe down accessories with a damp cloth as needed. Ensure they are dry before reattaching.

Troubleshooting

Specifications

• Model: TAS-506
• Brand: Techwood
• Type: Multi-cyclonic Stick and Handheld Vacuum Cleaner
• Filter Type: HEPA
• Dustbin Capacity: 0.5 Liters
• Power: 600 Watts
• Voltage: 220-240 V
• Frequency: 50/60 Hz
• Product Dimensions (L x W x H): 33 x 13 x 23.5 cm

Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your purchase or contact Techwood customer service directly. Keep your proof of purchase for warranty claims.
