1. Safety Information
Please read all instructions carefully before installation and use. Retain this manual for future reference.
- Electrical Safety: Ensure the power supply is disconnected before any installation, maintenance, or cleaning. Use only with a compatible power source (110 Volts).
- Outdoor Use: This flood light is rated IP66 waterproof for outdoor use. However, the plug and switch are not waterproof and must be protected from direct exposure to rain or moisture.
- Installation: Install the light securely to prevent it from falling. Avoid looking directly into the LED light when it is on, as it can cause eye strain.
- Heat: The flood light may become warm during operation. Do not touch the light fixture immediately after prolonged use.
2. What's in the Box
Verify that all components are present before proceeding with installation:
- 2 x 100W LED Flood Lights with Plug
- 1 x Instruction Manual
3. Product Overview
The CREATESTAR 100W LED Outdoor Flood Light is designed for efficient and bright illumination in various outdoor and indoor settings. It features a durable construction and user-friendly design.
Key Features
- Super Bright Illumination: Each 100W flood light contains 96 daylight white LEDs, producing up to 8000 lumens with a 6500K color temperature.
- Wide Beam Angle: A 120° beam angle provides broad, shadow-free, and anti-glare lighting.
- Durable and Weatherproof: Constructed with an ultra-thin aluminum body and PC panel, featuring an IP66 waterproof rating, heat resistance, and frost resistance for various outdoor environments.
- Efficient Heat Dissipation: The design promotes efficient heat dissipation, extending the lifespan of the LED floodlights.
- Adjustable Bracket: A 360° adjustable bracket allows for flexible positioning and full coverage.
- Plug and Play: Equipped with a 78.75-inch (200cm) cord and switch for easy installation and operation.
Image: The CREATESTAR 100W LED Outdoor Flood Light, showcasing its compact design and bright LED array.

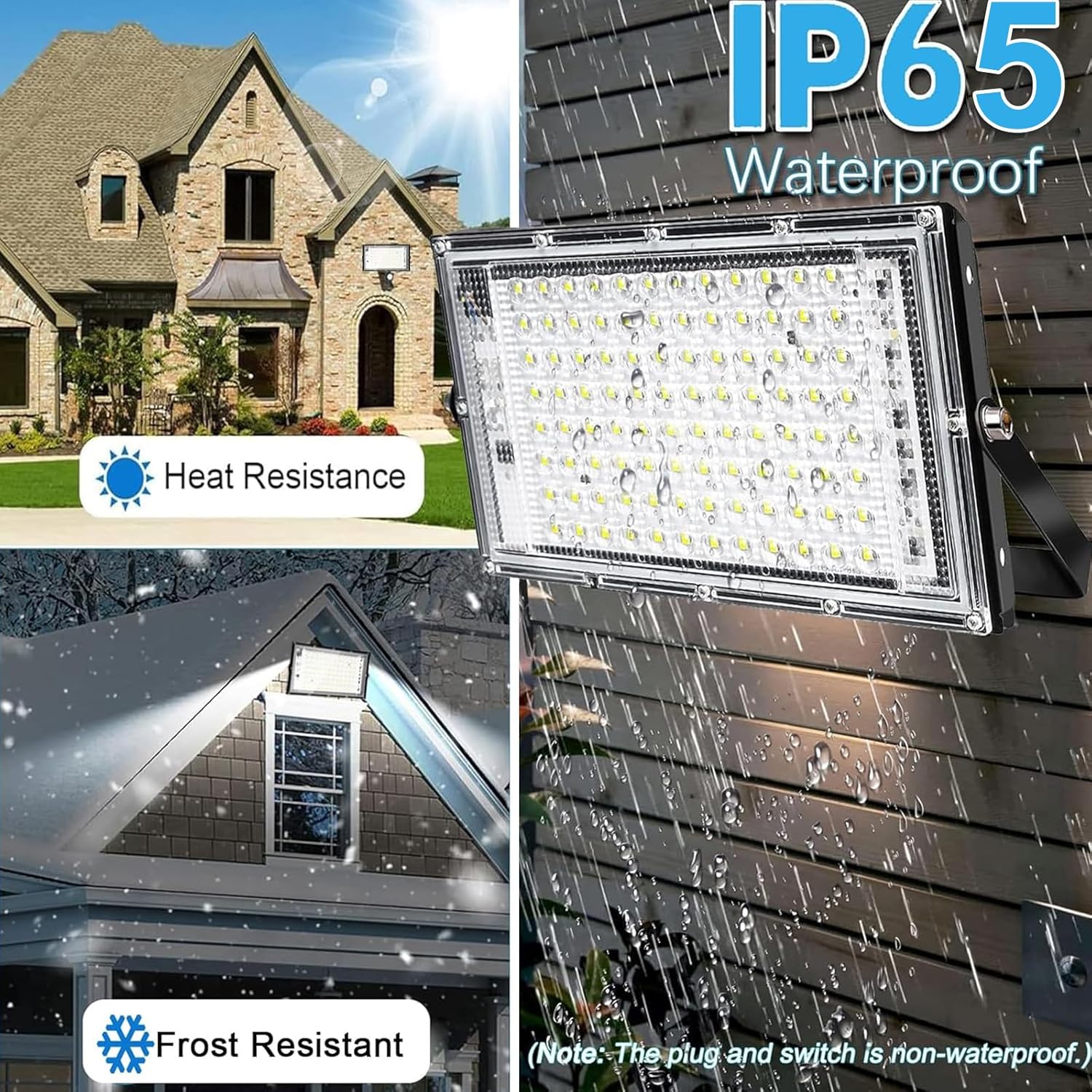

Image: Illustration of the flood light's IP65 waterproof rating, heat resistance, and frost resistance, suitable for various weather conditions. Note: The plug and switch are not waterproof.
Image: Detailed view of the 360° adjustable bracket, 2835 LED chip with PC clear cover, efficient heat dissipation fins, and the 200cm cord with an inline switch and US plug.
Product Video
Video: A demonstration of the CREATESTAR 100W LED Flood Light, showcasing its design, features, and brightness when powered on.
4. Setup and Installation
The flood light is designed for easy installation. Follow these steps:
- Choose Location: Select a suitable location for mounting the flood light, such as a wall, ceiling, or other stable surface. Ensure the location provides adequate coverage and is within reach of a power outlet.
- Mount the Bracket: Secure the adjustable bracket to the chosen surface using appropriate mounting hardware (not included). Ensure the bracket is firmly attached.
- Attach the Light: Fasten the flood light to the mounted bracket. The bracket allows for 360° rotation to direct the light as needed.
- Adjust Angle: Loosen the screws on the side of the bracket, adjust the light to the desired angle, and then tighten the screws to secure its position.
- Plug In: Connect the power cord to a standard 110V electrical outlet. Use the inline switch to turn the light on or off. Remember to protect the plug and switch from moisture.

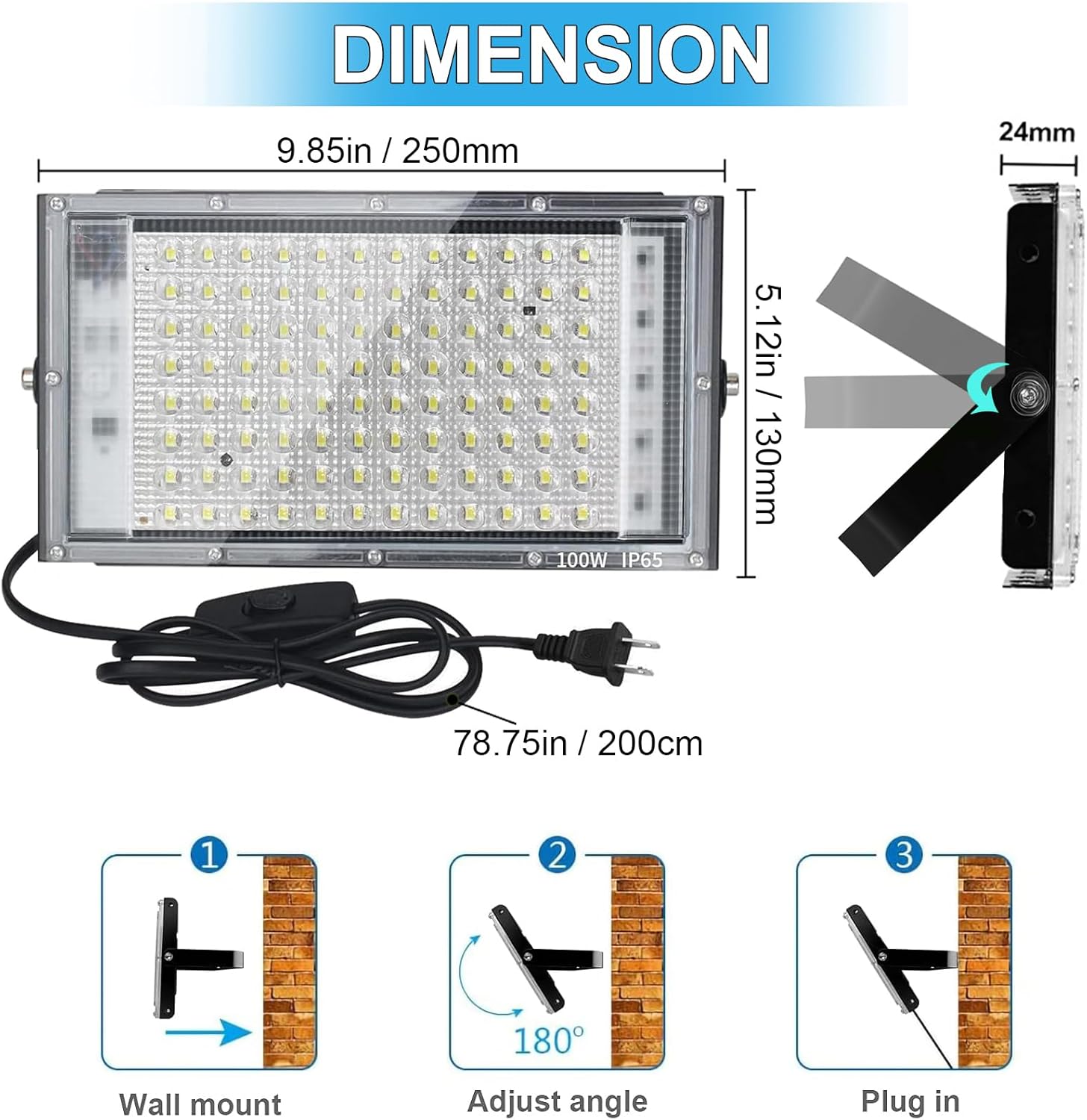

Image: Diagram showing the flood light's dimensions (9.85in L x 5.12in W x 0.5in H) and a visual guide for wall mounting, adjusting the angle, and plugging in the unit.
5. Operating Instructions
Operating the CREATESTAR 100W LED Outdoor Flood Light is straightforward:
- Power On/Off: Once installed and plugged into a power source, use the inline switch on the power cord to turn the flood light on or off.
- Adjust Direction: If needed, adjust the angle of the flood light using the 360° adjustable bracket to illuminate the desired area. Ensure the bracket screws are tightened after adjustment.
Applications
This versatile flood light is suitable for a wide range of applications:
- Outdoor Lighting: Ideal for backyards, patios, gardens, playgrounds, swimming pools, courtyards, and lawns.
- Security Lighting: Enhances security around your property.
- Work Light: Suitable for warehouses, factories, garages, workshops, and other work areas.
Image: Examples of the flood light in use, illuminating a courtyard, swimming pool, ball court, and garden, demonstrating its versatility for different outdoor spaces.
6. Maintenance
To ensure optimal performance and longevity of your flood light, follow these maintenance guidelines:
- Cleaning: Periodically clean the surface of the light with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or lens. Ensure the light is unplugged and cool before cleaning.
- Inspection: Regularly inspect the power cord and plug for any signs of damage. Check the mounting bracket for stability. If any damage is found, discontinue use and contact customer support.
- Environmental Protection: While the light is IP66 rated, ensure the plug and switch are protected from direct water exposure to prevent electrical hazards.
7. Troubleshooting
If you encounter issues with your CREATESTAR 100W LED Outdoor Flood Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Faulty power cord/plug. Faulty switch. | Check if the power cord is securely plugged into a working outlet. Inspect the power cord and plug for damage. Ensure the inline switch is in the 'ON' position. Try a different outlet. |
| Light is dim or flickers. | Unstable power supply. Loose connection. Product defect. | Ensure the power supply is stable. Check all connections. If the issue persists, contact customer support. |
| Light gets excessively hot. | Poor ventilation. Prolonged use in high ambient temperatures. | Ensure the light is installed in an area with adequate airflow. While designed for heat dissipation, avoid operating in extremely confined, hot spaces for extended periods. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | CREATESTAR |
| Model Name | CR-MH-W-100W |
| Item Model Number | CHX-FL-A-100W |
| Wattage | 100 watts |
| Brightness | 8000 lumens |
| Light Color | 6500K Daylight White |
| Voltage | 110 Volts |
| Material | Aluminum, Polycarbonate |
| Water Resistance Level | IP66 Waterproof |
| Product Dimensions | 9.8"L x 5"W x 0.5"H |
| Item Weight | 1.76 pounds |
| Power Source | Corded Electric |
| Installation Type | Plug-in |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Special Feature | Energy Efficient, Lightweight |
9. Warranty and Support
This CREATESTAR product comes with a limited warranty. For specific warranty details, please refer to the documentation included with your purchase or contact CREATESTAR customer support.
For technical assistance, troubleshooting not covered in this manual, or to inquire about warranty claims, please contact CREATESTAR customer service through the retailer where the product was purchased.
