Homtone Electric Conical Burr Coffee Grinder

1. Introduction

This instruction manual provides comprehensive guidance for the safe and efficient use of your Homtone Electric Conical Burr Coffee Grinder, Model BDCG-018s. Designed for coffee enthusiasts, this grinder offers precise control over grind size and time, ensuring optimal flavor extraction for various brewing methods, from fine espresso to coarse French press.

Please read this manual thoroughly before operating the appliance and retain it for future reference.

Figure 1: Homtone Electric Conical Burr Coffee Grinder with included portafilter cradles and dosing rings.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or grinder body in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the bean hopper lid is securely in place before operating.
• Never put fingers or other objects into the grinding chamber or bean hopper while the grinder is operating.

3. Package Contents

Carefully unpack all components and check for any damage. Please ensure all items listed below are present:

• Homtone Electric Conical Burr Coffee Grinder Unit
• Bean Hopper (270g capacity)
• Ground Coffee Container (150g capacity)
• 58mm Portafilter Cradle
• 53mm Portafilter Cradle
• 53mm Dosing Ring
• 58mm Dosing Ring
• Cleaning Brush
• Residual Cleaner Brush

4. Product Features

The Homtone Electric Conical Burr Coffee Grinder is equipped with advanced features for an optimal grinding experience:

• 51 Precise Grinding Settings: Offers a wide range of grind sizes from coarse (for French Press) to ultra-fine (for Espresso), ensuring versatility for almost all brewing methods.
• Durable Conical Burrs: Features 40mm stainless steel conical burrs that minimize heat generation during grinding, preserving the coffee's aroma and flavor.
• Three Function Modes: Choose between "Cup" for precise portions, "Time" for accurate weight-based grinding (adjustable to 0.1 seconds), and "Manual Espresso" mode for full control.
• Antistatic Technology: Designed to reduce static cling of coffee grounds, resulting in less mess and a cleaner countertop.
• Portafilter Compatibility: Includes 58mm and 53mm portafilter cradles and dosing rings for direct grinding into your espresso machine's portafilter.
• Compact Design: With dimensions of 12x16x34.5 cm, it fits conveniently in any kitchen space.
• Integrated Bean Hopper: A generous 270g bean hopper allows for grinding larger quantities without frequent refills.

5. Setup

1. Unpack: Remove all packaging materials and accessories from the box.
2. Placement: Place the grinder on a stable, flat, and dry surface. Ensure there is enough space around the unit for proper ventilation and operation.
3. Install Bean Hopper: Place the bean hopper onto the top of the grinder unit. Rotate it clockwise until it locks into place. Ensure the hopper is securely seated to activate the safety switch.
4. Choose Output Method:
   • For grinding into the included ground coffee container: Slide the container into the designated slot at the front of the grinder.
   • For grinding directly into a portafilter: Select the appropriate portafilter cradle (53mm or 58mm) and slide it into the slot. You may also use the corresponding dosing ring with your portafilter for cleaner operation.
5. Initial Cleaning: Before first use, wipe down the exterior of the grinder with a damp cloth. The bean hopper and ground coffee container can be washed with warm soapy water and thoroughly dried. Do not immerse the main unit in water.
6. Plug In: Connect the power cord to a suitable electrical outlet (220 Volts DC).

6. Operating Instructions

1. Add Coffee Beans: Open the bean hopper lid and pour fresh, whole coffee beans into the hopper. Do not overfill. Close the lid securely.
2. Adjust Grind Size:

   Rotate the grind size adjustment dial located below the bean hopper to select your desired grind setting. The grinder offers 51 precise settings, ranging from 1 (finest, for espresso) to 51 (coarsest, for French Press). Refer to the diagram below for recommended settings for common brewing methods.

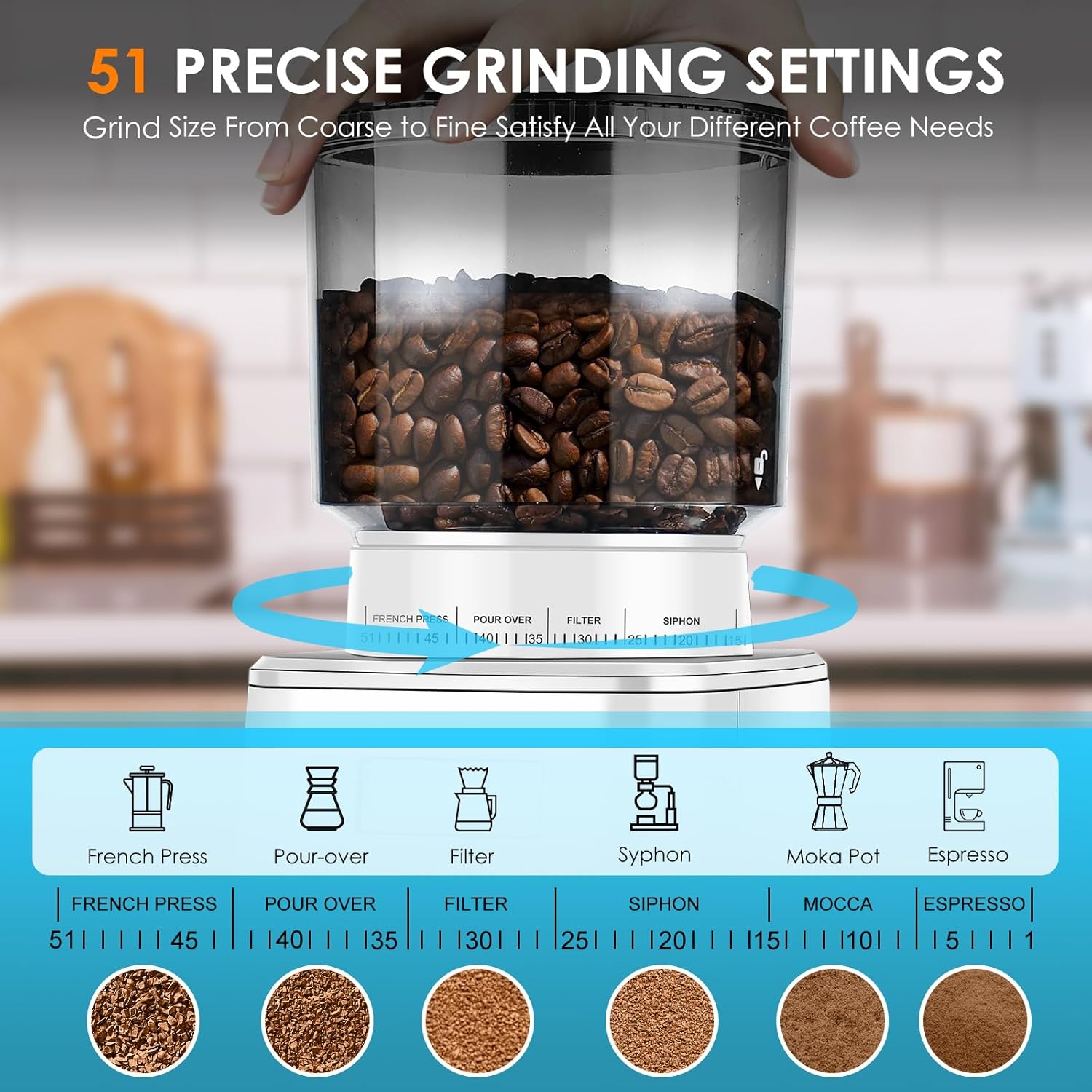

   Figure 2: Grind size recommendations for French Press, Pour-over, Filter, Syphon, Moka Pot, and Espresso.
3. Select Grinding Mode and Time/Cups:

   Press the SET button to cycle through the three grinding modes: Cup, Time, and Espresso.

   • Cup Mode: Use the + and - buttons to select the number of cups (1-12). The grinder will automatically grind the appropriate amount for the selected cups.
   • Time Mode: Use the + and - buttons to set the grinding duration in 0.1-second increments (1-60 seconds). This allows for precise control over the amount of coffee ground by weight.
   • Espresso Mode: This mode is designed for direct grinding into a portafilter. The time can be adjusted similarly to Time Mode.

   Tip: Long press the + or - buttons to quickly adjust the time or cup setting.



   Figure 3: Digital display and control buttons for setting grind time and mode.

4. Start Grinding:
   • Using Ground Coffee Container: Ensure the container is properly seated. Press the Power button to start grinding. The grinder will stop automatically once the set time/cups are reached.
   • Using Portafilter: Place your portafilter (with or without a dosing ring) into the selected cradle. Ensure it is firmly seated. The grinder may have a trigger button behind the cradle that activates when the portafilter is pressed against it, or you may need to press the Power button. The grinder will stop automatically.

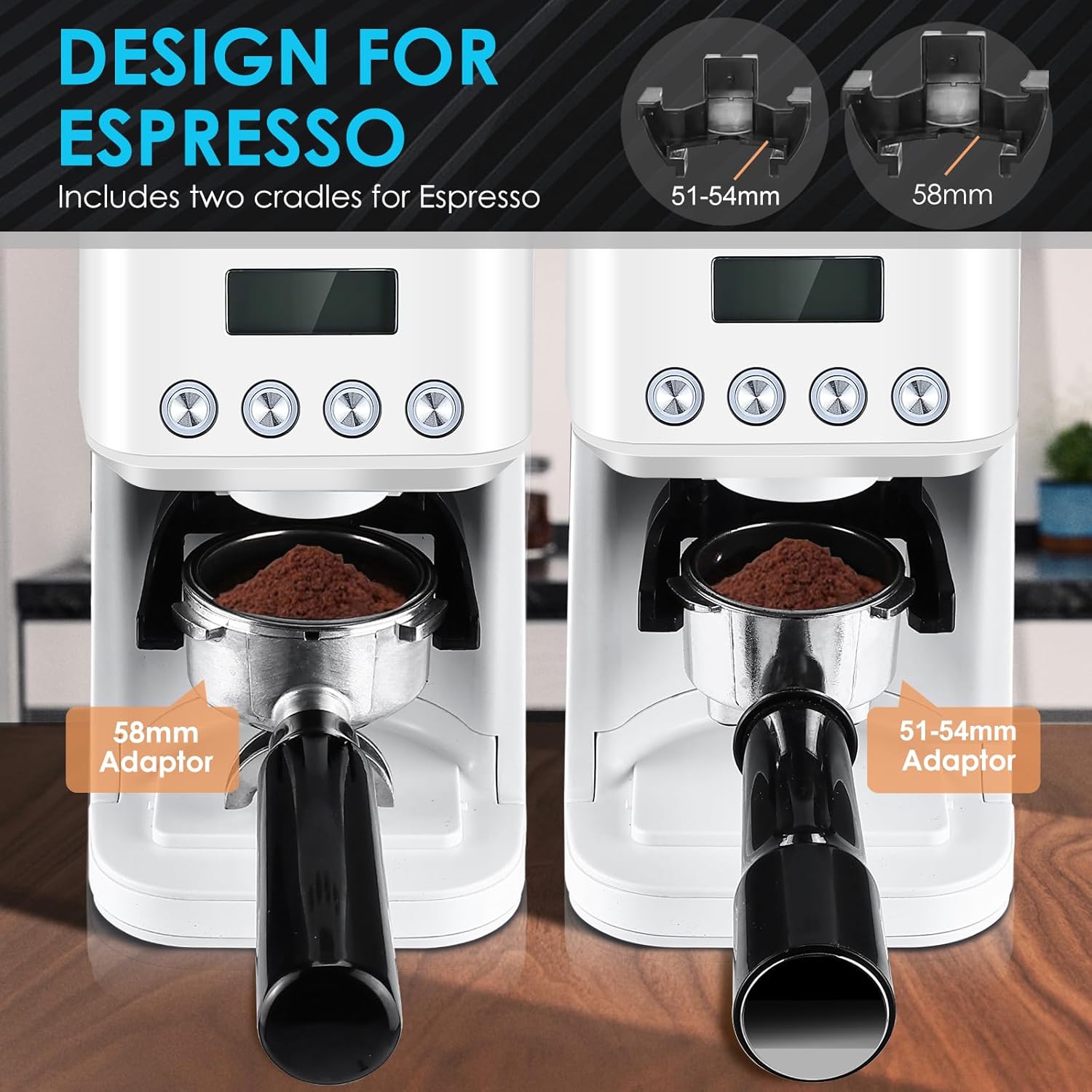

   Figure 4: The grinder is designed to accommodate both 58mm and 51-54mm portafilters using the provided cradles.


   Figure 5: Grinding coffee beans directly into a portafilter using the dosing ring. Note: Cradle and dosing ring cannot be used simultaneously.

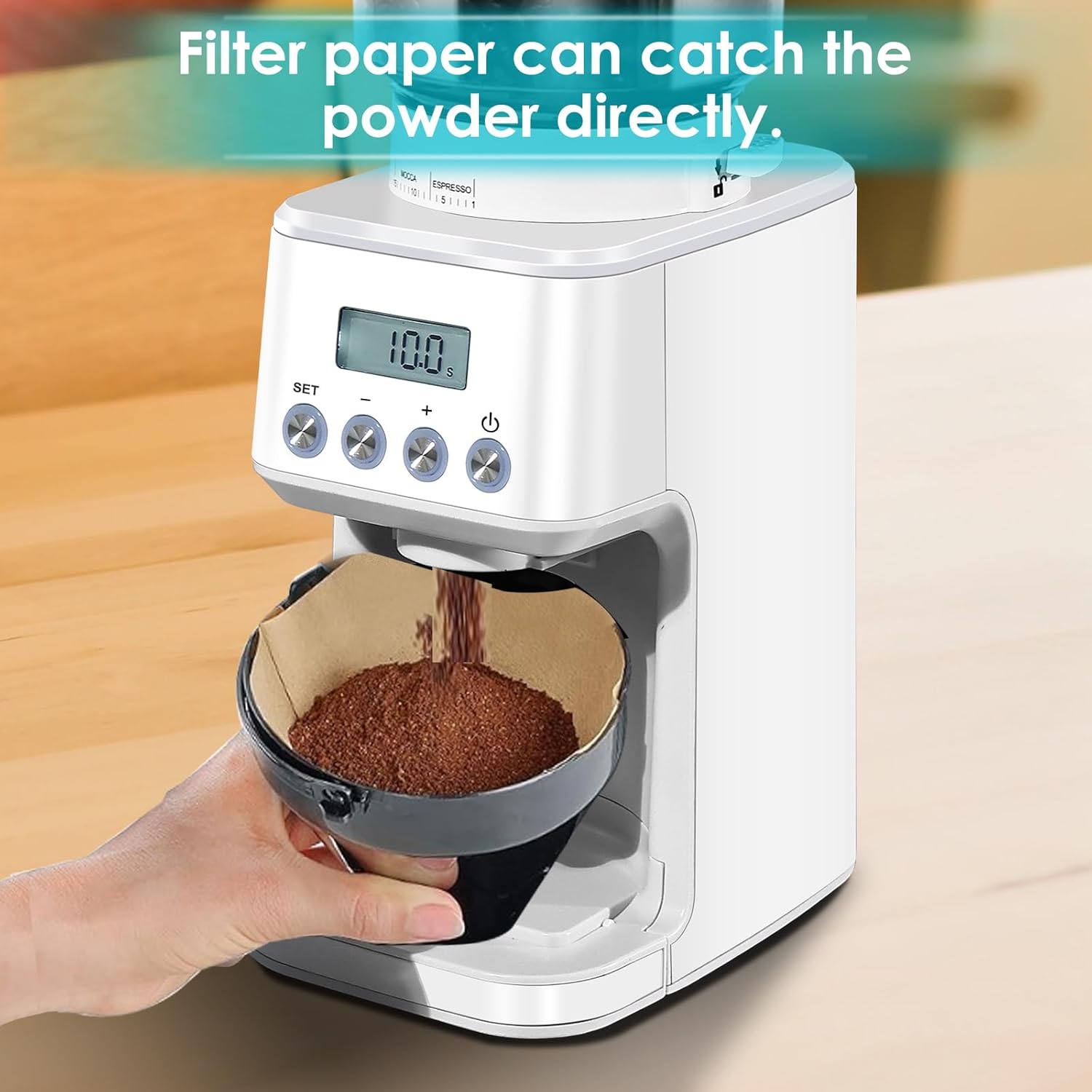

   Figure 6: The grinder can also dispense coffee grounds directly into a filter paper for convenience.

5. After Grinding: Remove the ground coffee container or portafilter. For best results, use freshly ground coffee immediately.

7. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your grinder. Always unplug the grinder before cleaning.

1. Empty and Disassemble: Ensure the bean hopper is empty. Remove the bean hopper by rotating it counter-clockwise and lifting it off. Remove the ground coffee container or portafilter cradle.
2. Clean Burr Grinders:

   The upper burr can be removed for cleaning. Rotate the upper burr counter-clockwise and lift it out. Use the provided cleaning brush to remove any coffee grounds from both the upper and lower burrs. Do not wash burrs with water.



   Figure 7: The durable conical burr, designed for precise grinding and easy cleaning.
3. Clean Grinding Chamber: Use the cleaning brush to remove any residual coffee grounds from the grinding chamber.
4. Use Residual Cleaner: For thorough cleaning of residual grounds, press the "Coffee Grounds Residual Cleaner" button (if available, or use the dedicated brush) to dislodge any remaining powder from the grinding chute.


   Figure 8: The integrated coffee grounds residual cleaner helps keep the grinding path clear and minimizes mess.

5. Clean Accessories: Wash the bean hopper, ground coffee container, portafilter cradles, and dosing rings with warm soapy water. Rinse thoroughly and dry completely before reassembling.
6. Wipe Exterior: Wipe the exterior of the grinder with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
7. Reassemble: Reassemble all parts, ensuring the upper burr is correctly seated and locked, and the bean hopper is securely in place.

8. Troubleshooting

If you encounter any issues with your Homtone coffee grinder, please refer to the following table before contacting customer support.

9. Specifications

10. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact Homtone customer service directly. Warranty terms may vary by region and retailer.

For technical support, troubleshooting beyond this manual, or to inquire about replacement parts, please visit the official Homtone website or contact their customer support team through the contact information provided on their packaging or website.

Homtone is committed to providing quality products and support. Your satisfaction is important.
