EMMO NOK Ebike Electric Scooter User Manual

1. Product Overview

The EMMO NOK Ebike is a robust electric scooter designed for urban and daily commutes. It features an 84V QS 500W brushless hub motor, providing smooth acceleration up to a regulatory speed limit of 32 km/h. Safety is enhanced with front and rear hydraulic brake systems, including motor cutoff switches. The design prioritizes comfort and utility, offering ample storage and a spacious seating area for two riders.

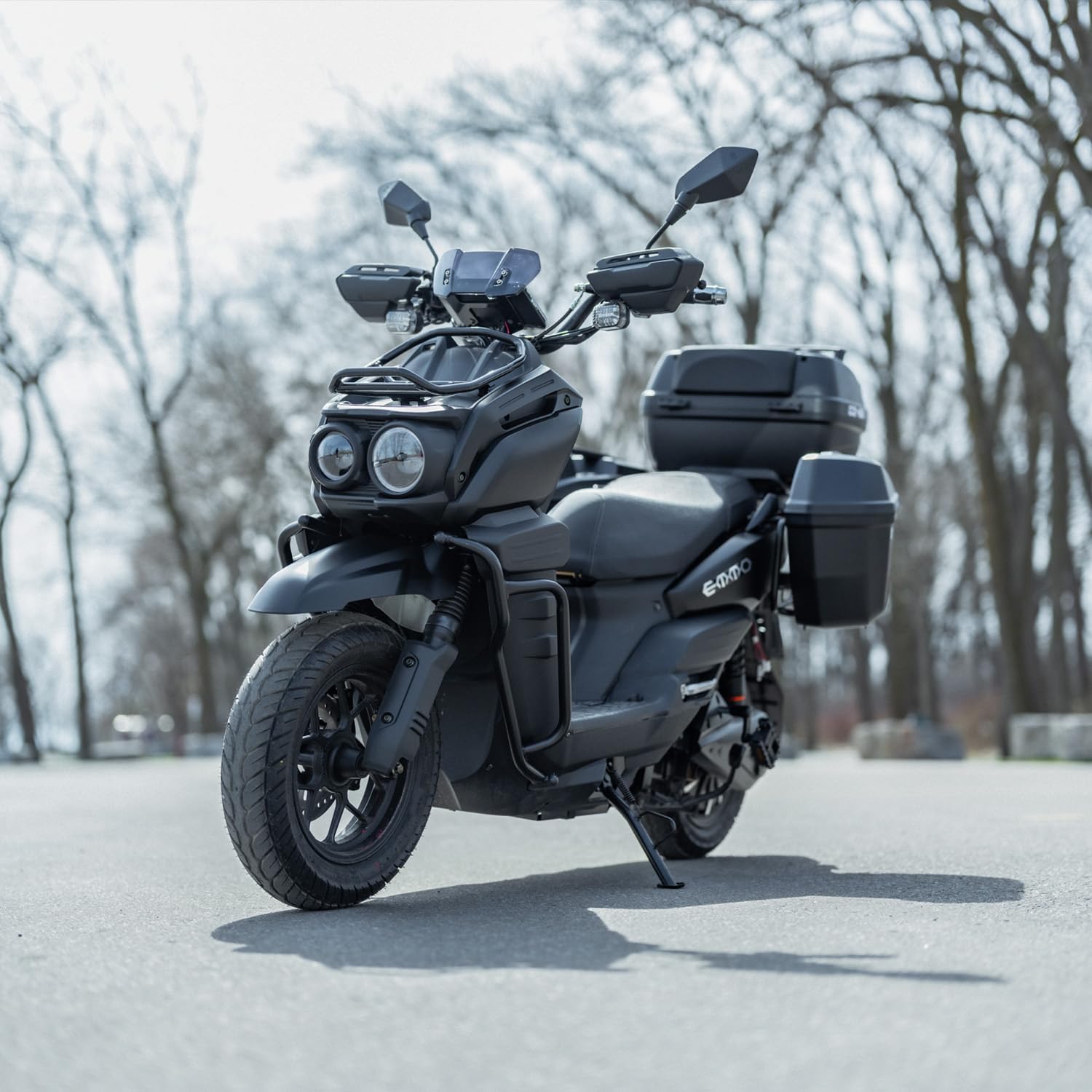

Figure 1: EMMO NOK Ebike electric scooter, front-side view. This image displays the overall design of the scooter, highlighting its sturdy frame and dual headlights.

Key Features:

• 84V QS Super Torque Motor: High-performance 84V motor for superior torque and acceleration.
• Hydraulic Disc Brakes: Front and rear hydraulic disc brakes ensure reliable stopping power.
• 84V/20Ah SLA Battery: Provides consistent power for extended rides.
• Ample Storage: Features underseat compartment and front rack, with optional saddle and tailboxes for up to 82L capacity.
• MP3 Radio Connectivity: Integrated MP3 radio system for entertainment during rides.
• Full Suspension: Designed for comfort and stability on various terrains.

2. Setup and Initial Preparation

2.1 Unpacking and Assembly

Carefully remove the EMMO NOK Ebike from its packaging. Inspect for any shipping damage. Minor assembly may be required, typically involving the attachment of mirrors and handlebars. Refer to the included assembly guide for detailed instructions.

2.2 Initial Battery Charging

Before first use, fully charge the 84V/20Ah SLA battery. Connect the charger to the ebike's charging port, then plug the charger into a standard electrical outlet. The charging indicator on the charger will show the charging status. A full charge typically takes several hours. Do not interrupt the charging cycle until complete.

2.3 Pre-Ride Safety Checks

• Brakes: Ensure both front and rear hydraulic brakes engage smoothly and effectively.
• Tires: Check tire pressure. The recommended pressure is typically indicated on the tire sidewall.
• Lights: Verify that the headlights, taillights, and turn signals are functional.
• Horn: Test the horn for proper operation.
• Battery Level: Confirm the battery display shows a sufficient charge for your intended ride.

3. Operating Instructions

3.1 Starting the Ebike

Insert the key into the ignition and turn it to the 'ON' position. The digital display will illuminate, indicating the ebike is ready for operation.

Figure 2: Close-up of the EMMO NOK Ebike ignition switch. The switch clearly indicates 'OFF', 'ON', 'LOCK', and 'OPEN' positions for various functions.

3.2 Controls and Display

The EMMO NOK features intuitive controls and a clear digital display.

Figure 3: Digital dashboard display of the EMMO NOK Ebike. The display shows speed, battery level, and trip information.

• Throttle: Located on the right handlebar, twist to accelerate.
• Brake Levers: Left lever for the rear brake, right lever for the front brake.
• Headlight Switch: Activates the front headlights.
• Turn Signal Switch: Engages left or right turn signals.
• Horn Button: Activates the horn.
• MP3 Controls: Buttons for FM radio and MP3 playback are located on the console.

Figure 4: Close-up of the EMMO NOK Ebike MP3 radio controls. This image shows the buttons for power, volume, track selection, and mode.

3.3 Riding Tips

• Always wear a helmet and appropriate safety gear.
• Familiarize yourself with local traffic laws and regulations for electric scooters.
• Maintain a safe distance from other vehicles and pedestrians.
• Avoid sudden acceleration or braking, especially in wet conditions.
• Be mindful of the battery level and plan your routes accordingly.

4. Maintenance

Regular maintenance ensures the longevity and safe operation of your EMMO NOK Ebike.

4.1 Battery Care

• Charge the battery regularly, even if the ebike is not in use, to maintain battery health.
• Avoid completely draining the battery before recharging.
• Store the ebike and battery in a cool, dry place away from direct sunlight and extreme temperatures.

4.2 Tire Maintenance

• Check tire pressure weekly and inflate to the recommended PSI.
• Inspect tires for wear, cuts, or punctures. Replace worn tires promptly.

4.3 Brake System

• Regularly check brake fluid levels for hydraulic brakes.
• Inspect brake pads for wear and replace them when necessary.
• Ensure brake levers operate smoothly and return to their original position.

4.4 General Cleaning

• Clean the ebike with a damp cloth and mild detergent. Avoid using high-pressure washers directly on electrical components.
• Keep electrical connections dry and free from dirt.

5. Troubleshooting

This section addresses common issues you might encounter with your EMMO NOK Ebike.

6. Specifications

7. Warranty Information

The EMMO NOK Ebike comes with a 365-day warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear. For detailed warranty terms and conditions, please contact EMMO customer support.

8. Customer Support

For any questions, technical assistance, or warranty claims, please contact EMMO customer support:

• Manufacturer: EMMO Inc.
• Address: 1224 Dundas Street E, Unit 6, Mississauga, ON L4Y 2C5, Canada
• Phone: 1-888-510-3666
• Email: info@emmo.ca
