DUCRES Fuel Injector Instruction Manual

Introduction

This document provides essential information regarding the DUCRES Fuel Injector, part number 23670-0L090. This fuel injector is designed for specific Toyota Hilux models equipped with 1KD-FTV and 2KD-FTV 2.5d/3.0d engines. It is crucial to ensure compatibility with your vehicle's engine model before installation.

Note: This kit does not include detailed installation instructions. Professional installation by a qualified mechanic is strongly recommended to ensure correct fitment and operation, and to prevent potential damage to the vehicle or the component.

Important Safety Information

• Always disconnect the vehicle's battery before performing any work on the fuel system.
• Fuel systems operate under high pressure. Exercise extreme caution to avoid fuel spray, which can cause injury or fire.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the work area is well-ventilated and free from ignition sources.
• Refer to your vehicle's official service manual for specific procedures and torque specifications.
• Dispose of old parts and fuel responsibly according to local regulations.

Setup and Installation

As stated in the product description, this fuel injector kit does not contain specific installation instructions. Due to the complexity and critical nature of fuel system components, professional installation is mandatory. Attempting installation without proper tools, knowledge, and experience can lead to severe engine damage, fuel leaks, or other safety hazards.

A qualified automotive technician will:

• Properly depressurize the fuel system.
• Remove the old fuel injector(s) safely.
• Install the new DUCRES fuel injector, ensuring correct seating and torque specifications.
• Perform necessary diagnostic checks and programming (if required by the vehicle's ECU).
• Check for leaks and proper operation after installation.

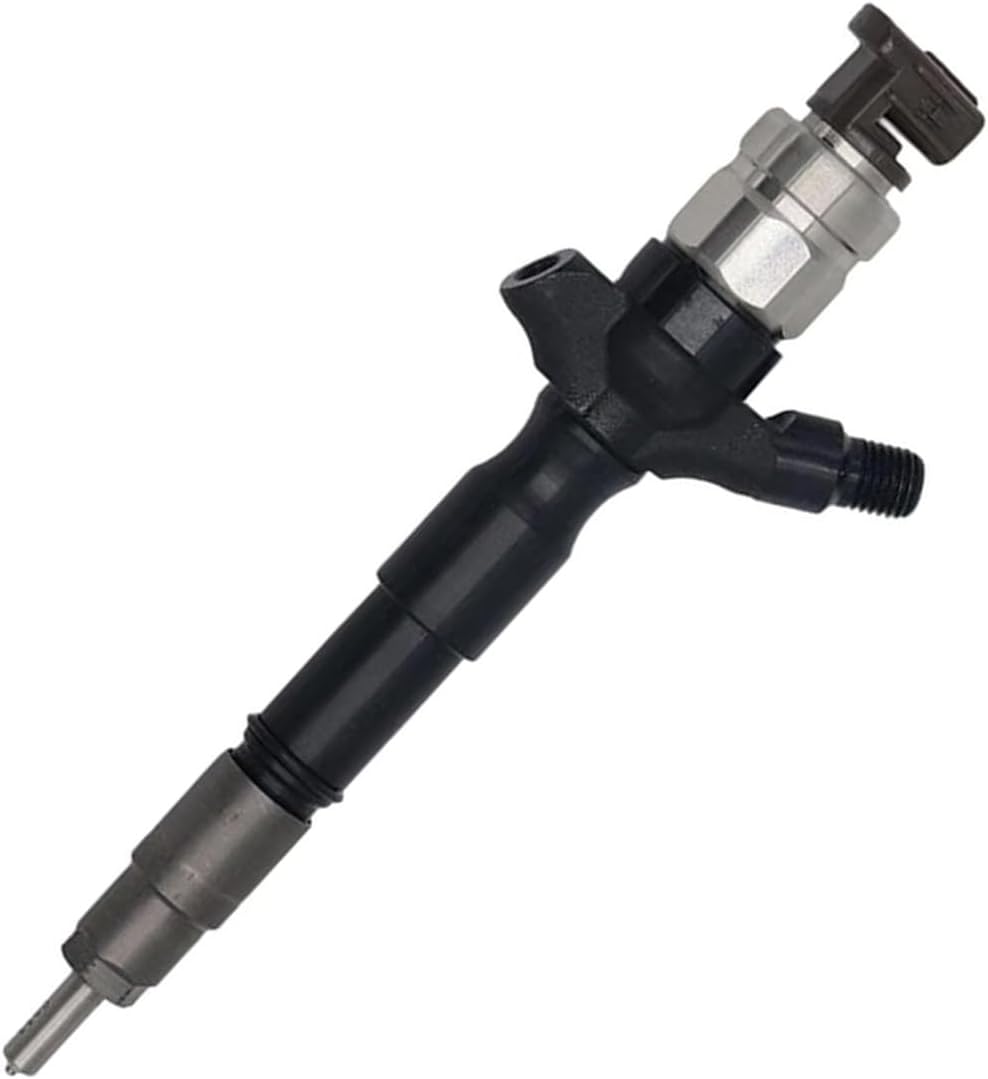

Image 1: Side view of the DUCRES Fuel Injector (Part No. 23670-0L090).

Operating Principles

Fuel injectors are precision components that deliver a fine mist of fuel into the engine's combustion chambers. The vehicle's Engine Control Unit (ECU) precisely controls the timing and duration of fuel injection based on various sensor inputs (e.g., engine speed, load, temperature). Once installed correctly, the DUCRES Fuel Injector will operate automatically as part of the vehicle's fuel management system.

Image 2: Another side view of the DUCRES Fuel Injector, showing connection points.

Maintenance

Fuel injectors themselves typically do not require routine maintenance. However, maintaining the overall fuel system is crucial for their longevity and performance:

• Fuel Quality: Always use high-quality fuel as recommended by your vehicle manufacturer. Poor quality fuel can lead to deposits and clogging.
• Fuel Filter Replacement: Regularly replace your vehicle's fuel filter according to the manufacturer's schedule to prevent contaminants from reaching the injectors.
• Fuel System Cleaners: Consult with a professional before using fuel system cleaners, as some may not be suitable for all systems.

Image 3: Angled view of the DUCRES Fuel Injector, highlighting its overall structure.

Troubleshooting

If you suspect an issue with your fuel injector or fuel system after installation, common symptoms may include:

• Engine misfires or rough idling.
• Reduced fuel efficiency.
• Loss of engine power or acceleration.
• Check Engine Light (CEL) illumination.
• Strong fuel odor.

If any of these symptoms occur, it is imperative to have the vehicle inspected by a professional mechanic immediately. Do not attempt to diagnose or repair complex fuel system issues yourself unless you are a qualified technician.

Image 4: Another angled view of the DUCRES Fuel Injector, showing the nozzle end.

Specifications

Warranty Information

Specific warranty details for this DUCRES product are not provided in the available information. Please refer to the retailer or manufacturer's official website for current warranty terms and conditions. Keep your proof of purchase for any warranty claims.

Customer Support

For technical assistance, compatibility questions, or support regarding this fuel injector, please contact the DUCRES customer service or the retailer from whom the product was purchased. When contacting support, please have your product model number (23670-0L090) and vehicle details readily available.

For professional installation or diagnosis, consult a certified automotive technician.
