CLAYMORE Heady3 CLC-500 Headlight User Manual

1. Introduction

Thank you for purchasing the CLAYMORE Heady3 CLC-500 Headlight. This versatile headlight is designed for various outdoor activities, offering multiple lighting modes, a motion sensor, and flexible mounting options. Please read this manual carefully before use to ensure proper operation and maintenance.

2. Safety Information

• Do not look directly into the light beam to avoid eye injury.
• Keep the device away from water and moisture unless specifically designed for waterproof use (check specifications).
• Do not attempt to disassemble or modify the headlight. This may void the warranty and pose safety risks.
• Use only the specified charging voltage (USB 5V 1A).
• Keep out of reach of children.
• Avoid extreme temperatures and direct sunlight.

3. Package Contents

Please check that all items are present:

• CLAYMORE Heady3 CLC-500 Headlight
• USB-C Charging Cable
• Headband
• User Manual (this document)

4. Product Overview

Familiarize yourself with the components of your CLAYMORE Heady3 CLC-500 Headlight.

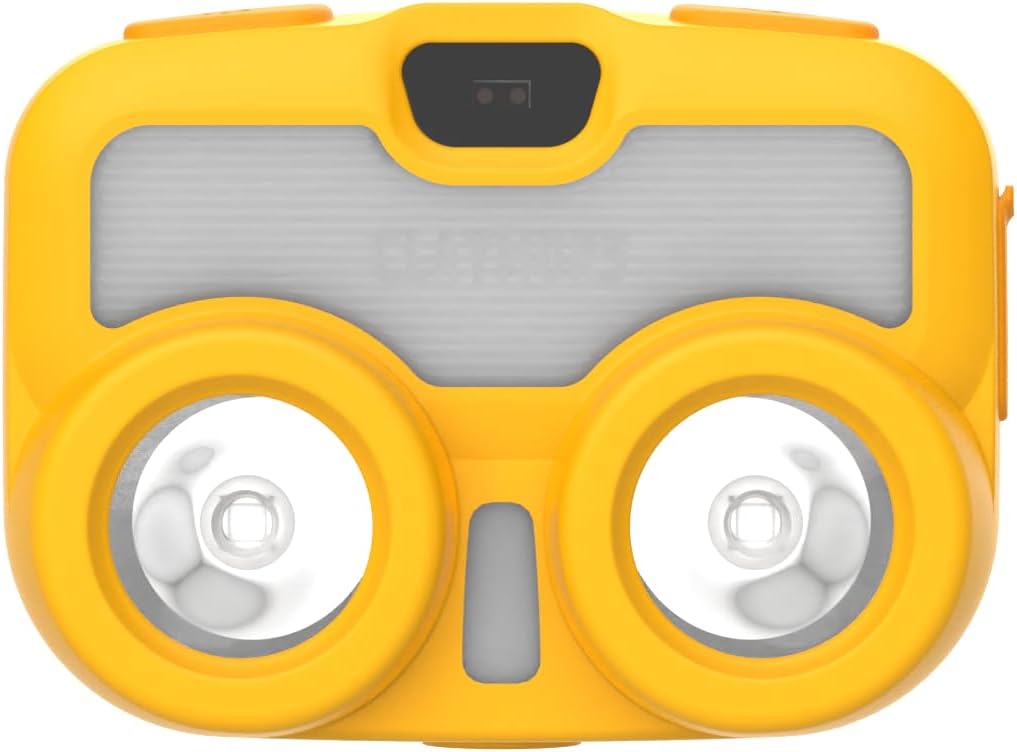

Figure 4.1: Front View. This image shows the front of the CLAYMORE Heady3 CLC-500 Headlight, highlighting the two main light sources and the central sensor area.

Figure 4.2: Top View. This image displays the top side of the headlight, featuring the power button (left), the P-SENSOR label, and the mode/motion sensor button (right).

Figure 4.3: Side View. This image illustrates the side of the headlight, clearly showing the USB-C charging port with its protective cover.

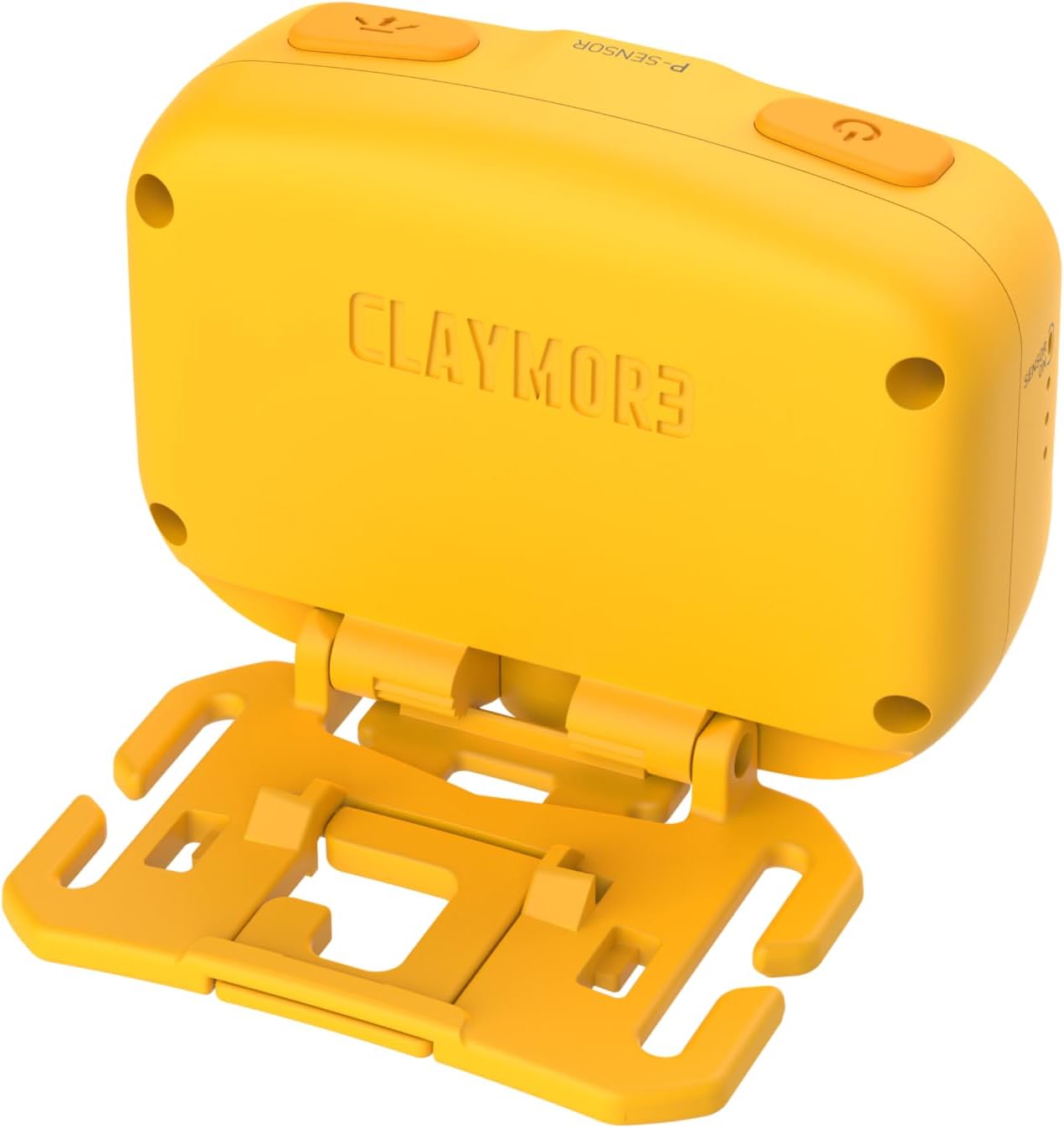

Figure 4.4: Back View. This image presents the rear of the headlight, showing the CLAYMORE branding and the integrated mounting bracket for various attachments.

5. Setup

5.1 Charging the Headlight

1. Locate the USB-C port on the side of the headlight (refer to Figure 4.3).
2. Connect the provided USB-C cable to the headlight and the other end to a USB power source (e.g., wall adapter, power bank, computer USB port). Ensure the power source provides 5V 1A.
3. The charging indicator light will show the charging status (e.g., red for charging, green for fully charged).
4. A full charge typically takes several hours.

5.2 Mounting Options

The CLAYMORE Heady3 offers multiple ways to attach and use the light:

• Headband: Attach the headlight to the included headband for traditional headlamp use.
• Hook: Utilize the integrated hook on the mounting bracket to hang the light from tents, branches, or other suitable fixtures.
• Alligator Clip: Attach the light to a bag, pocket, or other gear using an alligator clip (may require an additional accessory, not specified as included).
• Tripod Screw Hole: The headlight features a tripod screw hole for mounting on standard tripods or other compatible accessories, offering stable positioning.

6. Operating Instructions

6.1 Power On/Off

• To turn on the headlight, press and hold the power button (left button on top, refer to Figure 4.2).
• To turn off the headlight, press and hold the power button again.

6.2 Changing Lighting Modes

The CLC-500 features 6 lighting modes:

• Cool White (5700K, 6500K): Bright, clear light for general illumination.
• White (4200K): Neutral white light.
• Warm White (3000K): Softer, warmer light for comfortable ambiance.
• Red Light: Preserves night vision and is less disruptive in dark environments.
• Diffused Light: Provides a wide, even spread of light.
• Focused Light: Concentrated beam for long-distance illumination.

To cycle through the lighting modes, short press the mode button (right button on top, refer to Figure 4.2) while the light is on.

6.3 Brightness Adjustment (Dimming)

The brightness can be adjusted from 15 lumens to 500 lumens.

• While the light is on in any mode, press and hold the mode button to continuously adjust the brightness. Release the button when the desired brightness level is reached.

6.4 Motion Sensor Function

The motion sensor allows for hands-free operation, enabling you to turn the light on/off or dim it with a wave of your hand.

• To activate the motion sensor, double-press the mode button. An indicator light (if present, not specified) may confirm activation.
• Once activated, wave your hand in front of the sensor (located centrally on the front, refer to Figure 4.1) to toggle the light on/off or to dim it, depending on the specific mode.
• To deactivate the motion sensor, double-press the mode button again.

7. Maintenance

• Cleaning: Wipe the headlight with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Battery Care: To prolong battery life, charge the device regularly, even if not in frequent use. Avoid fully discharging the battery for extended periods. Store in a cool, dry place.
• Storage: When storing for long periods, ensure the battery is partially charged (around 50%) and recharge every 3-6 months.

8. Troubleshooting

• Light not turning on:
  • Ensure the battery is charged. Connect to a power source and check the charging indicator.
  • Press and hold the power button for a few seconds to ensure it's not just a short press.
• Light not charging:
  • Check the USB-C cable for damage and ensure it's properly connected.
  • Try a different USB power source or wall adapter.
• Motion sensor not responding:
  • Ensure the motion sensor function is activated (double-press mode button).
  • Clean the sensor area on the front of the headlight.
  • Ensure there are no obstructions between your hand and the sensor.

9. Specifications

10. Warranty and Support

This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or service inquiries, please contact the manufacturer or your local distributor.
