1. Important Safety Instructions
Please read all instructions carefully before installing and operating your air conditioner. Retain this manual for future reference.
- Professional Installation: Installation, maintenance, and repair must be performed by qualified service personnel. Incorrect installation can lead to electric shock, fire, or water leakage.
- Power Supply: Ensure the power supply matches the specifications of the unit. Do not use extension cords.
- Grounding: The unit must be properly grounded to prevent electric shock.
- Refrigerant: This unit uses R410A refrigerant. Handle with care and ensure proper ventilation during service.
- Obstructions: Do not block the air inlet or outlet of the indoor or outdoor unit.
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth. Do not use water or volatile liquids.
- Children: Keep children away from the unit and remote control.
2. Product Overview
The Mando Plus MP-NF23-18C is a split-type air conditioner designed for cooling only, offering 18000 BTU capacity. It features a sleek white design and operates on corded electric power.
Indoor Unit
Figure 2.1: Front view of the indoor unit, displaying the current temperature.
Outdoor Unit

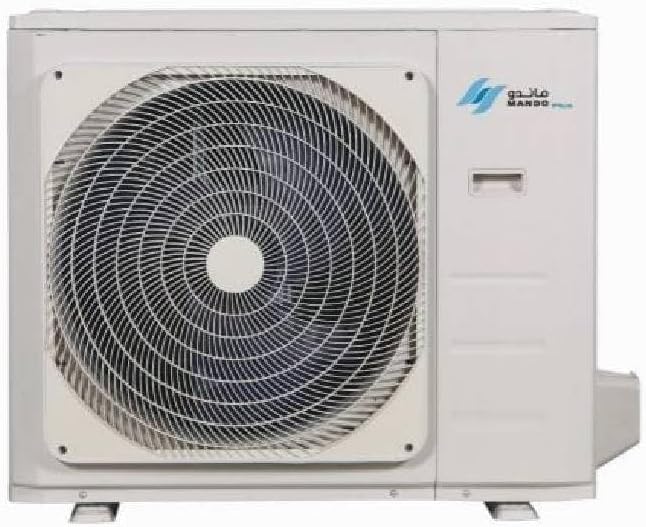

Figure 2.2: The outdoor condenser unit, responsible for heat exchange.
3. Installation Guide
Installation of a split air conditioner requires specialized tools and knowledge. It is strongly recommended that installation be performed by a certified HVAC technician to ensure proper function, safety, and warranty validity.
General Installation Steps (Overview):
- Site Selection: Choose appropriate locations for both indoor and outdoor units, considering air circulation, drainage, and structural support.
- Mounting: Securely mount the indoor unit on a wall and the outdoor unit on a stable surface or wall bracket.
- Refrigerant Piping: Connect the refrigerant lines between the indoor and outdoor units, ensuring proper insulation and leak-free connections.
- Drainage: Install the condensate drain pipe for the indoor unit with a downward slope to allow proper water flow.
- Electrical Wiring: Connect the power supply and communication wiring according to the wiring diagram provided with the unit.
- Vacuuming and Charging: Evacuate the refrigerant lines to remove air and moisture, then check for leaks and charge with the correct amount of R410A refrigerant if necessary.
- Test Run: Perform a test run to verify all functions are operating correctly.
4. Operating Instructions
This section outlines the basic operation of your Mando Plus air conditioner using the remote control (not pictured, but typically included).
Basic Functions:
- Power On/Off: Press the ON/OFF button to start or stop the unit.
- Mode Selection: Press the MODE button to cycle through available modes. For this cooling-only model, the primary mode will be COOL.
- Temperature Adjustment: Use the TEMP UP (▲) and TEMP DOWN (▼) buttons to set your desired temperature. The display on the indoor unit will show the set temperature.
- Fan Speed: Press the FAN button to adjust the fan speed (e.g., Low, Medium, High, Auto).
- Swing Function: Use the SWING button to control the vertical louver movement for optimal air distribution.
- Timer Function: Refer to your remote control manual for detailed instructions on setting the ON/OFF timer.
5. Maintenance and Care
Regular maintenance ensures optimal performance and longevity of your air conditioner. Always disconnect power before performing any maintenance.
Air Filter Cleaning:
The air filters should be cleaned every two weeks or more frequently depending on usage and air quality.
- Open Front Panel: Gently lift the front panel of the indoor unit.
- Remove Filters: Carefully slide out the air filters.
- Clean Filters: Wash the filters with lukewarm water and a mild detergent. Rinse thoroughly and allow them to dry completely in a shaded area. Do not expose to direct sunlight.
- Reinstall Filters: Slide the dry filters back into their original position and close the front panel.
Figure 5.1: Indoor unit with the front panel open for filter access.
Outdoor Unit Cleaning:
Periodically check the outdoor unit for debris, leaves, or other obstructions that may block the condenser coils. Carefully remove any blockages. Do not spray water directly onto electrical components.
Seasonal Checks:
Before the cooling season, ensure the unit is clean, and there are no visible damages to wiring or piping. Consider a professional check-up annually.
6. Troubleshooting
Before contacting service, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power supply; Remote control batteries low; Timer set to OFF | Check power breaker; Replace batteries; Cancel timer setting. |
| Insufficient cooling | Dirty air filter; Blocked outdoor unit; Doors/windows open; Temperature setting too high | Clean air filter; Clear obstructions; Close openings; Lower temperature setting. |
| Water leakage from indoor unit | Blocked drain pipe; Incorrect installation angle | Clear drain pipe; Contact professional for re-installation. |
| Unusual noise | Loose parts; Foreign objects in fan; Unit not level | Check for loose screws; Inspect for obstructions; Ensure unit is level. |
If the problem persists after attempting these solutions, please contact qualified service personnel.
7. Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Mando |
| Model Name | MP-NF23-18C |
| Installation Method | Split System |
| Cooling Capacity | 18000 British Thermal Units (BTU) |
| Special Features | Cooling Only |
| Power Source | Corded Electric |
| Wattage | 5257 watts |
| Refrigerant | R410A |
| Color | White |
| Item Weight | 45 Kilograms |
| Product Dimensions (Indoor Unit) | 103D x 103W x 43.8H centimeters (approximate) |
8. Warranty and Customer Support
For warranty information, please refer to the warranty card included with your product or contact your local Mando service center. Keep your purchase receipt as proof of purchase.
For technical assistance, spare parts, or service requests, please contact Mando customer support through their official channels. Contact details can typically be found on the manufacturer's website or in the product packaging.
