FineMade 3-in-1 Panini Grill, Waffle, and Sandwich Maker Instruction Manual

Introduction

Thank you for purchasing the FineMade 3-in-1 Panini Grill, Waffle, and Sandwich Maker. This versatile appliance is designed to provide efficient and convenient cooking for a variety of meals, including paninis, breakfast sandwiches, waffles, and grilled items. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.

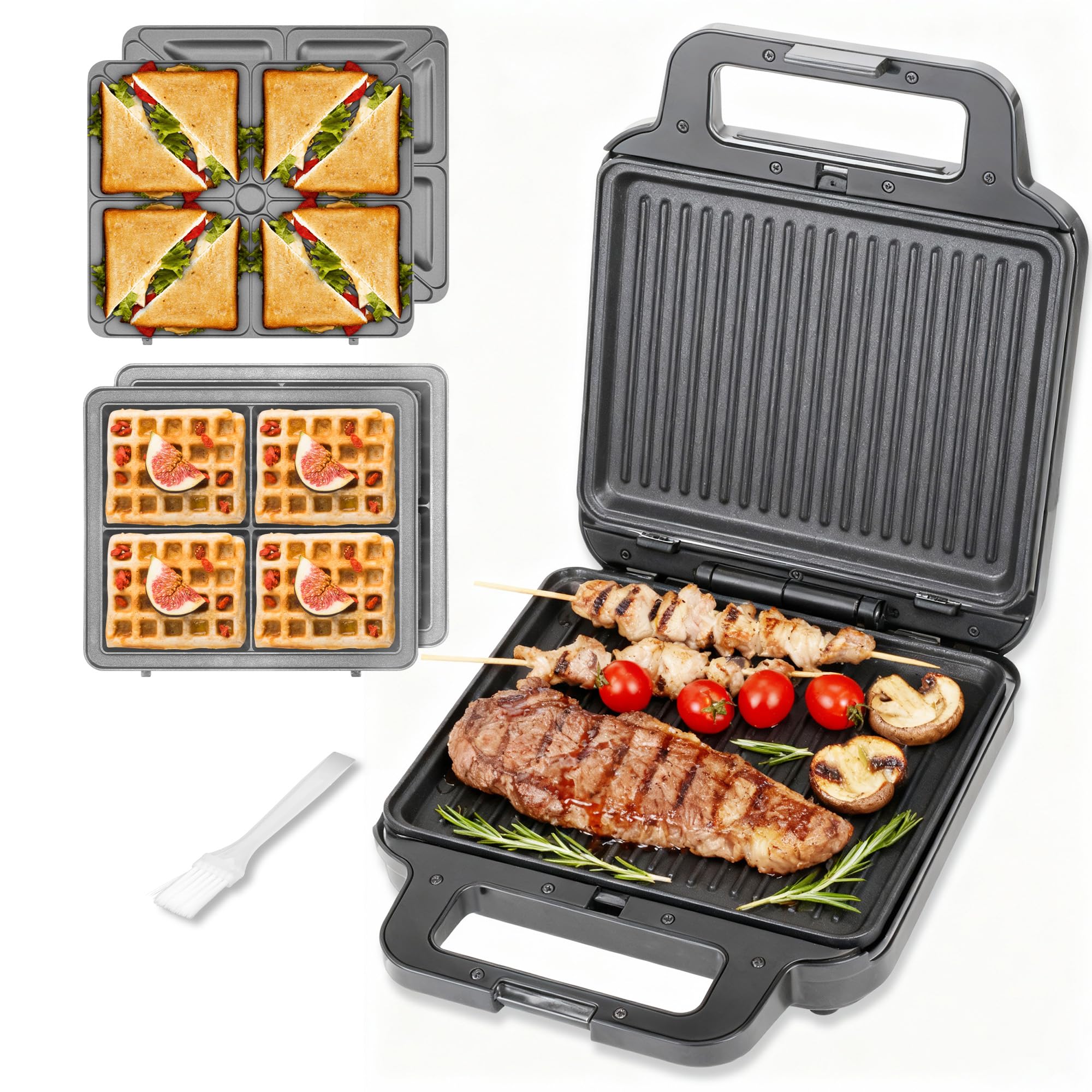

Image: The FineMade 3-in-1 Panini Grill, Waffle, and Sandwich Maker with its interchangeable plates.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical hazards, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off,” then remove plug from wall outlet.
• Do not use appliance for other than intended use.

Product Overview

The FineMade 3-in-1 appliance comes with three sets of interchangeable, non-stick cooking plates:

• Waffle Plates: For making crispy and fluffy waffles.
• Sandwich Plates: For preparing sealed sandwiches, ideal for grilled cheese or breakfast sandwiches.
• Grill Plates: For grilling meats, vegetables, or paninis.

Image: Close-up view of the three types of interchangeable cooking plates: waffle, sandwich, and grill.

Setup

1. Unpacking

Carefully remove the appliance and all accessories from the packaging. Retain packaging for future storage or transport. Ensure all components, including the main unit, three sets of plates, and any included cleaning tools, are present.

2. First Use Cleaning

Before using the appliance for the first time, wipe down the exterior with a damp cloth. Wash all removable cooking plates with warm, soapy water, rinse thoroughly, and dry completely. Do not immerse the main unit in water.

3. Attaching/Detaching Plates

To attach a set of plates:

1. Ensure the appliance is unplugged and cool.
2. Align the tabs on the back of the desired cooking plate with the slots on the heating element.
3. Gently press the plate down until it clicks securely into place. Repeat for the second plate.

To detach a set of plates:

1. Ensure the appliance is unplugged and completely cool.
2. Locate the release tabs (usually small levers or buttons) near the plate attachment points.
3. Press the release tabs and lift the plate upwards to remove it.

Video: Demonstration of attaching and detaching the cooking plates for the FineMade 3-in-1 appliance.

Operating Instructions

1. Preheating

Before cooking, ensure the desired plates are securely installed. Close the lid and plug the appliance into a standard 120V AC electrical outlet. The red indicator light will illuminate, signaling that the appliance is preheating. Once the appliance reaches the optimal cooking temperature, the green indicator light will illuminate, indicating it is ready for use. This typically takes about 5 minutes.

Image: The internal heating elements of the appliance, designed for even heat distribution.

2. Cooking

Once the green light indicates readiness, open the lid and place your food onto the bottom cooking plate. Close the lid gently. Cooking times will vary depending on the food type and desired doneness. Monitor the food periodically to prevent overcooking.

• For Waffles: Pour batter evenly onto the waffle plates. Close the lid. Cook until golden brown and crispy (typically 3-5 minutes).
• For Sandwiches: Place bread and fillings onto the sandwich plates. Close the lid. Cook until bread is golden brown and fillings are heated through (typically 2-5 minutes).
• For Grilling: Place meat or vegetables onto the grill plates. Close the lid. Cook until desired doneness, flipping if necessary for even grilling.

Image: The 3-in-1 appliance in operation, showcasing its ability to cook sandwiches, grilled meat, and waffles simultaneously.

The appliance operates at a fixed temperature of 1200W for rapid and uniform cooking. There is no adjustable temperature control.

Video: A demonstration of the FineMade 3-in-1 Waffle Sandwich Grill Maker in action, including making waffles.

Care and Cleaning

Proper care and cleaning will extend the life of your FineMade appliance.

• Always unplug the appliance and allow it to cool completely before cleaning.
• The removable cooking plates are dishwasher-safe for easy cleaning. Alternatively, they can be hand-washed with warm, soapy water and a non-abrasive sponge.
• The non-stick coating on the plates prevents food from sticking, simplifying cleanup. Avoid using metal utensils or abrasive cleaners that could damage the non-stick surface.
• Wipe the exterior of the appliance with a damp cloth. Do not immerse the main unit in water or any other liquid.
• Ensure all parts are dry before storing the appliance.

Image: A person cleaning the removable non-stick cooking plates under running water, highlighting the ease of cleaning.

Troubleshooting

• Appliance not heating: Ensure the power cord is securely plugged into a working electrical outlet. Check if the red indicator light is on. If not, try a different outlet.
• Food sticking to plates: Ensure plates are clean and lightly greased before adding food, even with non-stick coating. Avoid using metal utensils that can scratch the non-stick surface.
• Uneven cooking: Ensure plates are properly installed and clicked into place. Allow the appliance to fully preheat until the green indicator light illuminates.
• Smoke or unusual odor: A small amount of smoke or odor may occur during initial use due to manufacturing residues. If it persists, unplug the appliance and contact customer support.

Specifications

Image: Detailed dimensions of the FineMade 3-in-1 Panini Grill, Waffle, and Sandwich Maker.

Warranty

This FineMade appliance comes with a Limited Warranty. Please refer to the warranty card included in your packaging for specific terms and conditions. Keep your purchase receipt as proof of purchase for any warranty claims.

Customer Support

For any questions, assistance, or troubleshooting not covered in this manual, please contact FineMade Customer Support:

• Email: support@finemade.com
• Phone: 1-800-555-FINE (Monday-Friday, 9 AM - 5 PM EST)
• Website: www.finemade.com/support
