SteFik Water Tank and Mop Cloth for Airbot A700 Robot Vacuum Cleaner

Introduction

This manual provides instructions for the proper installation, operation, and maintenance of your SteFik Water Tank and Mop Cloth accessory, designed for compatibility with the Airbot A700 Robot Vacuum Cleaner. Please read these instructions carefully before use to ensure optimal performance and longevity of the product.

Package Contents

Please verify that all items are present in the package:

• 1 x Water Tank
• 1 x Mop Cloth

Setup and Installation

Follow these steps to prepare and install the water tank and mop cloth onto your Airbot A700 robot vacuum cleaner.

1. Attaching the Mop Cloth

1. Orient the mop cloth with the textured side facing down.
2. Align the mop cloth with the underside of the water tank. The hook-and-loop fasteners on the mop cloth should match the corresponding areas on the water tank.
3. Press firmly to secure the mop cloth to the water tank. Ensure it is evenly attached and covers the designated area.

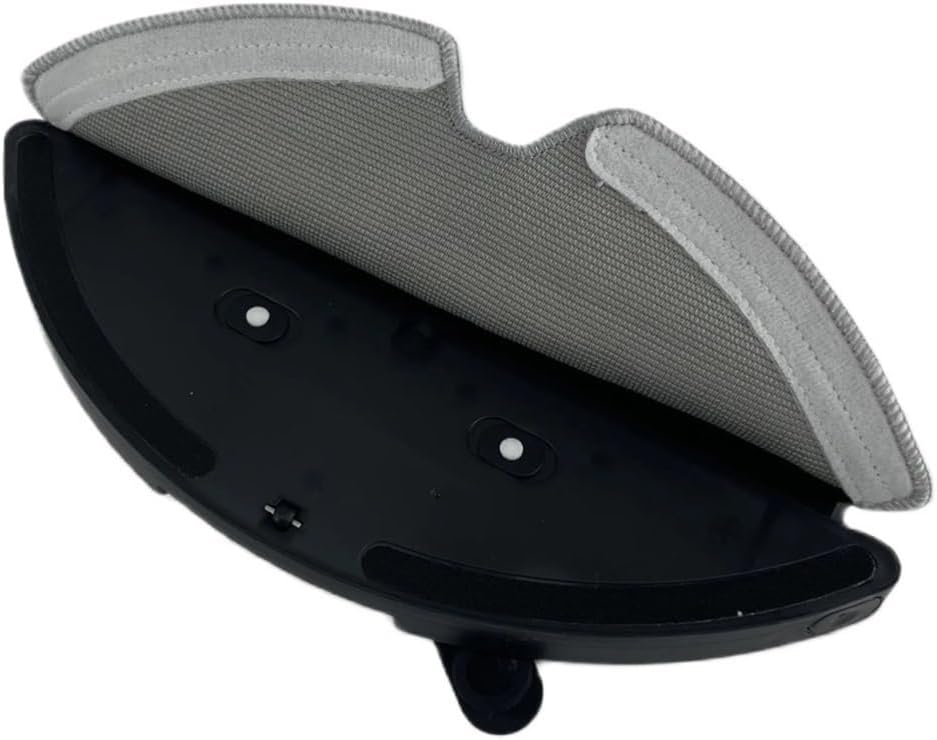

Image: The water tank with the gray mop cloth partially attached, showing the hook-and-loop fasteners.

Image: The underside of the water tank, illustrating the areas where the mop cloth attaches.

2. Filling the Water Tank

1. Locate the water inlet port on the water tank. This is typically covered by a rubber stopper.
2. Carefully open the rubber stopper.
3. Fill the tank with clean tap water. Do not overfill. Avoid using detergents or cleaning solutions unless specifically recommended by the Airbot A700 manufacturer, as this may damage the vacuum or clog the water dispensing mechanism.
4. Securely close the rubber stopper to prevent leaks.

Image: The water tank showing the fill port with its rubber stopper.

3. Installing the Water Tank into the Airbot A700

Refer to your Airbot A700 robot vacuum cleaner's instruction manual for specific guidance on installing accessories. Generally, the water tank slides into a designated slot at the rear or underside of the robot until it clicks into place.

Operating Instructions

Once the water tank and mop cloth are installed, the Airbot A700 robot vacuum cleaner can perform mopping functions. The robot's internal programming will manage water dispensing and mopping patterns.

• Ensure the robot's dustbin is emptied before mopping to prevent debris from interfering with the mopping path.
• For optimal results, pre-vacuum the area to remove loose dirt and dust before initiating a mopping cycle.
• Monitor the water level in the tank and refill as needed for larger areas.
• Avoid using the mopping function on carpets or rugs.

Maintenance

Regular maintenance of the water tank and mop cloth ensures effective cleaning and extends the lifespan of the accessory.

1. Cleaning the Mop Cloth

1. After each mopping cycle, remove the mop cloth from the water tank.
2. Hand wash the mop cloth with mild detergent and warm water. Alternatively, it can be machine washed on a gentle cycle with similar colors.
3. Rinse thoroughly until all soap residue is removed.
4. Air dry the mop cloth completely before reattaching it to the water tank or storing it. Do not tumble dry.

Image: A close-up view of the gray mop cloth, highlighting its texture.

2. Cleaning the Water Tank

1. After each use, empty any remaining water from the tank.
2. Rinse the inside of the water tank with clean water to remove any residue.
3. Allow the water tank to air dry completely before reinstallation or storage to prevent mold or mildew growth.
4. Periodically check the water dispensing nozzles for blockages and clean them gently with a small brush if necessary.

Troubleshooting

If you encounter issues with your water tank and mop cloth accessory, consider the following:

• No Water Dispensing:
  • Ensure the water tank is filled and properly installed.
  • Check for blockages in the water dispensing nozzles.
  • Verify that the robot's mopping mode is activated.
• Poor Mopping Performance:
  • Ensure the mop cloth is clean and securely attached.
  • Pre-vacuum the area to remove large debris.
  • The mop cloth may need to be replaced if it is worn out.
• Water Leaks:
  • Ensure the rubber stopper on the water tank is securely closed.
  • Verify that the water tank is correctly seated in the robot vacuum.

Specifications

Support and Warranty

For any questions, concerns, or issues regarding your SteFik Water Tank and Mop Cloth accessory, please contact the seller or manufacturer directly through your purchase platform. Information regarding specific warranty terms, if applicable, can be obtained from the point of purchase or the manufacturer's official support channels.
