1. Safety Instructions
Read all safety warnings and instructions before operating this hedge trimmer. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Keep all warnings and instructions for future reference.
General Power Tool Safety Warnings
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Electrical Safety: Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Personal Safety: Always wear eye protection. Wear appropriate personal protective equipment such as safety glasses, hearing protection, non-skid safety shoes, and heavy-duty gloves. Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the tool.
- Hedge Trimmer Specific Safety: Keep all parts of the body away from the cutter blade. Do not attempt to remove cut material or hold material to be cut when blades are moving. Ensure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury. Carry the hedge trimmer by the handle with the cutter blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will reduce the risk of unintentional starting and resulting blade injury. When transporting or storing the hedge trimmer, always fit the blade cover.
Battery Tool Use and Care
- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Image: The hedge trimmer features a 2-way safety trigger to prevent accidental operation, a hand protection guard, and a blade cover for safe handling and storage.
2. Product Overview and Package Contents
Familiarize yourself with the components of your NETTA Cordless Hedge Trimmer before use.
Package Contents
- NETTA Cordless Hedge Trimmer Unit
- 20V Lithium-Ion Battery
- Battery Charger
- Blade Cover
- Instruction Manual
Product Components

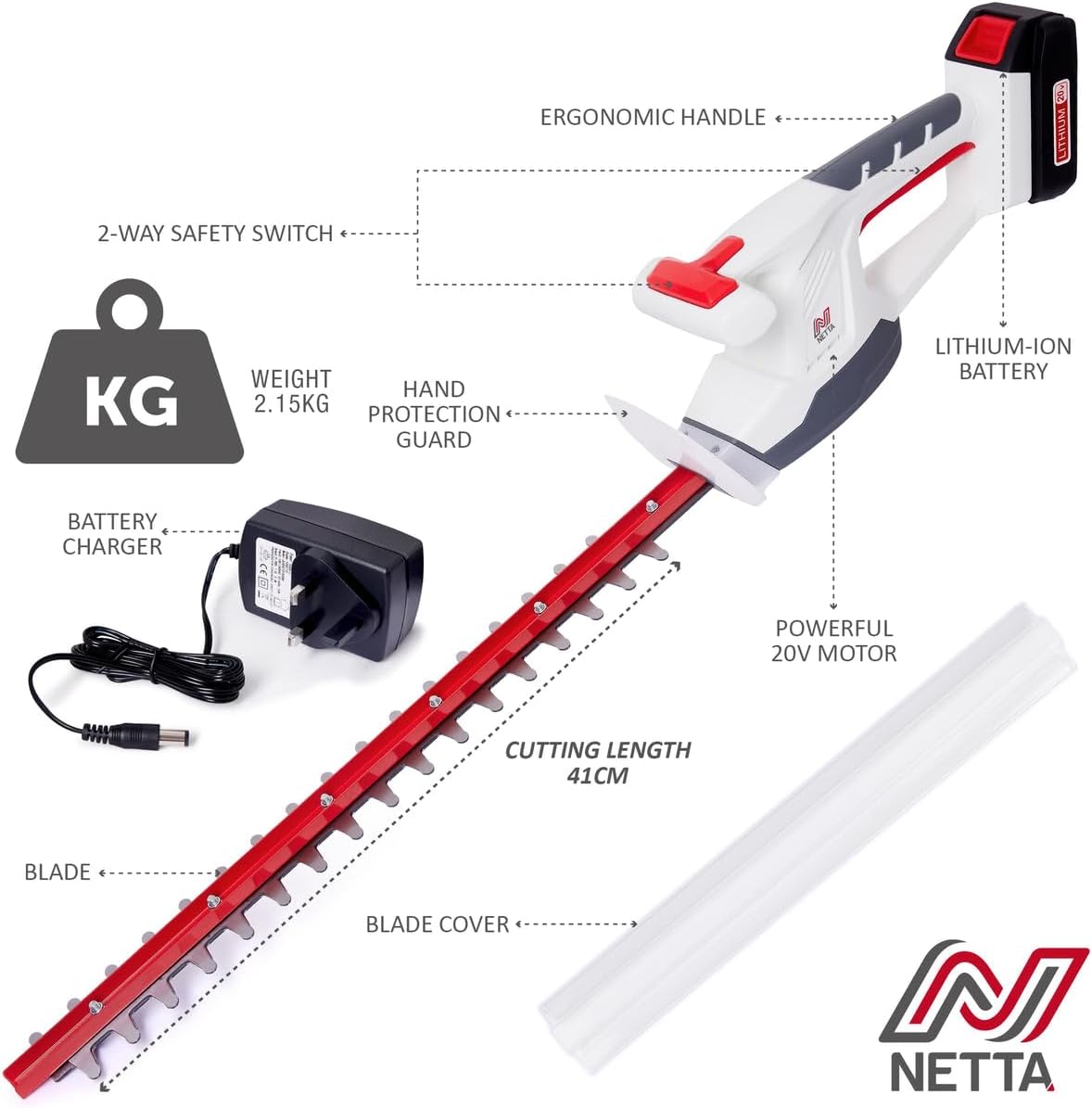

Image: An exploded view of the hedge trimmer highlighting its main components: ergonomic handle, 2-way safety switch, lithium-ion battery, hand protection guard, battery charger, blade, and blade cover. The total weight is 2.15KG and the cutting length is 41CM.
- Ergonomic Handle: Provides a comfortable grip during operation.
- 2-Way Safety Switch: Requires simultaneous activation for operation, preventing accidental starts.
- Lithium-Ion Battery: Provides cordless power to the unit.
- Hand Protection Guard: Shields the user's hand from the cutting blade.
- Battery Charger: Used to recharge the lithium-ion battery.
- Blade: Dual-action laser-cut blade for efficient trimming.
- Blade Cover: Protects the blade and user during storage and transport.
3. Setup
3.1 Charging the Battery
Before first use, fully charge the battery. Ensure the battery is charged in a dry, well-ventilated area.
- Connect the battery charger to a standard power outlet.
- Insert the battery pack into the charger.
- Observe the charge level indicator on the battery. Red lights typically indicate charging, while green lights indicate a full charge.
- A full charge typically takes approximately 90 minutes. The battery provides approximately 50 minutes of run time on a full charge.
Image: The battery features a charge level indicator. Pressing the button illuminates green lights to show the current charge level. A red light indicates that the battery is actively charging.
3.2 Installing the Battery
- Ensure the hedge trimmer is switched off.
- Align the battery pack with the battery slot on the hedge trimmer.
- Slide the battery into the slot until it clicks securely into place.
- To remove the battery, press the release button (if present) and slide the battery out.
3.3 Attaching/Removing the Blade Cover
- To attach: Slide the blade cover over the cutting blade until it fully covers the teeth.
- To remove: Gently pull the blade cover off the cutting blade. Always remove the blade cover before operation.
4. Operating Instructions
4.1 Starting and Stopping the Hedge Trimmer
The hedge trimmer is equipped with a 2-way safety switch to prevent accidental starting.
- Ensure the battery is fully charged and securely installed.
- Grip the main handle firmly with one hand and the auxiliary handle with the other.
- Simultaneously press and hold both safety triggers (one on each handle). The blade will begin to move.
- To stop the hedge trimmer, release either of the safety triggers. The blade will stop.
4.2 Trimming Techniques
For optimal results and safety, follow these trimming guidelines:
- Inspect the Area: Before starting, check the hedge for foreign objects such as wires, fences, or hidden debris that could damage the blade or cause injury.
- Cutting Motion: Use a sweeping motion, moving the trimmer along the hedge. For horizontal cuts, hold the trimmer slightly angled to direct clippings away. For vertical cuts, move the trimmer upwards or downwards.
- Branch Thickness: The trimmer is designed for branches up to 16mm in thickness. Do not force the blade through thicker branches, as this can damage the tool or cause kickback.
- Cordless Freedom: The 20V MAX motor provides 1100rpm for efficient cutting. Its lightweight design (2.15KG) allows for extended use without excessive fatigue.
Image: The NETTA Cordless Hedge Trimmer in action, demonstrating its cordless operation powered by a 20V battery, providing 1100rpm for effective garden maintenance.
Image: A detailed view of the dual-action laser-cut blade, indicating a 41cm cutting length and a maximum branch thickness capacity of 16mm for precise trimming.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your hedge trimmer.
5.1 Cleaning the Blades
- Always ensure the battery is removed before cleaning.
- Use a stiff brush or a damp cloth to remove sap, leaves, and debris from the blades.
- For stubborn residue, a mild detergent or blade cleaner can be used. Ensure blades are thoroughly dried afterwards.
5.2 Lubricating the Blades
After cleaning and before storage, apply a light machine oil or blade lubricant along the cutting edge of the blades. This helps prevent rust and ensures smooth operation.
5.3 Storage
- Always fit the blade cover before storing the hedge trimmer.
- Store the hedge trimmer in a dry, secure place, out of reach of children.
- Store the battery separately from the trimmer, in a cool, dry place, away from direct sunlight and extreme temperatures.
6. Troubleshooting
This section addresses common issues you might encounter with your hedge trimmer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hedge trimmer does not start. | Battery not charged or improperly installed. Safety switches not engaged. | Ensure battery is fully charged and correctly inserted. Press both safety switches simultaneously. |
| Blades cut poorly or jam. | Blades are dull or dirty. Cutting material is too thick. | Clean and lubricate blades. If dull, consider professional sharpening. Do not attempt to cut branches thicker than 16mm. |
| Battery run time is short. | Battery not fully charged. Battery is old or damaged. | Ensure battery is fully charged before use. If battery life significantly decreases, consider replacing the battery. |
| Excessive vibration during operation. | Damaged blade or loose components. | Inspect blades for damage. Check all fasteners for tightness. If problem persists, discontinue use and contact customer support. |
7. Specifications
Technical details for the NETTA 20V MAX Cordless Hedge Trimmer, Model 104107.
- Model Number: 104107
- Power Source: Battery powered
- Battery Type: 20V Lithium-Ion (1 battery included)
- Motor Speed: 1100 rpm (MAX)
- Blade Type: Laser Dual-Action
- Cutting Length: 41 cm (410mm)
- Max Branch Thickness: 16 mm
- Item Weight: 2.15 kg
- Product Dimensions: 84.3 x 10.5 x 13 cm
- Typical Run Time: Approximately 50 minutes
- Typical Charge Time: Approximately 90 minutes
