Skyworth SS531 510W Wireless Subwoofer Soundbar User Manual

1. Introduction

Thank you for purchasing the Skyworth SS531 510W Wireless Subwoofer Soundbar. This manual provides essential information for the safe and efficient use of your new sound system. Please read it thoroughly before operating the device and retain it for future reference.

The Skyworth SS531 is designed to enhance your audio experience with powerful sound, deep bass from its 510W wireless subwoofer, and a 3.1-channel sound array for an immersive soundstage. It offers versatile connectivity options including HDMI ARC, optical, and Bluetooth.

2. Safety Information

• Read all instructions carefully before use.
• Do not expose the device to rain, moisture, or extreme temperatures.
• Ensure proper ventilation around the soundbar and subwoofer.
• Do not block any ventilation openings.
• Use only attachments/accessories specified by the manufacturer.
• Disconnect the power plug during lightning storms or when unused for long periods.
• Refer all servicing to qualified service personnel.

3. Package Contents

Verify that all items are present in the package:

• 1 x Skyworth SS531 Soundbar
• 1 x Wireless Subwoofer
• Power Cable(s)
• Remote Control (with batteries)
• User Manual (this document)
• Wall Mounting Kit (if applicable)

4. Product Overview

Soundbar and Subwoofer

The Skyworth SS531 system consists of a main soundbar unit and a wireless subwoofer. The soundbar houses the main speakers and control interface, while the subwoofer provides deep bass frequencies wirelessly.

Image: Front view of the Skyworth SS531 Soundbar and Wireless Subwoofer. The soundbar is a long, slender black unit, and the subwoofer is a rectangular black tower.

Image: Angled view of the Skyworth SS531 Soundbar and Wireless Subwoofer, showing the sleek design of both components.

Control Panel

The control panel is located on the side of the soundbar, providing easy access to essential functions.

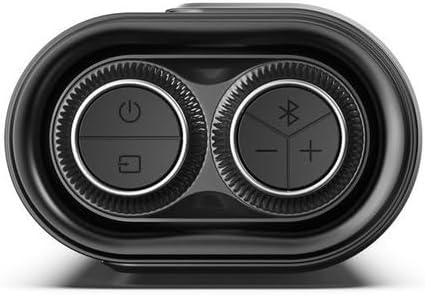

Image: Close-up of the Skyworth SS531 Soundbar control panel. It features circular buttons for Power, Input Selection, Bluetooth pairing, Volume Up, and Volume Down.

• Power Button: Turns the soundbar on or off.
• Input/Source Button: Cycles through available input sources (HDMI ARC, Optical, Bluetooth, AUX, USB).
• Bluetooth Button: Initiates Bluetooth pairing mode.
• Volume Up/Down Buttons: Adjusts the master volume level.

5. Setup

5.1 Positioning the Soundbar and Subwoofer

• Place the soundbar centrally below your TV. Ensure it is on a stable, flat surface or securely wall-mounted.
• Position the wireless subwoofer on the floor, preferably in the front corner of the room or near the soundbar, for optimal bass performance.

5.2 Connecting the Power

1. Connect the power cable to the AC IN port on the soundbar.
2. Connect the other end of the power cable to a wall outlet.
3. Connect the power cable to the AC IN port on the wireless subwoofer.
4. Connect the other end of the subwoofer power cable to a wall outlet.
5. The soundbar and subwoofer will automatically pair when both are powered on. An indicator light on the subwoofer will confirm successful pairing.

5.3 Connecting to Your TV

Choose one of the following connection methods:

HDMI ARC (Recommended)

1. Connect one end of an HDMI cable (not included) to the HDMI ARC port on your TV.
2. Connect the other end of the HDMI cable to the HDMI ARC port on the soundbar.
3. Ensure your TV's HDMI ARC function is enabled in its audio settings.

Optical Connection

1. Connect an optical cable (not included) to the OPTICAL OUT port on your TV.
2. Connect the other end of the optical cable to the OPTICAL IN port on the soundbar.
3. Ensure your TV's audio output is set to 'Optical' or 'PCM'.

AUX Connection

1. Connect a 3.5mm audio cable (not included) from your TV's headphone or AUX OUT port to the AUX IN port on the soundbar.

6. Operating Instructions

6.1 Power On/Off

• Press the Power button on the soundbar or remote control to turn the unit on or off.

6.2 Selecting Input Source

• Press the Input/Source button on the soundbar or remote control repeatedly to cycle through available input sources: HDMI ARC, OPTICAL, BLUETOOTH, AUX, USB.
• The display on the soundbar will indicate the currently selected input.

6.3 Bluetooth Pairing

1. Press the Bluetooth button on the soundbar or remote control to enter Bluetooth pairing mode. The Bluetooth indicator will flash.
2. Enable Bluetooth on your mobile device (smartphone, tablet, etc.) and search for available devices.
3. Select "Skyworth SS531" from the list of devices.
4. Once paired, the Bluetooth indicator will stop flashing and remain solid. You can now play audio from your device through the soundbar.

6.4 Adjusting Volume and Sound Modes

• Use the Volume Up/Down buttons on the soundbar or remote control to adjust the overall volume.
• The remote control may offer dedicated buttons for different sound modes (e.g., Movie, Music, News) to optimize audio for various content types.
• Use the Bass Boost feature (if available on remote) to enhance low frequencies.

7. Care and Maintenance

• Cleaning: Use a soft, dry cloth to clean the surfaces of the soundbar and subwoofer. Do not use liquid cleaners or abrasive materials.
• Storage: If storing the unit for an extended period, disconnect it from power and store it in a cool, dry place.
• Ventilation: Ensure that the ventilation openings are not blocked to prevent overheating.

8. Troubleshooting

9. Specifications

10. Warranty and Support

This Skyworth SS531 Soundbar comes with a 1 Year Manufacturer's Warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use.

For warranty claims, technical support, or service inquiries, please contact your local Skyworth customer service or the retailer from whom you purchased the product. Please retain your proof of purchase for warranty validation.

Note: The warranty does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear.
