Benjara BM309451 Twin Bunk Bed with Front Ladder - Instruction Manual

Introduction

Thank you for choosing the Benjara BM309451 Twin Bunk Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Important Safety Information

• Always follow the assembly instructions precisely.
• Ensure all hardware is securely tightened before use. Periodically check and re-tighten as necessary.
• The top bunk is not suitable for children under 6 years of age.
• Use only mattresses that meet the recommended dimensions for twin beds.
• Do not allow more than one person on the top bunk at any time.
• Prohibit horseplay on or under the bed.
• Always use the ladder for entering and exiting the top bunk.
• Ensure guardrails are always in place on the top bunk.

Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Headboards and Footboards (for both upper and lower bunks)
• Side Rails (for both upper and lower bunks)
• Ladder Components
• Slat Rolls (for mattress support)
• Guardrails (for upper bunk)
• Hardware Pack (bolts, nuts, washers, screws, Allen wrench)

Image 1: Overview of the Benjara BM309451 Twin Bunk Bed in white finish, showing the complete structure with the front-facing ladder and guardrails.

Setup (Assembly Instructions)

Assembly requires two adults. Please ensure you have adequate space and all tools (usually an Allen wrench is provided, but a screwdriver may be needed for some steps).

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a soft, clean surface to prevent scratches. Refer to the parts list to identify each piece.
2. Assemble Lower Bunk: Attach the side rails to the headboard and footboard of the lower bunk using the provided bolts and washers. Do not fully tighten yet.
3. Install Lower Bunk Slats: Roll out the slat support system across the lower bunk side rails. Secure the slats to the side rails using screws, ensuring even spacing. Fully tighten all hardware for the lower bunk.
4. Assemble Upper Bunk: Repeat step 2 for the upper bunk, attaching its side rails to its headboard and footboard.
5. Attach Upper Bunk to Lower Bunk: Carefully lift the assembled upper bunk and align its posts with the corresponding posts of the lower bunk. Secure them together using the designated connecting hardware. Ensure a stable connection.
6. Install Upper Bunk Slats: Roll out and secure the slat support system for the upper bunk, similar to step 3.
7. Attach Guardrails: Install the guardrails to the upper bunk's side rails as indicated in the diagrams. Ensure they are firmly attached to prevent accidental falls.
8. Assemble and Attach Ladder: Assemble the ladder steps to the ladder side rails. Attach the completed ladder to the designated hooks or mounting points on the front of the bunk bed. Verify it is stable and secure.
9. Final Tightening: Once all components are in place, go back and fully tighten all bolts and screws. Do not overtighten.

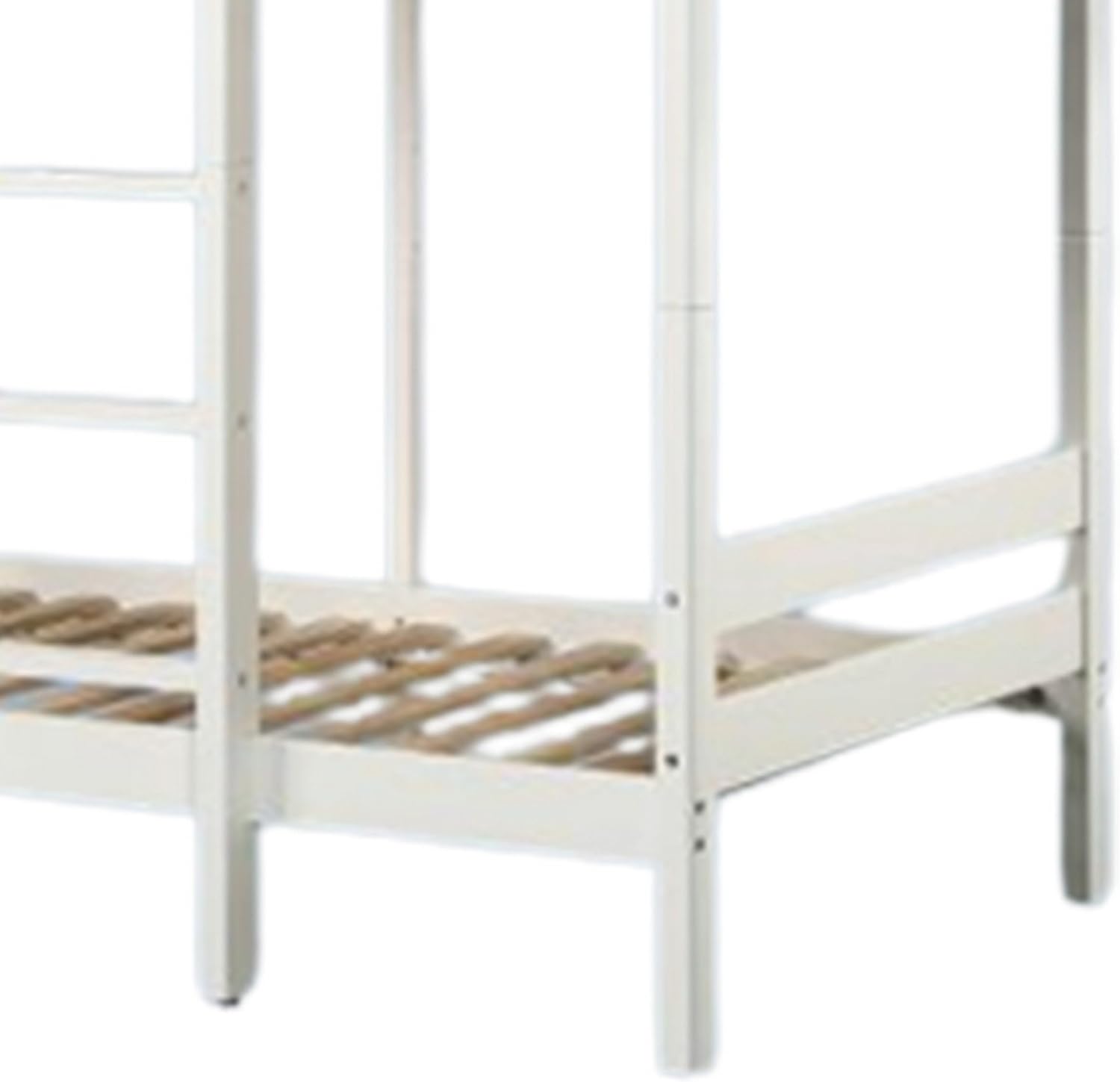

Image 2: Detail of the lower bunk frame and the base of the front-facing ladder, highlighting the sturdy construction and slat support.

Image 3: Detail of the upper bunk frame, including the guardrails and the top attachment point of the front-facing ladder, emphasizing safety features.

Operating (Usage Guidelines)

To ensure safe and proper use of your Benjara Twin Bunk Bed:

• Mattress Placement: Place a standard twin-size mattress on each bunk. Ensure the mattress on the top bunk does not exceed the height of the guardrails.
• Ladder Use: Always use the integrated front-facing ladder to access and descend from the top bunk. Do not jump onto or off the bunk bed.
• Weight Limits: Adhere to the manufacturer's recommended weight limits for each bunk. Overloading can compromise structural integrity and safety.
• Ventilation: Ensure adequate air circulation around the bed, especially if placed against a wall, to prevent moisture buildup.

Care and Maintenance

Proper care will extend the life and appearance of your bunk bed.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the white finish.
• Hardware Check: Periodically (e.g., monthly) inspect all bolts, screws, and connections. Re-tighten any loose hardware to maintain stability and safety.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or discoloration of the finish.
• Humidity Control: Maintain a stable humidity level in the room to prevent wood from warping or cracking.
• Moving the Bed: When moving the bunk bed, always lift it rather than dragging it to prevent damage to the frame and floor.

Troubleshooting

Here are solutions to common issues you might encounter:

Specifications

Detailed information about your Benjara BM309451 Twin Bunk Bed:

• Model Number: BM309451
• Brand: Benjara
• Type: Twin Bunk Bed
• Color: White Finish
• Material: Engineered Wood, Pine Wood
• Product Dimensions: 77.7"L x 41.73"W x 64"H
• Item Weight: Approximately 128 pounds
• Assembly Required: Yes
• UPC: 192551999077

Image 4: The Benjara BM309451 Twin Bunk Bed with key dimensions (length, width, height) clearly indicated for reference.

Warranty and Support

For warranty information, missing parts, or further assistance, please contact Benjara customer support directly. Refer to your purchase documentation or the manufacturer's website for specific contact details and warranty terms.

You can often find support information on the official Benjara website or through the retailer where the product was purchased.
