Corally Kagama Xp 6S Monster Truck Instruction Manual

1. Introduction

Welcome to the official instruction manual for your Corally Kagama Xp 6S Monster Truck. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your new remote-controlled vehicle. Please read this manual thoroughly before operating the Kagama Xp to ensure optimal performance and longevity.

The Corally Kagama Xp 6S Monster Truck is engineered for high-performance bashing, featuring robust components and advanced design to deliver an exhilarating experience. Its design incorporates insights and improvements gathered over years of market feedback, setting a new standard for RTR (Ready-to-Run) basher models.

Figure 1.1: The Corally Kagama Xp 6S Monster Truck in green and black livery. This image shows the front and side profile of the truck, highlighting its aggressive stance and large off-road tires.

2. Product Overview

The Corally Kagama 6S Monster Truck is a high-performance, ready-to-run (RTR) model designed for durability and extreme bashing. It integrates premium components typically found in competition-level vehicles, ensuring a superior user experience. The design reflects continuous improvements based on extensive market feedback, making it a benchmark in the RTR basher category.

Key Features:

• Modern Shaped Bumpers: Equipped with contemporary front and rear bumpers that include an integrated skid plate for enhanced protection during impacts.
• Oversized Composite Steering Links: Designed for increased strength and durability, providing precise steering control.
• Oversized Composite Camber Links: Robust links that contribute to the vehicle's stability and handling, especially under demanding conditions.
• Protective "Mud Guards": Strategically placed guards to protect internal components from dirt, debris, and moisture.
• Solid ESC Switch Holder: A secure mounting solution for the Electronic Speed Controller (ESC) switch, preventing accidental power-offs.
• "ABEC 3" Rubber Sealed Ball Bearings: High-quality bearings that are sealed to prevent contamination, ensuring smooth operation and extended lifespan.

Figure 2.1: Top-down view of the Corally Kagama Xp chassis. This image illustrates the layout of the internal components, including the battery compartments on either side, the central motor, and the electronic speed controller (ESC).

3. What's in the Box

Upon unboxing your Corally Kagama Xp 6S Monster Truck, you should find the following items:

• Corally Kagama Xp 6S Monster Truck (Ready-to-Run)
• Instruction Manual
• Essential Accessories (specific tools or small parts as included by manufacturer)

Please inspect all contents carefully upon receipt to ensure nothing is missing or damaged. If any items are missing or appear damaged, contact your retailer or Corally customer support immediately.

4. Required to Complete

The Corally Kagama Xp 6S Monster Truck is sold as a Ready-to-Run (RTR) version, but certain components are required to begin operation. These items are not included in the box and must be purchased separately:

• Batteries for Vehicle: One 4S to 6S LiPo battery block, or two 2S LiPo batteries, or two 3S LiPo batteries. All batteries must have an XT90 connector.
• Battery Charger: An appropriate LiPo battery charger compatible with the chosen battery configuration.
• Batteries for Transmitter: AA batteries for the remote control transmitter.

Ensure that all required components are compatible with the Kagama Xp's specifications and are sourced from reputable suppliers to guarantee safety and performance.

5. Setup Guide

Follow these steps to prepare your Corally Kagama Xp for its first run:

1. Charge Vehicle Batteries: Fully charge your LiPo batteries using a compatible LiPo charger. Always follow the charger's instructions and safety guidelines. Never leave charging batteries unattended.
2. Install Transmitter Batteries: Open the battery compartment on the remote control transmitter and insert the required AA batteries, observing correct polarity.
3. Install Vehicle Batteries: Carefully open the battery compartments on the Kagama Xp chassis. Insert the charged LiPo batteries, ensuring they are securely fastened and the XT90 connectors are properly connected to the ESC. Refer to Figure 5.1 for battery placement.
4. Power On Sequence:
   • Turn on the remote control transmitter first.
   • Then, turn on the Kagama Xp by pressing the power switch on the ESC.
5. Binding (if necessary): Your RTR model should come pre-bound. If the truck does not respond to the transmitter, refer to the specific binding instructions provided with your transmitter and receiver.
6. Pre-Run Check: Before driving, ensure all wheels spin freely, steering responds correctly, and the throttle operates smoothly. Check for any loose screws or connections.

Figure 5.1: Detail view of the Corally Kagama Xp chassis, showing the robust suspension components and the general layout of the drivetrain. This image helps visualize where components like batteries and electronics would be situated.

6. Operating Your Monster Truck

Operating the Corally Kagama Xp requires practice and adherence to safety guidelines. Always operate in a safe, open area away from people, pets, and obstacles.

Basic Controls:

• Throttle Trigger: Pull the trigger to accelerate forward. Push the trigger to brake, and push again for reverse.
• Steering Wheel: Turn the wheel left or right to steer the truck.
• Trim Dials: Use the steering trim to adjust the neutral steering position if the truck pulls to one side. Use the throttle trim to ensure the truck remains stationary when the throttle trigger is at neutral.

Driving Tips:

• Start slowly to get a feel for the controls.
• Avoid sudden full throttle or braking, especially at high speeds, to prevent loss of control or damage.
• Be mindful of battery life. When the truck starts to slow down significantly, it's time to stop and recharge.
• Always turn off the vehicle first, then the transmitter, after each use.

7. Maintenance

Regular maintenance is crucial for the longevity and performance of your Corally Kagama Xp. Perform these checks after every run or periodically:

• Cleaning: Remove dirt, dust, and debris from the chassis, suspension, and motor. Use a soft brush or compressed air. Avoid using water directly on electronics.
• Inspection:
  • Check for loose screws, especially on suspension components, motor mount, and wheel nuts.
  • Inspect tires for wear or damage.
  • Examine suspension arms, shock absorbers, and drive shafts for cracks or bends.
  • Check electrical wires and connectors for fraying or damage.
• Lubrication: Apply a small amount of appropriate lubricant to moving parts like universal joints and bearings as needed. Consult specialized RC lubricants.
• Shock Absorbers: Check for oil leaks and ensure smooth operation. Refill or replace shock oil if necessary.
• Battery Care: Store LiPo batteries at a storage voltage (typically 3.8V per cell) if not used for extended periods. Never fully discharge or overcharge LiPo batteries.

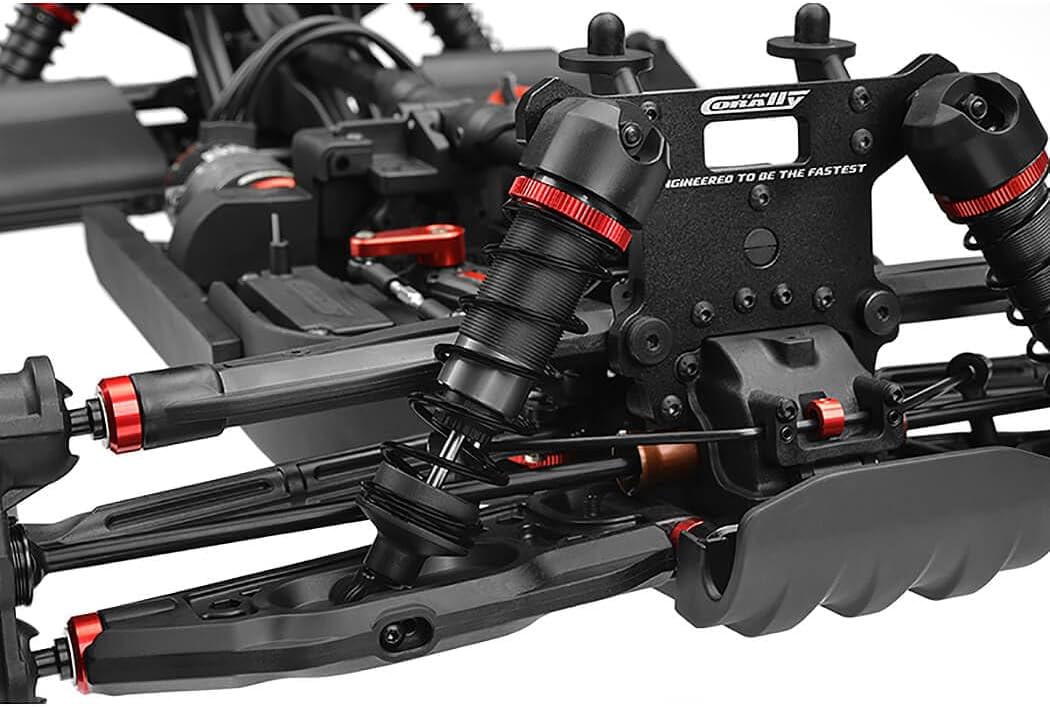

Figure 7.1: Close-up view of a Corally Kagama Xp shock absorber. This image highlights the robust construction of the suspension system, which is critical for absorbing impacts during off-road driving and requires regular inspection.

8. Troubleshooting

This section addresses common issues you might encounter with your Corally Kagama Xp. For more complex problems, contact Corally customer support.

9. Specifications

Detailed specifications for the Corally Kagama Xp 6S Monster Truck:

10. Warranty and Support

Corally is committed to providing high-quality products and excellent customer service. While specific warranty terms may vary by region and retailer, Corally is known for constantly improving their products and providing an exceptionally good parts service.

For warranty claims, technical assistance, or to inquire about replacement parts, please contact your original point of purchase or visit the official Corally website for their latest support information and contact details. Keep your proof of purchase handy when contacting support.

Online Resources: For additional information, FAQs, and community forums, search for "Corally Kagama Xp" online or visit the official Corally website.
