Max Power DJ Speaker - MPD528-ONYX User Manual

Introduction

Thank you for purchasing the Max Power DJ Speaker MPD528-ONYX. This portable sound system is designed to deliver powerful audio and dynamic lighting for various indoor and outdoor events. Please read this manual thoroughly before operating the device to ensure proper use and to maximize its performance and lifespan.

Package Contents:

• 1 x Wireless Party Speaker
• 1 x Remote Control
• 1 x Charging Cable
• 1 x Wired Microphone
• 1 x User Manual

Important Safety Instructions

• Read these instructions carefully.
• Keep these instructions for future reference.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Product Overview

The Max Power DJ Speaker MPD528-ONYX features a robust design with dual 8-inch woofers, integrated LED lighting, and a comprehensive control panel for versatile audio playback.

Figure 1: Front view of the Max Power DJ Speaker MPD528-ONYX, showcasing its dual 8-inch woofers and active green LED illumination.

Figure 2: Top control panel of the speaker, showing various input ports (USB, TF Card, Line In, MIC1, MIC2), AC input, DC input, and control knobs/buttons for volume, playback, and LED modes.

Key Components:

• Dual 8" Woofers: For powerful bass and clear audio output.
• Multi-LED Light System: Dynamic RGB lights with 6 selectable modes.
• Control Panel: Located on the top, providing access to all functions.
• Telescopic Handle & Wheels: For easy portability.
• Input Ports: USB, TF Card (Micro SD), Line In (AUX 3.5mm), MIC1, MIC2, Guitar Input.
• Power Inputs: AC IN (90-230V 50/60Hz), DC IN (9V/2A).

Setup

Initial Charging:

Before first use, fully charge the speaker's built-in 3000mAh rechargeable battery. Connect the provided charging cable to the AC IN port on the speaker and plug it into a standard wall outlet. The charging indicator will show the charging status.

Placement:

Place the speaker on a stable, flat surface. Ensure there is adequate ventilation around the unit. For optimal sound dispersion, position the speaker in an open area, away from obstructions.

Powering On/Off:

Locate the power switch on the control panel. Press it to turn the speaker ON or OFF.

Operating Instructions

Bluetooth Connection:

1. Turn on the speaker. The speaker will automatically enter Bluetooth pairing mode, indicated by a flashing Bluetooth icon or voice prompt.
2. On your smartphone, tablet, or other Bluetooth device, enable Bluetooth and search for available devices.
3. Select "MPD528-ONYX" (or similar name) from the list of devices.
4. Once paired, the speaker will confirm the connection, and the Bluetooth indicator will become solid.
5. You can now stream audio wirelessly from your device to the speaker within a range of up to 10 meters (32 feet).

USB/TF Card Playback:

1. Insert a USB flash drive or a TF (Micro SD) card into the corresponding slot on the control panel.
2. The speaker will automatically detect the media and begin playing audio files.
3. Use the playback controls (Play/Pause, Next, Previous) on the speaker or remote control to manage your music.

AUX (Line In) Connection:

1. Connect one end of a 3.5mm audio cable (not included) to the "LINE" input port on the speaker.
2. Connect the other end to the headphone jack or audio output of your external device (e.g., MP3 player, computer).
3. The speaker will automatically switch to AUX mode, or you may need to press the "MODE" button to select it.

FM Radio:

1. Press the "MODE" button on the control panel or remote until "FM" mode is selected.
2. Press the "Play/Pause" button to initiate an automatic scan for available FM stations. The speaker will save detected stations.
3. Use the "Next" and "Previous" buttons to navigate between saved stations.

Microphone and Guitar Inputs:

1. Connect the wired microphone (included) to the "MIC1" or "MIC2" input port.
2. Connect a guitar to the "GUITAR" input port (if available, based on control panel image).
3. Adjust the "MIC VOL" knob to control the microphone volume.
4. Adjust the main "VOLUME" knob for overall sound output.

LED Light Modes:

The speaker features dynamic RGB LED lights with 6 different modes. Press the dedicated "LIGHT" button on the control panel or remote to cycle through the available light patterns and turn them on/off.

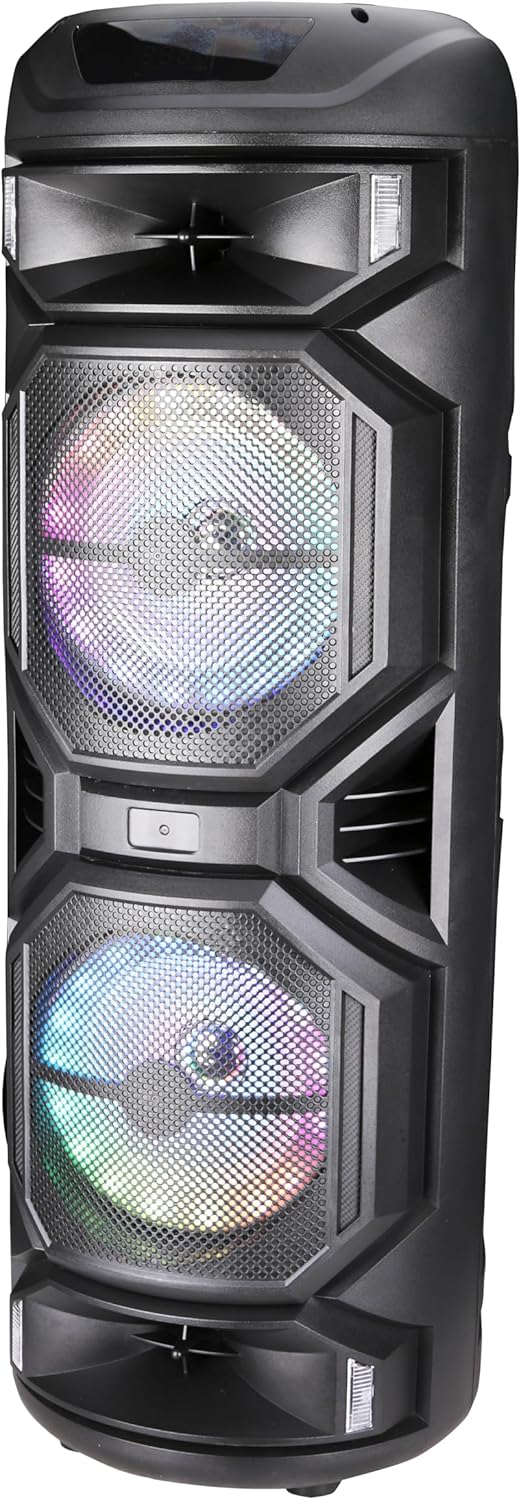

Figure 3: The speaker displaying its multi-color LED light effects, which can be adjusted via the control panel.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the exterior of the speaker. Do not use abrasive cleaners, waxes, or solvents.
• Storage: When not in use for extended periods, store the speaker in a cool, dry place, away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Recharge the speaker regularly, even if not in active use.
• Ventilation: Ensure that the speaker's ventilation openings are not blocked to prevent overheating.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the contact details provided on the product packaging or the official Max Power website. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, please contact Max Power customer service.
