1. Overview
The Sunjoy 12 x 16 ft. Wood Gazebo is designed to expand your outdoor living space, creating an ideal setting for entertaining family and friends throughout the year. This hardtop gazebo features a durable matte black steel 2-tier roof and a premium gray cedar wood frame, ensuring both aesthetic appeal and long-lasting stability. Its design allows for optimal airflow while providing protection from various weather conditions.
Figure 1.1: The Sunjoy 12 x 16 ft. Wood Gazebo, showcasing its spacious design and integration into an outdoor patio area.
2. Safety Information
Prior to assembly and use, please read and understand all instructions and safety warnings. Failure to follow these instructions may result in serious injury or property damage.
- Professional Assembly Recommended: While assembly instructions are provided, professional installation is recommended for optimal safety and stability.
- Team Assembly: A minimum of two people are required for safe assembly, especially during the installation of the main roof frame and pillars. Some steps may require more individuals.
- Secure Installation: Ensure the gazebo is securely anchored to a stable, level surface using appropriate hardware (e.g., 3/8 x 3 inch sleeve anchors for concrete, if applicable). Proper anchoring is crucial for stability, especially in windy conditions.
- Weather Precautions: Although designed to withstand various weather conditions, it is advisable to take precautions during extreme weather. In cases of severe winds, heavy snow, or other inclement weather, consider disassembling or reinforcing the structure as necessary.
- Regular Inspection: Periodically inspect all bolts, screws, and connections to ensure they remain tight and secure. Address any loose components immediately.
- Clearance: Ensure adequate clearance around the gazebo from trees, power lines, and other structures.
- Ceiling Hook Capacity: The sturdy ceiling hook is designed for suspending lighting or lightweight decor. Do not exceed its weight capacity or hang items that could cause instability.
3. Key Features
3.1 Sturdy & Stable Construction
This 12x16 ft. gazebo is built with a premium gray cedar wood frame and a durable matte black steel 2-tier roof, designed for exceptional stability and longevity. The reinforced wooden frame and posts provide superior strength.
Figure 3.1: Detail of the premium cedar wood frame construction, highlighting the robust joints and materials.
3.2 Integrated Ceiling Hook
A sturdy ceiling hook is centrally located within the gazebo, allowing for easy suspension of lighting fixtures (not included) or decorative elements to enhance your evening gatherings.
Figure 3.2: View of the integrated ceiling hook, suitable for hanging lights or other decorative items.
3.3 Dual Rail System for Privacy
The gazebo features a built-in dual rail system, providing a convenient way to suspend mosquito netting and privacy curtains (sold separately). This system offers enhanced privacy and protection from insects.
Figure 3.3: Close-up of the dual rail system, designed for easy installation of netting or curtains.
3.4 Ventilated 2-Tier Metal Roof
The 2-tier steel roof is designed to provide excellent ventilation, allowing air to circulate freely while offering superior protection from harmful UV rays and inclement weather. This design helps maintain a comfortable environment underneath the gazebo.

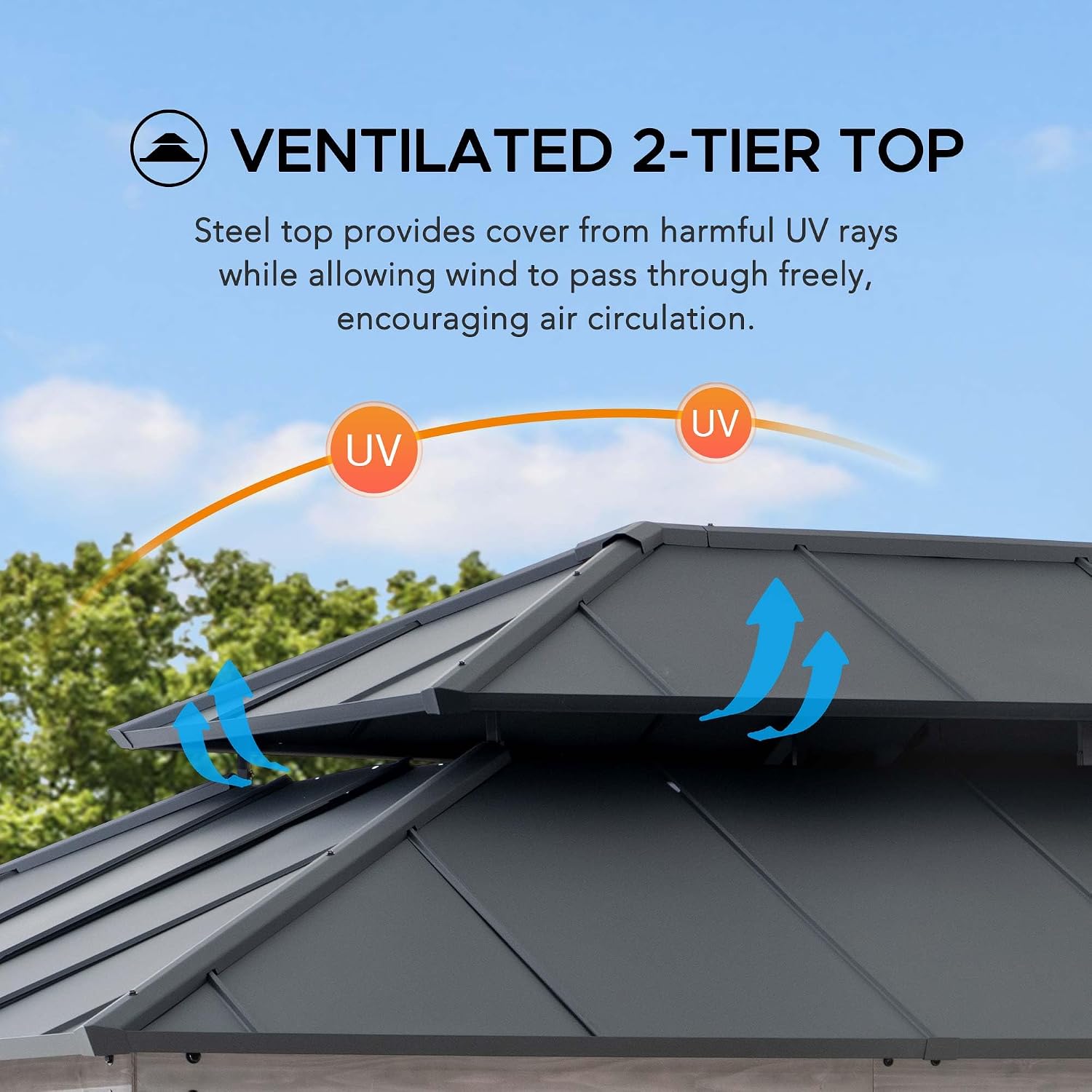

Figure 3.4: Illustration of the ventilated 2-tier roof, showing airflow and UV protection.
3.5 Durable Black Steel Roof
The matte black steel roof is engineered for durability, providing reliable protection against sun, rain, and snow. This robust roof ensures your patio furnishings remain protected season after season.
Figure 3.5: Close-up of the durable matte black steel roof, highlighting its sturdy construction.
3.6 All-Weather Performance
Designed to withstand diverse weather conditions, the gazebo offers 100% UV protection, effectively keeps rain out, and is strong enough to hold heavy snow loads, making it suitable for year-round enjoyment.
Figure 3.6: Visual representation of the gazebo's ability to provide shelter in sunny, rainy, and snowy weather.
3.7 Product Dimensions
The gazebo measures 189 inches (15.75 ft) in length, 141.7 inches (11.81 ft) in width, and 122.8 inches (10.24 ft) in height, providing ample space for various outdoor activities and furniture arrangements.
Figure 3.7: Comprehensive diagram illustrating the gazebo's full dimensions.
4. Setup and Assembly
The Sunjoy gazebo is designed for straightforward assembly, with illustrated instructions included. While it is easy to set up, it is highly recommended to have at least two people for the assembly process, and more for certain stages like lifting the main roof frame. The components come with pre-drilled holes for convenient alignment.
For a visual guide on the assembly process and to see the gazebo in a real-world setting, please watch the official product video below:
Video 4.1: Official Sunjoy product video demonstrating the gazebo's features and providing a glimpse into its assembly and final appearance. This video highlights the ease of setup and the quality of the structure.
5. Operating Instructions
Once assembled, your Sunjoy gazebo provides a versatile outdoor living space. Utilize the sturdy ceiling hook to suspend outdoor lighting, creating a warm and inviting ambiance for evening use. The dual rail system allows for easy installation of mosquito netting or privacy curtains (sold separately), offering customizable protection from insects and enhancing privacy as needed. Enjoy this space for dining, relaxation, or social gatherings.
6. Maintenance
To ensure the longevity and continued aesthetic appeal of your Sunjoy gazebo, regular maintenance is recommended:
- Cleaning: Clean the wood frame and steel roof periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the finishes.
- Fastener Check: Regularly inspect all bolts, screws, and connections. Tighten any loose fasteners to maintain structural integrity.
- Wood Treatment: While the cedar wood frame is durable, prolonged exposure to elements may lead to fading over time. Consider applying a wood sealant or stain every few years to preserve its appearance and protect against weathering.
- Roof Care: Ensure the roof panels are free from debris, especially after strong winds or heavy snowfall. Clear any accumulated snow to prevent excessive weight on the structure.
- Curtains/Netting: If using mosquito netting or privacy curtains, remove them during strong winds or when not in use to prevent damage. Clean them according to their specific care instructions.
7. Troubleshooting
This section addresses common issues you might encounter with your gazebo:
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or wobbly. | Loose fasteners; improper anchoring; uneven ground. | Check and tighten all bolts and screws. Ensure the gazebo is anchored to a level surface. Re-anchor if necessary. |
| Roof panels appear bent or damaged. | Shipping damage; extreme weather (e.g., hail, heavy snow). | For minor bends, carefully use pliers to straighten. For significant damage, contact customer service for replacement parts. |
| Wood frame fading or showing wear. | Prolonged exposure to UV rays and weather. | Apply a suitable wood sealant or stain to restore color and protect the wood. |
| Water leakage from the roof. | Improper panel installation; damaged seals; excessive rain. | Verify all roof panels are correctly installed and sealed. Inspect for any cracks or gaps and apply sealant if needed. |
If you encounter issues not listed here or require further assistance, please refer to the complete assembly manual or contact Sunjoy customer service.
8. Specifications
| Brand | Sunjoy |
| Model Number | Sunjoy (Generic for this product line) |
| Product Dimensions | 189"L x 141.7"W x 122.8"H (15.75 ft x 11.81 ft x 10.24 ft) |
| Item Weight | 412.3 Pounds |
| Frame Material | Cedar Wood |
| Roof Material | Steel (Matte Black) |
| Water Resistance Level | Water Resistant |
| Assembly Required | Yes |
| Color | Black + Gray Wood |
| UPC | 841057185766 |
9. Warranty and Support
Sunjoy offers a 30-day easy return policy for this product. For any questions, concerns, or assistance with assembly or parts, please contact the experienced Sunjoy customer service team. Details for contacting support can typically be found in the packaging or on the official Sunjoy website.
- Returns: 30-day easy returns.
- Customer Support: Available to answer any questions that may arise.
