HayWHNKN 3 Speed Floor Carpet Dryer Air Mover S053090 User Manual

1. Introduction

Thank you for choosing the HayWHNKN S053090 3 Speed Floor Carpet Dryer Air Mover. This powerful and versatile unit is designed for efficient drying of carpets, floors, and other surfaces, as well as for air circulation. It features a durable polyethylene shell, a pure copper core motor, and three-gear speed regulation to suit various drying needs. Please read this manual thoroughly before operation to ensure safe and effective use.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Read all instructions before using this appliance.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• Do not use this appliance near water or in wet locations.
• Unplug the unit from the outlet when not in use or before cleaning.
• Do not allow children to operate or play with the unit.
• Ensure the power supply matches the voltage specified on the unit (220V-240V).
• Keep the air intake and exhaust grilles clear of obstructions.
• Do not insert fingers or foreign objects into the grilles.
• Use only as described in this manual.

3. Product Overview

The HayWHNKN S053090 is a robust air mover designed for various drying and ventilation tasks. Key components include:

• Durable Polyethylene Shell: High-strength material resistant to deformation.
• Air Intake Grille: Designed to prevent debris from entering the machine.
• Air Outlet: Directs airflow for efficient drying.
• Control Panel: Includes power switch and speed selector.
• Integrated Handle and Wheels: For easy portability.
• Power Cord: Heavy-duty 3*2mm³*12m 16A power cable.

Figure 3.1: Front view of the HayWHNKN S053090 Floor Carpet Dryer, showing the main fan grille and durable red polyethylene casing.

Figure 3.2: Side view illustrating the control panel, retractable handle, and wheels for mobility.

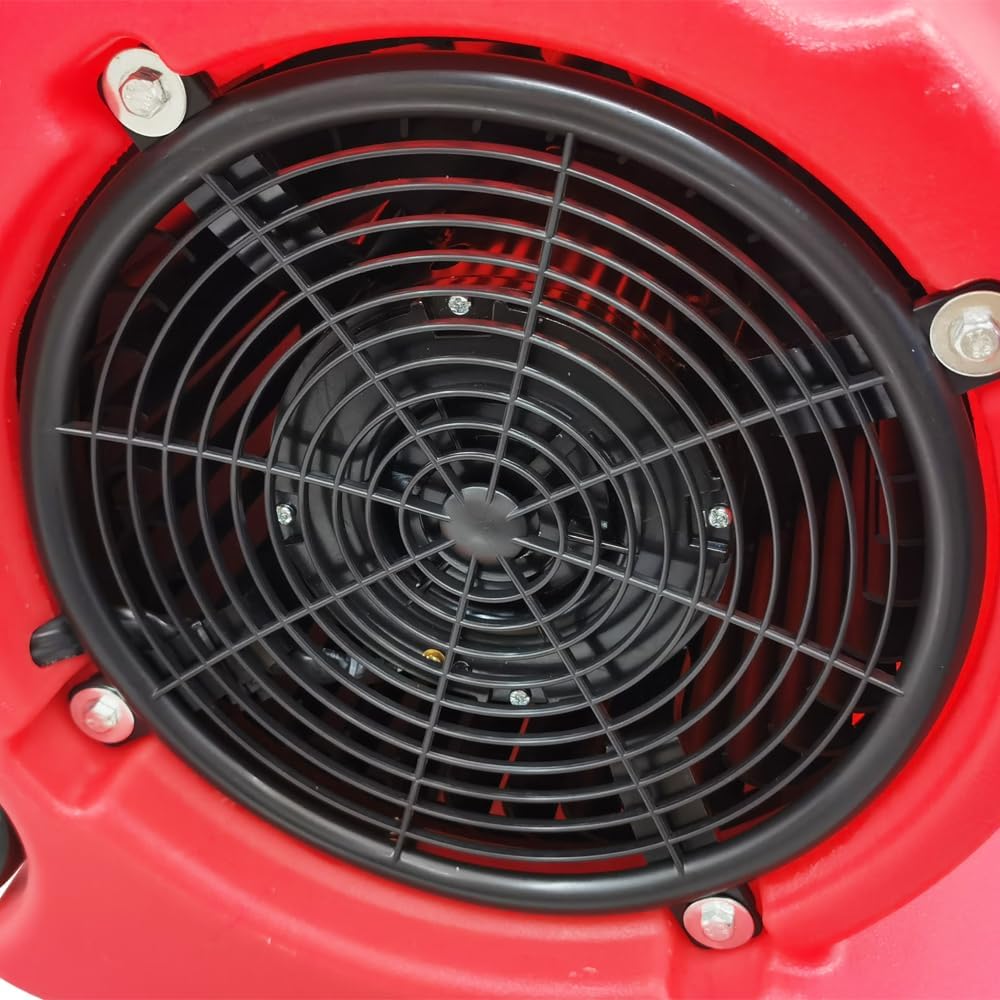

Figure 3.3: Detailed view of the turbine mesh cover, designed to prevent debris from entering the fan.

4. Setup Instructions

1. Unpacking: Carefully remove the unit from its packaging. Inspect for any shipping damage.
2. Placement: Position the air mover on a stable, level surface in the area requiring drying or ventilation. Ensure adequate clearance around the air intake and exhaust for optimal airflow.
3. Power Connection: Plug the power cord into a grounded 220V-240V AC electrical outlet. Ensure the outlet can support the unit's 2900W power requirement.
4. Handle Adjustment: If equipped with a retractable handle, extend it for easy maneuvering or retract it for compact storage.

5. Operating Instructions

The HayWHNKN S053090 features a simple control panel for ease of use.

1. Power On: Locate the power switch on the control panel. Turn the switch to the "ON" position.
2. Select Speed: The unit offers three speed settings (L-gear, M-gear, B-gear). Use the speed selector switch to choose the desired airflow:
   • L-gear (Low): 3177 CFM (90 m³/min) - For gentle drying or continuous air circulation.
   • M-gear (Medium): 3530 CFM (100 m³/min) - For moderate drying needs.
   • B-gear (High): 4942 CFM (140 m³/min) - For rapid drying of wet carpets or large areas.
3. Air Type: This model supports both cold air and warm air operation. Select the appropriate setting based on your drying requirements.
4. Positioning: Direct the airflow towards the area to be dried. For optimal results, position multiple units to create a circular airflow pattern in larger rooms.
5. Power Off: When drying is complete or the unit is not needed, turn the power switch to the "OFF" position and unplug the unit from the electrical outlet.

6. Maintenance

Regular maintenance ensures the longevity and efficient operation of your air mover.

• Cleaning the Exterior: Wipe the exterior of the unit with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Cleaning Grilles: Periodically inspect and clean the air intake and exhaust grilles to remove dust, lint, and debris. Use a vacuum cleaner or a soft brush. Ensure the unit is unplugged before cleaning.
• Motor: The pure copper core motor is designed for continuous operation. No user-serviceable parts inside.
• Storage: Store the unit in a cool, dry place when not in use. Coil the power cord neatly to prevent damage.

7. Troubleshooting

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

Figure 8.1: Dimensional diagram of the air mover, showing length, width, and height measurements.

9. Customer Support

For technical assistance, warranty information, or to report issues not covered in this manual, please contact HayWHNKN customer service.

• Website: Refer to the official HayWHNKN website for support contact details.
• Please have your model number (S053090) and purchase date ready when contacting support.
