WIX Filters 33097 Fuel Filter User Manual

Introduction

A high-quality WIX fuel filter is essential for protecting advanced fuel injection systems from contaminants that may be in the fuel, allowing an engine to run trouble-free and at peak mile-per-gallon performance. All of the fuel that enters the engine must first pass through the fuel filter. This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your WIX Filters 33097 Fuel Filter.

Product Overview

The WIX Filters 33097 Fuel Filter is designed to ensure clean fuel delivery to your vehicle's engine. Its high efficiency and unmatched fuel cleansing performance are vital for long and trouble-free fuel system and engine life. It effectively removes dirt, rust, scale, and water, which are common impurities originating from service station tanks or corrosion within the fuel system components.

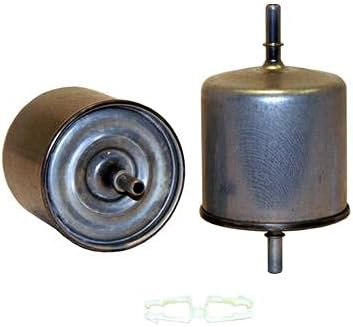

Image: Two views of the WIX Filters 33097 Fuel Filter, a cylindrical silver component with inlet/outlet ports, along with two small white clips. This filter is designed for in-line installation.

Specifications

Installation (Setup)

Replacing a fuel filter requires caution and basic automotive knowledge. If you are unsure about any step, it is recommended to consult a qualified mechanic.

Safety Precautions:

• Always work in a well-ventilated area.
• Ensure the engine is cool and the vehicle is turned off.
• Disconnect the vehicle's battery to prevent accidental starting.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Have a fire extinguisher readily available.
• Be prepared for fuel spills; use drip pans and absorbent materials.

General Installation Steps:

1. Locate the existing fuel filter. Its location varies by vehicle model (often under the vehicle, near the fuel tank, or in the engine bay).
2. Relieve fuel system pressure according to your vehicle's service manual. This is a critical step to prevent fuel spray.
3. Place a drain pan beneath the filter to catch any residual fuel.
4. Carefully disconnect the fuel lines from the old filter. Be aware that some fuel will leak out.
5. Remove the old fuel filter from its mounting bracket.
6. Install the new WIX 33097 fuel filter, ensuring the flow direction arrow (if present) matches the fuel flow of your vehicle.
7. Reconnect the fuel lines securely. Ensure all connections are tight to prevent leaks.
8. Re-connect the vehicle's battery.
9. Turn the ignition to the "ON" position (without starting the engine) for a few seconds to allow the fuel pump to prime the system. Repeat this a few times.
10. Check for any fuel leaks around the new filter.
11. Start the engine and re-check for leaks.
12. Dispose of the old fuel filter and any contaminated materials responsibly.

Operation

The WIX Filters 33097 Fuel Filter operates as a passive, critical component within your vehicle's fuel delivery system. Once installed, it continuously filters fuel as it flows from the fuel tank to the engine's fuel injection system or carburetor. Its 10-micron rating ensures that even fine particulate matter is captured, preventing it from reaching sensitive engine components. This constant filtration protects against clogging of fuel injectors, wear on fuel pump components, and overall engine malfunction caused by contaminated fuel.

Maintenance

Regular maintenance of your fuel system, including timely replacement of the fuel filter, is crucial for optimal vehicle performance and longevity.

Replacement Schedule:

The recommended replacement interval for fuel filters varies significantly by vehicle manufacturer and driving conditions. Always refer to your vehicle's owner's manual for the precise recommended service schedule. As a general guideline, many manufacturers suggest replacement every 30,000 to 60,000 miles, or every 2-4 years, whichever comes first. Driving in dusty environments or using lower quality fuel may necessitate more frequent changes.

Signs of a Clogged Fuel Filter:

• Reduced Engine Performance: Hesitation, stumbling, or a noticeable loss of power, especially during acceleration.
• Engine Misfires or Stalling: Insufficient fuel delivery can cause the engine to misfire or stall, particularly at higher speeds or under load.
• Difficulty Starting: A clogged filter can make it harder for the fuel pump to deliver enough fuel pressure to start the engine.
• Rough Idling: An inconsistent fuel supply can lead to an uneven or rough engine idle.
• Check Engine Light: In some modern vehicles, a severely restricted fuel filter can trigger a "Check Engine" light.

Troubleshooting

If you experience issues after installing the WIX 33097 Fuel Filter, or suspect a fuel delivery problem, consider the following:

• Fuel Leaks: Immediately check all connections at the fuel filter for tightness. Ensure O-rings or seals are properly seated and not damaged.
• Engine Not Starting/Rough Running:
  • Verify the fuel filter is installed with the correct flow direction.
  • Ensure fuel lines are not kinked or obstructed.
  • Check if the fuel system was properly primed after installation.
  • Confirm adequate fuel pressure (requires specialized tools).
• Persistent Performance Issues: If symptoms persist after filter replacement, the issue may lie elsewhere in the fuel system (e.g., fuel pump, injectors) or other vehicle systems. Professional diagnosis is recommended.

Warranty and Support

WIX Filters are manufactured to high-quality standards. For specific warranty information regarding your WIX Filters 33097 Fuel Filter, please refer to the official WIX Filters website or contact their customer support directly. Keep your purchase receipt as proof of purchase.

For technical assistance or further inquiries, please visit the official WIX Filters website or contact their customer service department.
