PAMEENCOS Removable Replacement Battery User Manual

Introduction

This manual provides essential information for the safe and effective use of your PAMEENCOS Removable Replacement Battery, designed for PRETTYCARE P1 and P2 Cordless Vacuum Cleaners. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of the battery.

Important Note: Always verify your equipment model or part number before purchasing and installing this replacement battery to ensure compatibility.

Safety Information

To prevent injury or damage, observe the following safety precautions:

• Do not disassemble, open, or shred the battery pack.
• Do not expose the battery to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
• Do not subject battery packs to mechanical shock.
• In the event of a battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Do not use any charger other than that specifically provided for use with the equipment.
• Keep the battery clean and dry.
• Do not leave a battery on prolonged charge when not in use.
• Do not immerse the battery in any liquid.
• Battery cells are forbidden to be thrown away, and children are prohibited from playing with them.
• Use a dedicated power adapter, which should be ventilated during charging.
• Do not charge or store the battery in an environment above 50°C.

Product Overview

The PAMEENCOS replacement battery is a high-quality, durable power source designed to seamlessly integrate with your PRETTYCARE P1 or P2 Cordless Vacuum Cleaner. It features a robust casing and precise connectors for reliable performance.

Figure 1: Front view of the PAMEENCOS Removable Replacement Battery. This image shows the overall shape and the gold-colored release button on the front.

Figure 2: Side view of the battery, highlighting the electrical contact points and the charging port.

Figure 3: Bottom view of the battery, displaying the technical parameters label with model number, voltage, and capacity information.

Setup and Installation

Follow these steps to install the replacement battery into your PRETTYCARE P1 or P2 Cordless Vacuum Cleaner:

1. Power Off: Ensure your vacuum cleaner is completely powered off and unplugged from any charging source before attempting battery replacement.
2. Remove Old Battery: Locate the battery compartment on your PRETTYCARE vacuum. Press the release button (if present) and slide out the old battery. Refer to your vacuum cleaner's original manual for specific instructions on battery removal.
3. Insert New Battery: Align the PAMEENCOS replacement battery with the battery slot in your vacuum cleaner. Gently slide the battery into place until it clicks securely. Ensure the electrical contacts are properly aligned.
4. Initial Charge: For optimal performance, it is recommended to fully charge the new battery before its first use. Connect your vacuum cleaner to its original charging adapter and allow it to charge until the charging indicator shows a full charge.

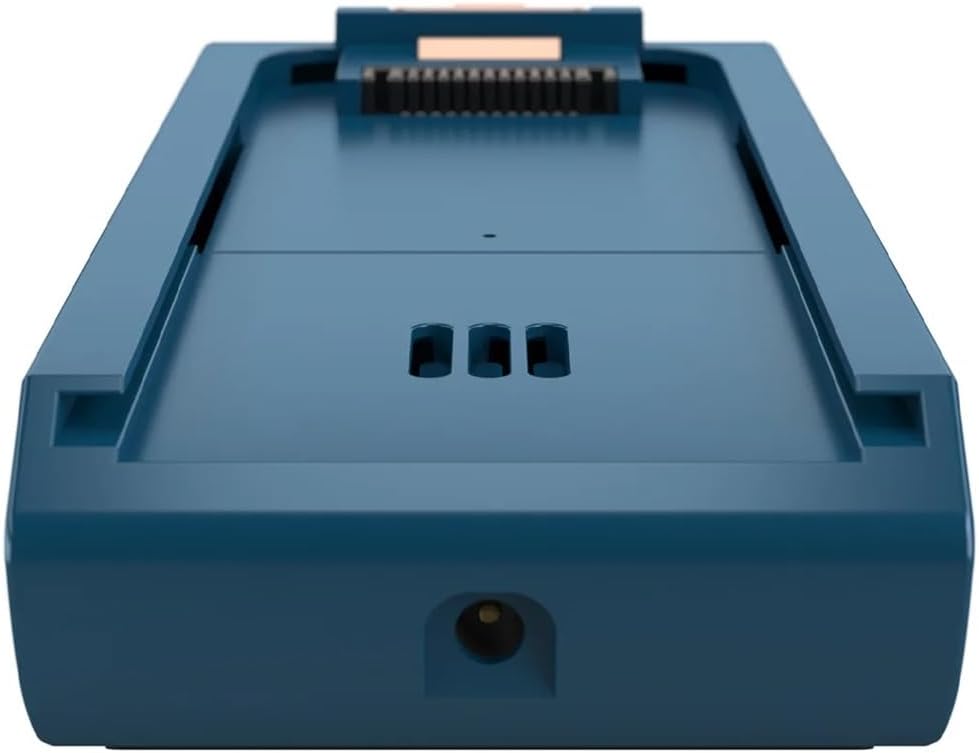

Figure 4: Close-up view of the battery's connection port, which interfaces with the vacuum cleaner's power system.

Operating Instructions

Once installed, the PAMEENCOS replacement battery operates just like the original battery in your PRETTYCARE P1 or P2 Cordless Vacuum Cleaner.

• Charging: Use only the original PRETTYCARE charging adapter for your vacuum cleaner. Connect the adapter to the vacuum cleaner, and the battery will begin charging. Monitor the vacuum's charging indicator lights.
• Discharging: The battery will discharge as you use the vacuum cleaner. The vacuum's power indicator will typically show the remaining battery life.
• Battery Life: The battery is designed for efficient and long-lasting performance. Actual run time may vary based on vacuum cleaner model, power mode used, and surface type.

Maintenance

Proper maintenance can extend the life of your replacement battery:

• Regular Charging: Avoid completely draining the battery before recharging. It is best to recharge after each significant use.
• Storage: If storing the vacuum cleaner or battery for an extended period, ensure the battery is partially charged (around 50%) and store it in a cool, dry place away from direct sunlight and extreme temperatures.
• Cleaning: Keep the battery's exterior and contact points clean and free of dust or debris. Use a dry, soft cloth for cleaning.
• Avoid Overcharging/Over-discharging: While modern batteries have protection circuits, it's good practice to disconnect the charger once fully charged and avoid leaving the battery completely depleted for long periods.

Troubleshooting

If you encounter issues with your replacement battery, consider the following:

If problems persist after attempting these solutions, please contact customer support.

Specifications

The following are the technical specifications for the PAMEENCOS Removable Replacement Battery:

• Type: Rechargeable Lithium-ion Battery
• Model No.: 7S1P18650-2200 (as per image label)
• Voltage: 25.9V (as per image label)
• Battery Capacity: 2200mAh (as per image label)
• Compatibility: PRETTYCARE P1 and P2 Cordless Vacuum Cleaner
• Item Weight: 1.76 ounces (50 Grams)
• Package Dimensions: 1.18 x 0.79 x 0.39 inches
• Manufacturer: zhiming love you
• Date First Available: November 4, 2023

Warranty and Support

For any questions, concerns, or support regarding your PAMEENCOS Removable Replacement Battery, please contact the seller or manufacturer directly through the platform where the purchase was made. Please refer to your purchase documentation for specific warranty terms and conditions.

We are committed to providing reliable quality and an excellent user experience. Your satisfaction is our priority.
