1. Introduction
Thank you for choosing the AVERA FB46L Compact Frigobar. This 45-liter (1.6 cubic feet) mini refrigerator with an integrated freezer is designed for optimal space utilization in offices, bedrooms, or studios. It offers efficient cooling, quiet operation, and convenient features to keep your items fresh and secure. Please read this manual thoroughly before use to ensure proper operation, maintenance, and safety.
2. Safety Instructions
- Ensure the refrigerator is placed on a stable, level surface.
- Allow adequate ventilation around the unit. Do not block air vents.
- Do not place flammable, explosive, or volatile materials inside the refrigerator.
- Keep the power cord away from heat sources and sharp edges.
- Unplug the appliance before cleaning or performing any maintenance.
- Do not touch cold surfaces with wet hands to avoid frostbite.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Product Overview
The AVERA FB46L frigobar is designed for convenience and efficiency. Key features include:
- Ideal Capacity: 46 liters (1.6 cubic feet) perfect for personal use in offices, bars, or studies.
- Adaptable and Secure Door: Features a reversible door for flexible placement and includes 2 security keys to protect contents.
- Super Efficient: Compressor cooling system (115V) with Energy Class A ensures low power consumption.
- Quiet Operation: Operates at a noise level of ≤ 40 dB, suitable for quiet environments.
- Precise Temperature Control: A thermostat knob offers 7 levels to adjust temperature from 0 °C to 10 °C.
- Integrated Freezer: Includes a freezer compartment with a hinged door, capable of reaching -2 °C, and an ice tray.
- Interior Shelving: Equipped with a durable, sliding glass shelf and door shelves for organized storage.

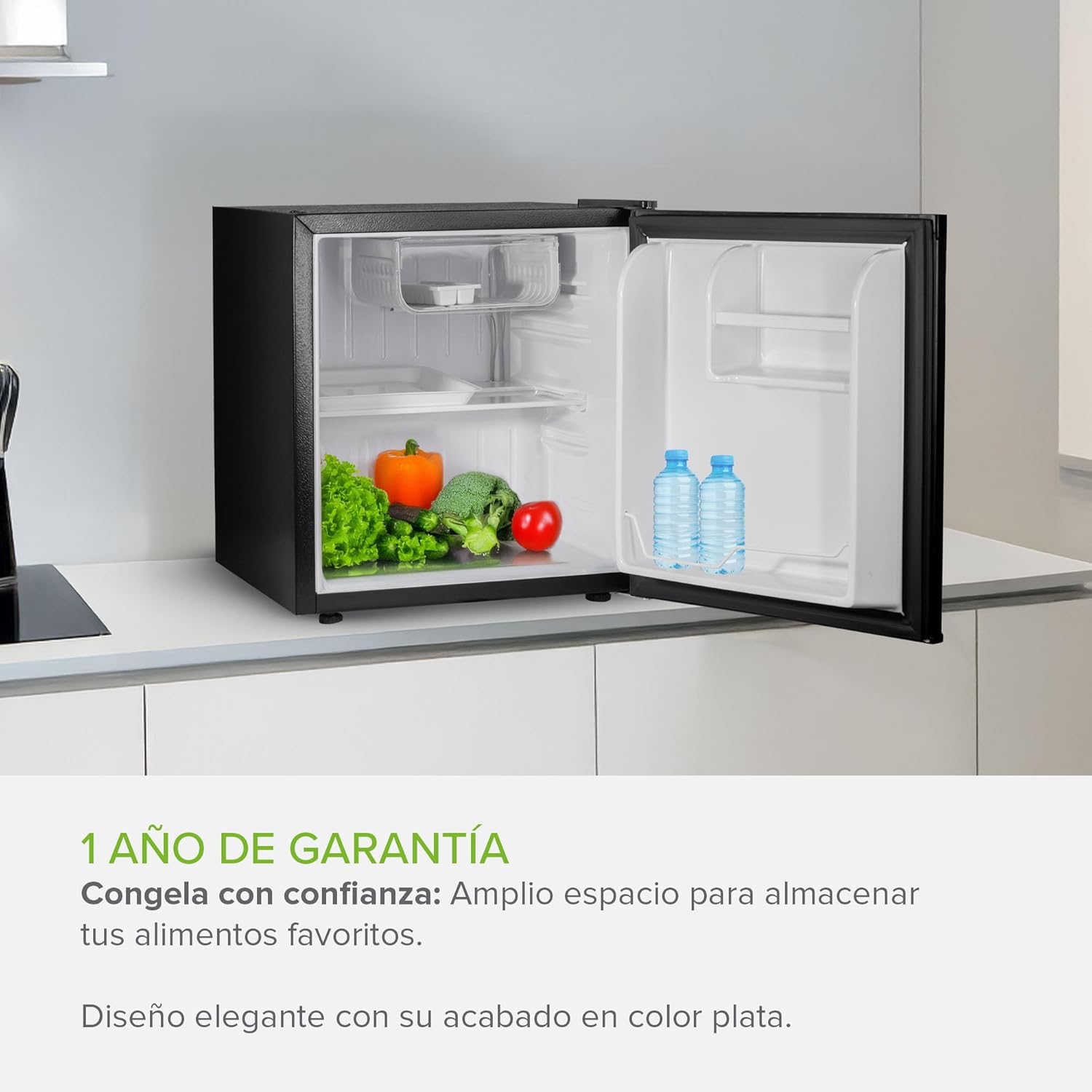

Interior view of the AVERA FB46L frigobar, highlighting the freezer compartment, glass shelf, and door storage.

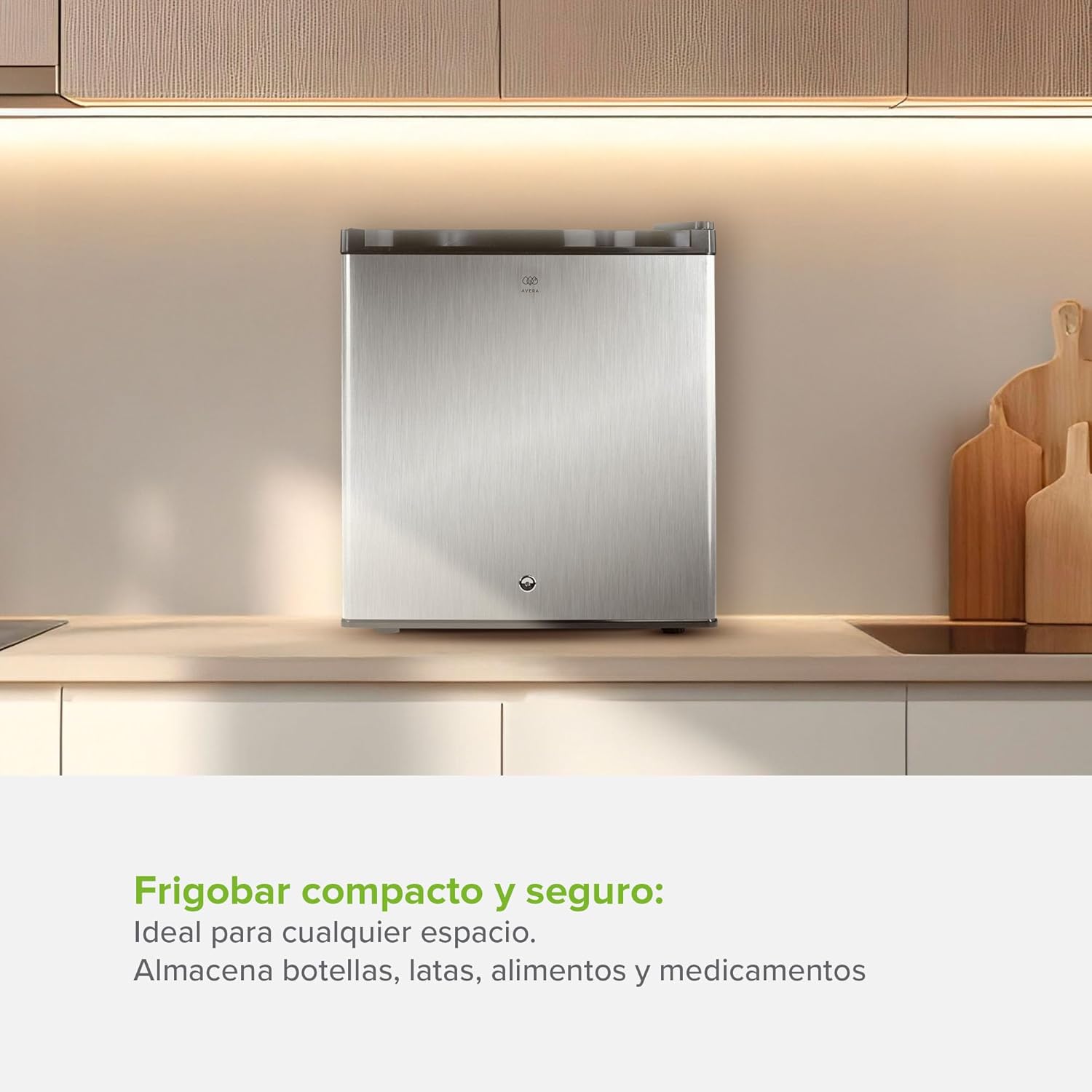

The compact and secure AVERA FB46L frigobar, ideal for storing bottles, cans, food, and medicine.
4. Setup and Installation
4.1 Unpacking and Initial Placement
- Carefully unpack the refrigerator and remove all packaging materials.
- Place the unit in an upright position for 12 to 24 hours before plugging it in. This allows the refrigerant to settle, ensuring optimal performance.
- Choose a location with a stable, level surface. Use the adjustable feet to ensure the frigobar is perfectly level.
Important: Keep the unit upright for 12 to 24 hours before initial power-on.
4.2 Ventilation and Power Connection
- Ensure sufficient space around the frigobar for proper ventilation. This is crucial for efficient cooling and preventing overheating.
- Connect the power cord to a grounded 115V electrical outlet.

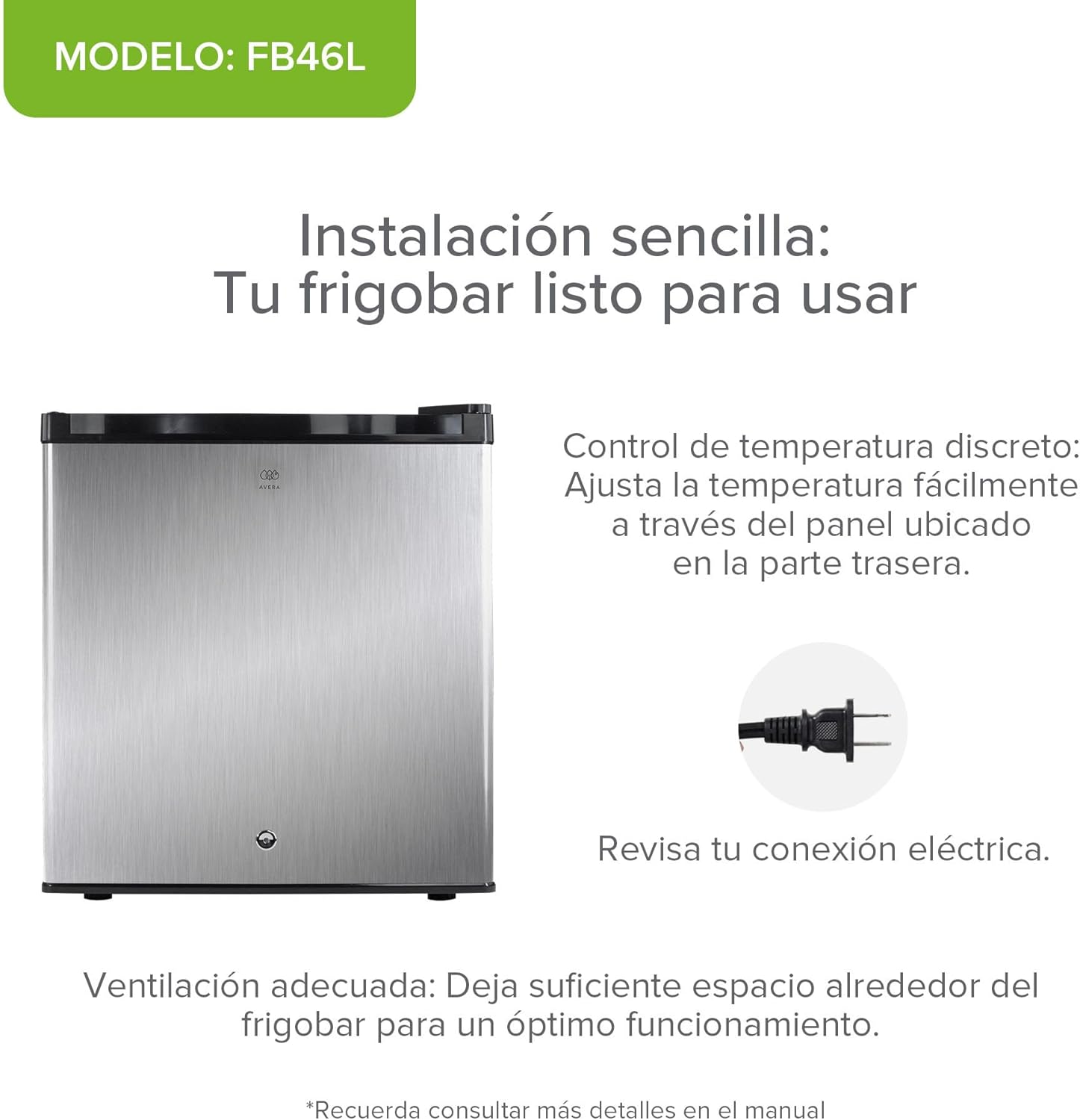

Ensure adequate ventilation and proper electrical connection.
4.3 Reversible Door Installation
The door of your frigobar can be reversed to open from either the left or right side, offering flexibility for placement. Refer to the detailed instructions in the full product manual for the door reversal procedure.
5. Operation
5.1 Temperature Control
The frigobar features a thermostat knob located at the back (as shown in image 7161DBZjbrL) with 7 adjustable levels. Turn the knob to set your desired temperature between 0 °C and 10 °C. A lower number indicates a warmer temperature, and a higher number indicates a colder temperature.
5.2 Freezer Compartment
The integrated freezer compartment, located at the top, is designed for freezing small items and making ice. It can reach temperatures of approximately -2 °C. Use the provided ice tray for convenience.
5.3 Security Lock
Your frigobar comes with a security lock and two keys to secure its contents. Insert the key into the lock on the door and turn to lock or unlock.
6. Maintenance and Cleaning
6.1 Cleaning
- Always unplug the refrigerator before cleaning.
- Clean the interior and exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners.
- The glass shelf and drip tray are removable for easy cleaning.
Removable glass shelf and ice tray for easy cleaning.
6.2 Defrosting
The frigobar features an electric defrost system. However, if ice buildup becomes excessive in the freezer compartment, manually defrost the unit. Unplug the appliance, remove all contents, and allow the ice to melt naturally. Use the drip tray to collect water and prevent mold and bacteria growth.
7. Troubleshooting
If you encounter issues with your frigobar, please refer to the following common problems and solutions before contacting support:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power, power cord not plugged in, circuit breaker tripped. | Check power supply, ensure plug is secure, reset circuit breaker. |
| Temperature is not cold enough. | Temperature setting too high, door opened frequently, poor ventilation, too much food inside. | Adjust thermostat to a colder setting, ensure door is closed properly, check for adequate ventilation, do not overload. |
| Excessive noise. | Unit not level, touching a wall, normal compressor operation. | Adjust leveling feet, move unit away from walls, some operating noise is normal. |
| Water on the floor. | Defrost water not draining properly, drip tray overflowing. | Check and clear the drain hole, empty the drip tray regularly. |
8. Specifications
| Brand | AVERA |
| Model Number | FB46L |
| Capacity | 45 Liters (1.6 cu ft) |
| Configuration | Compact with top freezer |
| Color | Grey |
| Special Features | Door with lock, reversible door |
| Installation Type | Freestanding |
| Number of Doors | 1 |
| Defrost System | Electric |
| Freezer Capacity | 45 Liters (Note: This likely refers to total capacity, not just freezer.) |
| Door Material Type | Stainless Steel |
| Package Dimensions | 53.5 x 49.5 x 46.5 cm; 14.12 kg |
AVERA FB46L Frigobar Product Dimensions.
9. Warranty and Support
The AVERA FB46L frigobar comes with a 1-year warranty, ensuring peace of mind regarding manufacturing defects and performance issues under normal use.
For technical support, warranty claims, or any questions regarding your product, please contact AVERA customer service through their official channels. You can typically find contact information on the product packaging or the official AVERA website.
Please retain your proof of purchase for warranty validation.
The AVERA FB46L frigobar includes a 1-year warranty.
