Introduction
The AVERA FB01 Mini-Fridge is a compact and efficient cooling solution designed for small spaces such as bedrooms, offices, or studios. With a 45-liter (1.6 cubic feet) capacity, this appliance provides reliable and quiet performance. Its design includes an adjustable temperature control and a security lock, ensuring your food and beverages remain fresh and secure. This manual provides essential information for the safe and efficient operation of your mini-fridge.
Safety Information
- Read all instructions before using the appliance.
- Ensure the power supply matches the voltage specified on the rating label.
- Do not place flammable, explosive, or corrosive materials inside the refrigerator.
- Keep ventilation openings clear of obstruction.
- Unplug the appliance before cleaning or performing any maintenance.
- Do not damage the refrigerant circuit.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your AVERA FB01 Mini-Fridge.
- Unpacking: Carefully remove all packaging materials. Inspect the appliance for any damage.
- Placement: Place the mini-fridge on a flat, stable surface. Ensure there is adequate ventilation around the unit. Allow at least 10 cm (4 inches) of space at the back and sides for proper air circulation.
Ensure adequate space around the unit for ventilation and proper electrical connection.
- Initial Positioning: After transportation, keep the unit in an upright position for 12 to 24 hours before plugging it in. This allows the refrigerant to settle.
Keep the appliance upright for 12-24 hours before initial power-on.
- Leveling: Adjust the adjustable feet at the bottom of the unit to ensure it is level. This helps reduce vibration and noise.
- Door Reversal: The door is reversible and can be set to open from either the right or left side to suit your space. Refer to the detailed instructions in the full manual for this procedure.
- Power Connection: Connect the power plug to a grounded electrical outlet.
Operating Instructions
Temperature Control
The mini-fridge features an adjustable thermostat with 7 levels, allowing you to set the temperature between 0 °C and 10 °C.
- Locate the temperature control knob, typically at the rear or inside the unit.
- Turn the knob to your desired setting. Higher numbers indicate colder temperatures.
- Start with a medium setting (e.g., 4) and adjust as needed based on the ambient temperature and the amount of food stored.
Freezer Compartment
The mini-fridge includes a dedicated freezer compartment with a hinged door, capable of reaching temperatures down to -2 °C. It also comes with a practical ice tray.
- Use the freezer compartment for short-term storage of frozen items or for making ice.
- Do not store items that require deep freezing for extended periods in this compartment.
The interior features a freezer compartment, glass shelf, and door storage for versatile organization.
Security Lock
For added security, the mini-fridge is equipped with a lock and two keys.
- Insert the key into the lock on the lower part of the door and turn to secure or unlock.
- Keep the spare key in a safe place.
Maintenance
Cleaning
- Always unplug the appliance before cleaning.
- Clean the interior and exterior surfaces with a soft cloth and a mild detergent. Avoid abrasive cleaners or solvents.
- The glass shelf and door shelves are removable for easy cleaning.
- Wipe dry thoroughly after cleaning.
Defrosting
The AVERA FB01 Mini-Fridge features a manual defrost system. Frost buildup in the freezer compartment is normal and should be removed periodically to maintain efficiency.
- Unplug the mini-fridge from the power outlet.
- Remove all food items from the freezer and refrigerator compartments. Store them in a cooler to keep them frozen or cold.
- Leave the door open to allow the frost to melt naturally. You can place towels at the bottom to absorb water.
- Do not use sharp objects or heating devices to remove frost, as this can damage the cooling system.
- Once defrosted, clean and dry the interior thoroughly before plugging the unit back in and returning food.
Troubleshooting
If you encounter any issues with your mini-fridge, please refer to the following common problems and solutions before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate |
|
|
| Temperature is not cold enough |
|
|
| Excessive noise |
|
|
| Water on the floor |
|
|
Specifications
| Feature | Detail |
|---|---|
| Model Number | FB01 |
| Brand | AVERA |
| Total Capacity | 45 Liters (1.6 cubic feet) |
| Refrigerator Net Capacity | 45 Liters |
| Freezer Capacity | 46 Liters (Note: This value from specifications may refer to gross volume or be a typo, as total capacity is 45L) |
| Dimensions (Depth x Width x Height) | 44.6 cm x 46.5 cm x 48.5 cm |
| Color | Black |
| Configuration | Compact with internal freezer |
| Special Features | Reversible door, Independent freezer, Energy efficient |
| Installation Type | Freestanding |
| Number of Doors | 1 |
| Defrost System | Manual |
| Finish Type | Matte |
| Cooling Method | Compressor |
| Adjustable Temperature Control | Yes |
| Lock Type | Key |
| Energy Efficiency | Class A / Energy Star Compliant |
| Noise Level | ≤ 40 dB |
Product dimensions as shown in the diagram:
Dimensions shown in the diagram are Height 58.5 cm, Width 50.5 cm, Depth 58.5 cm. Please refer to the specifications table for exact product dimensions.
Warranty and Support
The AVERA FB01 Mini-Fridge comes with a 1-year warranty. For warranty claims or technical support, please refer to the contact information provided with your purchase documentation or visit the official AVERA website.

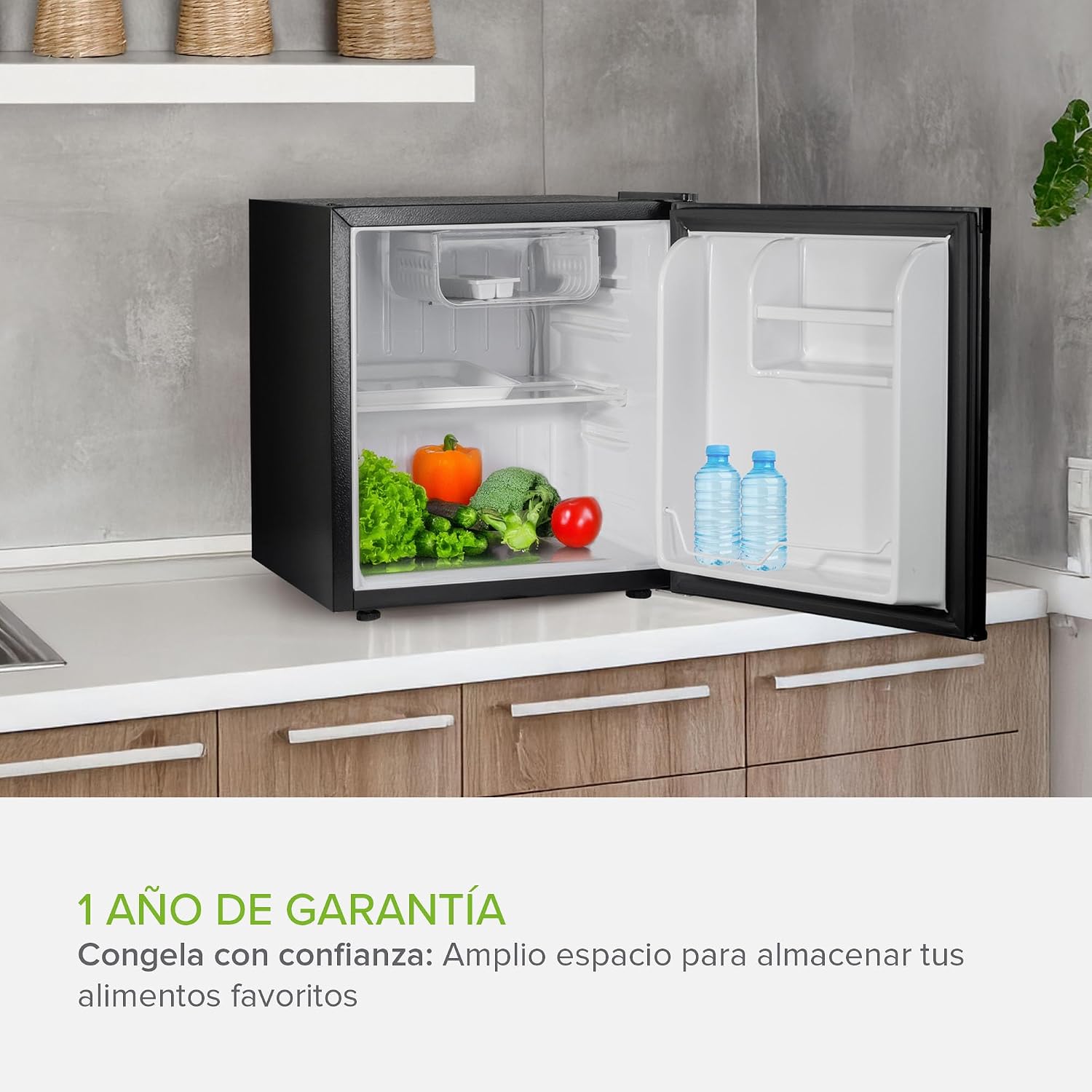

The product includes a 1-year warranty.
Important Notes
- No official product videos specifically for the AVERA FB01 model were found in the provided data.
- Always dispose of the appliance in accordance with local environmental regulations.
