1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Easy-Kleen Commercial Hot Water Portable Pressure Power Washer, Model EZO2703G. Please read this manual thoroughly before operating the unit to ensure proper use and to prevent injury or damage.

The Easy-Kleen EZO2703G is a robust commercial-grade pressure washer designed for demanding cleaning tasks, featuring a 3 GPM flow rate at 2700 PSI, powered by a 6.5 HP gasoline engine and a 120V oil-fired burner for hot water applications.

2. Safety Information

WARNING: Failure to follow these instructions may result in serious injury or property damage.

• Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and gloves, when operating the pressure washer.
• Never point the spray gun at people, animals, or electrical equipment. High-pressure spray can cause severe injury.
• Ensure the work area is well-ventilated, especially when operating the gasoline engine, to prevent carbon monoxide poisoning.
• Keep children and pets away from the operating area.
• Before performing any maintenance or adjustments, always turn off the engine, disconnect the spark plug wire, and relieve system pressure.
• Do not operate the unit if any parts are damaged or missing.
• Use only approved fuels and cleaning solutions. Refer to the engine manual for fuel specifications.
• Ensure all electrical connections are dry and properly grounded.
• Be aware of hot surfaces, including the engine and burner components, during and after operation.

Figure 2.1: Front view of the Easy-Kleen pressure washer, showing warning labels on the side of the heating coil.

3. Product Components

The Easy-Kleen EZO2703G pressure washer is comprised of several key components designed for commercial hot water cleaning.

3.1 Main Unit Overview

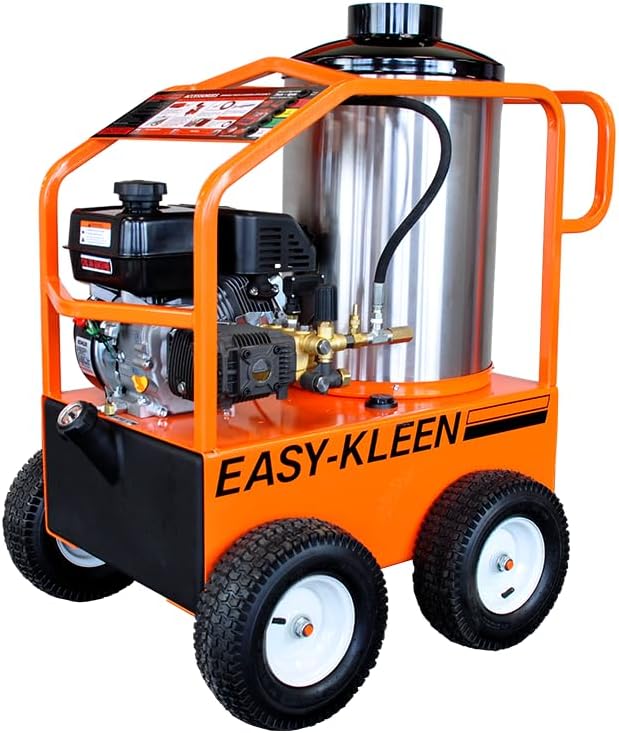

Figure 3.1: Side view of the pressure washer, highlighting the engine, pump, and heating coil.

Figure 3.2: Front view of the pressure washer, showing the Kohler engine and pump assembly.

Figure 3.3: Rear view of the pressure washer, showing the burner exhaust and electrical connection.

3.2 Key Features

• Pump: Commercial Duty Triplex Plunger Pump with Oil Bath Crankcase, Stainless Steel Valves, Brass Manifold, Direct Drive, and Thermo Pump Protector.
• Engine: 6.5 HP Gasoline-driven engine, designed for efficiency and serviceability.
• Heating Coil: Schedule 80 Pipe, no seam welds, elliptically wound & stretched, structurally braced to reduce vibration & pipe wear, sealed with a ceramic blanket, and housed in stainless steel.
• Burner: 120 Volt, Oil Fired, with an adjustable thermostat and On/Off switch. North-American made for dependability and serviceability.
• Frame: All welded, powder-coated, 12 gauge bent steel roll cage. Features 3/4" threaded axles welded to the frame, a lifting bar, 13" pneumatic wheels with lock nuts, a 10 Gallon Poly Fuel Tank, and a hose reel mounting plate.

Figure 3.4: Detailed view of the commercial duty triplex plunger pump and 6.5 HP gasoline engine.

Figure 3.5: Detailed view of the 120V oil-fired burner and Schedule 80 heating coil.

Figure 3.6: Detailed view of the powder-coated, welded steel roll cage frame with pneumatic wheels.

3.3 Included Accessories

• 36" Gun and Wand Assembly with Quick Coupler System.
• Nozzles: 0° (Red), 15° (Yellow), 25° (Green), 40° (White), and 1 Soap Nozzle (Black).
• Downstream Chemical Injection System.
• 50' of High Pressure Hose.

Figure 3.7: The pressure washer includes a gun and wand assembly, various nozzles, a chemical injection system, and a 50-foot high-pressure hose.

3.4 Nozzle Guide

Figure 3.8: Guide to the different quick-connect nozzles and their applications.

• Red (Cutting Nozzle) - 0°: Delivers a powerful, concentrated stream for spot cleaning, removing stubborn stains, or reaching high areas. Use with caution on delicate surfaces.
• Yellow (Intense Washing Nozzle) - 15°: Provides an intense fan spray for cleaning unpainted hard surfaces like concrete, brick, and grills.
• Green (Washing Nozzle) - 25°: A standard fan spray for general cleaning of yard tools, sidewalks, lawn furniture, and painted surfaces.
• White (Rinsing Nozzle) - 40°: A wide, gentle spray for rinsing or cleaning delicate surfaces such as vehicles, windows, and painted wood.
• Black (Detergent Application Nozzle) - Low Pressure: Used for applying cleaning solutions at low pressure. Always verify compatibility of cleaning solution with the surface.

4. Setup

Before operating your pressure washer, ensure all components are properly assembled and connected.

1. Unpacking and Inspection: Remove the unit from its packaging and inspect for any shipping damage. Report any damage to the carrier immediately.
2. Wheel Assembly: Attach the 13" pneumatic wheels to the frame using the provided lock nuts.
3. Engine Oil: Fill the engine crankcase with the recommended engine oil (refer to the engine manufacturer's manual for type and capacity). Do not overfill.
4. Fuel: Fill the 10-gallon poly fuel tank with fresh, unleaded gasoline. Refer to the engine manual for specific fuel requirements.
5. Burner Fuel: Fill the burner fuel tank with diesel fuel or kerosene.
6. Water Supply Connection: Connect a garden hose (minimum 5/8" diameter) from a reliable water source to the inlet fitting on the pressure washer pump. Ensure the water supply is clean and free of debris.
7. High-Pressure Hose Connection: Connect one end of the 50' high-pressure hose to the pump outlet and the other end to the spray gun assembly. Ensure connections are tight.
8. Nozzle Selection: Select the appropriate quick-connect nozzle for your cleaning task and insert it into the quick-coupler on the wand.
9. Electrical Connection: Plug the 120V burner power cord into a grounded electrical outlet.

5. Operating Instructions

Follow these steps for safe and effective operation of your Easy-Kleen pressure washer.

5.1 Starting the Unit

1. Ensure the water supply is turned ON and fully open.
2. Squeeze the spray gun trigger to purge air from the pump and hose until a steady stream of water flows out. Release the trigger.
3. Refer to the engine manufacturer's manual for specific starting procedures (choke, throttle, recoil start).
4. Once the engine starts, allow it to warm up for a few minutes.

5.2 Hot Water Operation

1. With the engine running and water flowing, turn the burner ON/OFF switch to the 'ON' position.
2. Adjust the thermostat to the desired water temperature. The burner will ignite and begin heating the water.
3. Allow a few moments for the water to reach the set temperature before beginning cleaning.

5.3 Applying Detergent (Downstream Injection)

1. Ensure the black soap nozzle is installed on the wand. This nozzle operates at low pressure, allowing the chemical injector to draw detergent.
2. Place the chemical injector hose into a container of pressure washer safe detergent.
3. Squeeze the spray gun trigger. The unit will draw detergent and mix it with the water.
4. Apply detergent to the cleaning surface. Allow it to dwell as recommended by the detergent manufacturer.
5. To rinse, remove the chemical injector hose from the detergent and switch to a high-pressure nozzle (e.g., 15°, 25°, or 40°).

5.4 Shutting Down the Unit

1. If using hot water, turn the burner ON/OFF switch to 'OFF'.
2. Turn off the engine (refer to the engine manual).
3. Turn off the water supply.
4. Squeeze the spray gun trigger to relieve any remaining pressure in the system.
5. Disconnect the garden hose and high-pressure hose.
6. Drain any remaining water from the pump and hoses, especially in freezing conditions.

Figure 5.1: The Easy-Kleen pressure washer in operation, demonstrating its use for heavy-duty cleaning tasks.

6. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your pressure washer.

6.1 After Each Use

• Flush the pump with clean water to remove any chemical residues.
• Clean the exterior of the unit.
• Inspect hoses, connections, and nozzles for wear or damage.

6.2 Engine Maintenance

Refer to the engine manufacturer's manual for detailed maintenance schedules, including:

• Oil changes.
• Air filter cleaning/replacement.
• Spark plug inspection/replacement.
• Fuel system maintenance.

6.3 Pump Maintenance

• Check pump oil level regularly and change as recommended (typically every 50-100 hours of operation). Use non-detergent pump oil.
• Inspect inlet filter for debris and clean if necessary.
• Periodically check for leaks around seals and fittings.

6.4 Burner and Coil Maintenance

• Ensure adequate burner fuel supply.
• Periodically inspect the heating coil for soot buildup. If excessive soot is present, professional cleaning may be required.
• Check the burner nozzle and electrodes for wear or damage.

6.5 Winterization

In freezing climates, proper winterization is essential to prevent damage to the pump and coil:

• Drain all water from the pump, hoses, and coil.
• Introduce an RV antifreeze solution into the pump and coil until it exits the high-pressure outlet.
• Store the unit in a heated area if possible.

7. Troubleshooting

This section addresses common issues you may encounter with your pressure washer.

8. Specifications

9. Warranty and Support

For specific warranty information regarding your Easy-Kleen Commercial Hot Water Portable Pressure Power Washer, please refer to the documentation included with your purchase or contact Easy-Kleen Pressure Systems directly. Warranty terms typically cover manufacturing defects for a specified period.

For technical assistance, parts, or service inquiries, please contact Easy-Kleen customer support. Have your model number (EZO2703G) and serial number ready when contacting support.

Easy-Kleen Pressure Systems
Contact information can typically be found on the manufacturer's website or in your product packaging.
