1. Introduction
Thank you for choosing the tectake® Clamp Awning. This manual provides essential information for the safe and efficient use of your new awning. Designed for balconies and terraces, this clamp awning offers flexible sun, privacy, and light rain protection without the need for drilling. Its robust construction and easy operation make it an ideal addition to your outdoor space.
Image: The tectake Clamp Awning shown in different extended positions, highlighting its versatility for sun and privacy protection.
Image: The tectake Clamp Awning installed on a modern terrace, providing shade and enhancing the outdoor living area.
2. Safety Instructions
Please read all safety instructions carefully before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Wind Conditions: Do not use the awning in strong winds, heavy rain, or snow. Retract the awning completely during adverse weather conditions to prevent damage.
- Stability: Ensure the telescopic poles are securely clamped between the floor and ceiling. The non-slip plastic caps must be firmly seated to provide maximum stability.
- Assembly: Assembly should ideally be performed by two adults to ensure safety and proper installation.
- Clearance: Ensure there is sufficient clearance around the awning when extending or retracting to avoid obstructions or collisions.
- Children and Pets: Keep children and pets away from the awning during operation.
- Maintenance: Regularly inspect all components for wear, damage, or loose connections. Do not use the awning if any parts are damaged.
3. Package Contents
Please verify that all parts are present before beginning assembly:
- Awning Fabric (Polyester with water-repellent coating)
- Telescopic Poles (Aluminium)
- Support Arms (Aluminium)
- Hand Crank
- Mounting Hardware (Screws, connectors)
- Non-slip Plastic Caps
- Instruction Manual
4. Setup and Assembly
The tectake® Clamp Awning is designed for easy, no-drill installation. Follow these steps for a secure setup:
- Prepare the Location: Choose a suitable location on your balcony or terrace with a stable floor and ceiling for clamping the telescopic poles. Ensure the surface is clean and free of debris.
- Assemble Telescopic Poles: Connect the sections of the telescopic poles according to the provided diagrams. Adjust the height of the poles using the screw mechanism to fit snugly between your floor and ceiling. Ensure the non-slip plastic caps are securely attached to both ends of the poles.
- Attach Support Arms: Secure the support arms to the telescopic poles at the desired height. These arms will hold the awning fabric.
- Mount Awning Fabric: Carefully attach the awning fabric to the main roller and the front bar, ensuring it is evenly distributed and aligned.
- Install Hand Crank: Attach the hand crank mechanism to the designated point on the awning. The crank can be mounted on either side for convenience.
- Final Adjustments: Once assembled, use the hand crank to extend the awning slightly. Make any final height or angle adjustments to the telescopic poles and support arms to achieve optimal tension and stability. Ensure the awning is level and securely clamped.
Image: Visual representation of the simple, no-drill assembly process for the tectake Clamp Awning.

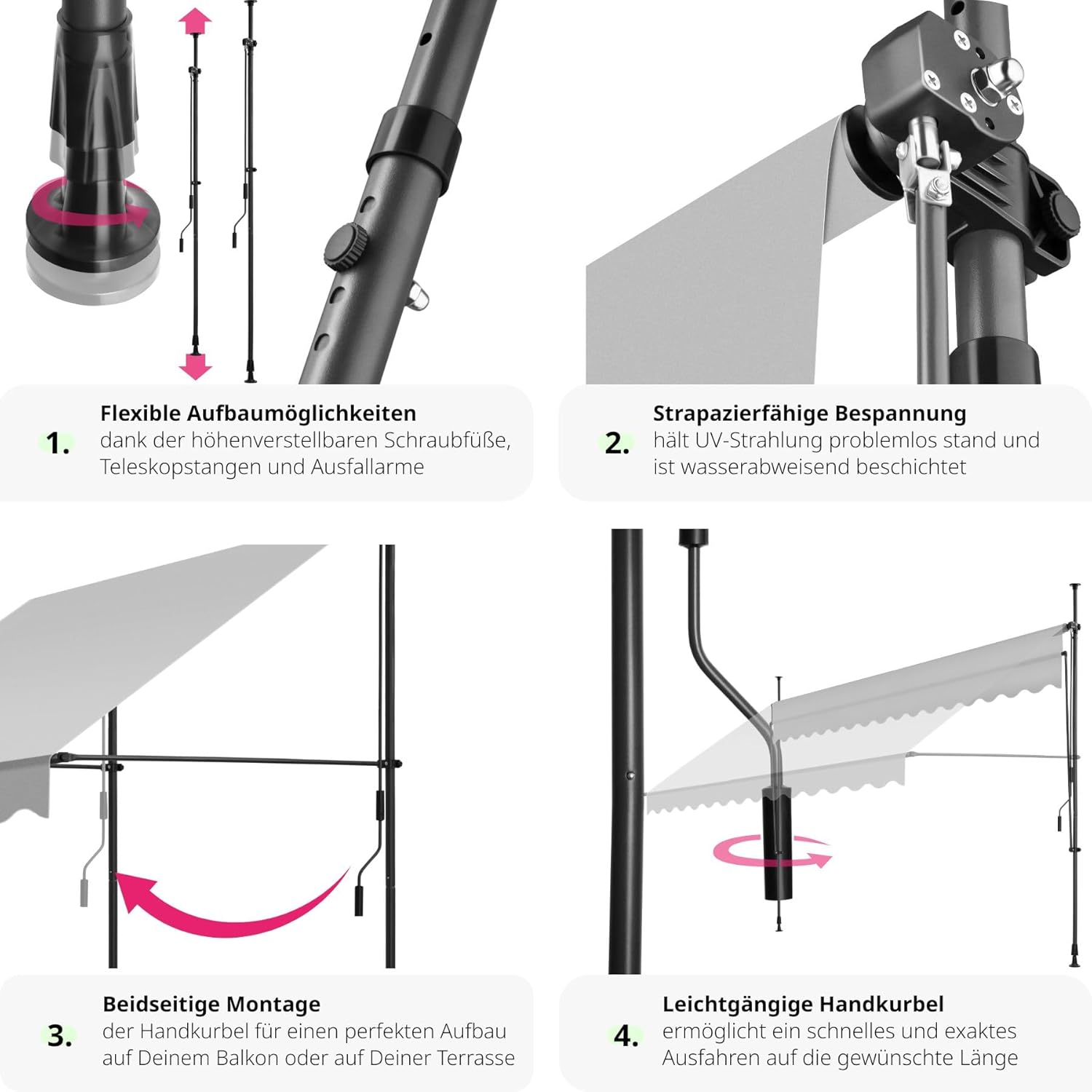

Image: Close-up views illustrating flexible setup options, durable fabric, bilateral crank mounting, and the smooth hand crank mechanism.
5. Operating Instructions
Operating your tectake® Clamp Awning is straightforward:
- Extending the Awning: Turn the hand crank clockwise to extend the awning fabric. Continue turning until the awning reaches your desired length and angle.
- Retracting the Awning: Turn the hand crank counter-clockwise to retract the awning fabric. Ensure the fabric rolls up smoothly and evenly.
- Adjusting Angle/Position: The awning can be extended diagonally for overhead sun protection or adjusted to a more vertical position to act as a privacy screen or windbreak. Adjust the support arms as needed to achieve the desired angle.
Image: The awning demonstrating its ability to be used diagonally for sun protection and vertically as a privacy screen.
6. Maintenance and Care
Proper maintenance will extend the life of your awning:
- Cleaning the Fabric: The water-repellent polyester fabric is easy to clean. Use a soft brush or cloth with mild soap and water to remove dirt. Rinse thoroughly with clean water and allow to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
- Frame Care: Wipe down the powder-coated steel and aluminum components with a damp cloth as needed.
- Seasonal Storage: If storing the awning for an extended period, ensure it is clean and completely dry to prevent mold or mildew. Store in a dry, protected area.
- Regular Inspection: Periodically check all screws, connections, and the clamping mechanism to ensure they are tight and secure.
Image: Visual representation of the awning's UV-resistant and water-repellent properties, crucial for durability and easy maintenance.
Image: The awning shown in both sunny and rainy conditions, highlighting its wind and weather resistant design.
7. Troubleshooting
If you encounter issues with your awning, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Awning is unstable or wobbles. | Telescopic poles not securely clamped or loose connections. | Ensure poles are extended to maximum tension and plastic caps are firmly seated. Check all screws and connections for tightness. |
| Awning fabric does not extend/retract smoothly. | Obstruction, misaligned fabric, or damaged crank mechanism. | Check for any obstructions. Ensure fabric is rolling evenly. Inspect the hand crank for damage. |
| Fabric sags or collects water. | Insufficient tension or incorrect angle. | Adjust the height of the telescopic poles and the angle of the support arms to create proper tension and allow water runoff. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 404970 |
| Total Dimensions (W x D x H) | Approx. 400 x 120 x 211-304 cm |
| Weight | Approx. 11.5 kg |
| Material | Polyester, Alloy Steel, Polyurethane, Aluminium, Polyethylene |
| Fabric Thickness | 180 g/m² |
| UV Protection | UV-Schutz 50+ |
| Operation | Hand-operated (Crank) |
| Height Adjustment Range | 211 cm to 304 cm |
Image: Technical diagram showing the precise dimensions of the awning, including width, depth, and adjustable height range.
Image: A comprehensive overview of the product's dimensions and technical specifications.
9. Warranty and Support
For warranty information or technical support, please contact tectake customer service. Details can typically be found on the product packaging or the official tectake website.
Online Support: Visit the official tectake website for FAQs, product registration, and additional support resources.
Contact: Refer to your purchase documentation for specific contact details for your region.
