TCL 85C805K 85-inch QLED Mini LED 4K HDR Smart Gaming TV
User Manual
1. Introduction and Overview
The TCL 85C805K is an 85-inch QLED Mini LED 4K HDR Smart Gaming TV designed to deliver an exceptional viewing and gaming experience. It features advanced display technologies, powerful audio, and smart functionalities powered by Google TV.
- Mini LED: Unique backlight technology for uncompromised contrast, brightness, and uniformity.
- QLED: Quantum dot technology for a billion different colors and shades, providing vivid and lifelike picture performance.
- 4K HDR PREMIUM 1300: Superior High Dynamic Range experience with accurate colors and fine details, supporting HDR10, HLG, HDR10+, Dolby Vision, and Dolby Vision IQ.
- 144Hz Native Display: Ensures smooth and sharp details for fast-moving images, ideal for sports and action.
- Onkyo Sound System & Dolby Atmos: Integrated audio solution for an immersive sound experience.
Figure 1.1: Front view of the TCL 85C805K TV, showcasing its large display and sleek design.
2. Setup
2.1 Unpacking
Carefully remove the TV and all accessories from the packaging. Retain the packaging materials for future transport or service needs.
2.2 Stand Installation
Place the TV screen-down on a soft, flat surface. Attach the included stand components to the designated slots on the TV's bottom using the provided screws. Ensure all screws are tightened securely.
Figure 2.1: Illustration of the TV being set up on its included stand, showing the process of attaching the base.
2.3 Wall Mounting (Optional)
If wall-mounting, refer to the instructions provided with your wall-mount bracket. Ensure the bracket is compatible with the TV's VESA mounting pattern and weight. Professional installation is recommended.
2.4 Initial Connections
Connect the power cable to the TV and a power outlet. Connect any external devices (e.g., cable box, gaming console) to the appropriate HDMI or other input ports. For internet access, connect an Ethernet cable to the LAN port or prepare for Wi-Fi setup.
2.5 First Time Setup
Upon first power-on, the TV will guide you through the initial setup process, including language selection, network connection (Wi-Fi or Ethernet), Google account sign-in, and channel scanning.
3. Operating the TV
3.1 Remote Control Functions
The included remote control provides access to all TV functions. Common buttons include Power, Input Source, Volume Up/Down, Channel Up/Down, Navigation (directional pad and OK), Home, Back, and dedicated app buttons.
Figure 3.1: The remote control for the TCL 85C805K TV, highlighting its layout and key function buttons.
3.2 Navigating Google TV
Press the Home button on the remote to access the Google TV interface. This personalized hub organizes content from your subscriptions and apps. Use the navigation buttons to browse, select apps, and discover new content.
Figure 3.2: The Google TV interface, displaying a selection of available streaming services and content recommendations.
3.3 Picture and Sound Settings
Access the settings menu to adjust picture modes (e.g., Standard, Movie, Game, Sports), brightness, contrast, color, and sharpness. For audio, customize sound modes, equalizer settings, and enable/disable features like Dolby Atmos.
4. Key Features
4.1 Display Technology
- Mini LED: This technology utilizes thousands of tiny LEDs for precise backlight control, enabling deeper blacks and brighter whites. The full array local dimming system, with over 500 zones, customizes brightness for every frame, enhancing realism and contrast.
Figure 4.1: A visual representation of Mini LED technology and its full array local dimming capabilities, showing how light is precisely controlled.
- QLED (Quantum Dot): Quantum Dot technology produces over a billion colors, delivering exceptionally vivid and lifelike picture performance with a wide color gamut.
Figure 4.2: An image demonstrating the vibrant and extensive color reproduction achieved by QLED technology.
- 4K HDR Premium 1300nits: This TV provides a superior High Dynamic Range experience with peak brightness of 1300 nits, ensuring accurate colors and fine details in both bright and dark scenes. It supports multiple HDR formats including HDR10, HLG, HDR10+, Dolby Vision, and Dolby Vision IQ.
Figure 4.3: A high dynamic range image showcasing the bright and brilliant visuals possible with 1300 nits peak brightness.
- Anti-Reflection: The ultra-low-reflection screen minimizes glare, providing an optimal viewing experience in various lighting conditions, day or night.
Figure 4.4: A side-by-side comparison illustrating how the anti-reflection screen reduces glare compared to a conventional TV.
4.2 Gaming Features
- 144Hz VRR (Variable Refresh Rate): Experience incredibly smooth and responsive gameplay with a native 144Hz refresh rate, reducing motion blur and ensuring crisp visuals during fast-paced action.
Figure 4.5: A visual comparison demonstrating the difference in motion clarity between 60Hz and 144Hz refresh rates during gaming.
- AMD FreeSync Premium Pro: This certification ensures a fluid, artifact-free performance at virtually any frame rate, eliminating screen tearing and stuttering for a seamless gaming experience.
Figure 4.6: A dynamic gaming image highlighting the smooth, tear-free experience provided by AMD FreeSync Premium Pro.
- HDMI 2.1 with ALLM & eARC: HDMI 2.1 provides higher bandwidth, supporting 4K at 144Hz. ALLM (Auto Low Latency Mode) automatically switches to the lowest latency setting for gaming, while eARC (Enhanced Audio Return Channel) allows for high-quality audio passthrough.
Figure 4.7: A diagram illustrating the benefits of HDMI 2.1 for gaming, emphasizing low input lag and quick response.
4.3 Audio Features
- Onkyo 2.0 Sound System & Dolby Atmos: The integrated Onkyo 2.0 channel 50W HI-FI sound system, combined with Dolby Atmos, delivers captivating stereo sound and thunderous bass, creating an immersive home theater experience.
Figure 4.8: A visual representation of sound waves, symbolizing the immersive audio experience provided by the Onkyo sound system and Dolby Atmos.
- DTS-HD Virtualized 3D Sound: DTS-HD technology creates an enveloping sound that appears to emerge from above, beside, and behind you, providing an immersive experience in any space.
Figure 4.9: An image depicting a user experiencing virtualized 3D sound, with sound waves illustrating the immersive audio field.
4.4 Smart Features
- Google TV: Discover new movies and shows from across your subscriptions and content. Suggestions are based on your viewing habits and interests, making it easier to find your next favorite.
- Hands-free Voice Control (Google Assistant): Control your TV using voice commands without needing the remote. You can choose content, launch apps, turn on your set, switch inputs, and search for movies.
Figure 4.10: An individual interacting with the TV using hands-free voice control, demonstrating the convenience of Google Assistant.
5. Connectivity
The TCL 85C805K offers a variety of ports for connecting external devices:
- USB: For connecting USB storage devices.
- LAN: Ethernet port for wired internet connection.
- HDMI 1, HDMI 2 (Service Port), HDMI 3, HDMI 4 (eARC/ARC): Connect various HDMI-enabled devices. HDMI 4 supports eARC/ARC for enhanced audio return.
- Antenna/Cable Input: For connecting an antenna or cable TV signal.
- Satellite Input: For connecting a satellite dish.
- Digital Audio Out (Optical): For connecting to external audio systems.
- Common Interface: For CI+ modules.
- AV Adapter: For connecting older analog devices.
- Headphone: For private listening.
Figure 5.1: A detailed diagram showing the various input and output ports available on the side and rear of the TCL 85C805K TV.
6. Maintenance
6.1 Cleaning the TV
To clean the screen, gently wipe with a soft, lint-free cloth specifically designed for electronics. For the TV body, use a soft, dry cloth. Avoid using abrasive cleaners, waxes, or solvents.
6.2 Software Updates
Ensure your TV's software is up to date for optimal performance and new features. The TV can typically update automatically when connected to the internet, or you can manually check for updates in the settings menu.
7. Troubleshooting
If you encounter issues with your TV, refer to the following common problems and solutions:
| Problem | Possible Solution |
|---|---|
| No Power | Check if the power cable is securely connected to the TV and the power outlet. Ensure the outlet has power. |
| No Picture / Black Screen | Verify the correct input source is selected. Check all cable connections (HDMI, antenna). Try restarting the TV. |
| No Sound | Check the volume level and ensure the TV is not muted. Verify audio cable connections. Check sound settings. |
| Remote Control Not Working | Replace the batteries. Ensure there are no obstructions between the remote and the TV's IR sensor. |
| Network Connection Issues | Restart your router/modem. Re-enter Wi-Fi password. Try a wired Ethernet connection if possible. |
| Picture Quality Issues (e.g., blur, blooming) | Adjust picture settings. Ensure you are using high-quality source content and appropriate cables (e.g., high-speed HDMI for 4K/144Hz). |
If the problem persists after trying these solutions, please contact customer support.
8. Specifications
Detailed technical specifications for the TCL 85C805K TV:
| Feature | Detail |
|---|---|
| Model Number | 85C805K |
| Screen Size | 85 Inches (216 cm) |
| Display Technology | Mini LED, QLED |
| Resolution | 4K (3840 x 2160) |
| Refresh Rate | 144Hz |
| HDR Support | HDR10, HLG, HDR10+, Dolby Vision, Dolby Vision IQ |
| Peak Brightness | 1300 nits |
| Operating System | Google TV |
| Audio System | Onkyo 2.0 CH 50W HI-FI, Dolby Atmos, DTS-HD |
| Connectivity | Wi-Fi, Bluetooth, HDMI 2.1 (with ALLM & eARC), USB, LAN, Optical Digital Audio Out |
| Product Dimensions (D x W x H) | 38.5 x 189.4 x 116.8 cm |
| Weight | 42 kg |
| Included Components | Power Cable, Remote Control, Stand |

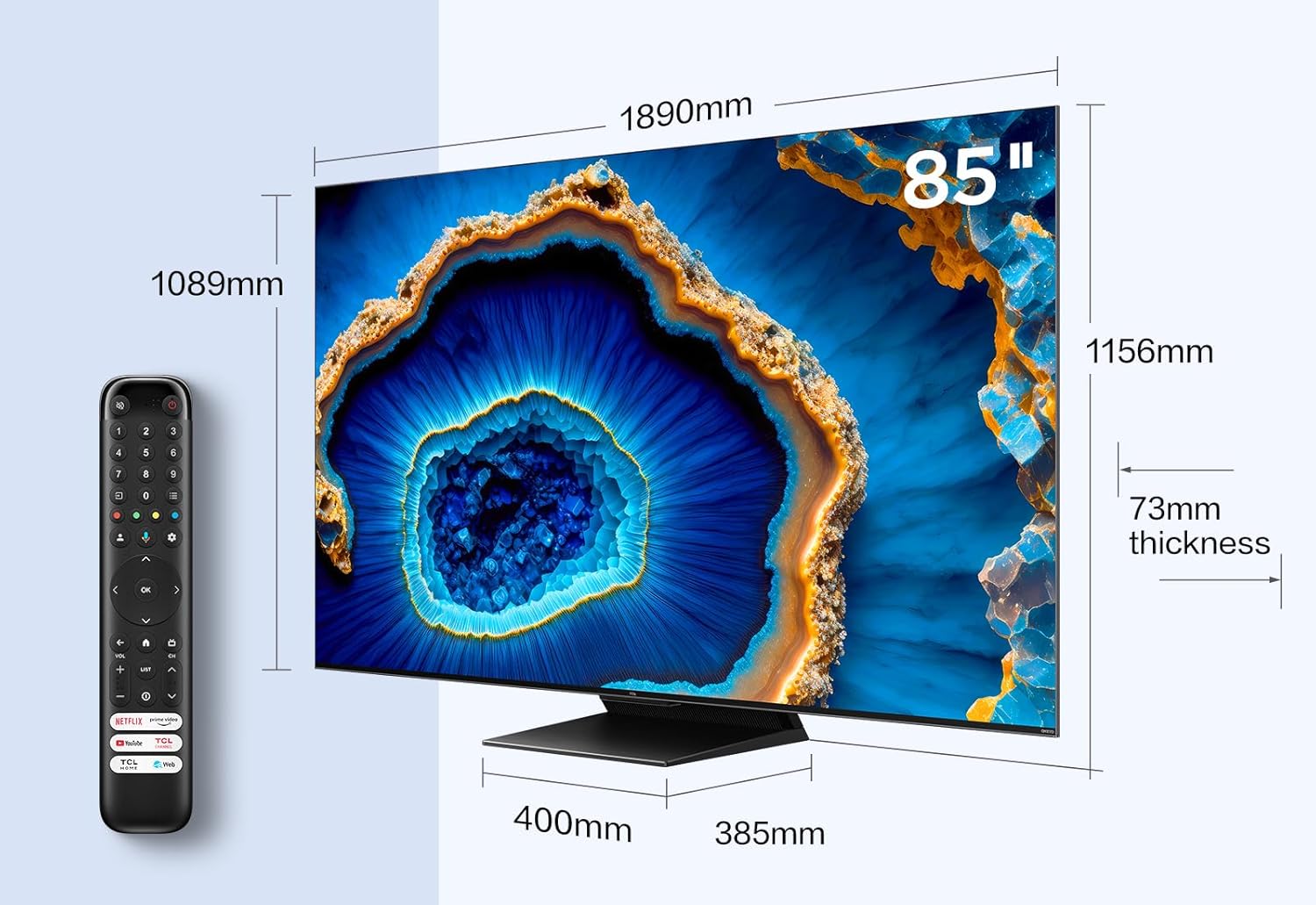

Figure 8.1: Dimensional drawing of the TCL 85C805K TV, including measurements and a remote control for scale.
9. Warranty and Support
This product comes with a manufacturer's warranty. Please refer to the warranty card included in the packaging for specific terms and conditions, including the warranty period and coverage details.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact TCL customer service. Contact information can typically be found on the TCL official website or in the product's packaging materials.
