Introduction
Thank you for choosing the Furmax Fireplace Corner TV Stand. This versatile furniture piece combines a modern TV console with an 18-inch electric fireplace, offering both entertainment and warmth to your living space. Designed for corner placement, it optimizes room space while providing ample storage. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your product.
Image: The Furmax Fireplace Corner TV Stand, showcasing its design and functionality in a typical living room setting.
Safety Information
Please read all instructions carefully before assembly and use. Keep this manual for future reference.
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
- Assembly requires two people. Follow the instructions precisely to avoid injury or damage to the product.
- Do not overload the TV stand. The top board has a maximum load capacity of 220 lbs.
- For the electric fireplace, plug the power cord into a 110-120 Volt 15 Amp outlet.
- To prevent overheating, ensure proper ventilation around the fireplace. The heater fan will blow cool air for 30 seconds after turning off.
- Keep flammable materials away from the electric fireplace.
- Do not allow children to play on or around the TV stand or fireplace.
- Regularly inspect the product for any signs of wear or damage.
Package Contents
Your Furmax Fireplace Corner TV Stand will be delivered in two separate packages, which may arrive on different days. Please verify that all components are present before beginning assembly.
- Box 1: TV Stand Components (MDF wood panels, hardware, glass doors, handles)
- Box 2: 18-Inch Electric Fireplace Insert
- Assembly Instructions
- Remote Control for Electric Fireplace

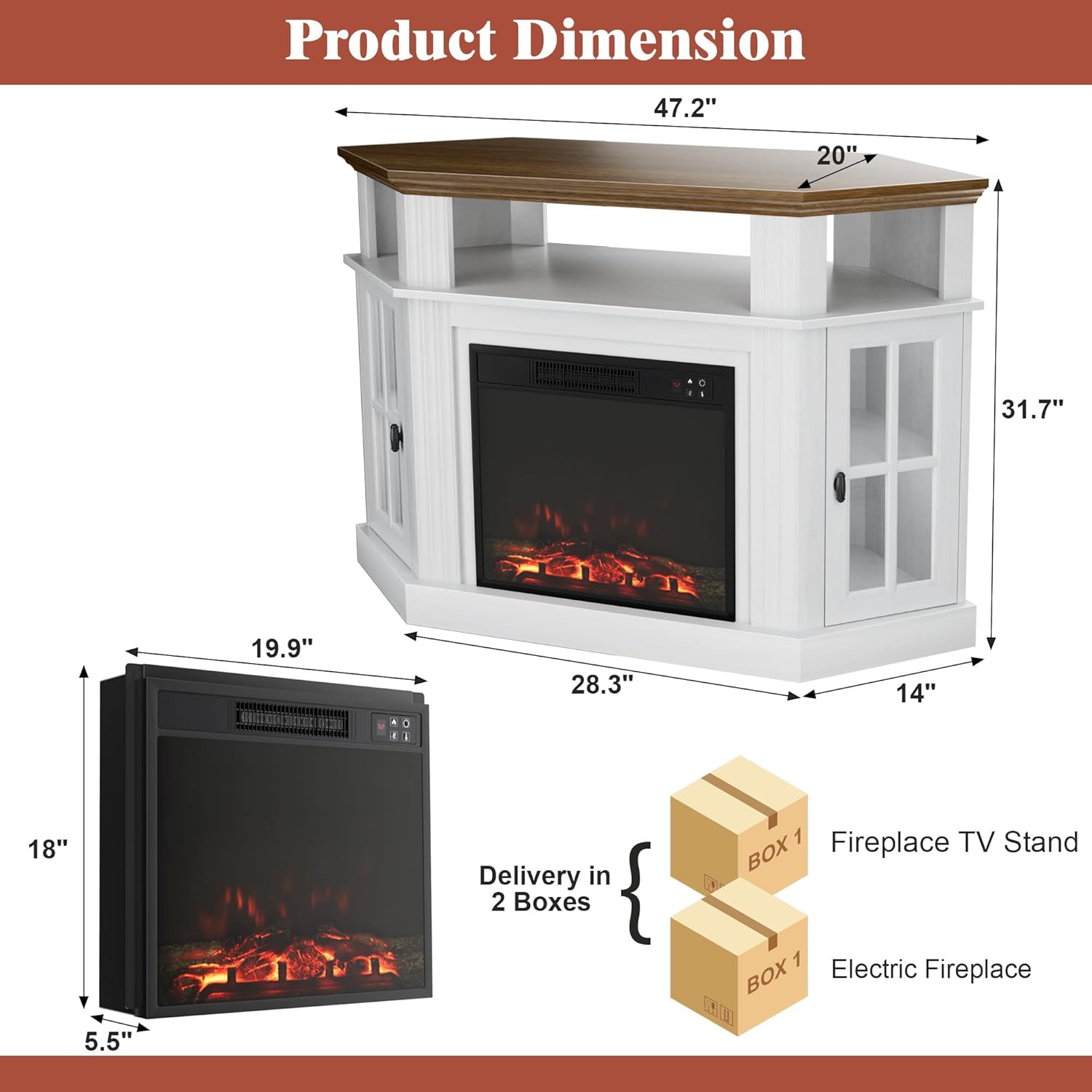

Image: Visual representation of the product dimensions and the two-box delivery method.
Assembly Instructions
Assembly of this media furniture requires approximately 45 minutes with two people. Please follow the detailed, step-by-step instructions and use the clearly labeled accessories provided in your package.
- Unpack and Identify Parts: Carefully unpack all components from both boxes. Lay out all parts and hardware on a clean, soft surface to prevent scratches. Refer to the parts list in the included assembly instructions to ensure everything is present.
- Assemble the TV Stand Frame: Follow the numerical steps in the assembly manual to connect the MDF wood panels using the provided screws, wooden pegs, and metal brackets. Ensure all connections are secure.
- Install Storage Cabinets and Shelves: Attach the glass doors to the designated cabinet areas. Insert the adjustable shelves into the open compartments as desired.
- Insert Electric Fireplace: The 18-inch electric fireplace insert is designed to fit directly into the central opening of the TV stand. Simply slide it into place. No complex assembly is required for the fireplace unit itself. If you choose not to use the fireplace, a shelf can be inserted in its place (check included parts for this option).
- Final Placement: Once assembled, carefully move the TV stand to its desired corner location.
Note: The widened base provides strong bearing capacity and stability. The two storage cabinets with glass doors help protect items from dust.

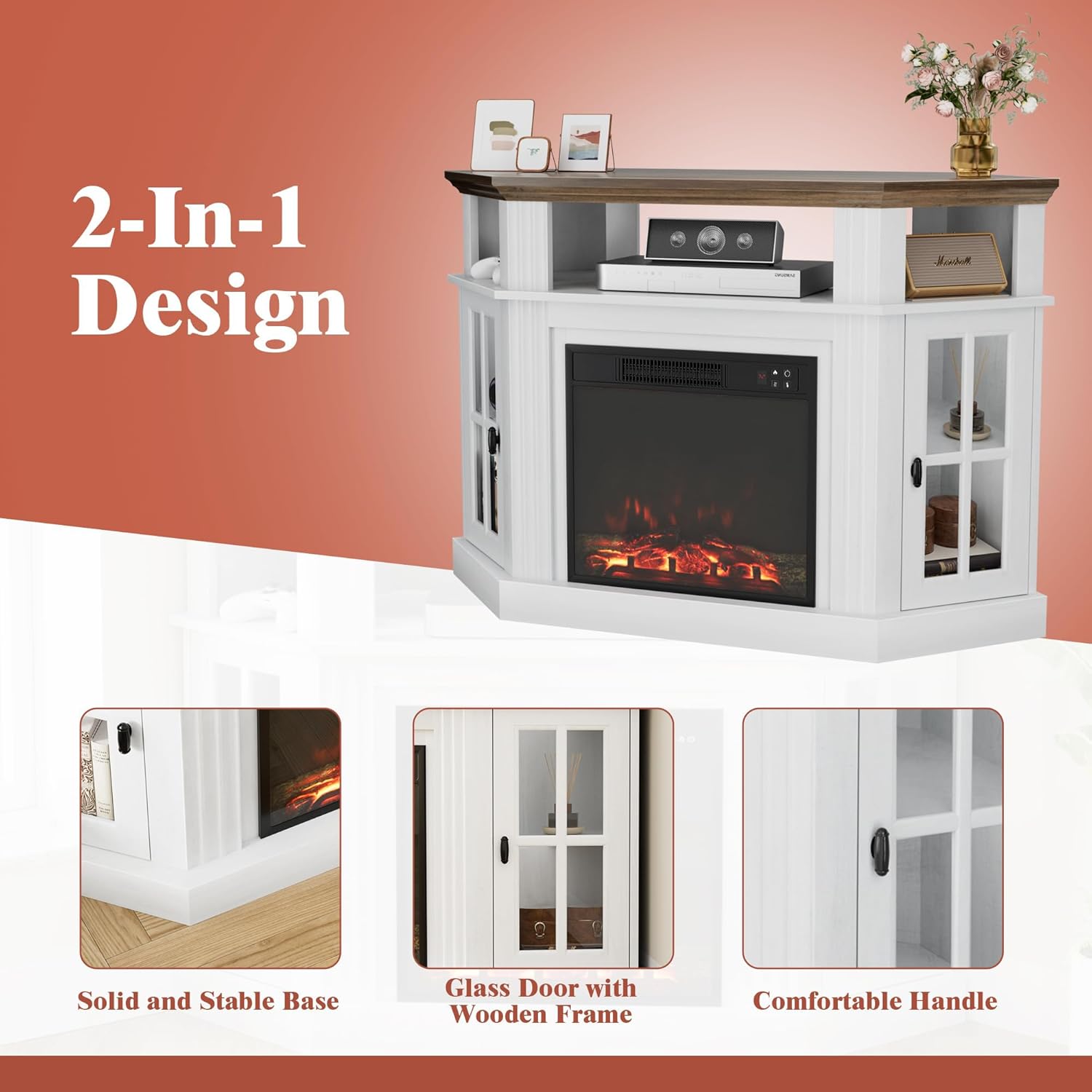

Image: Details of the TV stand's construction, including the stable base, glass doors, and handles.
Operating Instructions (Electric Fireplace)
The 18-inch electric fireplace provides warmth and ambiance. It can be operated via the control panel on the unit or the included remote control.
Power Connection:
- Ensure the fireplace is securely inserted into the TV stand.
- Plug the fireplace power cord into a standard 110-120 Volt, 15 Amp grounded electrical outlet.
Controls:
The fireplace features a control panel on the unit and a remote control for convenient operation. Key functions include:
- Switch Button (Power): Turns the fireplace on or off.
- Heater Button: Activates or deactivates the heating function. The heater provides supplemental warmth.
- Timer Button: Sets a timer for automatic shut-off. Refer to the fireplace's specific manual for timer intervals.
- Dimmer Control: Adjusts the brightness of the flame effect. This allows you to enjoy the visual ambiance without heat if desired.
Important Note: To prevent overheating, the heater fan will continue to blow cool air for approximately 30 seconds after the heating function is turned off. This is normal operation and ensures the unit cools down safely.
Image: Controls and features of the 18-inch electric fireplace insert and its remote control.
Maintenance and Care
Proper care will extend the life and appearance of your Furmax TV stand and electric fireplace.
- Cleaning the TV Stand: Use a lightly dampened cloth to clean the surface of the particleboard. Immediately dry the furniture after cleaning to prevent moisture damage. Avoid harsh chemicals or abrasive cleaners.
- Cleaning the Fireplace: Ensure the fireplace is unplugged and cool before cleaning. Wipe the exterior surfaces with a soft, damp cloth. Do not spray water directly onto the unit.
- Glass Care: For the glass doors, use a standard glass cleaner and a soft, lint-free cloth.
- Regular Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
Troubleshooting
If you encounter issues with your Furmax Fireplace Corner TV Stand, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace not turning on. | Not plugged in, power outlet issue, power switch off. | Ensure power cord is securely plugged into a working 110-120V 15A outlet. Check the main power switch on the fireplace unit. |
| No heat from fireplace. | Heater function not activated, thermostat setting too low. | Press the Heater Button on the control panel or remote. Adjust the temperature setting if applicable (some models have temperature control). |
| Flame effect not working. | Flame effect function off, dimmer set too low. | Ensure the flame effect is turned on. Adjust the Dimmer Control to increase brightness. |
| Assembly difficulties. | Missing parts, unclear instructions. | Double-check all parts against the list. Review the assembly instructions carefully. Contact Furmax customer support if parts are missing or damaged. |
If the problem persists after attempting these solutions, please contact Furmax customer support for further assistance.
Specifications
- Brand: Furmax
- Model: CTS0214WM
- Color: Antique White
- Overall Product Dimensions: 47.2 inches (W) x 20 inches (D) x 31.7 inches (H)
- Electric Fireplace Dimensions: 19.9 inches (W) x 5.5 inches (D) x 18 inches (H)
- TV Compatibility: Fits TVs up to 55 inches
- Top Board Load Capacity: Max 220 lbs
- Material: Solid MDF Wood Frame
- Item Weight: 85 Pounds
- Power Requirement (Fireplace): 110-120 Volt, 15 Amp outlet
- Special Features: Dimmer, Timer, Corner Design, Open Shelf, Storage Cabinets with Glass Doors
Image: Illustration demonstrating the TV size compatibility of the stand.
Warranty and Support
For warranty information or any product-related inquiries, please contact Furmax customer support directly. Keep your purchase receipt as proof of purchase.
Manufacturer: Furmax
For assistance, visit the official Furmax store or contact their customer service department. Contact details can typically be found on the product packaging or the manufacturer's website.
