Introduction
Thank you for choosing the VASAGLE Electric Height-Adjustable Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new desk. Please read it thoroughly before use and keep it for future reference.
Image: The VASAGLE Electric Height-Adjustable Desk (LSD184W01) in a home office environment, showcasing its clean design and functionality.
Safety Information
To ensure safe operation and prevent damage, please observe the following safety guidelines:
- Keep all electrical components away from liquids.
- Ensure the desk is placed on a stable, level surface.
- Do not overload the desk. The maximum recommended weight capacity is 80 kg.
- Keep children and pets away from the desk during height adjustment.
- Do not place hands or other objects near moving parts during operation.
- If any unusual noise or movement occurs, stop operation immediately and consult the troubleshooting section or contact support.
Package Contents
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Desk tabletop (Engineered Wood)
- Desk frame and legs (Alloy Steel)
- Monitor stand
- Power strip with 2 AC outlets and 2 USB-A ports
- Control panel with memory function
- Side hook
- 2 Fabric drawers
- Adjustable LED lighting strip
- Assembly hardware (screws, bolts, etc.)
- Screwdriver (included)
- Assembly instructions
Setup and Assembly
Assembly is required for this desk. Please follow the included assembly instructions carefully. A screwdriver is provided for your convenience.
Key Assembly Steps:
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Assemble the desk frame and legs according to the diagrams in the instruction manual. Ensure all bolts are securely tightened.
- Attach the tabletop to the assembled frame.
- Install the monitor stand, power strip, control panel, and side hook in their designated positions.
- Insert the fabric drawers into their compartments.
- Connect the power cable to a suitable electrical outlet.
Image: Detailed dimensions of the desk, including tabletop size (140 cm x 60 cm), height range (72-120 cm), and power cord length (180 cm).
Operating Instructions
Height Adjustment:
The desk features stepless height adjustment between 72 cm and 120 cm. Use the control panel located on the underside of the desk to adjust the height.
- Press the Up arrow button to raise the desk.
- Press the Down arrow button to lower the desk.
- The current height will be displayed on the control panel's LED screen.
Image: A woman demonstrating the height adjustment feature, transitioning from a sitting to a standing position. The desk operates smoothly with low noise (< 50 dB).
Memory Function:
You can save up to 3 preferred height settings for quick adjustments.
- Adjust the desk to your desired height.
- Press the S button (Save).
- Press one of the numbered buttons (1, 2, or 3) to save the current height to that preset.
- To recall a saved height, simply press the corresponding numbered button.
Image: The multi-function control panel featuring USB connection, LED display, memory function buttons (S, 1, 2, 3), and height adjustment arrows.
Power Strip and USB Ports:
The integrated power strip provides convenient access to power for your devices.
- It includes 2 AC power outlets (230-250V/16A) and 2 USB-A charging ports (5V/2A).
- Plug in your computer, monitor, phone, or other devices directly into the desk.
- The power strip can be flexibly mounted on either side of the desk.
Image: A close-up of the integrated power strip, showing the two AC outlets and two USB ports, designed for convenient device charging and power access.
Monitor Stand and Storage:
The desk is designed with a central monitor stand and additional storage features.
- The central monitor stand is height-adjustable, allowing you to customize your viewing angle.
- It can accommodate monitor mounts for a clean setup.
- Two fabric drawers are provided for organizing small items and office supplies.
- A side hook is included for hanging headphones, bags, or other accessories.
Image: The desk's storage space, highlighting the drawers (A), open compartments (B), elevated shelf (C), ample tabletop (D), and practical hooks (E) for organized workspace.
Image: Two options for the central monitor stand: Option 1 shows monitors placed on the upper part with office supplies below, while Option 2 demonstrates how to attach monitor mounts.
Image: The two functional hooks located on the side of the desk, providing convenient space for hanging headphones, bags, or other items.
Adjustable LED Lighting:
The desk includes an optional installable LED light strip to enhance your workspace ambiance.
- The LED strip offers 7 adjustable colors.
- Follow the separate instructions for installing and operating the LED lighting.

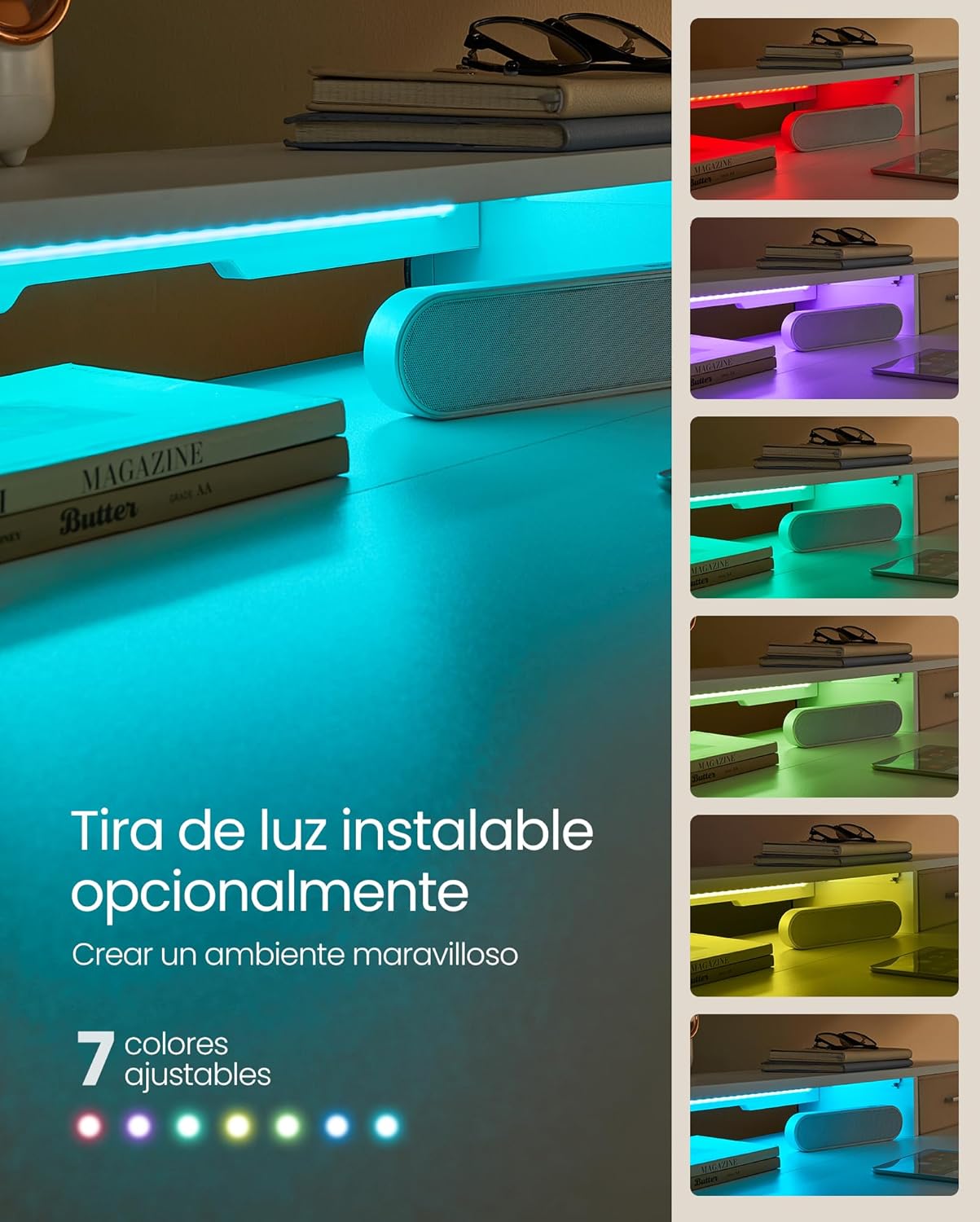

Image: The desk featuring the optional LED light strip, demonstrating its ability to create a pleasant atmosphere with 7 adjustable colors.
Anti-Collision Mechanism:
For safety, the height adjustment mechanism will stop and retract slightly if it encounters an obstacle during movement, protecting the desk and surrounding objects from damage.
Video: A short preview demonstrating the key features of the VASAGLE Electric Height-Adjustable Desk, including height adjustment, integrated power, monitor stand, and storage solutions.
Maintenance
- Cleaning: Wipe the desk surfaces with a dry cloth. Avoid abrasive cleaners or harsh chemicals.
- Electrical Components: Regularly check the power cord and connections for any signs of damage. Do not attempt to repair electrical components yourself.
- Moving Parts: The motor and lifting mechanism are designed for long-term use and generally do not require lubrication. Keep the area around the legs clear of obstructions.
- General Care: Ensure the desk is not exposed to extreme temperatures or humidity.
Troubleshooting
If you encounter any issues with your desk, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk does not move | Power cable disconnected; Motor error; Overload | Check power connection; Unplug and replug after 10 seconds; Reduce weight on desk. |
| Uneven height adjustment | Obstruction; Sensor issue | Clear any obstructions; Reset the desk (refer to full manual for specific reset procedure). |
| Noise during operation | Normal operation; Loose components | A low noise level (< 50 dB) is normal. Check for any loose screws or connections. |
| Memory function not working | Incorrect saving procedure | Ensure you press 'S' then the number button to save. |
If the problem persists, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | VASAGLE |
| Model Number | LSD184W01 |
| Dimensions (L x W x H) | 140 x 60 x (72-120) cm |
| Height Adjustment Range | 72 cm - 120 cm |
| Material | Particleboard, Steel, Oxford Fabric |
| Color | Cloud White |
| Max. Weight Capacity | 80 kg |
| Noise Level | < 50 dB |
| Power Strip | 2 AC outlets (230-250V/16A), 2 USB-A ports (5V/2A) |
| Special Features | Height adjustable, Monitor stand, Memory function, Anti-collision, LED lighting, 2 Drawers, Side hook |
| Assembly Required | Yes (Tools included) |
Warranty and Support
This product comes with a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, missing parts, or warranty claims, please contact VASAGLE customer service through the retailer where you purchased the product or visit the official VASAGLE website.
Manufacturer: SONGMICS
UPC: 194343149714
