Supstable S3 Elite Mini Cordless Chainsaw User Manual

1. Introduction

Thank you for choosing the Supstable S3 Elite Mini Cordless Chainsaw. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your tool. Please read it thoroughly before use and keep it for future reference.

1.1 Safety Warnings

• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection, when operating the chainsaw.
• Ensure the work area is clear of bystanders, especially children and pets.
• Inspect the chainsaw for damage or loose parts before each use. Do not operate if damaged.
• Keep hands and body parts away from the chain when the tool is running.
• Do not operate the chainsaw in wet conditions or near flammable liquids or gases.
• Always remove the battery before performing any maintenance, cleaning, or when storing the tool.

2. Product Overview and Components

The Supstable S3 Elite Mini Cordless Chainsaw is designed for efficient pruning and cutting tasks. Familiarize yourself with its components:

Figure 1: Supstable S3 Elite Mini Cordless Chainsaw and included accessories, including two batteries, charger, 6-inch and 8-inch guide bars, chains, safety goggles, and gloves.

2.1 Included Components:

• Mini Chainsaw Unit
• 2 x 4.0Ah Lithium-Ion Batteries
• Battery Charger
• Guide Bar Cover
• Safety Goggles
• Pair of Gloves
• Replacement Chain (1)
• Carrying Case
• Instruction Manual (this document)

3. Setup

3.1 Battery Charging

1. Connect the charger to a power outlet.
2. Insert the battery into the charger. The indicator light on the battery will show charging status.
3. Charge time is approximately 2-3 hours for a full charge.
4. Remove the battery once fully charged.

3.2 Guide Bar and Chain Installation/Replacement

The chainsaw supports both 6-inch and 8-inch guide bars. The tool-free tensioning system simplifies this process.

1. Ensure the battery is removed from the chainsaw.
2. Loosen the knob on the side of the chainsaw that secures the guide bar cover.
3. Remove the guide bar cover.
4. Carefully place the chain around the sprocket and then along the guide bar groove. Ensure the cutting edges of the chain are facing the correct direction (refer to markings on the guide bar).
5. Position the guide bar onto the chainsaw, ensuring the chain is properly seated.
6. Replace the guide bar cover and tighten the knob. The spring-loaded mechanism will automatically tension the chain.
7. Verify chain tension: The chain should be snug but still allow for slight movement when pulled away from the guide bar. Adjust the knob if necessary.

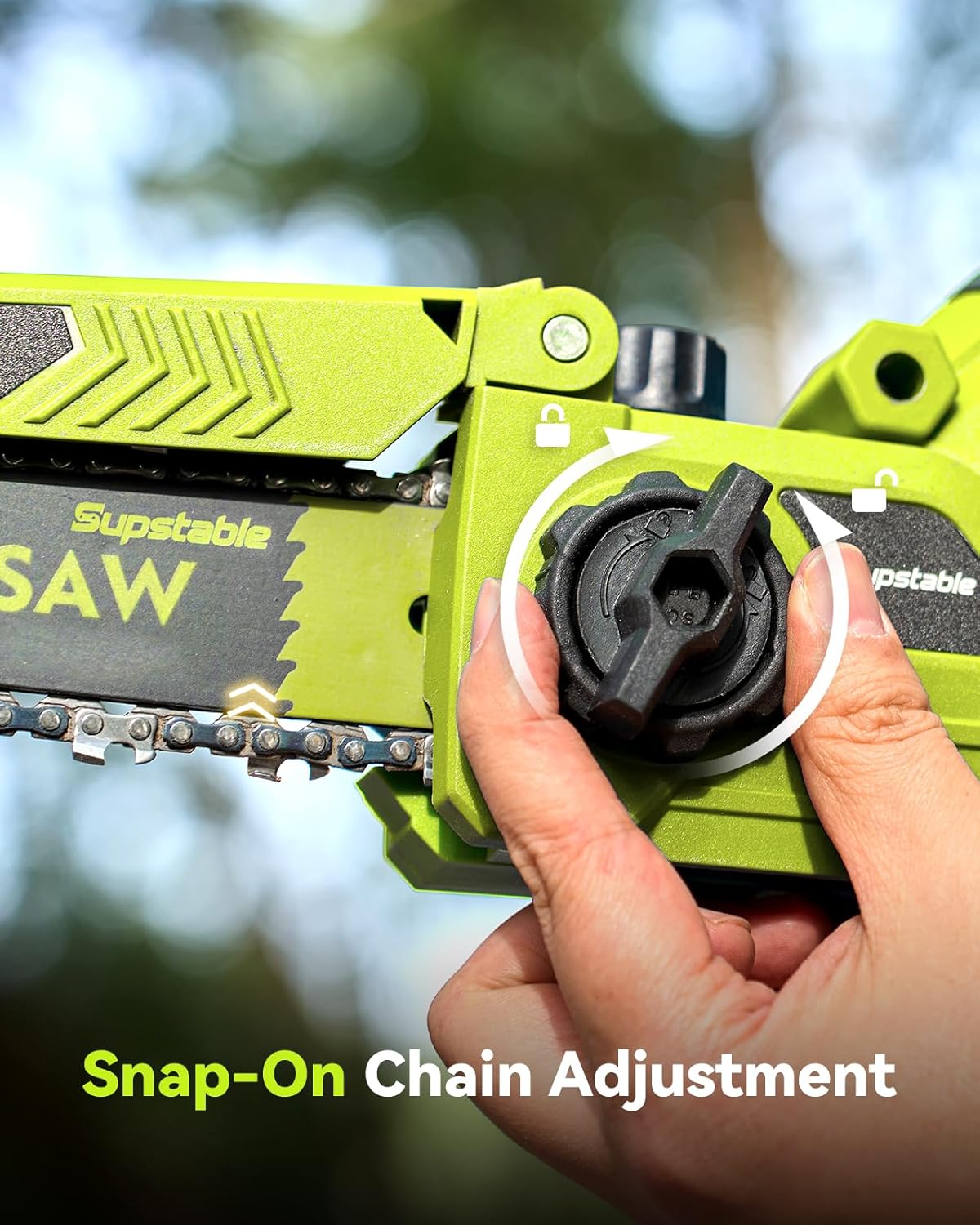

Figure 2: Adjusting chain tension with the tool-free knob.

3.3 Automatic Chain Lubrication

This chainsaw features an automatic lubrication system to ensure optimal chain performance and longevity.

1. Locate the oil reservoir cap on the top of the chainsaw body.
2. Unscrew the cap and fill the reservoir with general motor oil. The reservoir is semi-transparent for easy level monitoring.
3. Replace the cap securely.
4. The system will automatically lubricate the chain during operation. Regularly check the oil level.

Figure 3: Filling the automatic chain lubrication reservoir.

4. Operating Instructions

4.1 Starting the Chainsaw

1. Ensure the battery is fully charged and securely inserted into the chainsaw.
2. Hold the chainsaw firmly with both hands (if applicable, or one hand for single-hand models, ensuring stable grip).
3. Press the safety button (if present) and then squeeze the trigger to start the chain. Release the safety button once the chain is running.

4.2 Cutting Techniques

• Always maintain a stable stance and good balance.
• Allow the chain to reach full speed before contacting the material to be cut.
• Apply light pressure. Let the chainsaw do the work. Forcing it can lead to kickback or damage.
• Be aware of kickback: Avoid cutting with the tip of the guide bar.
• When cutting branches, support the branch to prevent it from pinching the chain.

Figure 4: Chainsaw in operation, cutting wood.

Figure 5: Using the chainsaw for tree pruning.

4.3 Battery Level Indicator

The battery features a digital indicator to monitor the charge level in real-time. Recharge the battery when the level is low to avoid interruptions during work.

Figure 6: Battery with visual charge indicator.

4.4 Video Demonstration

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your chainsaw.

5.1 Cleaning

• Always remove the battery before cleaning.
• Use a brush or compressed air to remove sawdust and debris from the guide bar, chain, and motor housing.
• Wipe down the exterior with a damp cloth. Do not use harsh chemicals.

5.2 Chain Sharpening and Replacement

• A dull chain will reduce cutting efficiency and increase the risk of kickback. Sharpen the chain regularly or replace it when necessary.
• Refer to the chain manufacturer's instructions for proper sharpening techniques.
• Replacement chains are available from Supstable.

5.3 Battery Care

• Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.
• Do not store fully discharged batteries for extended periods. Charge them periodically.

6. Troubleshooting

7. Specifications

8. Warranty and Support

Supstable is committed to providing high-quality products. This product comes with a standard manufacturer's warranty. For warranty claims, technical support, or to purchase replacement parts and accessories (such as batteries and chains), please contact Supstable customer service or visit our official website. We offer a wide range of spare parts to ensure the long-term usability of your tool.

For further assistance, please refer to the contact information provided with your purchase or visit the Supstable brand store on Amazon: Supstable Store.
