Imperial DABMAN i460 Multifunction Radio User Manual

1. Introduction and Overview

The Imperial DABMAN i460 is a versatile multifunction radio designed to provide a wide range of audio entertainment and information. It supports reception via FM, digital DAB+, and Internet radio, offering access to countless stations worldwide. Additionally, the device supports music playback through various streaming providers and features Bluetooth 5.1 connectivity. Its flexible design allows for diverse installation options, including freestanding, under-cabinet, or wall-mounted use.

Figure 1.1: Front view of the Imperial DABMAN i460 multifunction radio, showing the display and control buttons.

Figure 1.2: The Imperial DABMAN i460 highlighting its key features: DAB+, FM, Internet Radio, USB Record, Wi-Fi, Hotel Mode, EWF, and Bluetooth 5.1 (Send & Receive).

2. Safety Information

Please read all safety instructions carefully before using the device. Keep this manual for future reference.

• Do not expose the device to rain or moisture to prevent fire or electric shock.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Only use attachments/accessories specified by the manufacturer.
• Unplug the device during lightning storms or when unused for long periods.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. Package Contents

Carefully unpack the box and ensure all items are present and in good condition. The package should contain the following:

• Imperial DABMAN i460 Multifunction Radio
• Power Adapter
• Telescopic Antenna
• Mounting Kit (for screwing or clamping)
• Remote Control
• User Manual (this document)

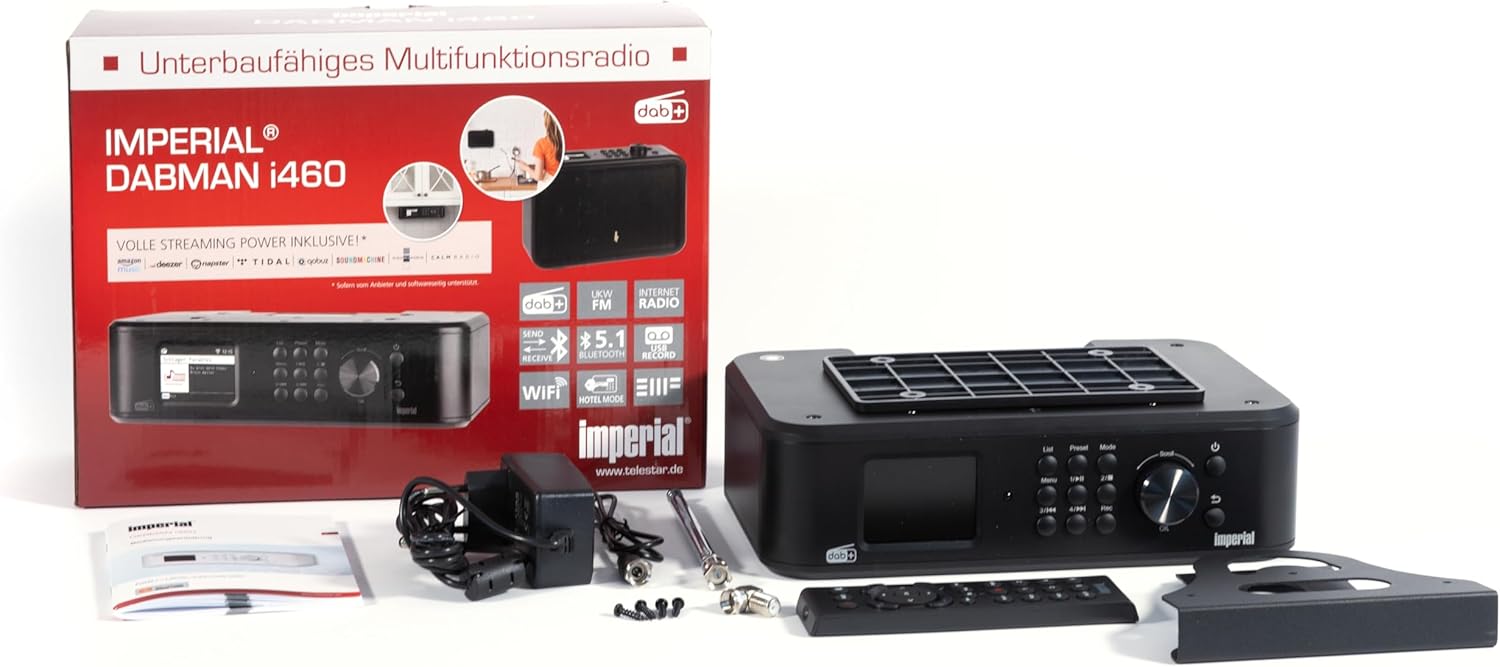

Figure 3.1: Contents of the Imperial DABMAN i460 package, including the radio, power adapter, antenna, remote control, and mounting accessories.

4. Setup

4.1 Physical Placement and Connections

Choose a stable location for your radio. Ensure adequate ventilation around the unit. Connect the telescopic antenna to the FM/DAB+ antenna input on the back of the device. Connect the power adapter to the DC IN port and then to a power outlet.

Figure 4.1: Rear view of the Imperial DABMAN i460, showing the USB, Line Out, Aux In, DC In, and On/Off switch.

Figure 4.2: Close-up of the Imperial DABMAN i460's connection ports (USB, Line Out, Aux In, DC In, On/Off switch) and the included telescopic antenna, USB stick, and audio cables.

4.2 Initial Power-On and Language Selection

1. After connecting the power, switch the device ON using the power switch on the back.
2. The display will light up, and you will be prompted to select your preferred language. Use the navigation buttons or rotary knob to select and confirm.

4.3 Network Connection (Wi-Fi)

To access Internet radio and streaming services, connect your DABMAN i460 to your Wi-Fi network.

1. Navigate to the 'Settings' menu on the radio's display.
2. Select 'Network' or 'Wi-Fi Setup'.
3. The radio will scan for available Wi-Fi networks. Select your network from the list.
4. Enter your Wi-Fi password using the on-screen keyboard and navigation controls. Confirm to connect.

4.4 Mounting Options

The DABMAN i460 offers flexible mounting solutions:

• Freestanding: Use the integrated feet for stable placement on any flat surface.
• Under-Cabinet Mounting: Use the included screw-on mounting plate to attach the radio securely under kitchen cabinets or shelves.
• Clamping Mounting: The included clamping bracket allows for attachment to shelves without drilling.
• Wall Mounting: The screw-on mounting kit can also be used for wall installation.

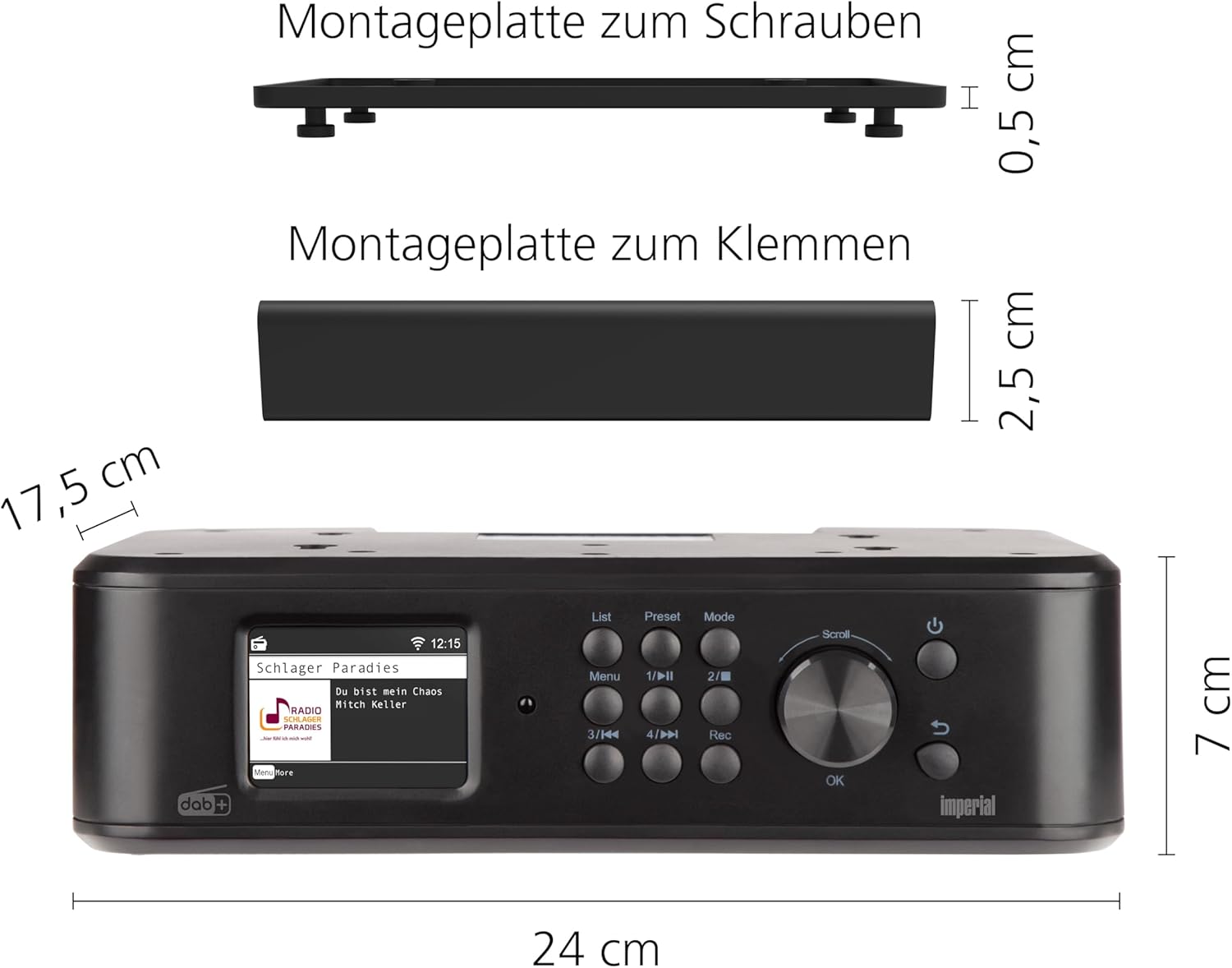

Figure 4.3: Dimensions of the Imperial DABMAN i460 and illustrations of the screw-on and clamping mounting plates.

Figure 4.4: The Imperial DABMAN i460 installed under a kitchen cabinet, demonstrating its space-saving design.

Figure 4.5: The Imperial DABMAN i460 placed on a kitchen counter, showcasing its versatility as a freestanding unit.

5. Operating Instructions

5.1 Basic Controls

The radio features a clear color display and intuitive controls:

• Rotary Knob: Used for navigation through menus, adjusting volume, and selecting options. Press to confirm.
• Menu Button: Accesses the main menu.
• List Button: Displays lists (e.g., station lists, track lists).
• Preset Button: Accesses saved favorite stations.
• Mode Button: Switches between different operating modes (DAB+, FM, Internet Radio, Bluetooth, USB).
• Playback Control Buttons: Play/Pause, Skip Forward/Backward, Record.

5.2 Radio Modes (DAB+, FM, Internet Radio)

Press the 'Mode' button to cycle through the available radio modes:

• DAB+ Radio: For digital radio reception. The radio will automatically scan for available DAB+ stations upon first use or when entering this mode.
• FM Radio: For analog FM radio reception. Use the tuning function to find stations.
• Internet Radio: Requires a Wi-Fi connection. Browse stations by genre, location, or search for specific stations.

5.3 Bluetooth Functionality (Send & Receive)

The DABMAN i460 supports both receiving audio from a Bluetooth device (e.g., smartphone) and sending audio to a Bluetooth speaker or headphones.

• Receiving Audio: Select Bluetooth mode on the radio. Enable Bluetooth on your smartphone/tablet and select 'DABMAN i460' from the list of available devices to pair.
• Sending Audio: In any radio or media playback mode, access the Bluetooth settings to search for and connect to a Bluetooth speaker or headphones.

Figure 5.1: Illustrates the Bluetooth connectivity of the Imperial DABMAN i460, allowing streaming from a smartphone to the radio.

5.4 USB Playback and Recording

Insert a USB storage device into the USB port on the back of the radio.

• Playback: Select USB mode. The radio will display the contents of the USB drive, allowing you to browse and play audio files.
• Recording: While listening to a radio station (DAB+, FM, or Internet Radio), press the 'Rec' button to start recording the current broadcast to the connected USB device. Press 'Rec' again to stop.

Figure 5.2: A USB stick inserted into the USB port on the back of the Imperial DABMAN i460, enabling media playback and recording.

5.5 Streaming Services and UPnP

The DABMAN i460 comes with pre-installed applications for various streaming services (e.g., Amazon Music, Deezer, Napster, Highresaudio, TIDAL). You can also stream music from your home network via UPnP (Universal Plug and Play).

• Access streaming services through the main menu or 'Mode' button.
• For UPnP, ensure your media server is active on the same network.

5.6 Hotel Mode

The Hotel Mode feature allows for restricted functionality, ideal for public or guest environments. This mode can limit access to certain settings or functions.

• To activate/deactivate Hotel Mode, navigate to 'Settings' and locate the 'Hotel Mode' option.
• Follow the on-screen prompts to configure the desired restrictions.

Figure 5.3: The Imperial DABMAN i460's display showing the 'Hotel Modus' (Hotel Mode) option within the settings menu.

5.7 Additional Features

• Alarm Clock: Set multiple alarms with customizable sounds and snooze functions.
• Sleep Timer: Set the radio to automatically turn off after a specified period.
• Equalizer: Adjust audio settings to your preference.
• Dimmer Function & Night Mode: Adjust display brightness for comfortable viewing in various lighting conditions.
• Favorite Memory: Save your preferred radio stations for quick access.
• App Control: Control the radio using the Soundmate application on your smartphone or tablet.

6. Maintenance

To ensure the longevity and optimal performance of your Imperial DABMAN i460, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to clean the exterior of the radio. For stubborn marks, slightly dampen the cloth with water. Do not use abrasive cleaners, waxes, or solvents.
• Ventilation: Ensure that the ventilation openings are not blocked by dust or debris. Periodically clean them with a soft brush or compressed air.
• Storage: If storing the device for an extended period, disconnect it from the power supply and store it in a cool, dry place.

7. Troubleshooting

If you encounter issues with your DABMAN i460, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

Imperial provides a warranty for this product in accordance with local regulations. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Imperial customer service. Contact information can typically be found on the manufacturer's website or on the product packaging.

Spare Parts Availability: 1 Year (as per product specifications).
