1. Safety Information
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other hazards that can cause injury or property damage. It is recommended that a qualified electrician perform the installation.
- WARNING: To avoid electric shock, disconnect power at the circuit breaker or fuse box before installation.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).
- Ensure the mounting surface is structurally sound and can support the fixture's weight.
- Do not exceed the recommended wattage for bulbs.
2. Package Contents
Verify that all components are present before proceeding with installation:
- 1 x Light Fixture Body (Silver 4-Light Bar)
- 4 x Clear Glass Shades
- 1 x Mounting Hardware Kit (includes screws, wire nuts, mounting plate)
- Note: E26 Base Bulbs are NOT included.
3. Specifications
| Feature | Detail |
|---|---|
| Brand | DINGLILIGHTING |
| Color | Silver |
| Material | Glass, Metal |
| Style | Modern |
| Light Fixture Form | Wall |
| Room Type | Bedroom, Bathroom, Hallway |
| Product Dimensions | 24.02"L x 10.63"W x 6.69"H |
| Indoor/Outdoor Usage | Indoor |
| Power Source | AC |
| Installation Type | User-Installation |
| Special Feature | Dimmable |
| Control Method | Touch (with compatible switch) |
| Light Source Type | General |
| Finish Type | Matte |
| Shade Material | Glass |
| Number of Light Sources | 4 |
| Voltage | 110 Volts |
| Light Color | White (dependent on bulb) |
| Included Components | Mounting Hardware |
| Lighting Method | LED (compatible) |
| Wattage | 60 watts (max per bulb) |
| Bulb Base | E26 |
| Mounting Type | Wall Mount |
| Shade Color | Clear |
| Assembly Required | Yes |
| Item Weight | 5.62 pounds |
4. Setup and Installation
This vanity light fixture is designed for user-friendly installation. All necessary mounting hardware is included. The fixture can be mounted with the lights facing either upward or downward to suit your preference.
- Prepare for Installation: Ensure power is disconnected at the circuit breaker. Remove the old fixture if applicable.
- Attach Mounting Plate: Secure the mounting plate to the junction box using the provided screws.
- Wire Connections: Connect the fixture's wires to the house wires (black to black, white to white, ground to ground) using wire nuts. Carefully tuck the wires into the junction box.
- Mount Fixture Body: Align the fixture body with the mounting plate and secure it with the provided screws.

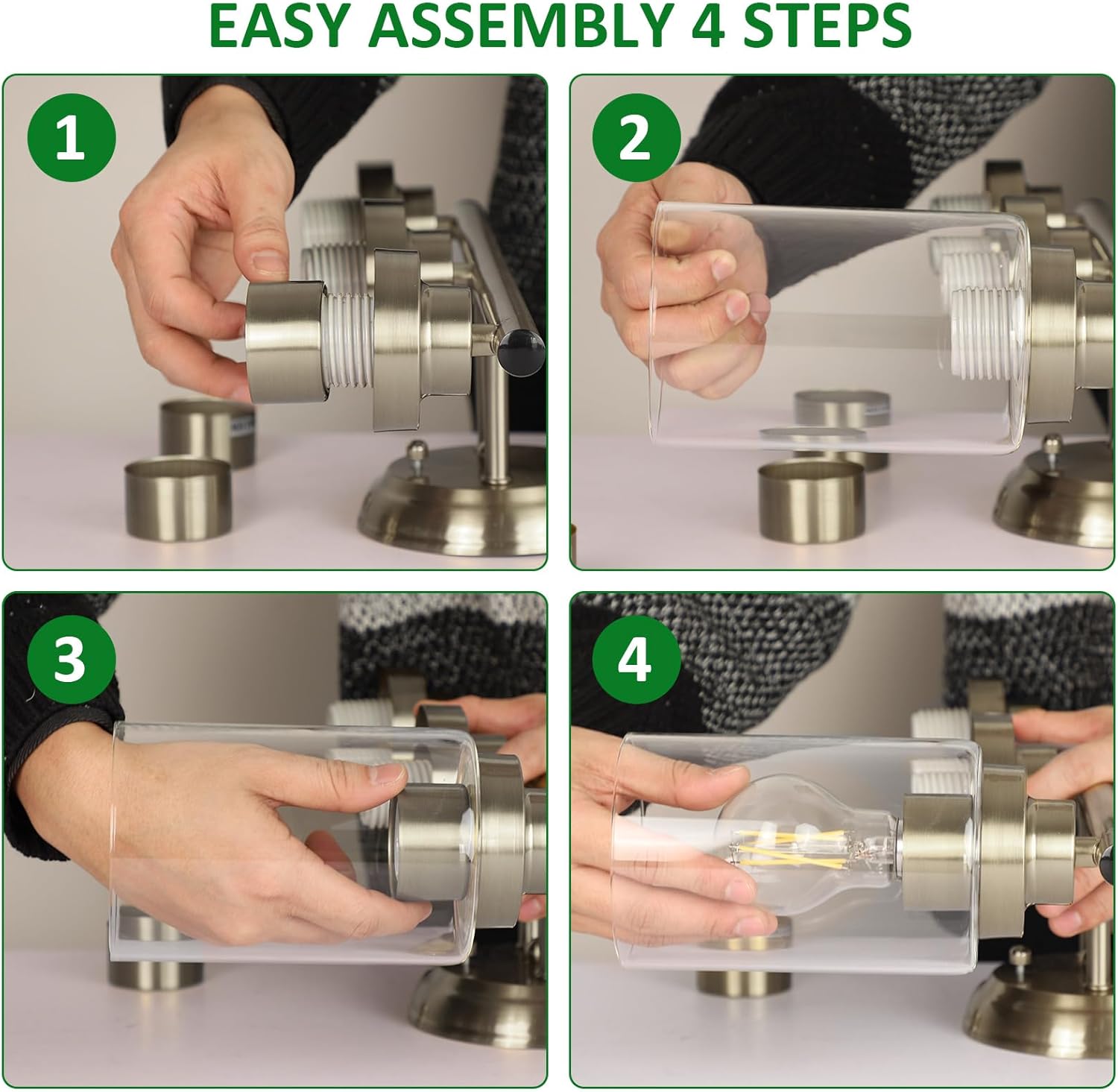

- Install Glass Shades: Carefully attach each clear glass shade to its respective socket.
- Insert Bulbs: Screw in the E26 base bulbs (not included) into each socket. Do not overtighten.
- Restore Power: Turn the power back on at the circuit breaker.
Video 4.1: Installation guide for a DLLT 3-Light Bathroom Light Fixture. While this video demonstrates a 3-light model, the installation steps are generally applicable to the 4-light version.
5. Operating Instructions
Once installed, operate the light fixture using your standard wall switch. This fixture is dimmable when used with compatible dimmer switches and E26 dimmable bulbs (not included).
6. Maintenance
To maintain the appearance and functionality of your light fixture, follow these guidelines:
- Cleaning: Disconnect power before cleaning. Wipe the metal parts with a soft, dry cloth. For the clear glass shades, use a mild glass cleaner and a soft cloth. Avoid abrasive cleaners or pads that could scratch the finish or glass.
- Bulb Replacement: Ensure power is off before replacing bulbs. Allow bulbs to cool completely before handling. Use only E26 base bulbs, not exceeding 60 watts per bulb.
- Inspection: Periodically check all connections and mounting hardware to ensure they remain secure.
7. Troubleshooting
If your light fixture is not functioning correctly, consult the following common issues and solutions:
- Light does not turn on:
- Check the circuit breaker to ensure power is supplied to the fixture.
- Verify that bulbs are securely screwed into the sockets and are not burnt out.
- Confirm all wire connections are secure.
- Lights flicker:
- Ensure bulbs are compatible with any dimmer switch installed.
- Check for loose wire connections.
- Glass shade is loose:
- Gently tighten the retaining ring or mechanism securing the glass shade. Do not overtighten.
8. Warranty and Support
This DLLT light fixture comes with a 12-month limited warranty and a 30-day refund policy for quality issues. For any problems or inquiries, please contact customer support.
