SANLIV SANLIV-28336GD Brushed Gold Waterfall Bathroom Faucet Instruction Manual

1. Introduction

Thank you for choosing the SANLIV Brushed Gold Waterfall Bathroom Faucet. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new faucet. Please read this manual thoroughly before installation and retain it for future reference.

This faucet features a brushed gold finish, a waterfall spout design, and dual handles for precise control of water flow and temperature. It is designed for 3-hole widespread sink installations.

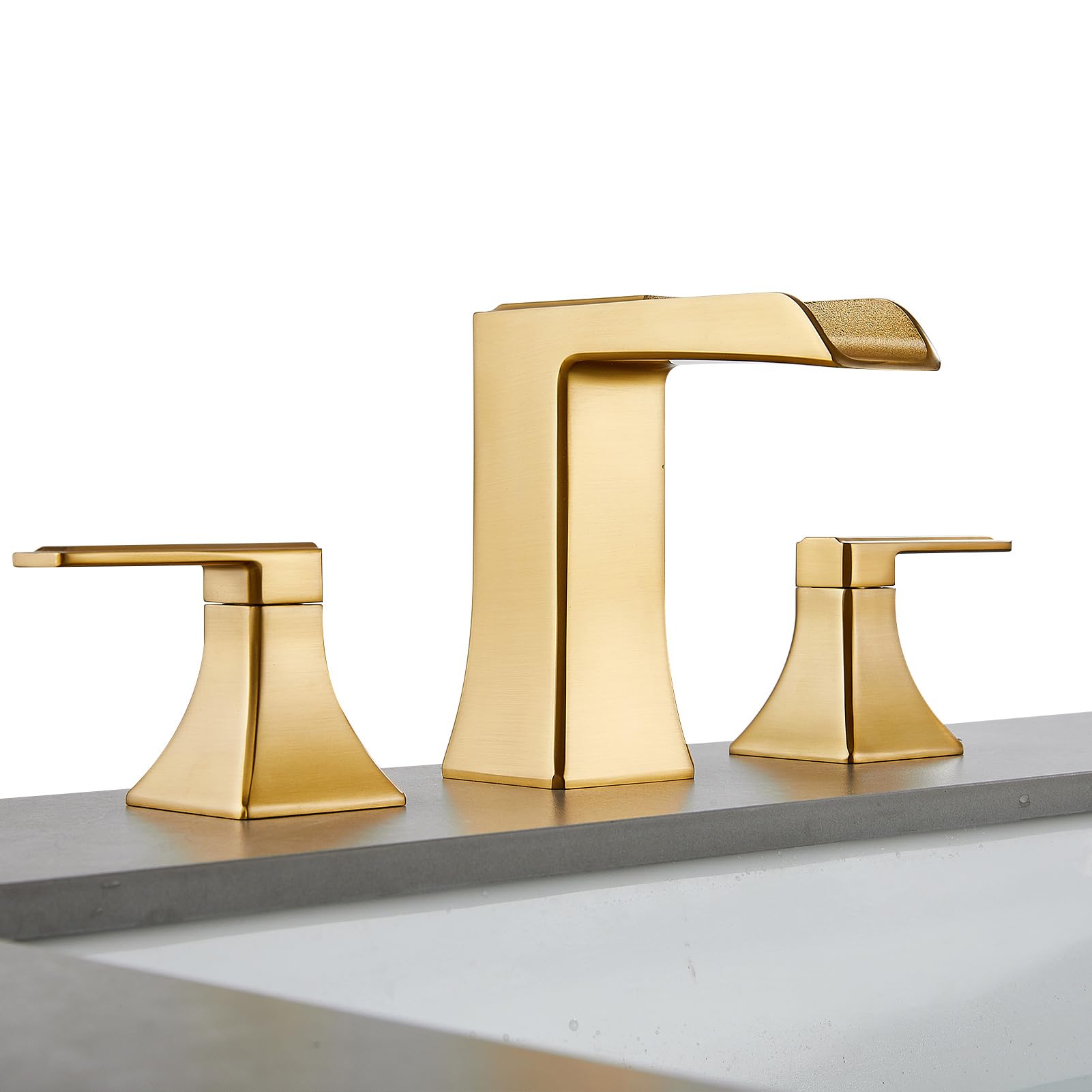

Image 1.1: The SANLIV Brushed Gold Waterfall Bathroom Faucet with water flowing into a sink.

2. Safety Information

Please observe the following safety precautions during installation and use:

• Always turn off the main water supply before beginning any installation or maintenance.
• Wear appropriate personal protective equipment, such as safety glasses and gloves.
• If you are unsure about any part of the installation process, consult a qualified plumber.
• Do not overtighten connections, as this can damage the faucet or plumbing.
• Ensure all connections are secure and leak-free before restoring water supply.

3. Package Contents

Verify that all components are present before beginning installation:

• Waterfall Spout
• Two Handles
• Water Supply Lines with Quick Connectors
• Pop-Up Drain Assembly
• Installation Hardware (including two wrenches)

Image 3.1: Included components such as the pop-up drain, braided hoses, and quick connectors.

4. Setup and Installation

This faucet is designed for 3-hole sinks with a widespread installation ranging from 4 to 16 inches. Follow these general steps for installation:

4.1 Tools Required (Not Included)

• Adjustable Wrench
• Phillips Head Screwdriver
• Plumber's Putty or Silicone Sealant
• Measuring Tape
• Basin Wrench (optional, for tight spaces)

4.2 Pre-Installation Checks

• Ensure your sink has 3 holes and is compatible with a widespread faucet (4-16 inch spread).
• Maximum deck thickness for installation is 1.8 inches.
• The required hole size for installation is 1.06-1.5 inches.
• Water supply connection is 3/8 inches.

Image 4.1: Detailed dimensions and compatibility information for the faucet installation.

4.3 Installation Steps

1. Turn off Water Supply: Locate and turn off the hot and cold water supply valves under the sink or at the main water line.
2. Remove Old Faucet (if applicable): Disconnect the old faucet's water supply lines and mounting hardware. Remove the old faucet.
3. Install Faucet Handles: Insert the hot and cold water handles into the outer holes of the sink deck. Secure them from underneath with the provided washers and nuts.
4. Install Faucet Spout: Place the main faucet spout into the center hole of the sink deck. Apply plumber's putty or silicone sealant around the base of the spout if necessary, to create a watertight seal. Secure it from underneath with the provided mounting hardware.
5. Connect Water Supply Lines: Attach the flexible water supply lines to the hot and cold inlets on the faucet handles and the main spout. Use the quick connectors for easy installation. Connect the other ends of the supply lines to your hot and cold water supply valves. Ensure connections are hand-tight, then use a wrench for a final quarter-turn.
6. Install Pop-Up Drain: Follow the instructions provided with the pop-up drain assembly to install it into the sink drain hole. Ensure all seals are properly seated to prevent leaks.
7. Test for Leaks: Slowly turn on the main water supply. Check all connections for leaks. If leaks are detected, tighten the connections as needed.

Image 4.2: The SANLIV widespread bathroom faucet with its three components installed on a sink.

Image 4.3: The quick connection system for water supply lines, designed for easy installation.

5. Operating Instructions

Your SANLIV faucet is designed for simple and intuitive operation:

• Water Flow: Turn the left handle counter-clockwise for hot water and the right handle counter-clockwise for cold water. Turn clockwise to reduce flow or shut off.
• Temperature Control: Adjust the hot and cold handles simultaneously to achieve your desired water temperature.
• Waterfall Spout: The unique waterfall spout provides a gentle, splash-free flow of water.

Image 5.1: Illustration of the dual-handle operation for hot and cold water control.

6. Maintenance

Proper care will ensure the longevity and appearance of your SANLIV faucet:

• Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed gold finish.
• Cartridge Valves: The faucet is equipped with superior cartridge valves designed for leak-free performance. If a drip occurs, the cartridge may need to be inspected or replaced.
• Pop-Up Drain: The included pop-up drain is designed to be anti-clogging. Periodically remove and clean the drain stopper to prevent buildup.
• Water Supply Lines: The braided stainless steel hoses are durable. Inspect them periodically for any signs of wear or leaks.

Image 6.1: Key features contributing to durability and performance: waterfall spout, solid brass construction, and super cartridge valve.

7. Troubleshooting

If you encounter issues with your faucet, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact SANLIV customer support.

8. Specifications

9. Warranty and Support

The SANLIV SANLIV-28336GD Bathroom Faucet comes with an extended warranty. For specific warranty details, claims, or technical support, please contact SANLIV customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, visit the official SANLIV website or contact their customer support team.
