1. Introduction
This manual provides essential instructions for the safe and effective use of your PureMate Luxury Comfort Single Electric Underblanket, Model PM150. Please read this manual thoroughly before first use and retain it for future reference. This electric underblanket is designed to provide warmth and comfort for a single bed.
Image 1.1: The PureMate Luxury Comfort Single Electric Underblanket, folded to show its soft texture and the attached controller.
2. Important Safety Instructions
To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:
- Read all instructions before using the underblanket.
- Do not use this underblanket with an infant, a child, an incapacitated person, or anyone insensitive to heat.
- Do not use if wet.
- Do not fold, crease, or bunch the underblanket during use. Ensure it lies flat on the mattress.
- Do not insert pins or other metallic objects into the underblanket.
- Always unplug the underblanket from the power outlet when not in use.
- Regularly inspect the underblanket and its power cord for any signs of wear or damage. If damaged, do not use and contact customer support.
- Keep the controller away from water or other liquids.
- This appliance is for domestic use only.
Image 2.1: The underblanket features over-heat protection for user safety and peace of mind.
3. Package Contents
Please check the package contents upon opening:
- 1 x PureMate Luxury Comfort Single Electric Underblanket (65 x 135 cm)
- 1 x Detachable Controller with Power Cord
4. Product Features
The PureMate Luxury Comfort Single Electric Underblanket offers the following features:
- Soft Microfleece Material: Provides a comfortable and warm surface.
- 3 Heat Settings: Adjustable heat levels (Low, Medium, High) for personalized comfort.
- Easy-to-Use Controller: Simple slide switch for heat adjustment.
- Detachable Cord: Allows for machine washing of the underblanket.
- Integrated Corner Ties: Ensures a secure fit to your mattress.
- Overheat Protection: Built-in safety mechanism for peace of mind.
- Efficient Warming Technology: Features superior, ultra-safe quick warming heating elements that heat the entire blanket for full body warming.
Image 4.1: Illustration of the warming technology and full body heating capability.
5. Setup and Installation
Follow these steps to properly set up your electric underblanket:
- Prepare the Bed: Ensure your mattress is clean and dry.
- Position the Underblanket: Lay the electric underblanket flat on top of your mattress, ensuring it is evenly spread and not folded or creased. The controller connection point should be at the foot end or side of the bed, depending on your preference and power outlet location.
- Secure with Corner Ties: Use the integrated corner ties to secure the underblanket to your mattress. Loop the ties under each corner of the mattress to prevent the blanket from shifting during use.
Image 5.1: Placing the electric underblanket flat on the mattress.
- Connect the Controller: Plug the detachable controller cord into the socket on the underblanket. Ensure a firm connection.
- Cover the Underblanket: Place your regular bed sheet and other bedding on top of the electric underblanket.
- Plug into Power: Plug the power cord of the controller into a suitable electrical outlet.

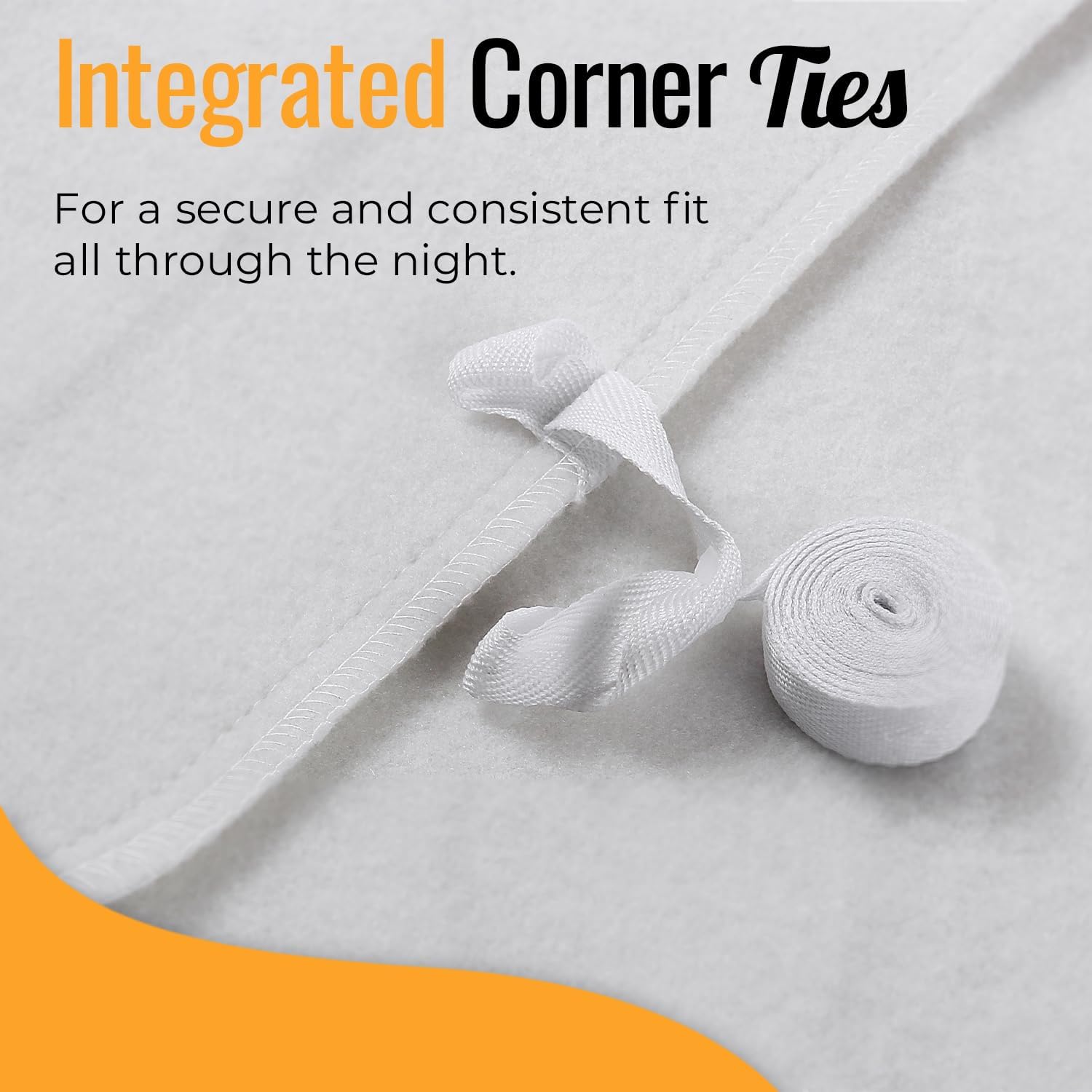

Image 5.2: The integrated corner ties help secure the underblanket to the mattress.
6. Operating Instructions
The electric underblanket is operated via a simple slide controller:
- Turn On: Slide the switch from '0' to your desired heat setting (1, 2, or 3). The 'ON' indicator light will illuminate.
- Adjust Heat Setting:
- Setting 1 (Low): Gentle warmth, suitable for extended use or mild temperatures.
- Setting 2 (Medium): Moderate warmth for general comfort.
- Setting 3 (High): Maximum warmth for quick pre-heating or colder conditions.
- Pre-heating: For best results, turn on the underblanket to setting 3 approximately 30 minutes before going to bed. Once in bed, you may adjust to a lower setting for continuous comfort.
- Turn Off: Slide the switch back to '0'. The 'ON' indicator light will turn off. Always unplug the underblanket from the wall outlet when not in use.

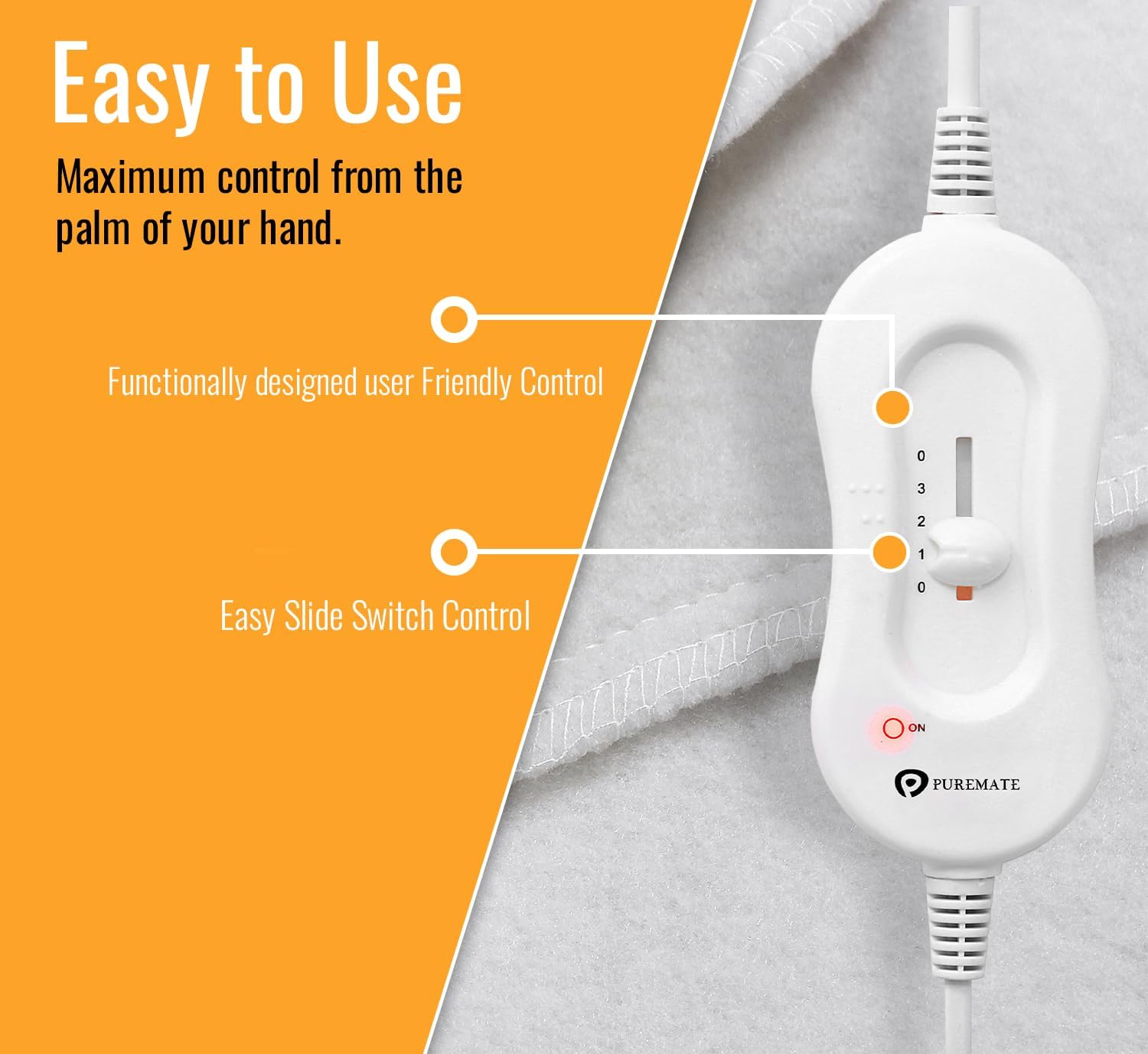

Image 6.1: The easy-to-use slide switch controller for adjusting heat settings.
7. Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your electric underblanket.
- Before Cleaning: Always ensure the underblanket is unplugged from the power outlet and the controller is detached from the blanket.
- Machine Washing: The underblanket is machine washable at 40°C. Use a gentle cycle and mild detergent. Do not bleach or iron.
- Drying: Tumble dry on a low setting or line dry. Ensure the underblanket is completely dry before reconnecting the controller or storing. Do not wring.
- Spot Cleaning: For small spills, spot clean with a damp cloth and mild detergent.
Image 7.1: The detachable cable allows for machine washing of the underblanket at 40°C.
8. Storage
When not in use, store the underblanket properly:
- Ensure the underblanket is clean and completely dry.
- Detach the controller and store it separately.
- Gently fold or roll the underblanket. Avoid sharp creases.
- Store in a cool, dry place, away from direct sunlight and heavy objects that could compress it.
9. Troubleshooting
If you encounter issues with your electric underblanket, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Underblanket is not heating. | Not plugged in, controller not connected, power outage, or safety feature activated. | Ensure power cord is securely plugged into outlet. Check controller connection to blanket. Verify power outlet is functional. If safety feature activated (e.g., overheat protection), unplug and allow to cool for 30 minutes before trying again. |
| Controller light is off. | Underblanket is off or not receiving power. | Slide the controller switch to a heat setting (1, 2, or 3). Check power connection. |
| Underblanket is too hot or not warm enough. | Incorrect heat setting. | Adjust the heat setting on the controller to a more comfortable level. |
If the problem persists after attempting these solutions, please contact PureMate customer support.
10. Specifications
Refer to the following technical specifications for the PureMate Luxury Comfort Single Electric Underblanket:
- Brand: PureMate
- Model Number: PM150
- Color: Grey
- Material: Polyester
- Product Dimensions: 135 cm (Length) x 65 cm (Width)
- Weight: Approximately 940 grams
- Heat Settings: 3 (Low, Medium, High)
- Special Feature: Temperature Control, Overheat Protection
- Care Instructions: Machine washable at 40°C (with detachable cord)
Image 10.1: Dimensions of the Single Size Electric Underblanket.
11. Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your product or visit the official PureMate website. Keep your proof of purchase for any warranty claims.
