1. Introduction
Thank you for choosing the tectake 1500W Portable Electric Patio Heater. This versatile and efficient heater is designed to provide rapid and consistent warmth for various spaces, including patios, greenhouses, garages, and other indoor or outdoor areas. Featuring advanced PTC ceramic heating technology, it offers quick heating, multiple operating modes, and essential safety features to ensure a comfortable and secure environment.

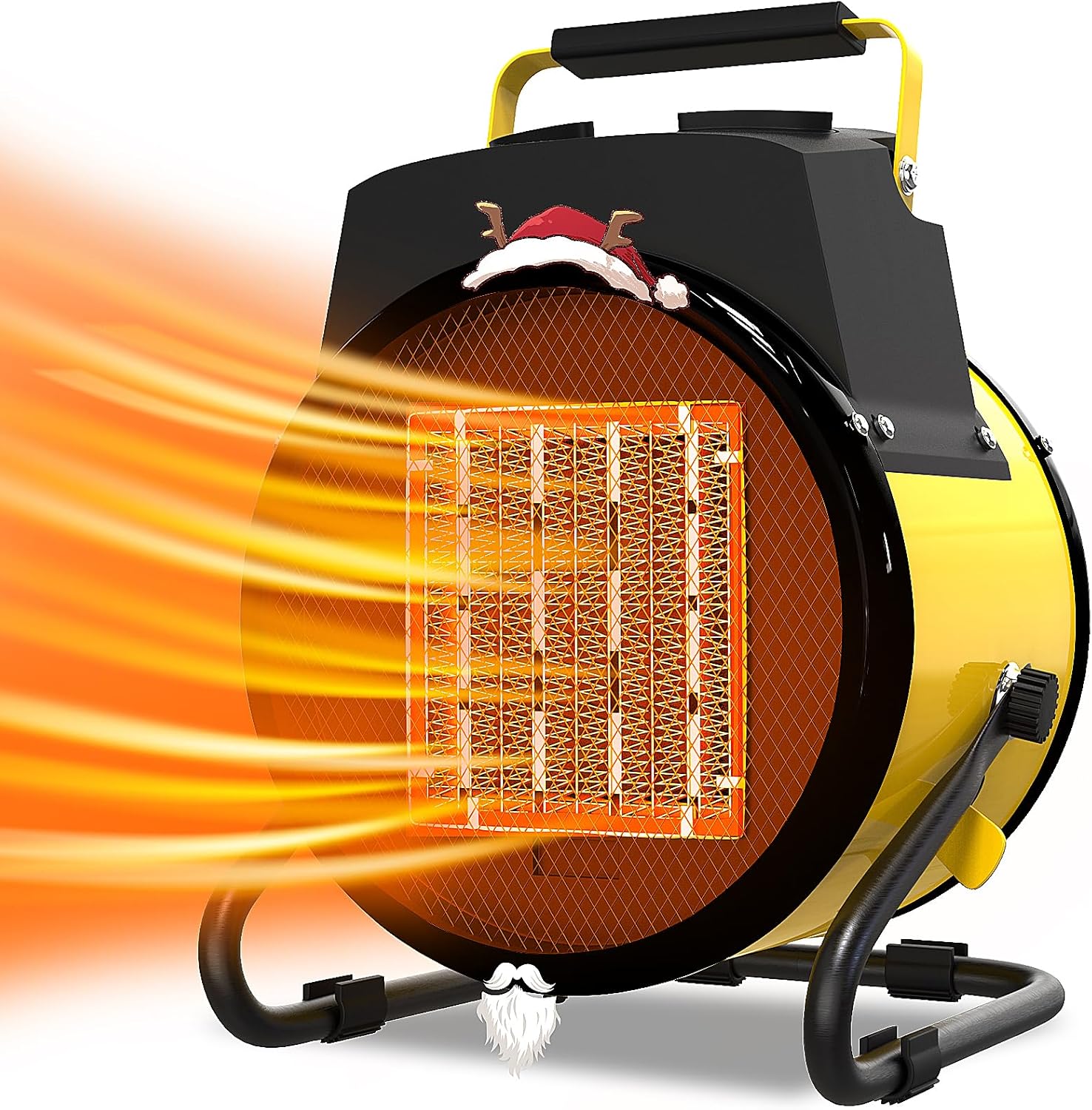

Image 1.1: The tectake 1500W Portable Electric Patio Heater, showcasing its compact design and robust build.
2. Safety Information
Please read all safety instructions carefully before using the heater. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Overheat Protection: The heater is equipped with a self-resetting heat breaker that automatically cuts off power if the internal temperature reaches the thermal protection limit (e.g., 167°F). This feature enhances safety and extends the product's lifespan.
- Placement: Always place the heater on a stable, flat, and non-combustible surface. Ensure there is adequate clearance from walls, furniture, curtains, and other flammable materials (minimum 3 feet).
- Indoor/Outdoor Use: This heater is designed for both outdoor and indoor use. When used indoors, ensure the area is well-ventilated. Avoid use in wet or damp locations.
- Power Cord: Do not run the power cord under carpeting or cover it with throw rugs, runners, or similar coverings. Arrange the cord away from traffic areas where it will not be tripped over. The 7.8ft long cord provides flexibility for placement.
- Electrical Connection: Plug the heater directly into a 120V AC electrical outlet. Do not use extension cords or power strips, as this may create a fire hazard.
- Supervision: Do not leave the heater unattended while in operation. Keep children and pets away from the heater.
- Maintenance: Always unplug the heater before cleaning or performing any maintenance.
- Ventilation: Do not block air inlets or outlets. Ensure proper airflow around the heater.
Image 2.1: Visual representation of the heater's safety features, including ETL certification, overheat protection, V-0 flame retardant materials, and an enhanced safety plug.
3. Product Overview
The tectake 1500W Portable Electric Patio Heater is designed for ease of use and portability. Familiarize yourself with its components and controls.
3.1 Components
- Heating Element: PTC ceramic heating element for rapid and efficient heat generation.
- Fan: Integrated fan for heat distribution and natural wind mode.
- Control Panel: Two rotary knobs for mode selection and thermostat control.
- Portable Handle: Sturdy handle for easy transportation.
- Non-Slip Base: Stable base with non-slip pads to prevent accidental movement.
- Power Cord: 7.8-foot long power cord for convenient placement.
3.2 Controls
Image 3.1: Detailed view of the control panel, showing the mode selector and thermostat knob.
- Mode Selector Knob (Left):
- OFF (0): Turns the heater off.
- FAN Only: Activates the fan for natural air circulation without heat.
- LOW (750W): Provides low heat output with the fan operating.
- HIGH (1500W): Provides high heat output with the fan operating.
- Thermostat Knob (Right): Adjusts the desired temperature. Turn clockwise for higher heat, counter-clockwise for lower heat. The heater will cycle on and off to maintain the set temperature.
Image 3.2: Key physical features of the heater, including its compact dimensions, non-slip base, long power cord, and convenient portable handle.
4. Setup
- Unpacking: Carefully remove the heater from its packaging. Retain packaging for future storage or transport.
- Placement: Place the heater on a firm, level surface. Ensure the heater is at least 3 feet (0.9 meters) away from any walls, furniture, or other objects.
- Power Connection: Uncoil the power cord completely. Plug the heater directly into a standard 120V AC electrical outlet. Do not use extension cords or adapter plugs.
5. Operating Instructions
The tectake heater offers three operating modes to suit your needs throughout the year.
Image 5.1: Illustration of the three distinct operating modes: Natural Wind for cooling, 750W Warm Wind for moderate heating, and 1500W High Heat Wind for maximum warmth.
- Turning On: Rotate the left mode selector knob from the "OFF (0)" position to your desired setting:
- For natural air circulation, select the FAN Only mode.
- For moderate heating, select the LOW (750W) mode.
- For maximum heating, select the HIGH (1500W) mode.
- Adjusting Temperature: Once a heating mode (LOW or HIGH) is selected, use the right thermostat knob to set the desired temperature. Turn the knob clockwise to increase the heat output and counter-clockwise to decrease it. The heater will automatically turn on and off to maintain the set temperature.
- Turning Off: Rotate the left mode selector knob back to the OFF (0) position. Unplug the heater from the power outlet when not in use for extended periods.
5.1 Quick Heating Feature
The heater utilizes PTC ceramic heating technology for rapid warmth. It can reach the desired temperature in approximately 2 seconds, providing immediate comfort.
Image 5.2: Visualizing the heater's rapid 3-second heating capability, powered by 1500W PTC ceramic technology.
5.2 Quiet Operation
Designed for minimal noise, the heater operates at less than 40 decibels, ensuring it does not disturb your work, reading, conversations, or sleep.
Image 5.3: The heater's quiet operation, illustrated by a low noise level of 36dB, making it ideal for use in bedrooms or quiet spaces.
5.3 Usage Scenarios
The heater is suitable for various applications, providing warmth in spaces up to 200 square feet.
Image 5.4: The heater providing warmth in an outdoor patio setting.
Image 5.5: The heater effectively warming a garage workspace.
Image 5.6: The heater providing comfortable warmth in a bedroom setting.
5.4 Official Product Video
Video 5.1: An official product video demonstrating the tectake Outdoor Heater in yellow, highlighting its features and operation. This video is provided by the seller, QIOMALA Direct.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your heater.
- Cleaning: Always unplug the heater and allow it to cool completely before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
- Storage: When not in use, store the heater in a cool, dry place, preferably in its original packaging, to protect it from dust and damage.
- Inspection: Periodically inspect the power cord and plug for any signs of damage. If damaged, do not use the heater and contact customer support.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | Not plugged in; power switch off; power outage; overheat protection activated. | Ensure heater is securely plugged in. Turn the mode selector knob to a heating setting. Check household circuit breaker. Unplug and allow heater to cool for 30 minutes before restarting. |
| Heater produces no heat in heating mode. | Thermostat set too low; overheat protection activated. | Increase the thermostat setting. Unplug and allow heater to cool for 30 minutes before restarting. |
| Heater cycles on and off frequently. | Thermostat set too close to ambient temperature; room temperature reached. | This is normal operation. Adjust thermostat to a higher setting if more heat is desired. |
| Unusual noise or smell. | Dust accumulation; new unit smell; internal malfunction. | Clean the heater. Initial use may produce a slight odor, which will dissipate. If persistent or strong, unplug immediately and contact support. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | tectake |
| Model Number | A02 |
| Power Output | 1500 Watts (High), 750 Watts (Low) |
| Voltage | 120 Volts (AC) |
| Heating Technology | PTC Ceramic |
| Heating Coverage | Up to 200 sq.ft |
| Product Dimensions | 7"D x 6"W x 8"H |
| Item Weight | 4.4 pounds |
| Cord Length | 7.8 feet |
| Noise Level | Less than 40 decibels |
| Special Features | 2S Fast Heating, Overheat Protection, 3 Operating Modes, Portable Handle, Non-Slip Base |
| Indoor/Outdoor Usage | Outdoor (also suitable for well-ventilated indoor spaces like garages, greenhouses) |
9. Warranty and Support
tectake provides a 1-year warranty service for this product. If you encounter any issues or have questions regarding your tectake 1500W Portable Electric Patio Heater, please do not hesitate to contact our customer support team. We are committed to providing you with the best service and assistance.
For support, please refer to the contact information provided on your purchase receipt or visit the official tectake website.
