Connex Connect CC-S2000 Smart WiFi Rechargeable Motion Sensor

1. Introduction

This manual provides essential information for the safe and effective use of your Connex Connect CC-S2000 Smart WiFi Rechargeable Motion Sensor. Please read this manual thoroughly before installation and operation, and retain it for future reference. The CC-S2000 is a wireless device designed to detect motion and integrate with your smart home system, enabling automated actions such as triggering alarms or controlling other smart devices.

2. Safety Information

Observe the following safety precautions to prevent damage to the device or injury to yourself:

• Do not expose the device to extreme temperatures, direct sunlight, or moisture.
• Avoid dropping or subjecting the device to strong impacts.
• Do not attempt to disassemble or repair the device yourself. Refer all servicing to qualified personnel.
• Use only the specified charging cable and power adapter to charge the device.
• Keep the device out of reach of children.

3. Package Contents

Verify that all items are present in the package:

• Connex Connect CC-S2000 Smart WiFi Rechargeable Motion Sensor
• Mounting Bracket
• Mounting Screws and Wall Plugs
• USB Charging Cable
• User Manual (this document)

4. Product Overview

Familiarize yourself with the components of your motion sensor.

Figure 4.1: Front view of the Connex Connect CC-S2000 Smart WiFi Rechargeable Motion Sensor. The sensor is white, spherical, and mounted on a small base, with the Connex Connect logo visible on the front.

Figure 4.2: Side view of the Connex Connect CC-S2000 Smart WiFi Rechargeable Motion Sensor. This view shows the curved profile of the sensor and a small grille on the side, likely for a speaker or microphone.

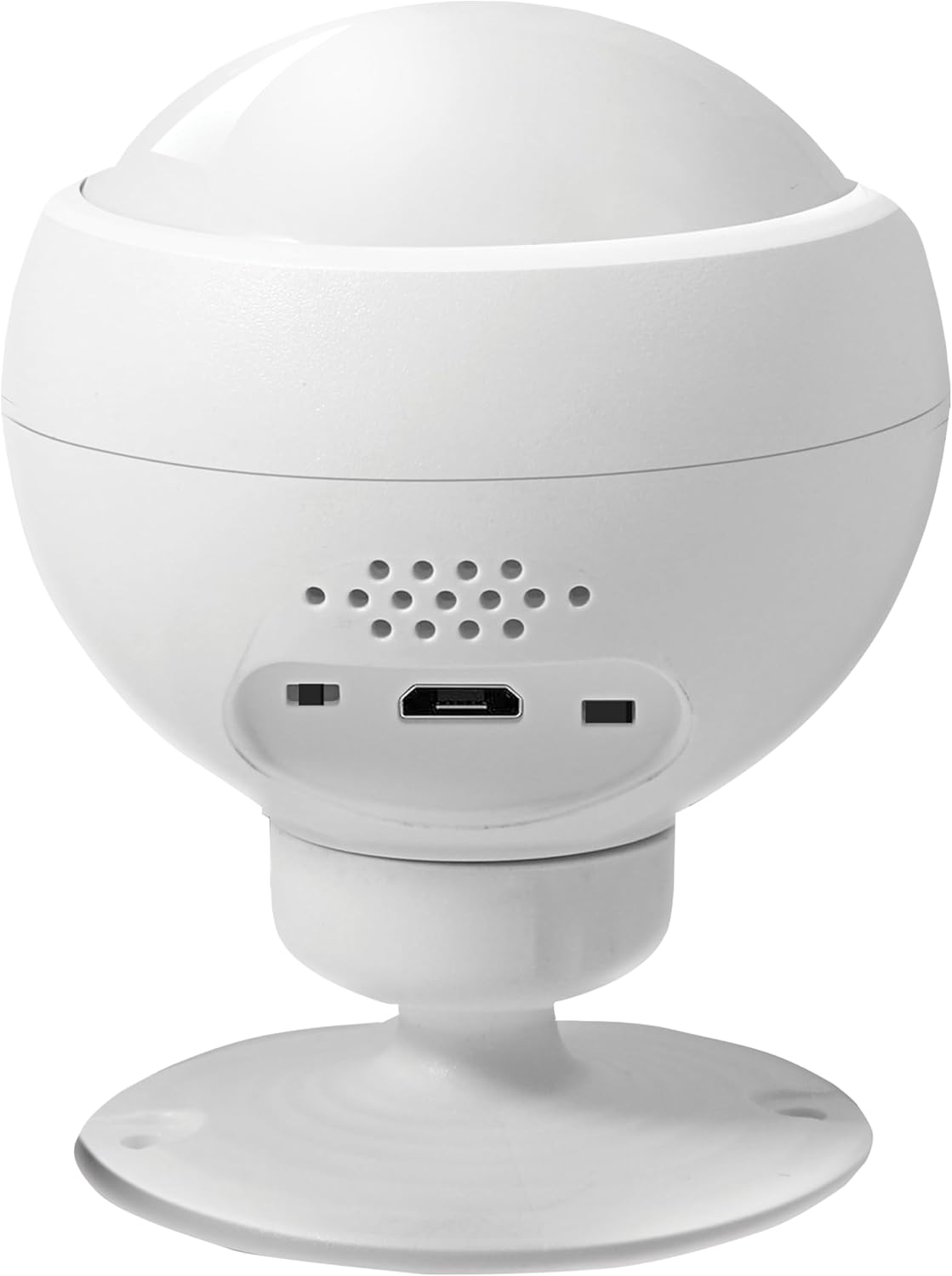

Figure 4.3: Back view of the Connex Connect CC-S2000 Smart WiFi Rechargeable Motion Sensor. This image highlights the micro-USB charging port and possibly a reset button or indicator lights on the rear of the device.

5. Setup

5.1 Charging the Device

Before initial use, fully charge the motion sensor. Connect the provided USB charging cable to the micro-USB port on the back of the sensor and plug the other end into a compatible USB power adapter (not included). The charging indicator light will illuminate during charging and turn off when fully charged. A full charge can last up to 6 months, depending on usage.

5.2 Connecting to Wi-Fi and the Connex Connect App

The Connex Connect CC-S2000 requires a 2.4GHz Wi-Fi network for operation. Ensure your smartphone is connected to a 2.4GHz Wi-Fi network before proceeding.

1. Download the Connex Connect App from your smartphone's app store (available for iOS and Android).
2. Register or log in to your Connex Connect account.
3. Power on the motion sensor. The indicator light should begin to flash, indicating it is in pairing mode. If not, refer to the device's reset instructions (usually a small button on the back).
4. In the Connex Connect App, tap the "+" icon to add a new device.
5. Select "Motion Sensor" from the list of available devices.
6. Follow the on-screen instructions in the app to connect the sensor to your Wi-Fi network. This typically involves confirming the Wi-Fi network and entering the password.
7. Once connected, the indicator light on the sensor will stop flashing and remain solid, or turn off, depending on the device's status.

5.3 Mounting the Sensor

Choose a suitable location for mounting the sensor. Consider the detection range (up to 6 meters) and the area you wish to monitor. Avoid placing it near heat sources, direct sunlight, or areas with frequent air currents, which could cause false triggers.

1. Attach the mounting bracket to the desired surface using the provided screws and wall plugs.
2. Securely attach the motion sensor to the mounting bracket. The sensor's spherical design allows for adjustment of the detection angle.
3. Ensure the sensor is firmly in place and has a clear line of sight to the area it will monitor.

6. Operating Instructions

6.1 Motion Detection

The CC-S2000 uses an infrared sensor to detect motion. When motion is detected within its range, it will send a notification to your Connex Connect App and can trigger pre-configured smart home automations.

6.2 Adjusting Sensitivity

To minimize false alarms, the sensor's sensitivity can be adjusted through the Connex Connect App. Navigate to the device settings for your CC-S2000 sensor within the app and locate the sensitivity adjustment option. Experiment with different settings to find the optimal level for your environment.

6.3 Integration with Smart Home Devices and Automated Rules

The sensor can be integrated with other Connex Connect smart home devices, such as alarms, lights, and sirens. This allows you to create automated rules (scenes or automations) within the Connex Connect App. For example:

• Motion Detected, Turn on Lights: When motion is detected by the CC-S2000, automatically turn on specific smart lights.
• Motion Detected, Sound Alarm: If motion is detected during specific hours (e.g., at night), trigger a smart siren.
• Motion Detected, Send Notification: Receive a push notification on your smartphone when motion is detected.

Refer to the Connex Connect App's help section for detailed instructions on creating and managing automated rules.

7. Maintenance

7.1 Battery Life and Recharging

The CC-S2000 is equipped with a rechargeable Lithium Ion battery that can last up to 6 months on a single charge. When the battery level is low, you will receive a notification via the Connex Connect App. Recharge the device using the provided USB cable as described in Section 5.1.

7.2 Cleaning

To clean the sensor, gently wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners, solvents, or spray liquids directly onto the device.

8. Troubleshooting

If you encounter issues with your Connex Connect CC-S2000 motion sensor, refer to the following common problems and solutions:

For further assistance, contact Connex Connect customer support.

9. Specifications

10. Warranty and Support

10.1 Manufacturer's Warranty

The Connex Connect CC-S2000 Smart WiFi Rechargeable Motion Sensor comes with a 1 Year Limited Warranty from the manufacturer. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or external causes.

Please retain your proof of purchase for warranty claims.

10.2 Customer Support

For technical support, warranty inquiries, or further assistance, please visit the official Connex Connect website or contact their customer service department. Contact information can typically be found on the product packaging or the Connex Connect website.
