VGR V-256 Professional Hair Clipper User Manual

1. Introduction

Thank you for choosing the VGR V-256 Professional Hair Clipper. This manual provides essential information for the safe and effective operation, maintenance, and care of your new hair clipper. Please read these instructions thoroughly before first use and retain them for future reference.

The VGR V-256 is designed for precise and effortless hair cutting. It features a powerful 2500mAh rechargeable lithium battery, offering up to 400 minutes of runtime. The adjustable RPM knob, On/Off button, and 0.8-2.0mm blade length knob allow for customized styling. The integrated digital display shows battery status and RPM. This clipper is suitable for both corded and cordless operation.

2. Safety Information

To ensure safe operation and prevent injury or damage, please observe the following safety precautions:

• Use with caution around the face and eyes.
• Keep the appliance away from heat sources and moisture.
• Do not ingest or inhale small parts. Ensure all components are securely attached.
• Clean the clipper after each use to maintain hygiene and performance.
• Store the clipper in a dry place when not in use.
• Keep out of reach of children.
• Do not disassemble the clipper beyond what is instructed in this manual.
• Only use the provided charging cable and accessories.

3. Package Contents

Verify that all items are present in the package:

• 1x VGR V-256 Hair Clipper
• 1x Charging Base
• 1x USB Charging Cable
• 6x Cutting Guide Combs (1.5mm, 3mm, 4.5mm, 6mm, 9mm, 12mm)
• 1x Cleaning Brush
• 1x Oil Bottle
• 1x User Manual Book

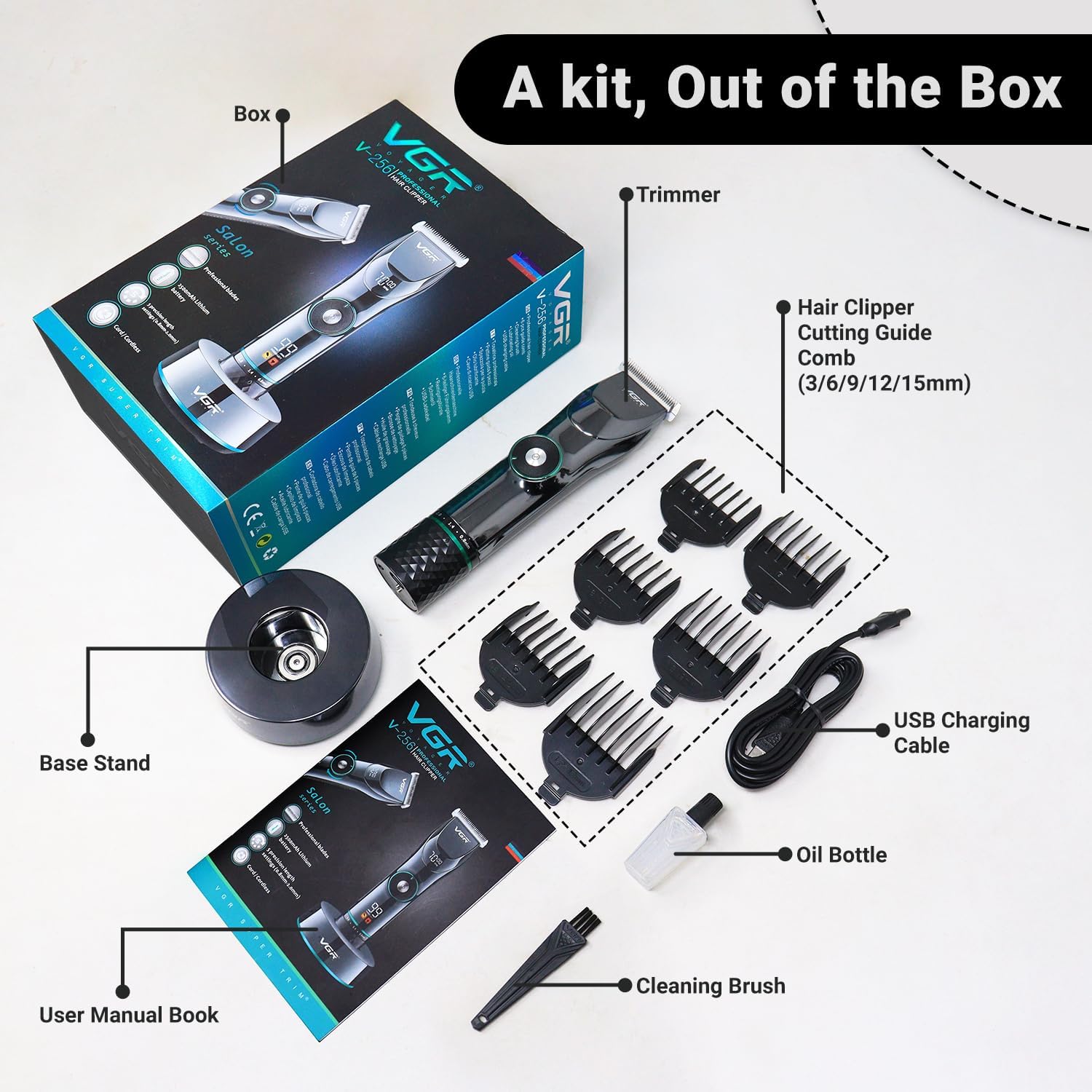

Figure 3.1: All items included in the VGR V-256 package, including the clipper, charging base, USB cable, guide combs, cleaning brush, oil bottle, and user manual.

4. Product Features and Overview

The VGR V-256 Professional Hair Clipper incorporates several features for an enhanced grooming experience:

• Stainless Steel Blade: Durable and precise cutting performance.
• Adjustable Speed Control: Knob to adjust motor speed from 5500 to 7000 RPM.
• Digital Display: Shows battery status and current RPM.
• Long Battery Life: 2500mAh lithium battery provides up to 400 minutes of cordless runtime.
• Blade Length Adjustment: Knob for fine-tuning cutting length from 0.8mm to 2.0mm.
• 6 Cutting Guide Combs: For various hair lengths and styles.
• Corded and Cordless Operation: Flexibility for use with or without the charging cable.
• 360° USB Charging: Convenient charging with the included stand and USB cable.

Figure 4.1: Overview of the VGR V-256 Hair Clipper highlighting its key components such as the RPM display, LED display, On/Off button, RPM adjust knob, blade length setting knob, and stainless steel blade.

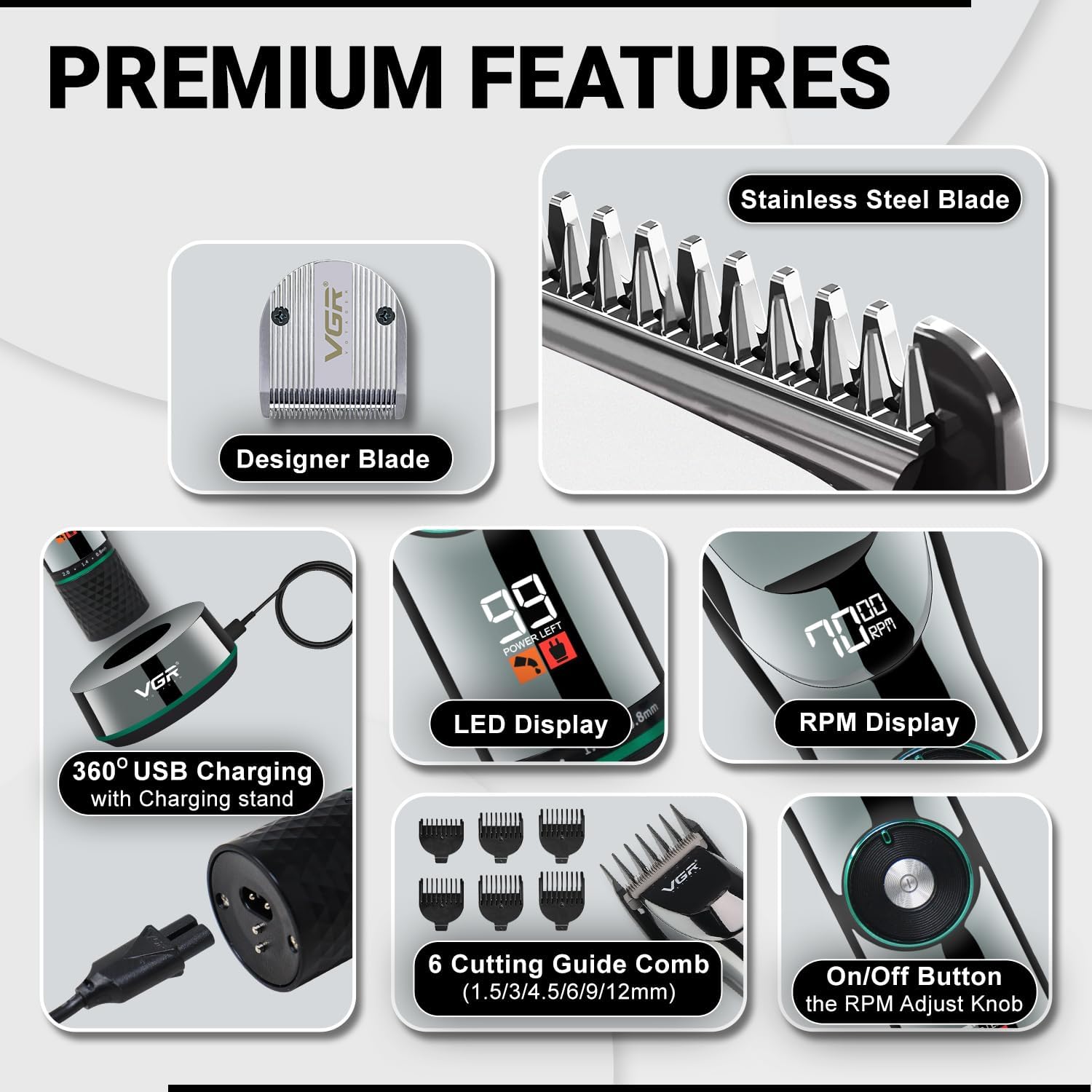

Figure 4.2: Visual representation of the VGR V-256's premium features, including the stainless steel blade, designer blade, 360° USB charging, LED display, RPM display, cutting guide combs, and the On/Off button with RPM adjust knob.

5. Setup

5.1 Initial Charging

1. Before first use, fully charge the hair clipper.
2. Connect the USB charging cable to the charging base.
3. Place the hair clipper onto the charging base. Ensure the clipper is correctly seated.
4. Connect the USB cable to a suitable USB power adapter (not included) or a USB port.
5. The digital display will indicate the charging status. A full charge takes approximately 3.5 hours.
6. The clipper offers up to 400 minutes of cordless runtime on a full charge.

Figure 5.1: Information on the VGR V-256's battery life (400 minutes runtime) and charging details (3.5 hours for a full charge, 2500mAh battery).

5.2 Attaching Guide Combs

1. Ensure the clipper is turned off before attaching or removing guide combs.
2. Select the desired cutting guide comb (e.g., 1.5mm, 3mm, 4.5mm, 6mm, 9mm, 12mm).
3. Align the comb with the clipper blade and push it firmly until it clicks into place.
4. To remove, gently pull the comb away from the blade.

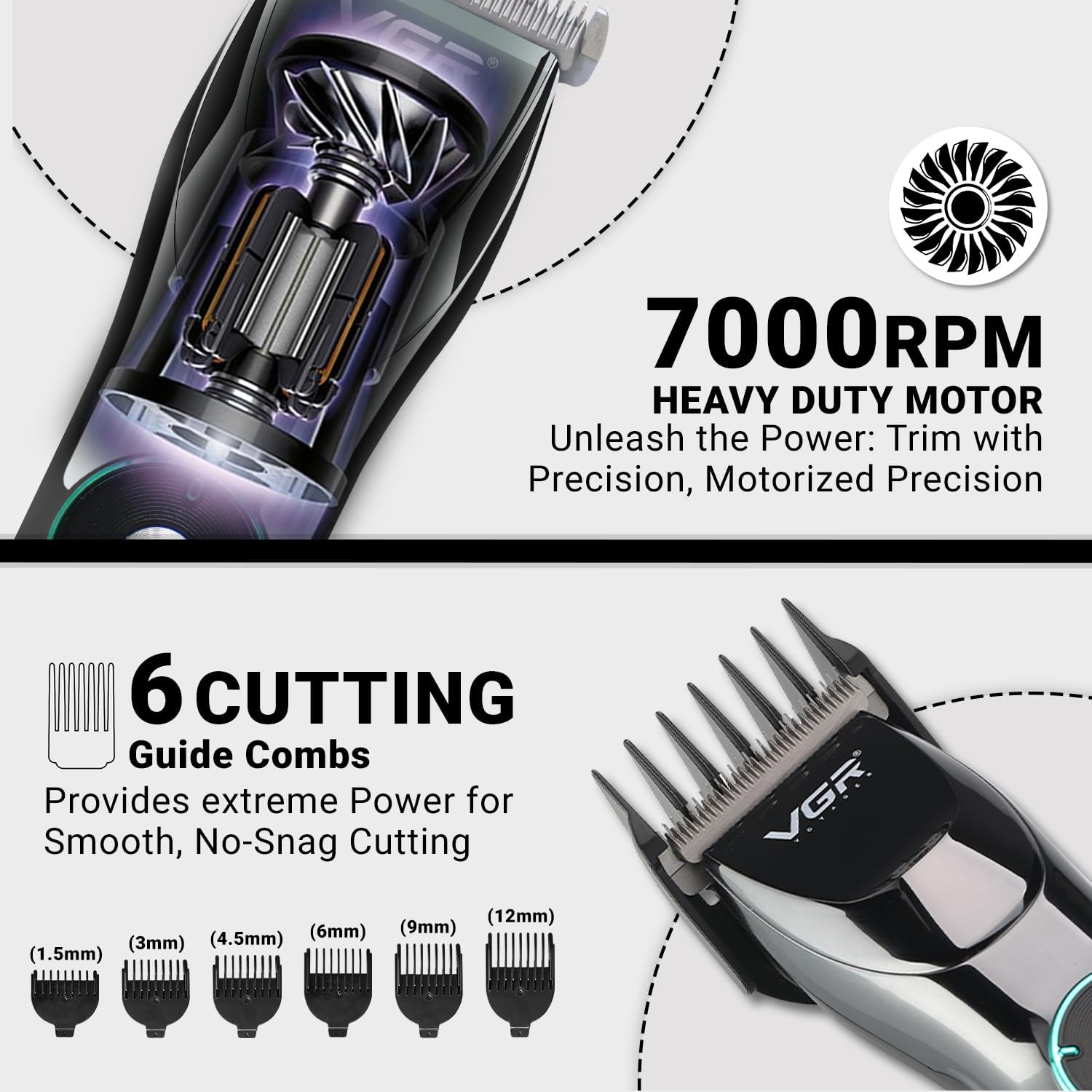

Figure 5.2: The six cutting guide combs included with the VGR V-256, showing sizes 1.5mm, 3mm, 4.5mm, 6mm, 9mm, and 12mm.

6. Operating Instructions

6.1 Power On/Off

• To turn on the clipper, press the On/Off button. The digital display will illuminate.
• To turn off the clipper, press the On/Off button again.

6.2 Adjusting RPM (Motor Speed)

• While the clipper is on, rotate the RPM adjust knob to increase or decrease the motor speed.
• The RPM can be adjusted between 5500 and 7000 RPM, displayed on the digital screen.
• Higher RPM provides more power for thicker hair, while lower RPM is suitable for finer hair or more delicate areas.

6.3 Adjusting Blade Length

• The blade length can be adjusted from 0.8mm to 2.0mm using the blade length setting knob located on the side of the clipper.
• Rotate the knob to select the desired cutting length. This adjustment works independently or in conjunction with guide combs for precise tapering and blending.

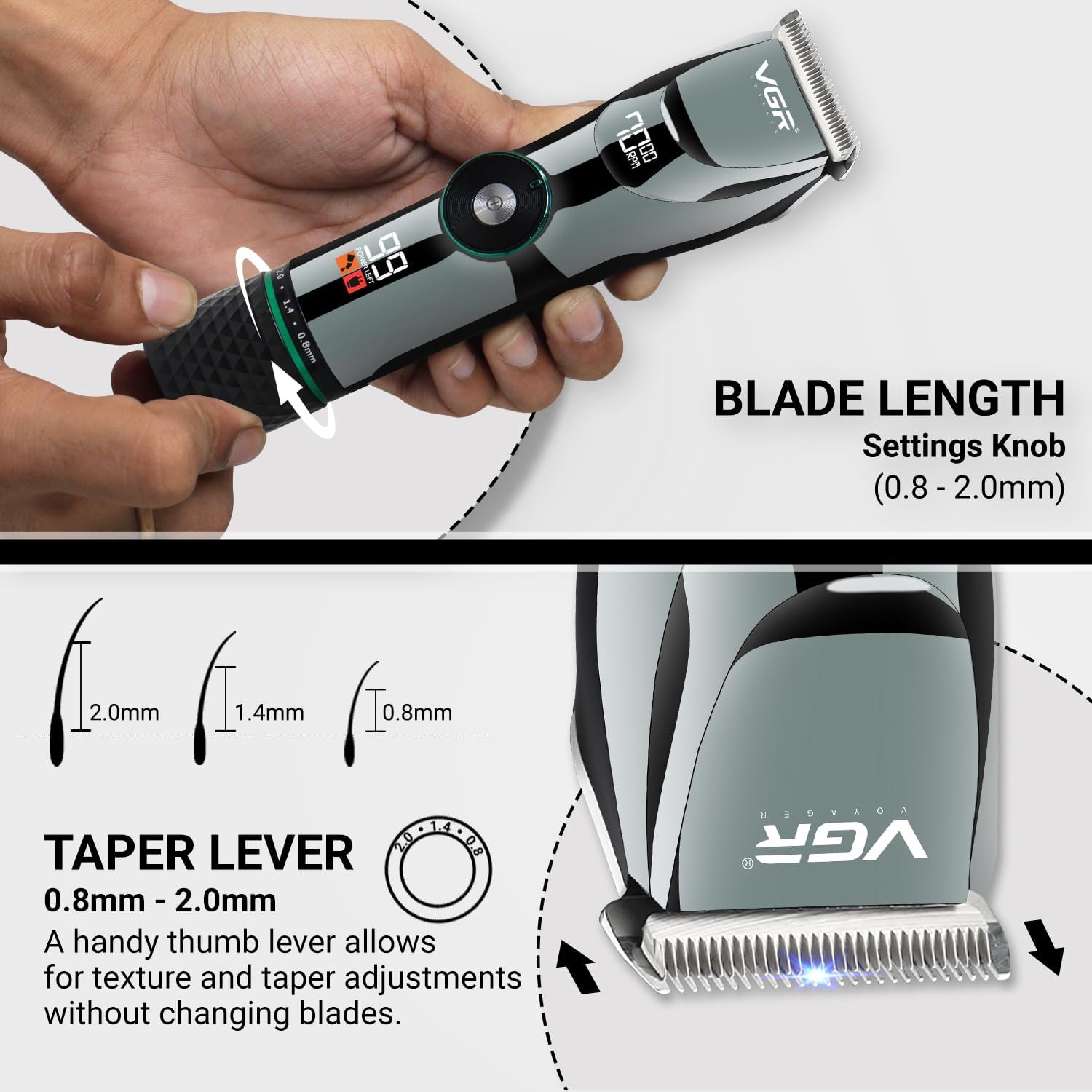

Figure 6.1: Illustration of the blade length settings knob, allowing adjustments from 0.8mm to 2.0mm, and its function as a taper lever for fine adjustments.

6.4 Hair Cutting Tips

• Ensure hair is clean and dry before cutting.
• Start with a longer guide comb and gradually switch to shorter ones if needed.
• Hold the clipper with the blade flat against the head and move it slowly against the direction of hair growth.
• Overlap strokes to ensure an even cut.

7. Maintenance

7.1 Cleaning the Blades

1. Turn off the clipper and disconnect it from the power source.
2. Remove any attached guide comb.
3. Use the provided cleaning brush to remove loose hair from the blades and the clipper body.
4. For a more thorough cleaning, the blades can be carefully detached (refer to specific instructions if provided in the physical manual for blade removal).

7.2 Oiling the Blades

1. After cleaning, apply a small drop of the provided oil to the teeth of the blades.
2. Turn on the clipper for a few seconds to allow the oil to distribute evenly.
3. Wipe off any excess oil with a soft cloth.
4. Regular oiling ensures smooth operation and extends blade life.

8. Troubleshooting

If you encounter issues with your VGR V-256 Hair Clipper, refer to the following common solutions:

• Clipper not turning on: Ensure the battery is charged. Connect the clipper to the charging cable and allow it to charge for at least 30 minutes before attempting to turn it on again.
• Reduced cutting performance: Clean the blades thoroughly to remove any trapped hair. Apply a few drops of oil to the blades. Ensure the guide comb is correctly attached.
• Clipper feels hot: This can occur during prolonged use. Allow the clipper to cool down before continuing. Ensure the blades are clean and oiled to reduce friction.
• Unusual noise: Check if the blades are properly aligned and free from debris. Ensure the guide comb is securely attached.

If the problem persists after attempting these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

The VGR V-256 Professional Hair Clipper comes with a 1-Year Warranty from the date of purchase. This warranty covers manufacturing defects and ensures the quality of the product.

For warranty claims, technical support, or any inquiries regarding your VGR V-256 hair clipper, please refer to the contact information provided in your product packaging or visit the official VGR website.
