SONA 1.7L Digital Double Layer Glass Kettle

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or kettle in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Always ensure the lid is closed securely during operation.
• Avoid contact with steam from the spout when water is boiling.
• This appliance is for household use only.

Product Overview

The SONA SGK 5046 Digital Double Layer Glass Kettle is designed for efficient and safe water heating with precise temperature control.

Image: Overview of the SONA SGK 5046 kettle, highlighting its 1.7L capacity, 1850-2200W power, high temperature borosilicate glass, and anti-scalding double layer design.

Key Components:

• Kettle Body: High temperature borosilicate glass with a double-layer design for anti-scalding.
• Lid: Button-press flip-open lid, made with 304 food-grade stainless steel inner lining.
• Handle: Ergonomically designed for comfortable grip.
• Control Panel: Touch screen with LED water temperature display and control buttons.
• Power Base: 360° rotational base with cord storage.
• Water Level Indicator: Clearly marked MAX fill line.

Image: The kettle with its lid open, showcasing the 304 food-grade stainless steel inner lid and high-temperature borosilicate glass body.

Image: A diagram illustrating the double-layer construction of the kettle, featuring an inner borosilicate glass layer, a middle cooling space, and an outer anti-scalding plastic layer.

Specifications

Before First Use

1. Remove all packaging materials and labels from the kettle and its base.
2. Wipe the exterior of the kettle and the power base with a damp cloth. Do not immerse the kettle or base in water.
3. Fill the kettle with clean water up to the MAX line.
4. Boil the water at 100°C, then discard it. Repeat this process 2-3 times to remove any manufacturing residues.
5. The kettle is now ready for use.

Setup

1. Place the power base on a dry, flat, stable, and heat-resistant surface.
2. Ensure the power cord is not dangling over the edge of the counter or touching hot surfaces.
3. Plug the power cord into a grounded electrical outlet.

Operating Instructions

1. Filling the Kettle:

• Press the button on the handle to open the lid.
• Fill the kettle with the desired amount of fresh water. Do not fill below the MIN mark or above the MAX (1.7L) mark. Overfilling may cause boiling water to spill out.
• Close the lid securely until it clicks into place.

2. Placing on Power Base:

• Place the kettle firmly onto the power base.

3. Power On/Off and Temperature Selection:

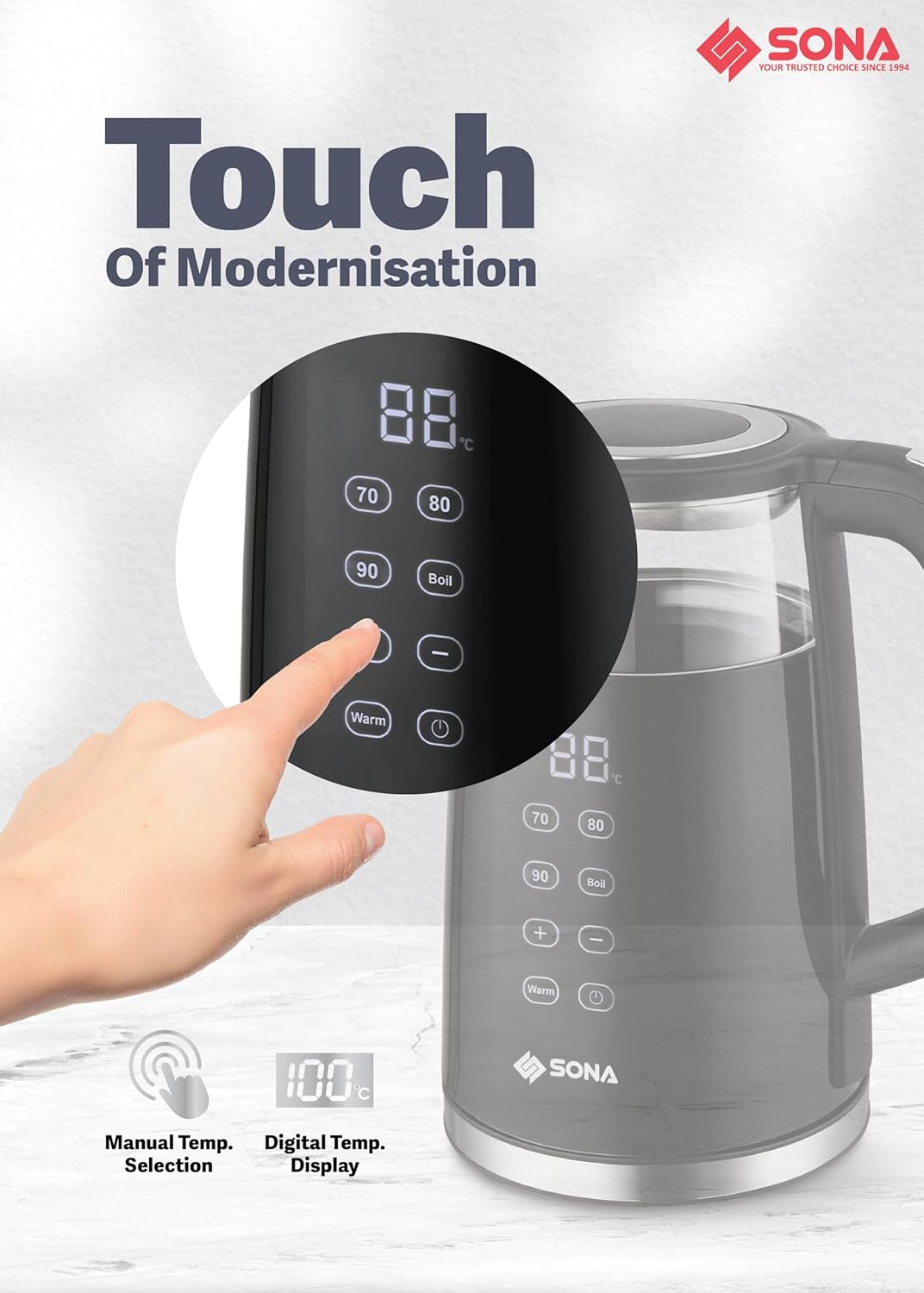

Image: Close-up of the kettle's touch screen control panel, showing temperature selection buttons (70, 80, 90, Boil), manual temperature adjustment (+/-), Warm function, and power button.

• The LED display will show the current water temperature when the kettle is placed on the base.
• Press the power button (O/I) to turn on the kettle.
• Select one of the 4 pre-set temperatures by touching the corresponding button:
• 70°C: Ideal for White Tea.
• 80°C: Ideal for Green Tea.
• 90°C: Ideal for Oolong Tea.
• Boil (100°C): For black tea, instant coffee, or general boiling.

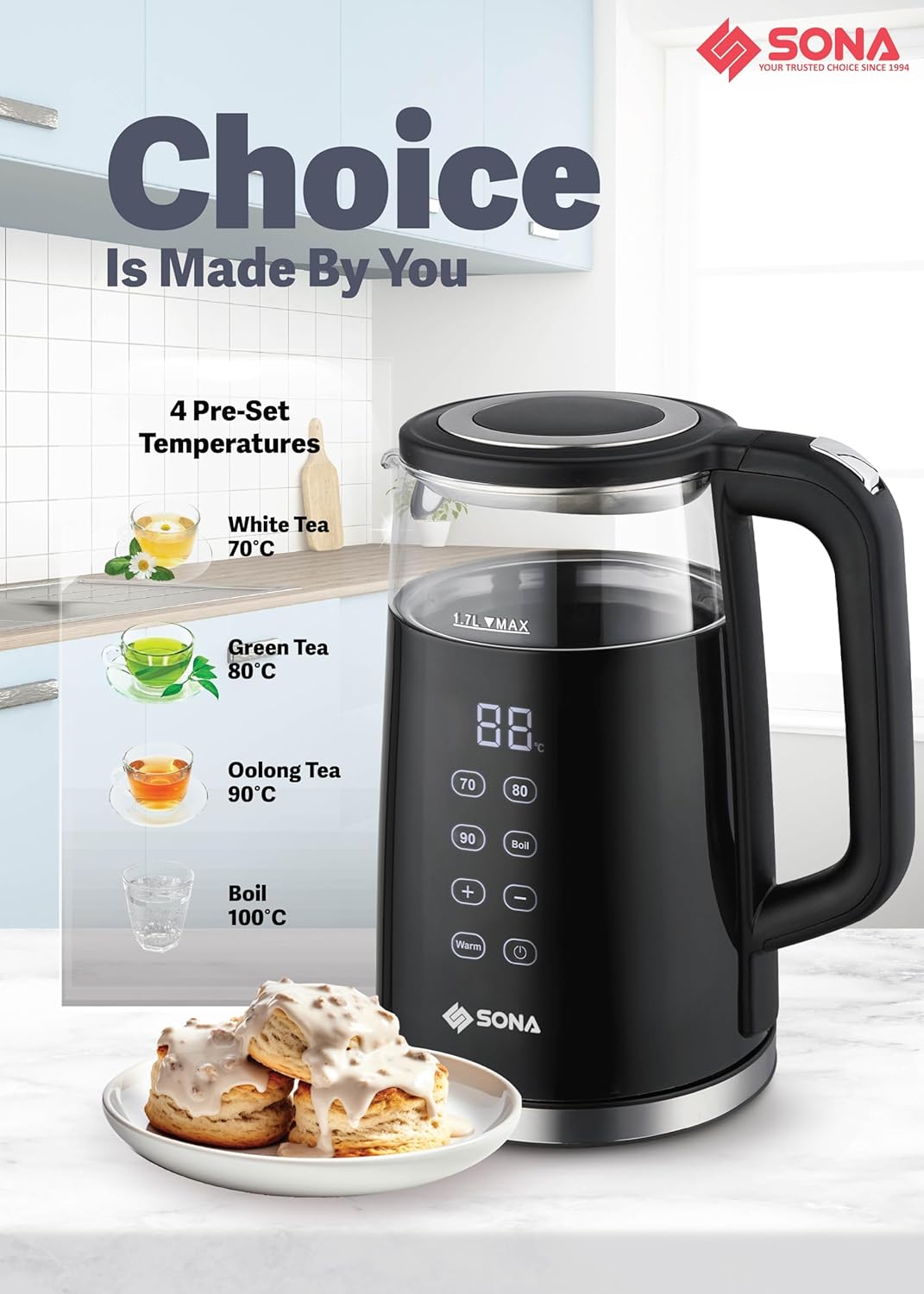

Image: The kettle's display showing the four pre-set temperature options (70°C, 80°C, 90°C, 100°C) with suggested uses for different tea types.

• Alternatively, use the + and - buttons to manually adjust the target temperature.
• The kettle will automatically start heating to the selected temperature. The LED display will show the real-time water temperature.
• Once the target temperature is reached, the kettle will automatically switch off.

4. Keep Warm Function:

Image: The kettle with the 'Warm' button highlighted, indicating the Keep Warm function.

• After selecting a temperature and starting the heating process, press the Warm button.
• The kettle will maintain the selected temperature for up to 2 hours.
• To deactivate the Keep Warm function, press the Warm button again or lift the kettle from its base.

5. Dry Boil Protection:

• The kettle is equipped with dry boil protection. If the kettle is accidentally switched on without sufficient water, it will automatically shut off to prevent damage.
• If dry boil protection is activated, allow the kettle to cool down for a few minutes before refilling with water and restarting.

Maintenance and Cleaning

Regular cleaning helps maintain the kettle's performance and extends its lifespan.

General Cleaning:

• Always unplug the kettle from the power outlet and allow it to cool completely before cleaning.
• Wipe the exterior of the kettle with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
• The interior of the kettle can be cleaned with a soft brush or sponge. Rinse thoroughly with clean water.
• Do not immerse the kettle or its power base in water or any other liquid.

Descaling:

Over time, mineral deposits (limescale) may build up inside the kettle, especially in hard water areas. Descaling is recommended periodically.

• Fill the kettle with a mixture of white vinegar and water (1:2 ratio) or a commercial descaling solution.
• Boil the mixture and let it stand for at least 30 minutes, or longer if the limescale is heavy.
• Discard the solution and rinse the kettle thoroughly with fresh water several times to remove any residue and odor.
• For stubborn deposits, gently scrub the interior with a non-abrasive sponge.

Troubleshooting

Warranty and Support

This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and how to make a claim.

For technical support, service, or spare parts, please contact Sona customer service through the details provided in your product documentation or on the official Sona website.

Product Disposal

Do not dispose of this product with general household waste. This appliance contains electrical and electronic components that should be recycled. Please contact your local authority for information regarding collection points for electrical and electronic waste.
