GUTSTARK Double Basket Deep Fryer 12L - Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your GUTSTARK 12L Double Basket Electric Deep Fryer. Designed for continuous production in professional kitchens, this deep fryer features two independent compartments, allowing you to cook different foods simultaneously. Its efficient heating system and individual controls optimize kitchen workflow. Please read all instructions carefully before use and retain this manual for future reference.

2. Safety Instructions

WARNING: Failure to follow these safety instructions may result in fire, electric shock, serious injury, or property damage.

• Always place the deep fryer on a stable, heat-resistant surface, away from walls and flammable materials.
• Do not immerse the control panel, heating element, or power cord in water or any other liquid.
• Ensure the power supply matches the specifications of the appliance (110V, 3400W total).
• Never leave the deep fryer unattended while in operation.
• Use only cooking oil or fat suitable for deep frying. Do not mix different types of oil.
• Do not overfill the oil tanks. Maintain oil levels between the MIN and MAX indicators.
• Be extremely cautious when adding food to hot oil to avoid splashing. Ensure food is dry before frying.
• Allow the oil to cool completely before cleaning or moving the appliance.
• Keep children and pets away from the deep fryer during operation and while it is cooling.
• Do not operate the appliance if the power cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way.
• Always unplug the appliance from the power outlet when not in use and before cleaning.
• Wear appropriate protective gear, such as oven mitts, when handling hot components.

3. Product Overview and Components

Your GUTSTARK deep fryer is constructed from durable stainless steel and features a robust design for intensive use.

• Double Tanks: Two independent 6-liter tanks for a total capacity of 12 liters, allowing simultaneous frying of different foods.
• Independent Heating Elements: Each tank has its own high-performance heating element for efficient and controlled heating.
• Control Panels: Separate control panels for each tank, featuring adjustable temperature knobs (60°C to 200°C), power indicator lights, and heating indicator lights.
• Frying Baskets: Two ergonomic, durable frying baskets with heat-resistant handles.
• Lids: Two precise adjustment lids to cover the oil tanks during heating and cooking.
• Oil Level Indicators: Markings inside the tanks to guide proper oil filling.
• Overheat Protection: Integrated safety features to prevent overheating.
• Removable Components: Designed for easy disassembly for cleaning and maintenance.

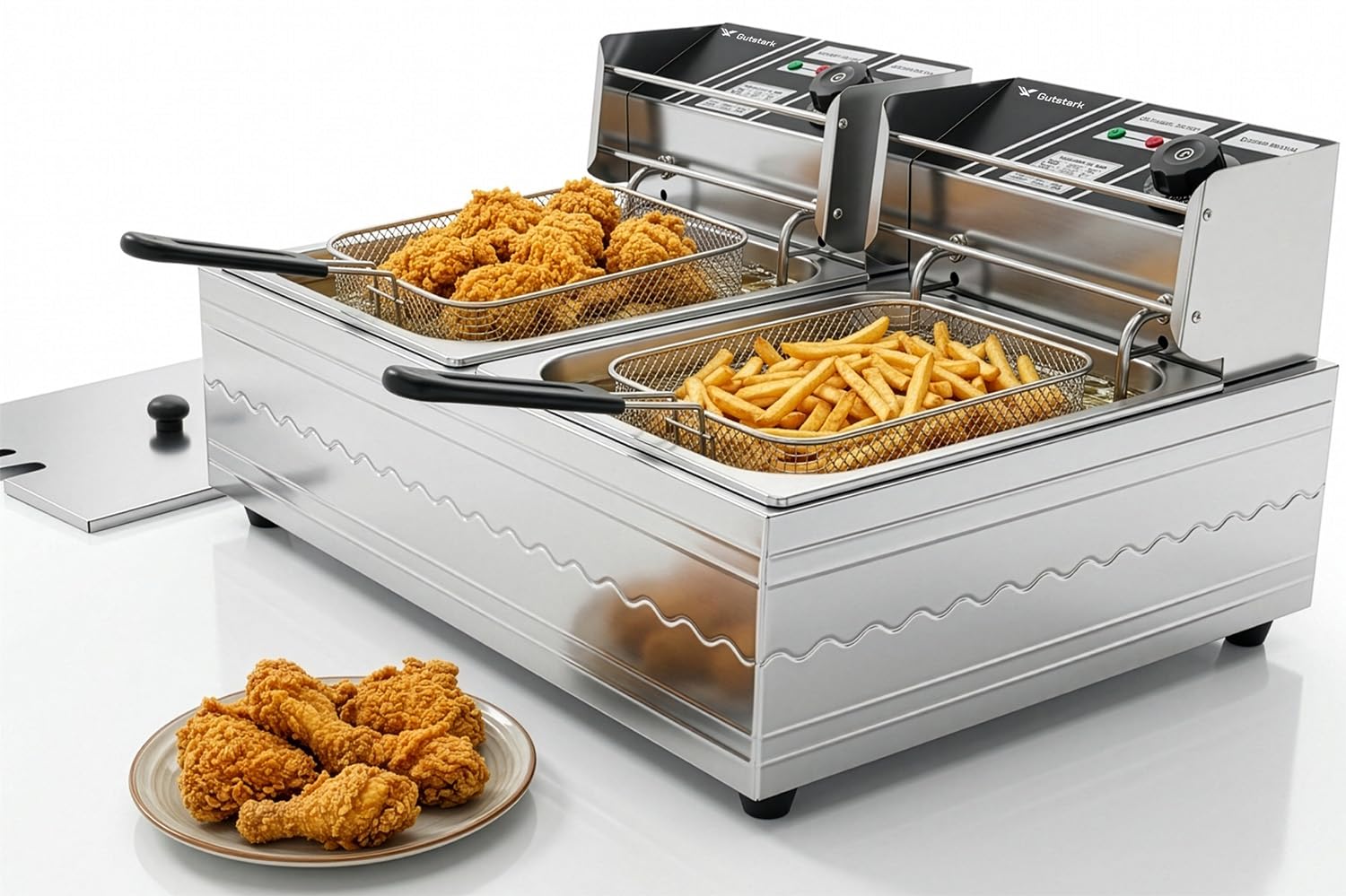

Image: The GUTSTARK Double Basket Deep Fryer, showcasing its dual tanks filled with french fries and fried chicken, illustrating its large capacity for cooking different foods simultaneously.

Image: Top view of the deep fryer with its covers closed, highlighting the advanced protection features including optimized heating, precise temperature sensors, overheat protection, and independent temperature controls for each basket.

Image: A detailed view of one of the control panels, showing the adjustable temperature knob, LED indicators for power and heat, and a guide for recommended frying temperatures for various foods like french fries, nuggets, chicken, and onion rings.

4. Setup

1. Unpack: Carefully remove all components from the packaging. Inspect for any damage.
2. Placement: Place the deep fryer on a flat, stable, and heat-resistant surface. Ensure there is adequate ventilation around the unit.
3. Assembly:
   • Insert the oil tanks into their respective compartments in the main unit.
   • Ensure the heating elements and control panels are securely positioned above the oil tanks.
   • Place the frying baskets inside the tanks.
4. Fill with Oil: Pour cooking oil into each tank, ensuring the oil level is between the MIN and MAX indicators. Do not overfill.
5. Power Connection: Plug the power cord into a grounded electrical outlet that matches the appliance's voltage (110V).

Image: Side view of the deep fryer, illustrating its design with precise adjustment lids, front control system, and visible oil level indicators for safe and efficient operation.

5. Operating Instructions

1. Preheat Oil: Turn the temperature knob on the desired control panel to the required temperature (e.g., 175°C for most foods). The red "Hot Light" indicator will illuminate, indicating the heating element is active.
2. Temperature Control: The deep fryer will automatically maintain the set temperature. The "Hot Light" will cycle on and off as the heating element activates to keep the oil at the desired temperature.
3. Prepare Food: Ensure food items are dry before placing them in the frying basket. Excess moisture can cause oil to splatter.
4. Frying:
   • Carefully lower the frying basket containing the food into the hot oil. Do not overload the basket.
   • Fry until the food reaches the desired crispness and color. Refer to the temperature guide on the control panel for common food items.
   • For optimal results, use one basket for items like french fries and the other for chicken or other items, leveraging the independent temperature control.
5. Draining: Once cooked, carefully lift the basket and hook it onto the side of the tank to allow excess oil to drain back into the tank.
6. Serving: Transfer the fried food to a serving dish lined with paper towels to absorb any remaining oil.
7. Shut Down: After use, turn the temperature knobs to the "OFF" position and unplug the appliance from the power outlet. Allow the oil to cool completely before proceeding to cleaning.

6. Maintenance and Cleaning

Regular cleaning ensures the longevity and hygienic operation of your deep fryer. Always ensure the unit is unplugged and completely cool before cleaning.

1. Cool Down: Allow the oil to cool completely (at least 2-3 hours, or overnight).
2. Remove Oil: Carefully remove the cooled oil from the tanks. You can filter and reuse oil if it's still clean, or dispose of it properly.
3. Disassemble: Remove the control panels with heating elements, oil tanks, and frying baskets. These components are designed to be easily detachable for thorough cleaning.
4. Clean Components:
   • Wash the oil tanks and frying baskets with warm, soapy water. Use a non-abrasive sponge or brush. Rinse thoroughly and dry completely.
   • Wipe the exterior of the main unit and control panels with a damp cloth. Do not use abrasive cleaners or immerse electrical components in water.
   • Ensure all parts are completely dry before reassembling or storing.
5. Reassemble: Once clean and dry, reassemble the components in reverse order of disassembly.

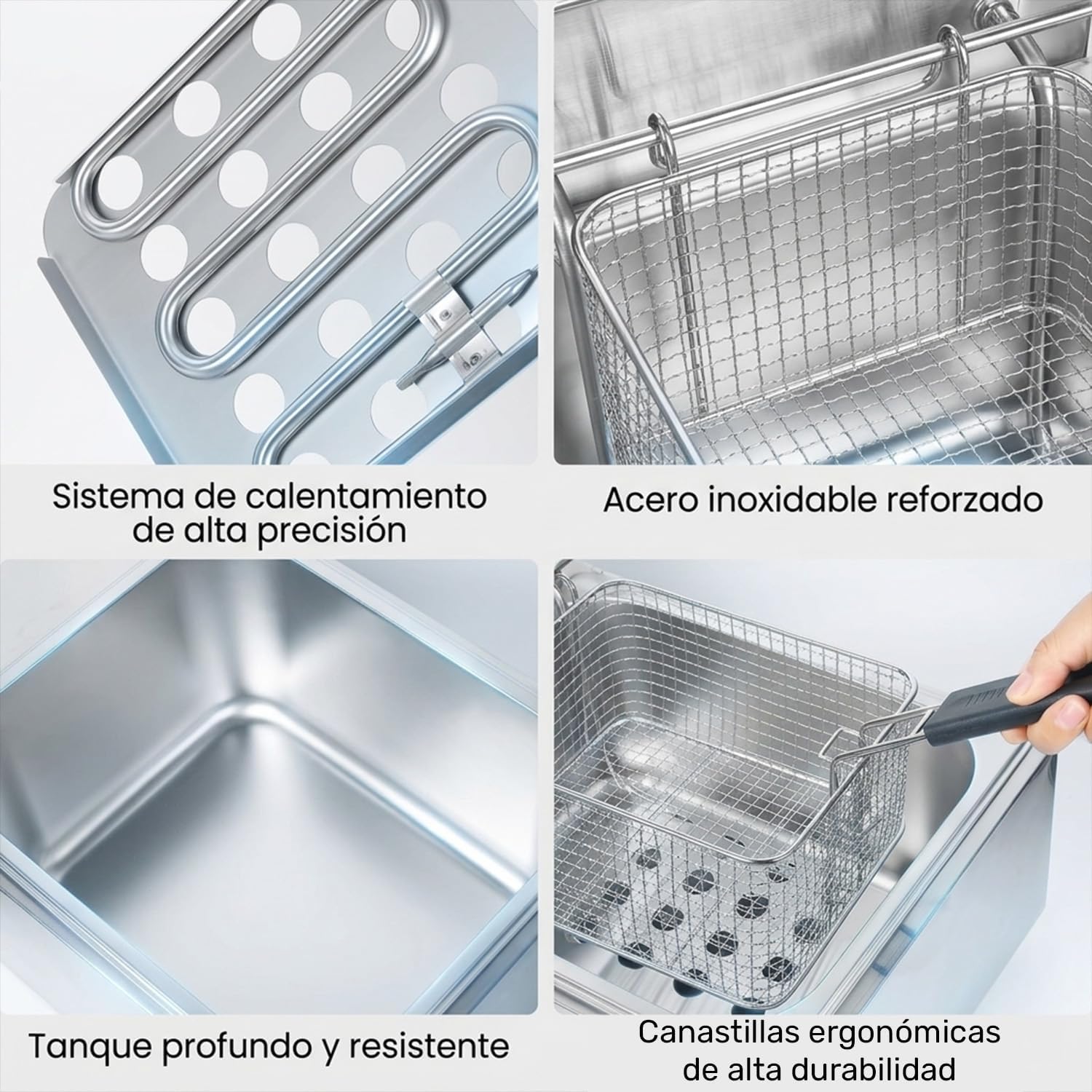

Image: A collage showing the internal components of the deep fryer, including the high-precision heating system, reinforced stainless steel construction, deep and resistant oil tank, and durable ergonomic baskets, all designed for easy cleaning and maintenance.

7. Troubleshooting

8. Specifications

Image: A detailed diagram illustrating the dimensions of the GUTSTARK Double Basket Deep Fryer, including the main unit, individual oil tanks, and frying baskets, with measurements in centimeters.

9. Warranty and Support

Your GUTSTARK Deep Fryer comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact GUTSTARK customer support.

• Return Policy: This product is eligible for a 30-day free return period from the date of purchase.
• Extended Protection: Optional protection plans are available for purchase, offering extended coverage against accidental damage for 3 or 4 years. Please refer to the product listing for details on Assurant protection plans.
• For technical assistance, spare parts, or warranty claims, please contact GUTSTARK customer service through your retailer or the official brand channels.
